Trigger Force 10g Thin Film Pressure Sensor Suitable for Medical and Intelligent Products

Port	Dongguan，China
Packaging	We will pack our products tightlytoensure that they are notdamagedin transit
Lead Time	3-7days

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Brand Name	Soushine

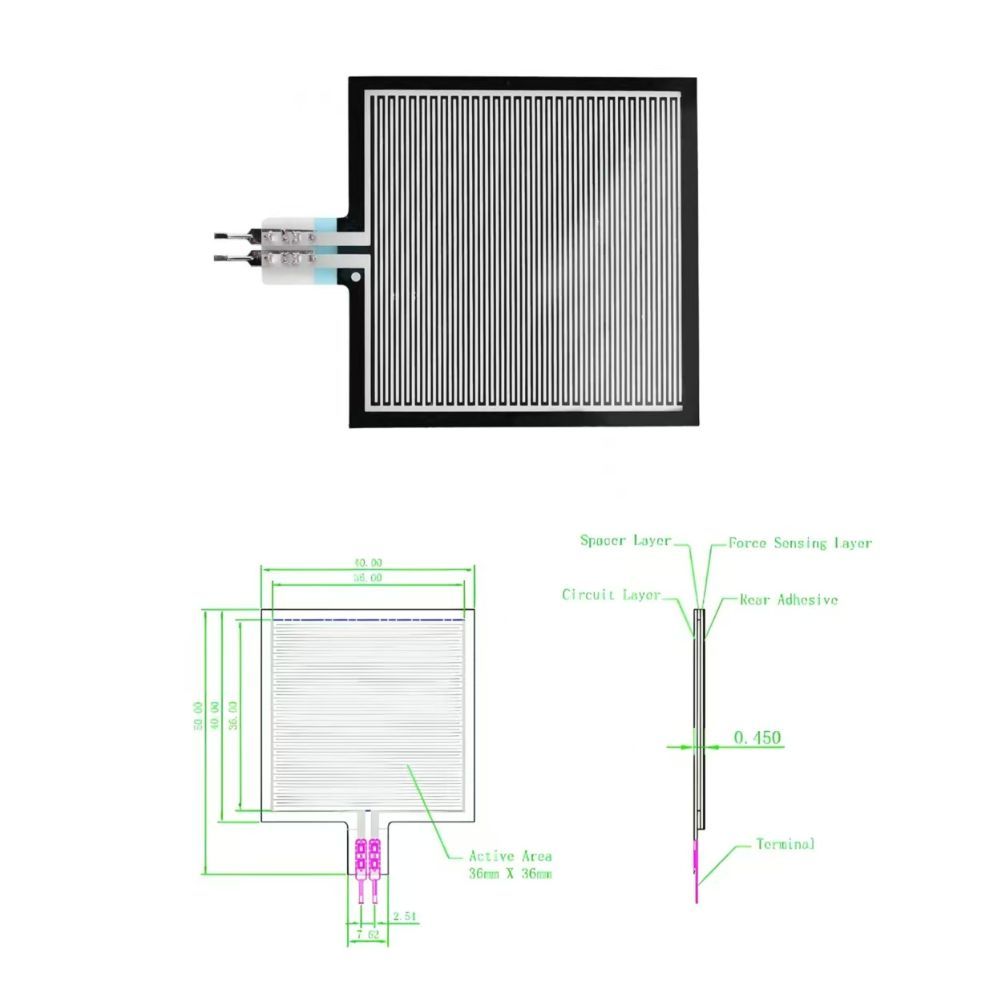

Model	FSR F406	Dimension	55.9*75.30mm
Sensing dimension	quadrate,51.40*50.8mm	Force measuring range	100g ~ 10KG
Thickness	≤0.3mm	Force repeatable (single part)	±2.5%，8KG applied,10 times
Off resistance	2MΩ	Hysteresis	10% average
Response time	<1 ms	Working temperature	-30℃~60℃

Product Details

Specification

Product Name	FSR400 Series
Product Brand	Soushine
Product Material	PET/FPC
Product Adhesive	3M/Luxking

Company Profile

Dongguan Soushine Industry Co., Ltd.

Dongguan Soushine Industry Co., Ltd. specialized in flexible pressure resistor sensormembrane sticker, keypad since 2008, which is a technical company intergratingDesign, R&D, Production and Sales.With 20 years experience, we have a strong ability to develop and produce custom-ized FSR sensor, Membrane Switch,Graphic overlay, Panel, etc.Those are widely used in communication,industrial control and medical equipment.automotive, instruments, household application and sex tovs. auto-control systemsand other high-tech fields.
We have 100 members, 300 devices and 4 production line, 3000 square meter workshopBesides, Soushine received IS09001:2015, RoHS compliant, ZHBE environmentSystem Certification.

FAQ

Q1.Are you manufacturer or trading company?
A:We are manufacturer and you are welcome to visit our factory, also video and pictures will let you check.

Q2.How to make an ORDER and QUOTATION?
A:Information will need as below:
(1)Drawings, photos, requirement, quantity
(2)Overlay Dimension:
Material: PET/PC
Finish:Matte/Glossy
Adhesive:3M467/3M468
Button :Embossed/Flat/Metal/Silicone/Rubber/Gum
LED :YES/NO
Pin: need to check the circuit diagram
Pitch:2.54mm
Cable Length:As requirement
Connector: Female /Male/DoPont Connector
Hole: None
And better send us the design drawing or samples together with other detailed datas, then we'll customize the membrane switch upon your requests.

Q3. What about the sample policy, For FREE?
A:(1)Free Samples: If you paid the shipment fee, we can provide free samples for you.
(2)Custom Samples: You can give me the drawings, requirement and quantity, we will give you a quotation.

Q4.What is the production time?
A:The sample time is about 1-7days.The quantity order would take 1-3 weeks.For complicated product should take 1 more week.

Q5.Can you do the design for us?
A:Yes, no problem.There are many professional engineer having rich experience in graphic overlays& circuit designing.Just let us know your ideas and we will help to carry out your ideas into perfect products. If you send me your samples, we will design the drawings based on the samples and can revise the graphic of the face.

Q6.How to control quality?
A:(1)We process the products strictly based on the raw material list.
(2)Our many engineer own many years experience and are very responsible.
(3)Warranty period is one year. If you find some products is bad, you can tell us, we will give you solutions.

Q7.How to guarantee the after sales service?
A:We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.

Q8.Shipping ways & Delivery Time?
A:Shipping by: UPS/ Fedex /DHL /TNT or other
