Working Voltage | 13.8V~24V | Peak Current | 3A |
TM-990D is a dual working modes 2-way radios. It combines GSM WCDMA LTE SIM Card IP radio and UHF analog walkie-talkie in one piece. It can work as a Gateway in Dispatcher center to transmit between Analog and PoC
Main Features:
1. Wide verizon LCD
2. Protection to following situations:over voltage, over current, overloading and thunderstrike
3. Screen flip function
4. Shortcut to switch group, user, and talking history
5. Loud audio and audio control lock function
6. Multimedia Speaker to ensure audio quality
7.Wide range of input voltage options: 12-28V
8. Can be a 5V 1A quick charger for mobile phone
9. 8-pin secondary development jack available to other APPs like oil consumption
10. Maximum bracket rotate degree: 270 degree
Application:
Unique
for: Security guard, construction site, industry
production site, commercial use like: Hotel, hospital,
university, commercial event; sports
Popular
for: Airport, railway, army, government, rescue, police,
outdoor adventure, logistics, taxi, truck, camping, travelling,
big shopping mall, big hotel, outdoor events, etc.
Specifications:
Type |
Parameter Item |
Specification |
|
Mechanical Properties |
Model No. |
TM-990D |
|
Dimension |
72(H)×135(W)×199(L)mm |
||
Weight |
900g |
||
Working Temperature |
-30℃ to + 75℃ |
||
Basic Parameter |
Working Voltage |
13.8V~24V |
|
Working Current |
250mA @ UTMS 2100/900 200Ma @ GSM900 3A @ Repeat |
||
Peak Current |
3A |
||
RF Parameter |
LTE FDD(Have multiple versions of LTE Bands for different countries) |
Band1: 2100MHz Band3: 1800MHz Band7: 2600MHz Band8: 900MHz Band20: 800MHz |
|
WCDMA |
Band1 : 2100MHz Band2: 1900MHz OR Band8 : 900MHz Band5 : 850MHz |
||
GSM |
GSM/GPRS : 900/1800 MHz |
||
Maximum Output power |
WCDMA 900 /2100MHz : Power Class 3 (+24dBm +2.5dBm /-1.5dBm); GSM/GPRS 850 /900 MHz : Power Class 4 (+33dBm +2.5 dBm /-0.5 dBm); GSM/GPRS 1800 /1900 MHz : Power Class 1 (+30dBm +2.5 dBm /-0.5 dBm); |
||
Receiving Sensitivity |
WCDMA 900:≤-108 dBm; WCDMA 2100:≤-109 dBm; GSM850 /900 /1800 /1900 : ≤-106 dBm; |
||
GPS |
GPS |
GPS Positioning,1.57542GHz |
|
Sensitivity |
Catch -144dBm, Track -159dBm |
||
Technology Standard |
Data Speed Rate |
GSM CS : UL 9.6kpbs / DL 9.6kpbs GPRS : Multi-slot Class 10 EDGE : Multi-slot Class 12 WCDMA CS : UL 64kpbs / DL 64kpbs WCDMA PS : UL 384kpbs / DL 384kpbs |
|
Protocol |
HSDPA / WCDMA/ EDGE/ GPRS/ GSM |
||
Analog Parameter |
GENERAL |
||
Frequency Range |
UHF : 400-480MHz |
||
Channel Number |
199 |
||
Channel Space |
25 /12.5KHz |
||
Frequency Stability |
±2.5 ppm |
||
TRANSMITTER |
|||
Wide band |
Narrow band |
||
Power Output |
10W |
||
Modulation |
16KΦF3E |
11KΦF3E |
|
Spurious Emission |
≤-36dBm |
≤-36dBm |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
RECEIVE |
|||
RF Sensitivity (12db SINAD) |
0.20 μV |
0.20 μV |
|
Adiacent Channel selectivity |
≥60dB |
≥55dB |
|
Intermodulation Rejection |
≥65dB |
≥60dB |
|
Spurious Response |
≥65dB |
≥65dB |
Packaging & Shipping :

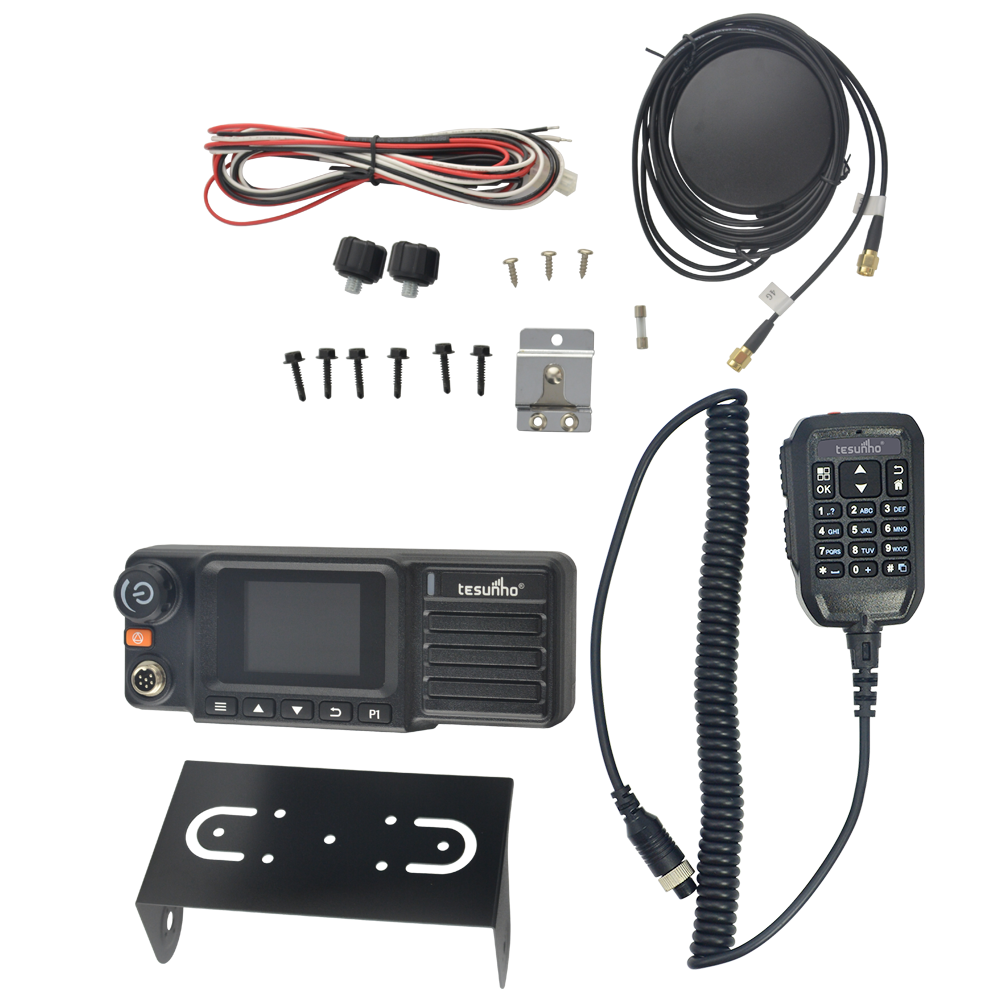

Standard Accessories:

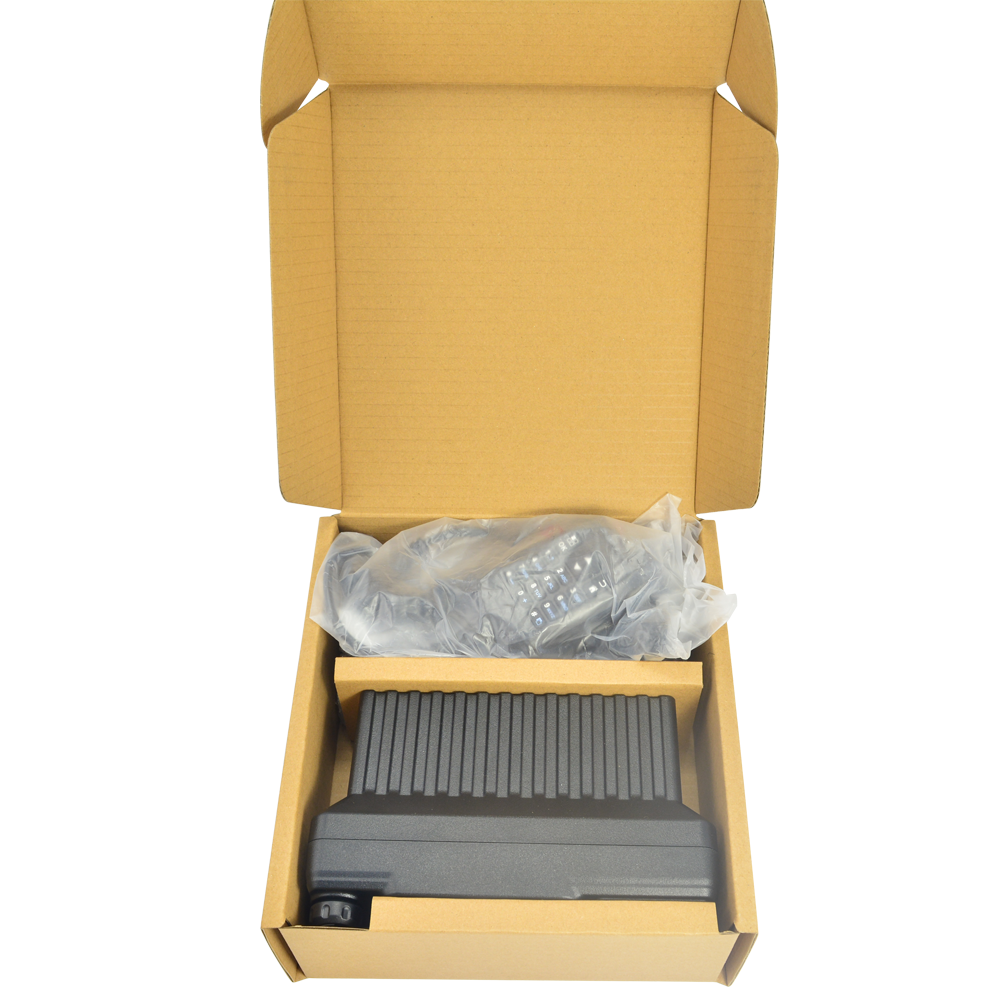

Packing Details
DIMENSION & WEIGHT |
||||||
Item |
One Unit |
Standard Carton |
Delivery Method |
|||
Size(cm) |
Gross Weight(kg) |
Quantity(pcs) |
Size(cm) |
Gross Weight(kg) |
||
TM990D |
22.5*22*8.0 |
1.68 |
10 |
48*42*24 |
17.68 |
DHL/FedEx/TNT/EMS/By Air/By sea |
&
