MOQ | 2 Pieces |
Port | Xiamen/Shenzhen |
Packaging | Carton |
Lead Time | 3-5days |
Dimension | 40(H)×59(W)×114(L)mm | Working Temperature | -30℃ to + 75℃ |
Working Voltage | 3.3V~4.2V (Standard 3.8V) |
Main Features :
1.It has small size, easy for users to carry
2.It has LCD display with listing menu, simple and clear for start-learners
3.It can receive dispatcher message
4.SOS – Emergency button is critical feature for two way radio
5.GPS optional: With the help of dispatcher, user can check other partner’s radio location
6.Last call function, allow you to repeat call if you missed it
7.Built-in charger and desk charger for options
8.Special accessory like 6 way multi-unit charger available
Application :
Unique for: Camping, Travelling, Commercial use, Shopping mall,Big Hotel, Outdoor Events.
Popular for: Security, Construction, Industry, Logistics, Taxi, Truck, Airport, Railway, Army, Government, Rescue, Police, Outdoor adventure, etc.
Personal Sale Feeling:
1. Small
size: Leisure use, like visitors or family members
2. Unlimited talking range, can make sure the production warehouse timely communication easily command completed successfully
3.GPS, can check the gps location through the native walkie talkie, also can check the radio location on PC dispatcher, every salesman in large shopping mall carrying one, so that the manager can know if the salesman stands on her position.
Type |
Parameter Item |
Specification |
Mechanical Properties |
Model No. |
TH-282 |
Dimension |
40(H)×59(W)×114(L)mm |
|
Weight |
300g |
|
Working Temperature |
-30℃ to + 75℃ |
|
Basic Parameter |
Working Voltage |
3.3V~4.2V (Standard 3.8V) |
Working Current |
500mA@LTE 200mA@WCDMA 220mA@GSM |
|
Peak Current |
2A |
|
RF Parameter |
LTE FDD |
Band1: 2100MHz Band2: 1900MHz Band3: 1800MHz Band4: 1700MHz Band5: 850MHz Band7: 2600MHz Band8: 900MHz Band12: 700MHz Band17: 700MHz Band20: 800MHz |
WCDMA |
Band1 : 2100MHz OR Band8 : 900MHz |
|
GSM |
GSM/GPRS : 900/1800 MHz |
|
Maximum Output power |
LTE:23 ± 2.7dBm(Power Class 3) WCDMA:24 + 1/-3dBm(Power Class 3) GSM900:33 ± 2dBm(Power Class 4) GSM1800:30 ± 2dBm(Power Class 1) |
|
Receiving Sensitivity |
LTE FDD≤-100dBm; WCDMA900: ≤-108dBm; WCDMA2100: ≤-109dBm; GSM 900/1800: ≤-106dBm |
|
GPS |
GPS |
GPS Positioning,1.57542GHz |
Sensitivity |
Catch -144dBm, Track -159dBm |
|
Technology Standard |
Data Speed Rate |
LTE FDD-Uplink 50 Mbps / Downlink 150 Mbps WCDMA-Uplink 5.76 Mbps / Downlink 42 Mbps EDGE-Uplink 236.8Kbps / Downlink2.8 Mbps GPRS-Uplink85.6Kbps / Downlink85.6 Mbps |
Protocol |
Support embedded TCP&UDP Protocols; Support Protocols PAP and CHAP used for PPP conncetion; 3GPP TS 27.005,27.007 |
Please check below link for real product.
https://youtu.be/GBQIyJ-_BlY

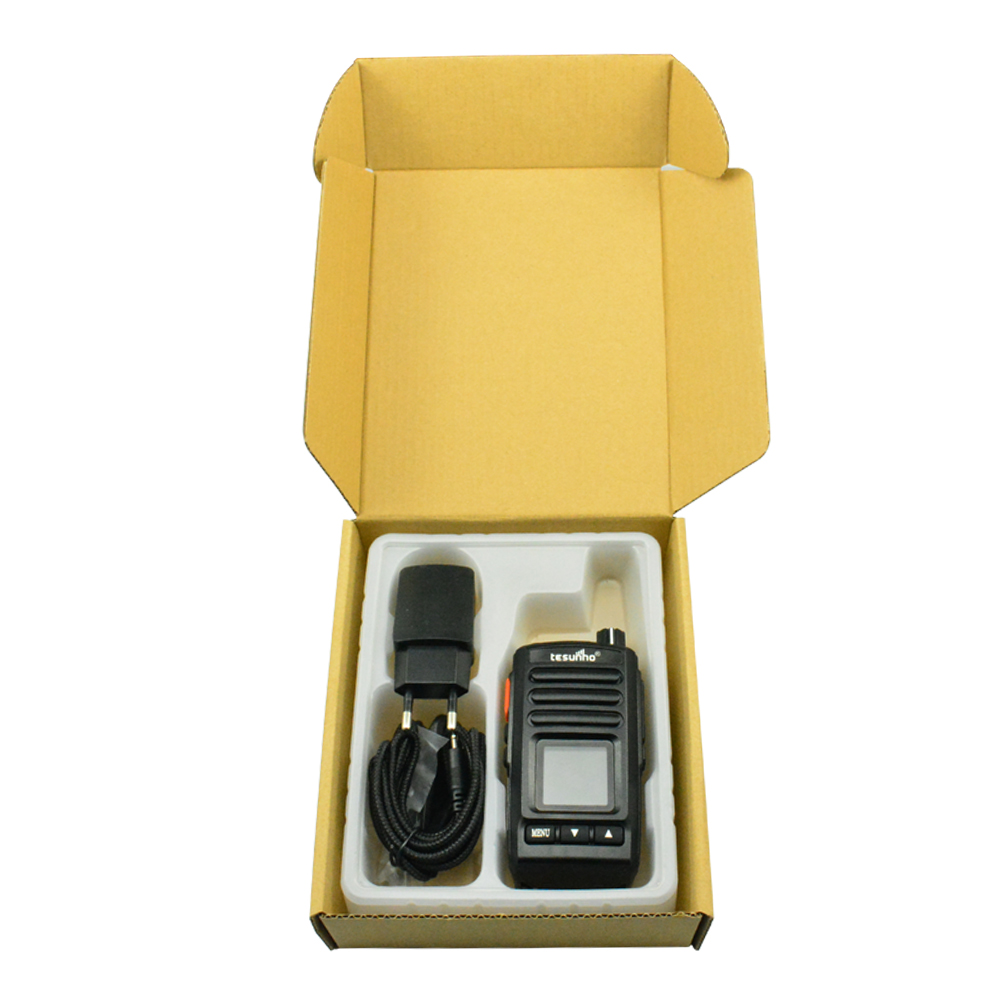

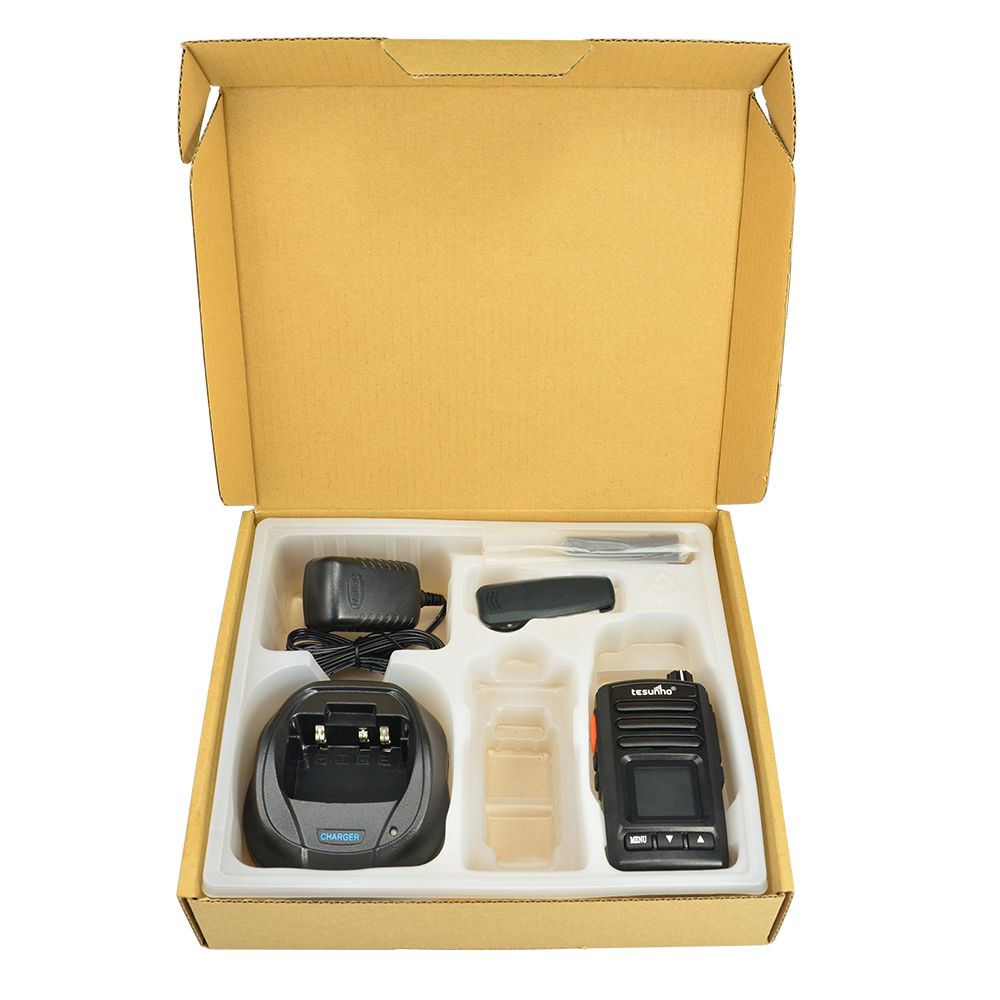

Packaging & Shipping :
Packing Details:
DIMENSION & WEIGHT |
||||||
Item |
One Unit |
Standard Carton |
Delivery Method |
|||
Size(cm) |
Gross Weight(kg) |
Quantity(pcs) |
Size(cm) |
Gross Weight(kg) |
||
TH282 |
15.5*17.5*6 |
0.42 |
30 |
49*38*32 |
13.8 |
DHL/FedEx/TNT/EMS/By Air/By sea |
TH282 |
21.5*25.5*5.5 |
0.54 |
20 |
37*34*32 |
12.3 |
DHL/FedEx/TNT/EMS/By Air/By sea |
Lead Time
Item |
Quantity(pcs) |
Production Lead Time |
Walkie talkie |
1-50 |
1-3 days |
20-200 |
2-5 days |
|
200-500 |
2-10 days |
|
500-1000 |
5-21 days |
