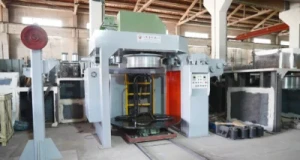

The Inverted Bot Drawing Machine

Quick Details (View All)

Model NO.600-1400mm Belt Size (Two) mm1600*300
Functionto Polish The Surface of The Wire ColorDecided by Customer
Delivery Time60-75 Days Transport PackagePlastic Film and Wooden Box
SpecificationDecided by Customer TrademarkJIEXIANG
OriginChina Production Capacity1000

Product Details

Product Description

Company Info.

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • After Sales Service
Overview

Product Description

Product Description


1. Company introduction:
Wuxi Jiexiang Machinery Co., Ltd. was established on February 26, 2010. It is located on the shore of the beautiful Taihu Lake, at the core of Suzhou, Wuxi, and Changzhou, 10 kilometers away from Wuxi Airport, and close to the Beijing-Shanghai Expressway, making transportation very convenient. The company specializes in the production of DL500-1600 inverted drawing machines, LZ-12/560 straight-in drawing machines, LW1-10-560 pulley drawing machines, LT200-560 water tank drawing machines, precision drawing machines specially used in the fastener industry, as well as wire drawing auxiliary machines, pointing machines, elephant trunk type unwinding machines, spooling machines, feeding machines, butt welding machines, etc. Our products have been sold to the United States, Japan, Europe, Vietnam, Philippines, Indonesia, India, Argentina, Egypt, and other countries. In the domestic and foreign metal products industry and fastener industry, we enjoy a good reputation.

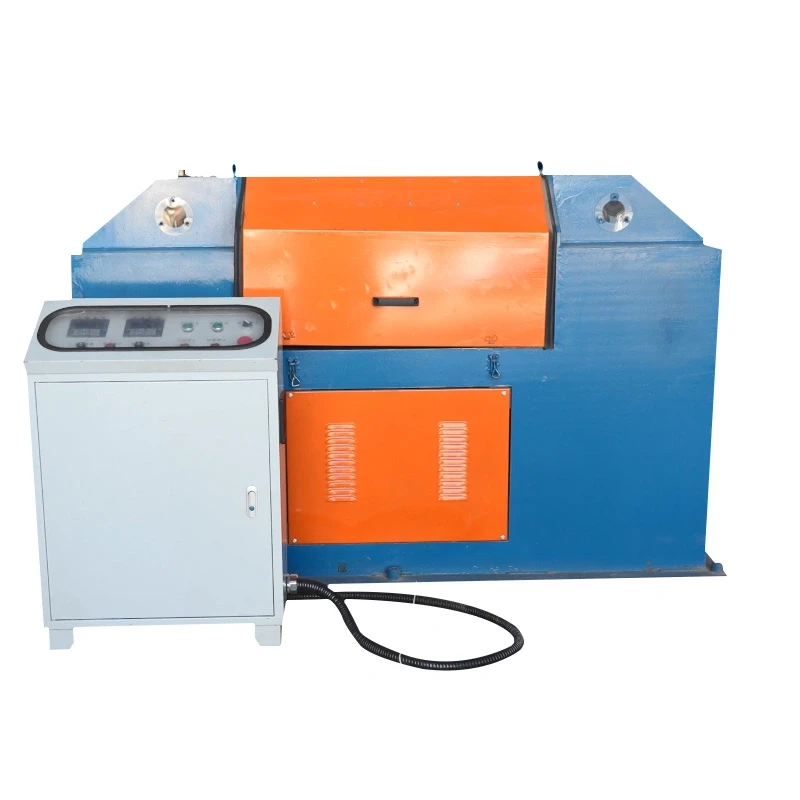

2. Sand polishing machine:


Product Description


1. The machine adopts mechanical method to process the surface of metal wire rod, making it grinding, polishing, rust removal, instead of the original pickling, environmental protection and energy saving, which can meet the requirements of batch production and achieve high work efficiency, the product quality is stable and reliable.
Technical data:

Models HS-XP-1 HS-XP-2 HS-XP-3 HS-XP-4
Diameter of machining disc(mm) Φ15.0-25.0 Φ8.0-16.0 Φ5.0-8.0 Φ5.0-8.0
Processing speed(m/s) ≤2 ≤2 ≤2 ≤2
Belt size(Two)mm 1600*300 1350*300 1250*300 1250*150
Dimensions (length * width * height))mm 2800*1200*1420 2650*1050*1390 2500*950*1320 2000*900*1300
Machine size (about kg) 2650 2150 2000 1650

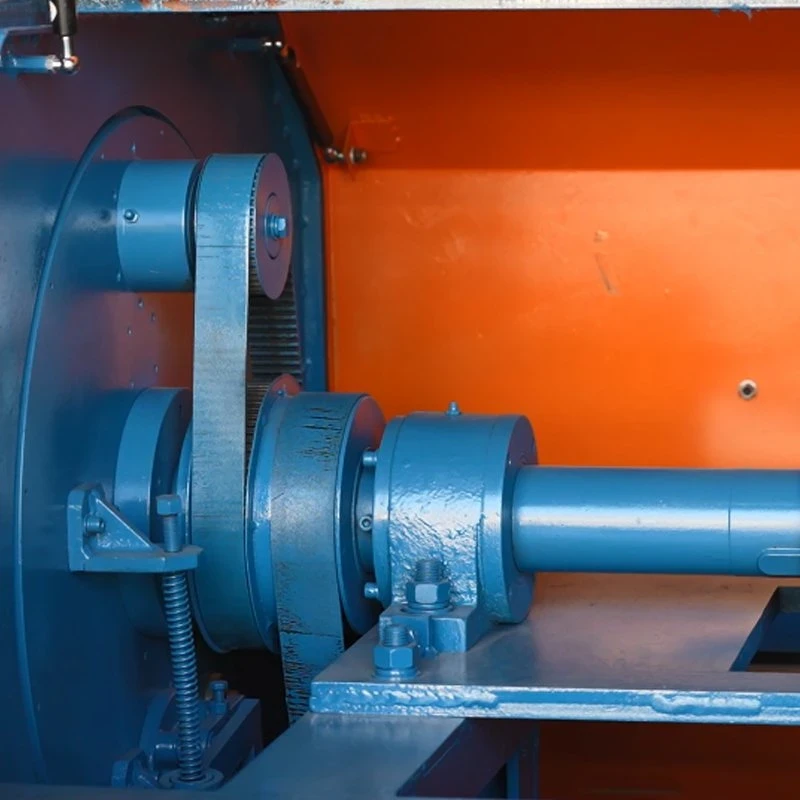

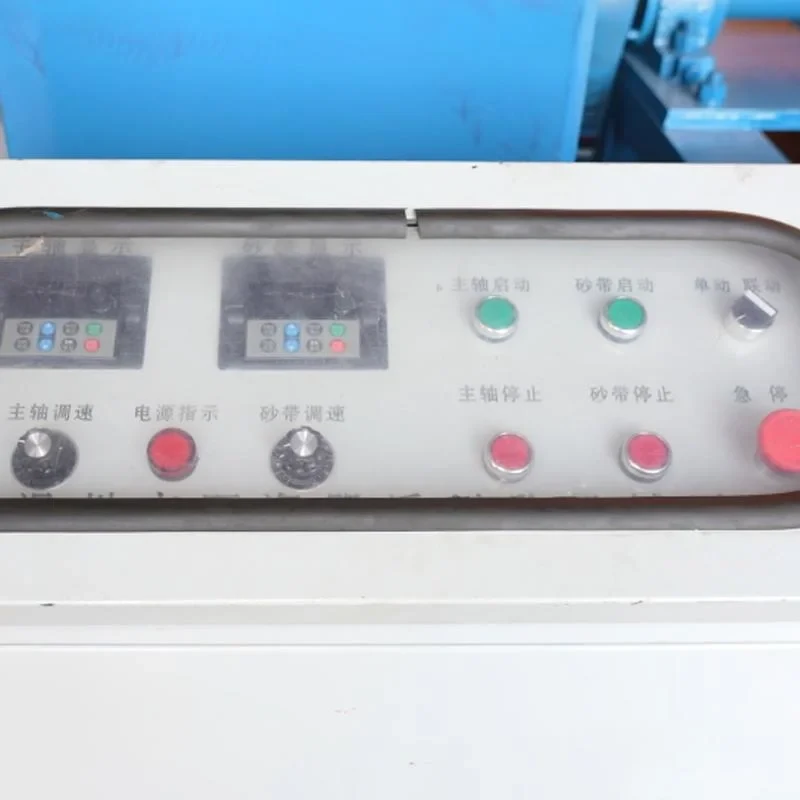

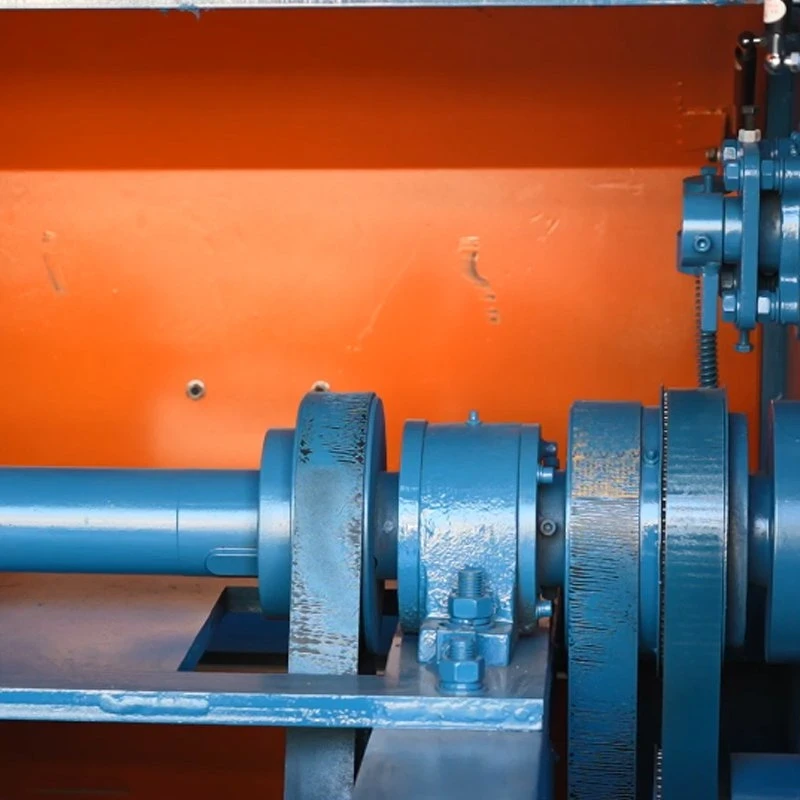

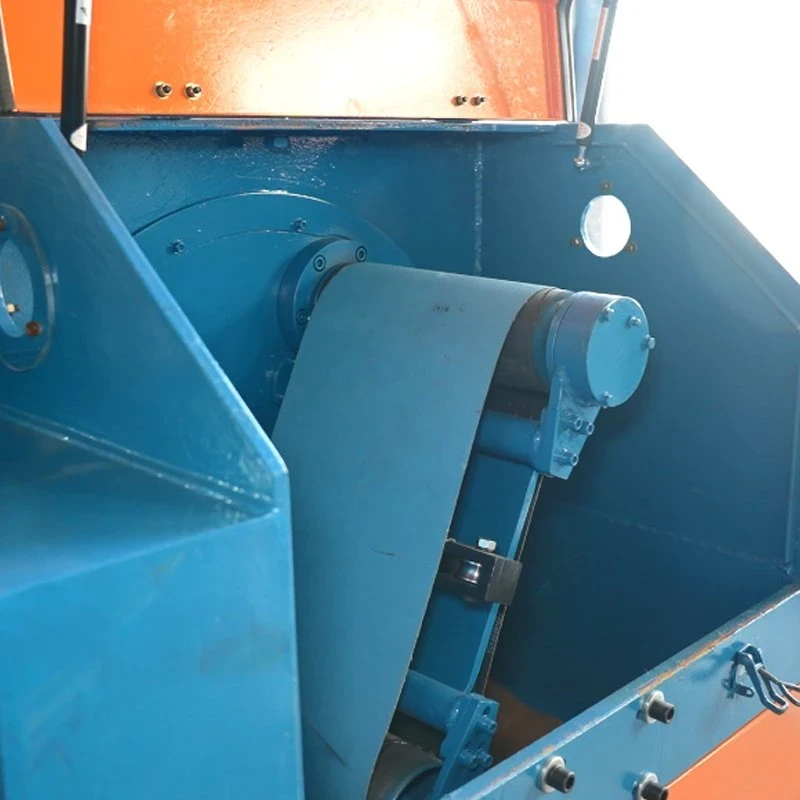

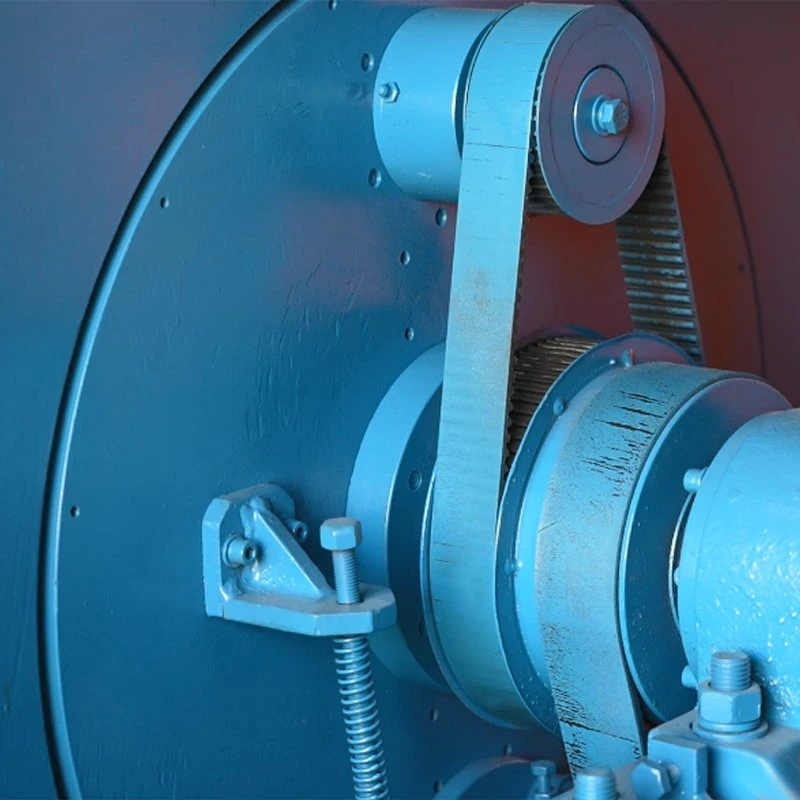

Detailed Photos
