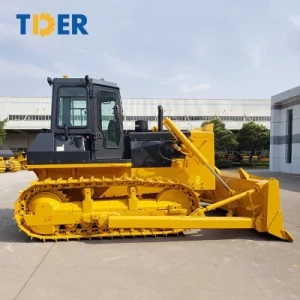

Tder Mining Equipment Mini Track Bulldozer Crawler 180HP 160HP 220HP 320HP Small Bulldozer for Sale

Name: Tder Mining Equipment Mini Track Bulldozer Crawler 180HP 160HP 220HP 320HP Small Bulldozer for Sale
Brand: Xiamen Tder Industrial Co., Ltd.
SKU: Tradewheel_2509821
Price: 61073 USD
Availability: InStock

FOB Price 61073 - 71656 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	TC160/180/220/320	Engine Power	160HP
Certification	CE, ISO9001: 2000	Condition	New
Color	Yellow	Rated Power	117kw/2200rpm
Overall Length	6104mm	Horsepower	160HP
Engine	Weichai	Dozing Capacity	4.5m3
Total Weight	17000kg	Optional	Ripper
Transport Package	Container or Bulk	Specification	610433883032mm
Trademark	LTMG	Origin	China
HS Code	84291190	Production Capacity	1000 Sets/Year

Product Details

Product Description

Company Info.

Product Description

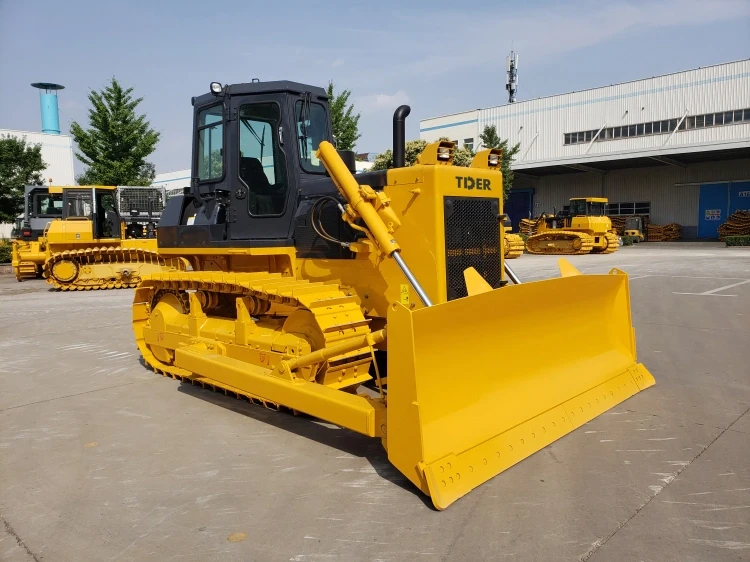

TDER Mining equipment mini track bulldozer crawler 180hp 160hp 220hp 320hp small bulldozer for sale

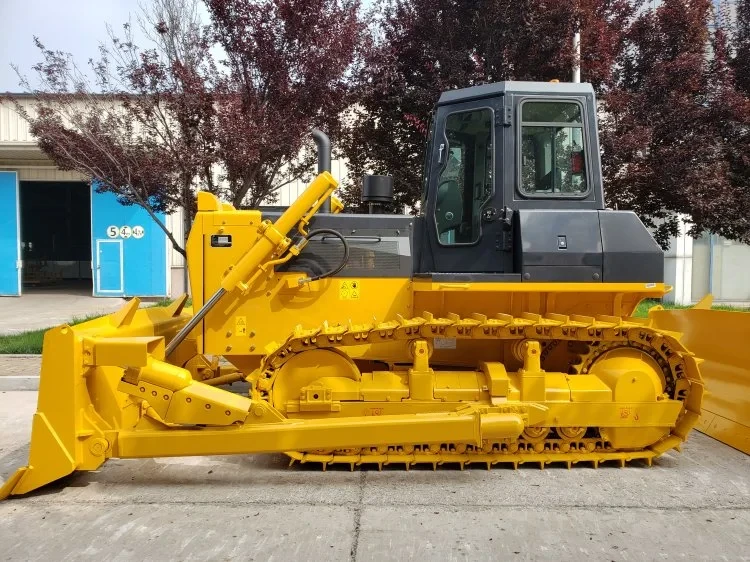

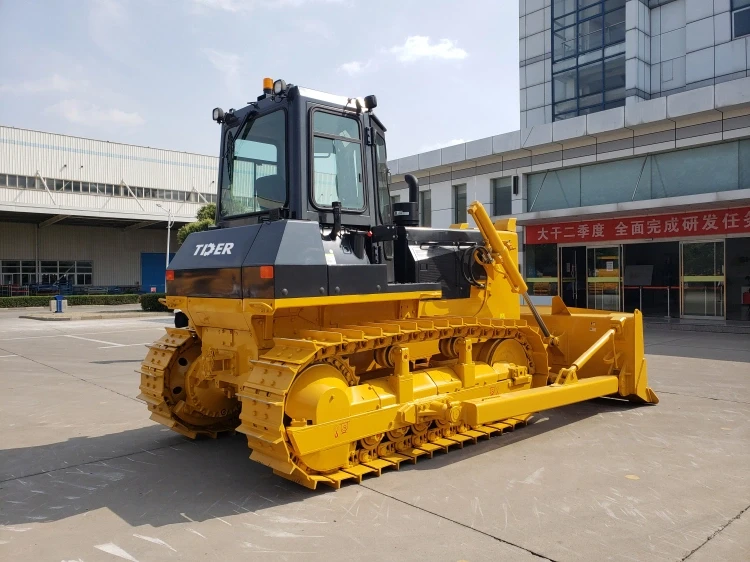

The specification of TC160 160HP Bulldozer

Engine	Model & type	Shangchai SC11CB184G2B1/Weichai WD10G178E25; water-cooled, in-line, 4-stroke injection direct
	Horsepower	Gross power: 131/175/1850 kW/HP/rpm // Net power: 120/160/1850 kW/HP/rpm
	Number of cylinders	6-126 x 130 mm (bore x stroke)
	Piston displacement	9.726 L
	Min. fuel consumption	214 g/kW·h
	Maximum torque	765 N·m@1300 rpm
Power transmission system	Torque converter	3-element, 1 stage, 1 phase
	Transmission	Planetary gear type, power-shift, forced lubrication
	Main drive	Spiral bevel gear, single-stage speed reduction, splash lubrication
	Steering clutch	Lubricated, multi-disc, spring loaded, hand hydraulically separated, inter-linking with steering brake
	Steering brake	Lubricated, floating band structure, foot brake with hydraulic booster
	Final drive	2-stage speed reduction of spur gear, splash lubrication
Travel speed	Gear	1st	2nd	3rd
	Forward	0~3.29 km/h	0~5.82 km/h	0~9.63 km/h
	Reverse	0~4.28 km/h	0~7.59 km/h	0~12.53 km/h
Undercarriage system	Type	Sprayed beam, suspended structure of equalizer
	Carrier rollers	2 each side
	Track rollers	6 each side
	Track type	Assembled, single-grouser
	Width of track shoes	510 mm
	Pitch	203.2 mm
Hydraulic System	Maximum pressure	14 MPa
	Pump type	Gear pump
	Discharge	243 L/min
	Bore of working cylinder × no.	110 mm × 2
Blade	Blade Type	Straight-tilt	Angle	U- Blade
	Dozing capacity	4.5 m 3	4.4 m 3	5.0 m 3
	Efficiency (Theoretical value 40 m)	225 m 3 /h	225 m 3 /h	250 m 3 /h
	Blade width	3388 mm	3970 mm	3556 mm
	Blade height	1149 mm	1040 mm	1120 mm
	Maximum drop below ground	540 mm	530 mm	540 mm
	Lifting height of blade	1095 mm	1110 mm	1095 mm
Riipper (Optional)	Maximum digging depth of 3-shank ripper	572 mm
	Maximum lift above ground	592 mm
	Weight of 3-shank ripper	1667 kg

FAQ:
1.What Certificate do you have?
TDER workshop meet with the ISO9001:2008 Quality System. .
All of our products with CE certificate. Some of our products meets the EPA requirements.

2.Can you customize and design as the clients requirement?
TDER will try its best to meet all kinds of clients special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as clients need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first.
Details to see the TDER warranty policy for each model.

4.Can you produce the products labeled with the clients brand?
With the authorization of the brand, we can OEM for our clients.

5.What payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.

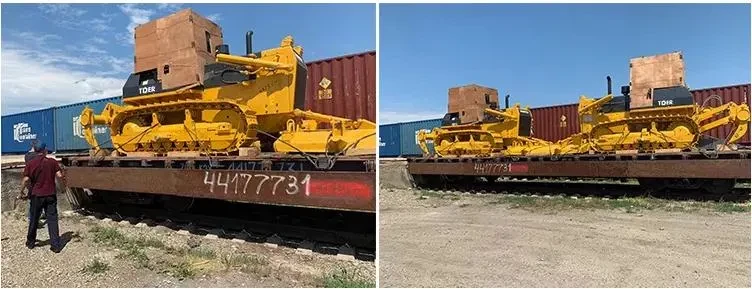

6.What logistics way we can work for shipment ?
We can ship construction machinery by various transportation tools
1.For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,
Africa,Oceania and Europe etc,either by container or Bulk shipment.
2.For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship
trucksby railway.
3.For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,
UPS,or Fedex.
