Tder Empilhadeira Fd50 Cpcd50 11000 Lbs 5 Ton Diesel Forklift in Stock

Quantity	1 - 2	3+ - 3+
Price	US $10,243.00	US $9,946.00

Contact Now

Quick Details (View All)

Model NO.	FD50	Fuel	Diesel
Load center	500mm	Lift height	3000~5000mm
Condition	New	Engine	Chinese Engine
Color	Could Be Designed by Buyer	Optional	Solid Tires, Side Shift, Three Stage Mast, etc

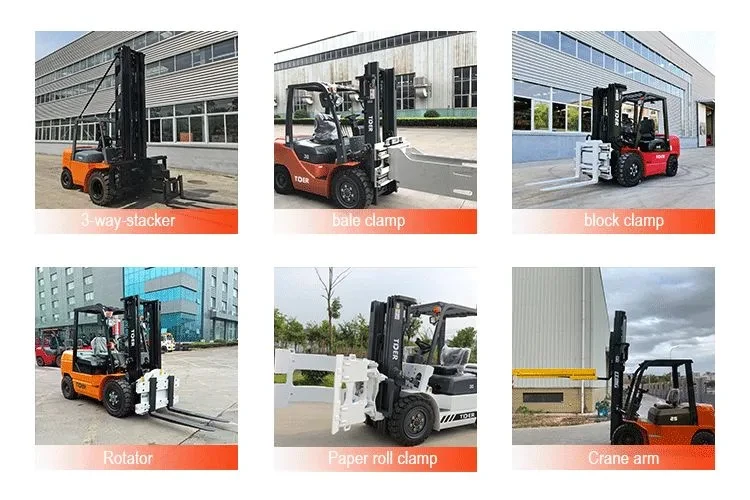

Attachment	Paper Roll Clamp, Bale Clamp, Crane. etc	Transport Package	Export Package
Specification	310014852300 mm	Trademark	TDER
Origin	China	HS Code	842710900
Production Capacity	1000 Units/Year

Product Details

Product Description

Company Info.

Product Description

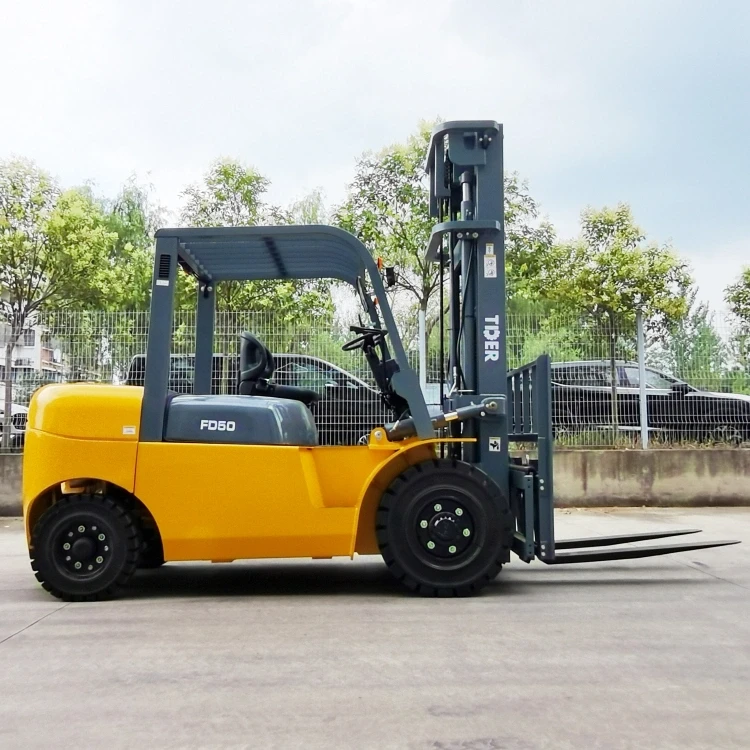

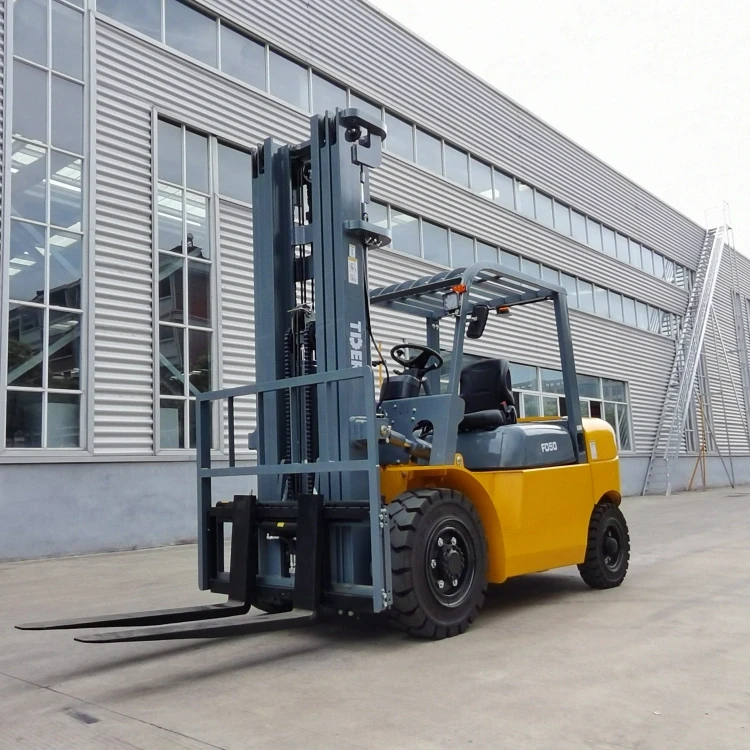

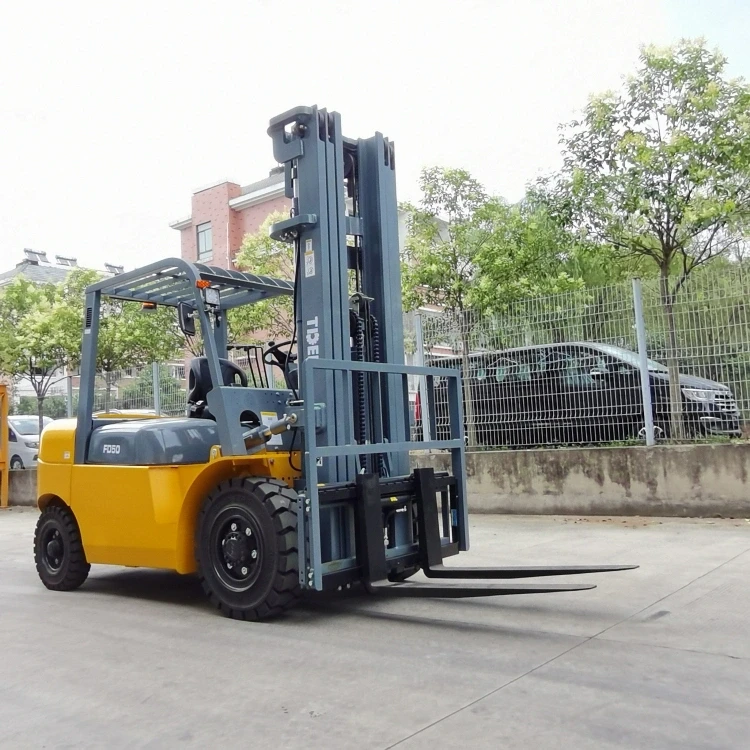

TDER empilhadeira FD50 CPCD50 11000 lbs 5 ton diesel forklift in stock

Product Specification

Model		FD20	FD40	FD50	FD60
Load Centre		500mm	500mm	600mm	600mm
Load capacity		2000kg	4000kg	5000kg	6000kg
Mast		2-stage-mast	2-stage-mast	2-stage-mast	2-stage-mast
Fork size		1070×120×40	1070×150×50	1070×150×50	1220×150×60
Engine		Quanchai	Quanchai	Quanchai	Quanchai
Tire	Front	7.00-12-12PR	300-15-18PR	300-15-18PR	8.25-15-14PR
Tire	Rear	6.00-9-10PR	7.00-12-12PR	7.00-12-12PR	8.25-15-14PR
Length to face of fork		2595mm	3260mm	3260mm	3440mm
Overall Width		1150mm	1460mm	1460mm	2010mm
Overhead Guard Height		2070mm	2340mm	2340mm	2430mm

Model		FD70	FD80	FD100	FD120
Load Centre		600mm	600mm	600mm	600mm
Load capacity		7000kg	8000kg	10000kg	12000kg
Mast		2-stage-mast	2-stage-mast	2-stage-mast	2-stage-mast
Fork size		1220×150×70	1220×150×70	1520×175×85	1520×180×100
Engine		Quanchai	Quanchai	Quanchai	Yuchai
Tire	Front	8.25-15-14PR	8.25-15-18PR	9.00-20-14PR	10.00-20-18PR
Tire	Rear	8.25-15-14PR	8.25-15-18PR	9.00-20-14PR	9.00-20-18PR
Length to face of fork		3565mm	3565mm	4280mm	4685mm
Overall Width		2010mm	2010mm	2170mm	2200mm
Overhead Guard Height		2430mm	2430mm	2510mm	2540mm

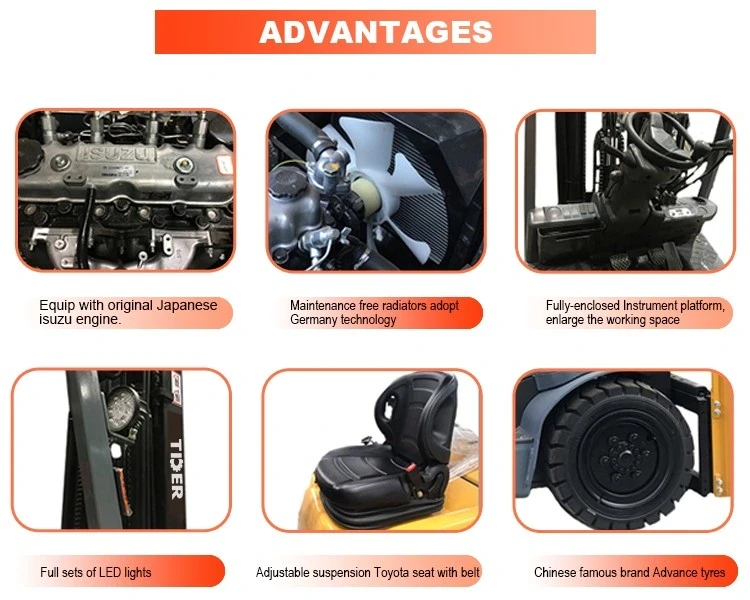

Features
1. Power system
Equipped with Chinese-made engines with reliable power and excellent environmental performance;
Optional Japanese engine USA engine original imported engines.
2. Security system
Equipped with OPS or ORS seat and brake switch to prevent misoperation and protect the driver and forklift from all directions.
3. Environmental protection system
The optional three-way catalytic device reduces harmful emissions next to the low-emission engine; the sound insulation cotton is used to reduce noise, and the high exhaust system is used to reduce dust.
