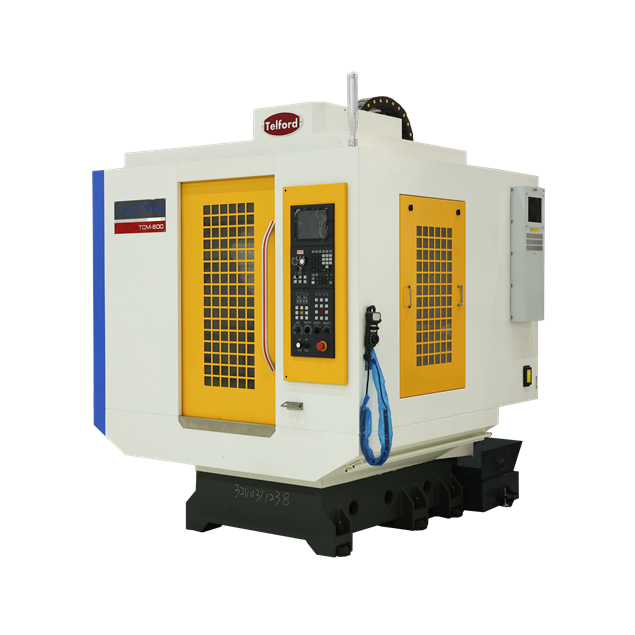

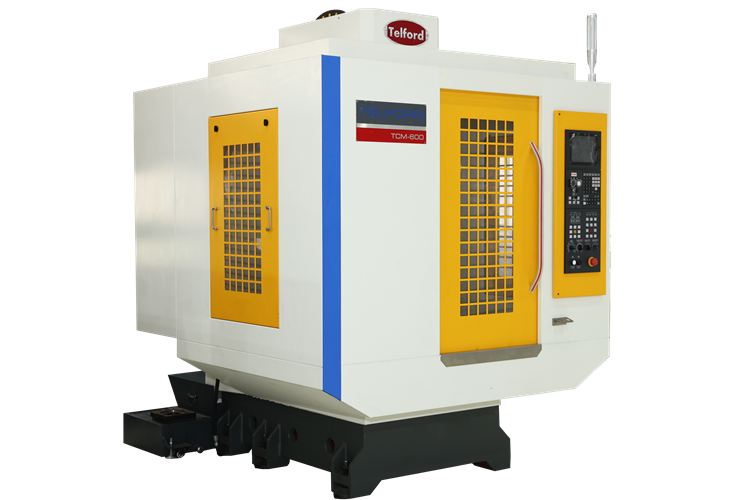

| Condition | New | Spindle Taper | BT-30 |
| No. of Spindles | Single | Type | VERTICAL |
| Dimension(L*W*H) | 2200*2100*2300 | Weight (T) | 3.1 T |
| Table Size (mm) | 700*420 | CNC Control System | GSK, FANUC, KND, Siemens |
| Number of Axes | 3 | Table Travel (X) (mm) | 600 |
| Table Travel (Y) (mm) | 400 | Table Travel (Z) (mm) | 300 |
| Positioning Accuracy (mm) | u00b10.003mm/300mm | Repeatability (X/Y/Z) (mm) | u00b10.003mm |
| Range of Spindle Speed(r.p.m) | 8000 - 20000 r.p.m | Spindle Motor Power(kW) | 3.7/5.5 |
| Max. Table Load(kg) | 300 kg | Feed Speed(mm/min) | 1 - 12000 mm/min |
| Rapid Feed Speed(m/min) | 48 | Min. Time of Tool Change(s) | 2 |
| Tool Magazine Capacity | 20 | Key Selling Points | Easy to Operate |
| Warranty | 1 Year | Place of Origin | China |
| Applicable Industries | Machinery Repair Shops, Energy & Mining, Other | Showroom Location | None |
| Marketing Type | Other | Machinery Test Report | Provided |
| Video outgoing-inspection | Provided | Warranty of core components | 1 Year |
| Core Components | PLC | Spindle nose to worktable distance | 180-480 mm |
| T-slot | 3*14*125 mm | Guide rail type | Line rail |
| Power capacity | 15 KVA | Wind pressure supply | 0.6 MPa |
Room 1302, Building 3, No. 109, Software Avenue, Nanjing, Jiangsu, China
