T Type China Digital Railway Track Gauge and Elevation Leval Measurement

FOB Price 520 - 580 USD / Unit

Quantity	520 - 580
Price	USD

MOQ	1 Unit
Port	Shenzhen
Packaging	1703030cm
Lead Time	7 working days

Product Details

Product Description

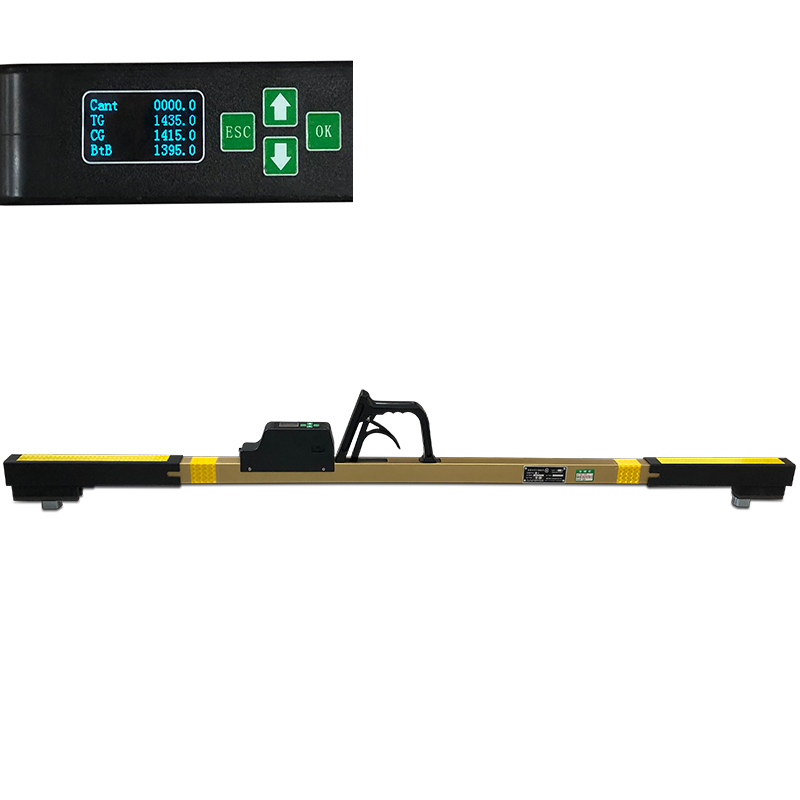

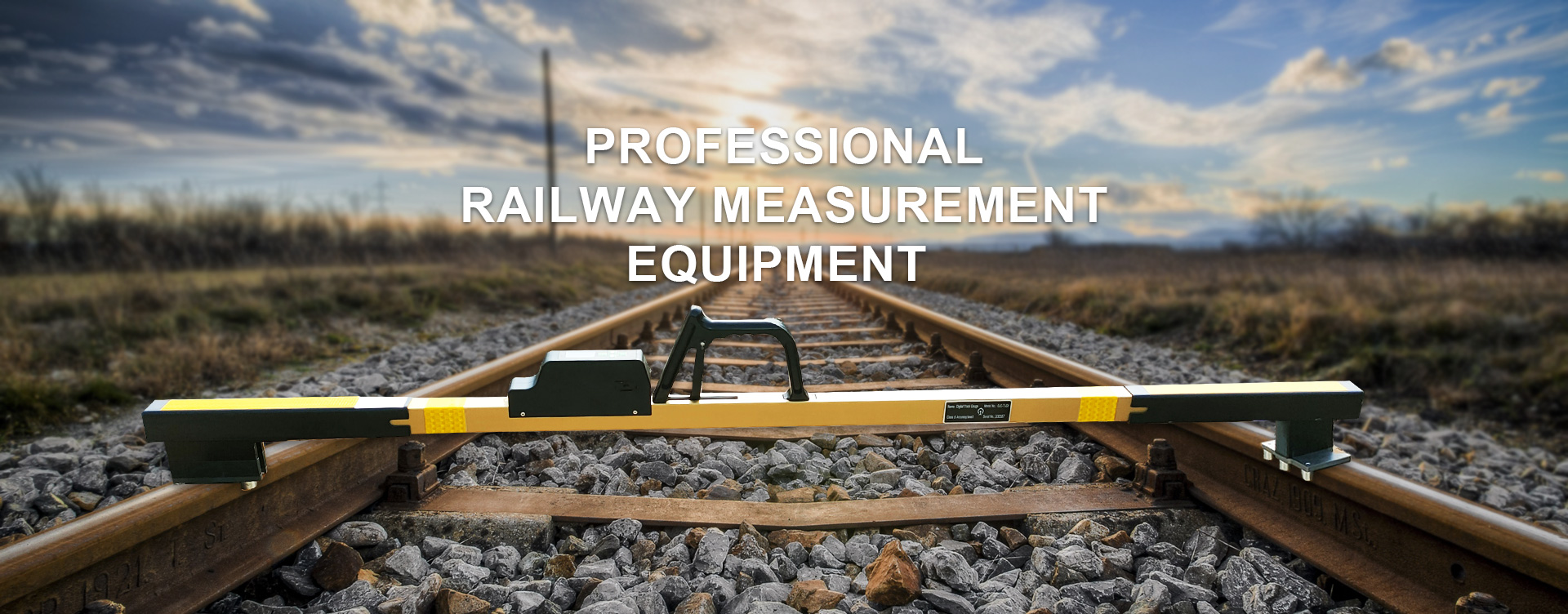

Digital Track Gauge

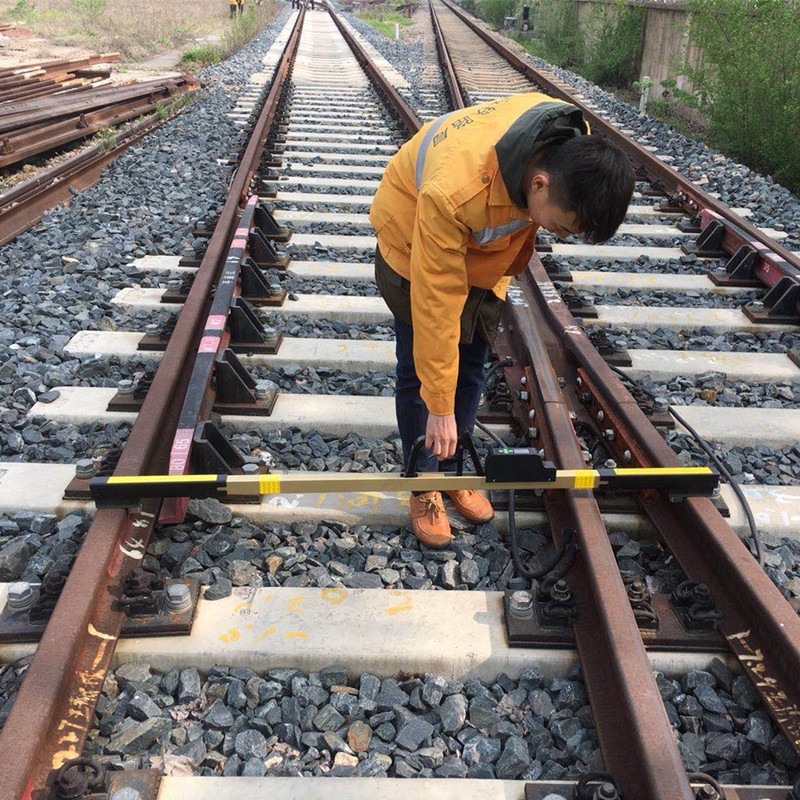

Digital track gauge for railway measurement ruler is mainly used for the measurement of railway line gauge, super elevation, check rail and back to back distance.

Features

1. Large LED backlit display: especially suitable for day outside and dark night
2. Quick calibration operation: simple measurement process
3. Large capacity battery:long standby time
4. Accurate measurement:keep long-term stability
5. Temperature compensation :working temperature is -30~+55℃
6. Insulated design
7. Anti-electromagnetic interference
8. Waterproof:could use in rainy day
9. power saving function: no operation within 15 minutes, the system will automatically shut down.
10. Approval by CHINA ACADEMY OF RAILWAY SCIENCES

Product Paramenters

Model(1435mm)	GJC-JG0	GJC-JG1
Track gauge(mm)	1410-1470	1410-1470
Gauge rail check gauge(mm)	1381-1401	1381-1401
Guard rail face gauge(mm)	1338-1358	1338-1358
Superelevation measuring range	-185~+185	-185~+185
Superelevation division value	0.05	0.10
Track gauge division value	0.10	0.10
Track gauge max indication error	±0.25	±0.25
Superelevation error	±0.3	±0.45
Application rail line	railway speed less than 350km/h	railway speed less than 250km/h
Customize	Model for narrow gauge 600mm 900mm 1067mm Model for broad gauge 1520mm 1600mm 1676mm for choose.

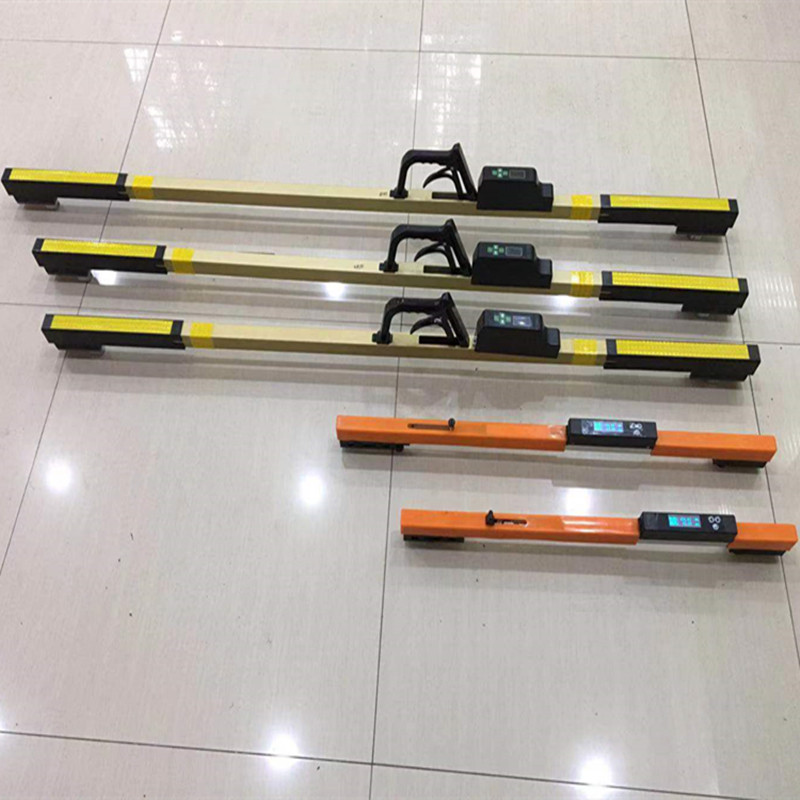

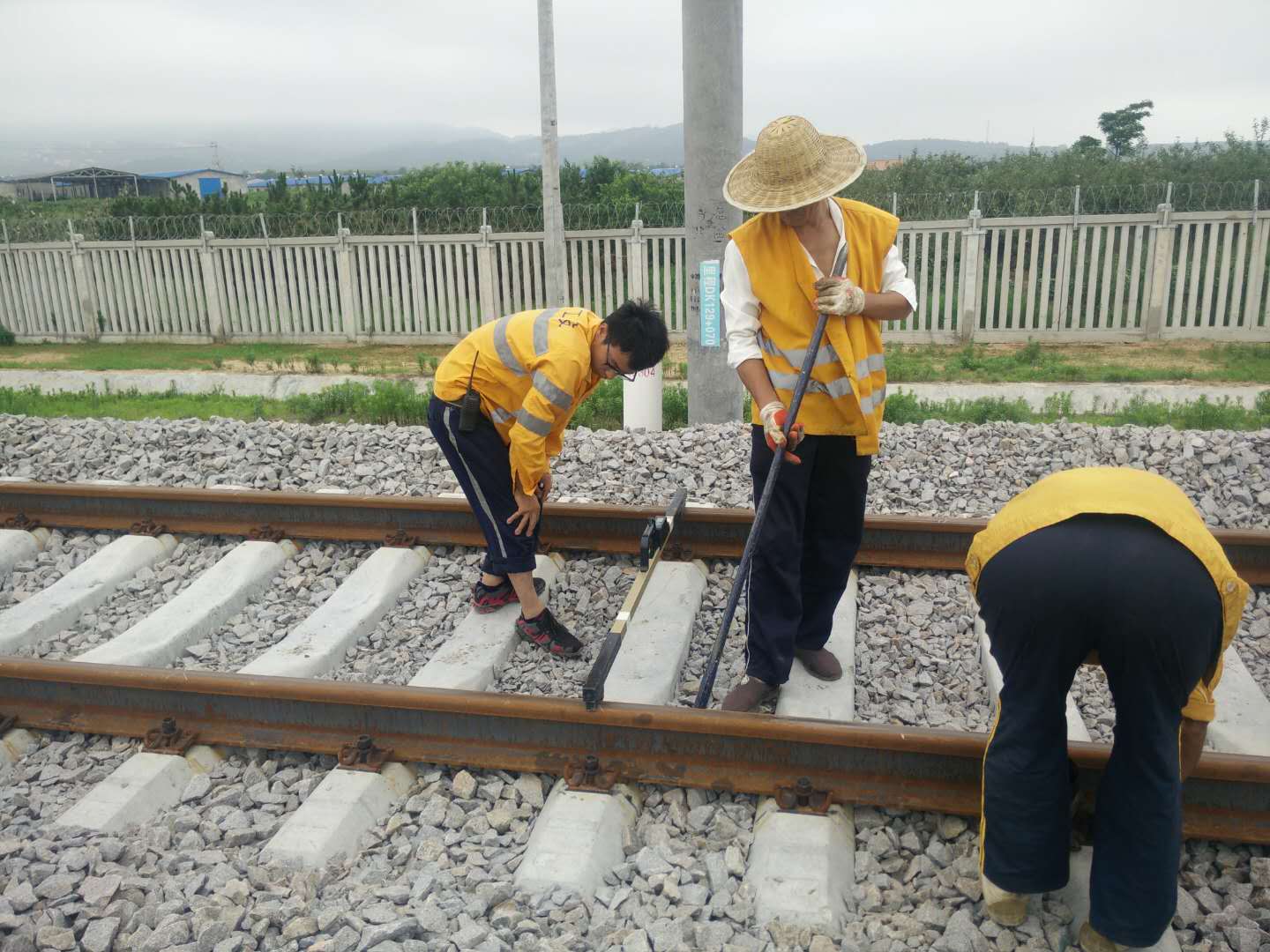

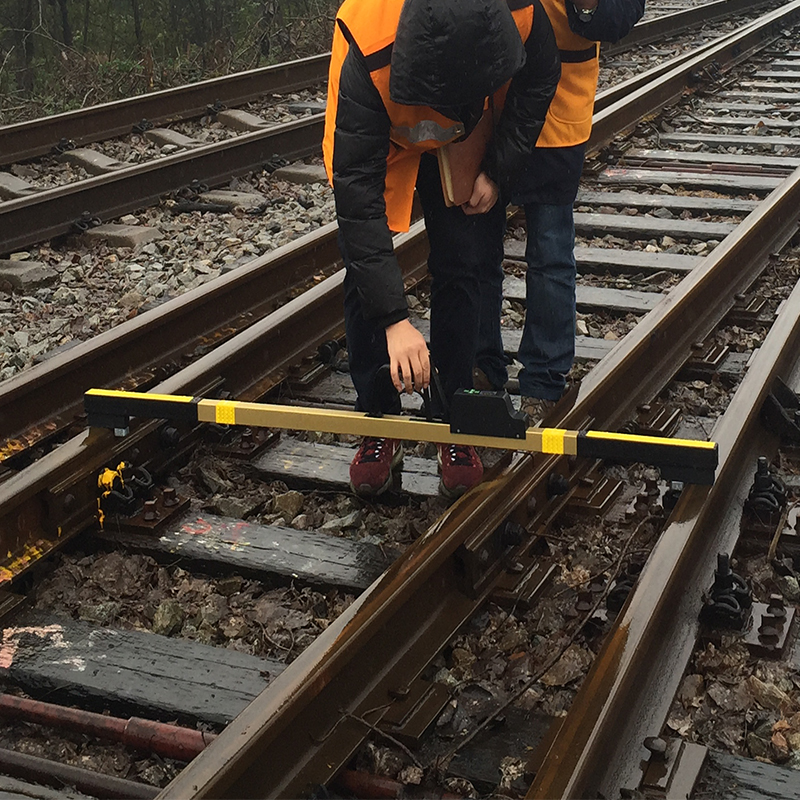

Details Images

Our Certificate

Company Profile

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd.

Xiangyang Lianjie Mechanical&Electrical Co.,Ltd. Established in 2013,specialized in designing and manufacturing of the geometry measurement systems for the railway,including digital track gauges,mechanical gauge,rail wear gauge,turnout measurement gauges ect. Our products are China Railway Construction Corporation Limited (CRCC) approved.The products are used by CRCC for all their rail operation. Besides, our products are also being used by major rail operators in America, Australia, Europe and the ASEAN countries.The bitterness of poor quality remains long after the sweetness of low price is forgotten. Our mission is to manufacture high quality rail measurement instruments at a competitive price with reliable services to our clients in order to help them to maintain & operate a safe railway system.
