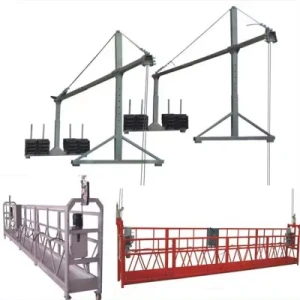

Suspension Platform Work Lift Steel Rise Work Platform Load Capacity 1000kg

Name: Suspension Platform Work Lift Steel Rise Work Platform Load Capacity 1000kg
Brand: Shanghai Hongwei Construction Machinery Co., Ltd.
SKU: Tradewheel_2536290
Price: 1200 USD
Availability: InStock

FOB Price 1200 - 1990 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	ZLP 1000	Max. Lifting Height	300 M
Driven Type	Rack&Pinion	Explosion-Proof	Explosion-Proof
Usage	Electrical Work Gondola Equipment	Voltage	220-440V, 50-60Hz,3phase
Electrical, Auto, Manual	Electrical, Auto, Manual	Length of Platform	From 1m to 12m
Transport Package	Customized Packaging	Specification	Steel, Aluminum Alloy
Trademark	Customizable	Origin	China
HS Code	84289090	Production Capacity	5000sets/Year

Product Details

Product Description

Company Info.

Product Description

ZLP suspended platform is a new decorating machinery, with the features like more stable than elevator when start/stop,which greatly enhance the security and the service life of hoist and steel wire rope.The product has won the National hightech patent certificate.

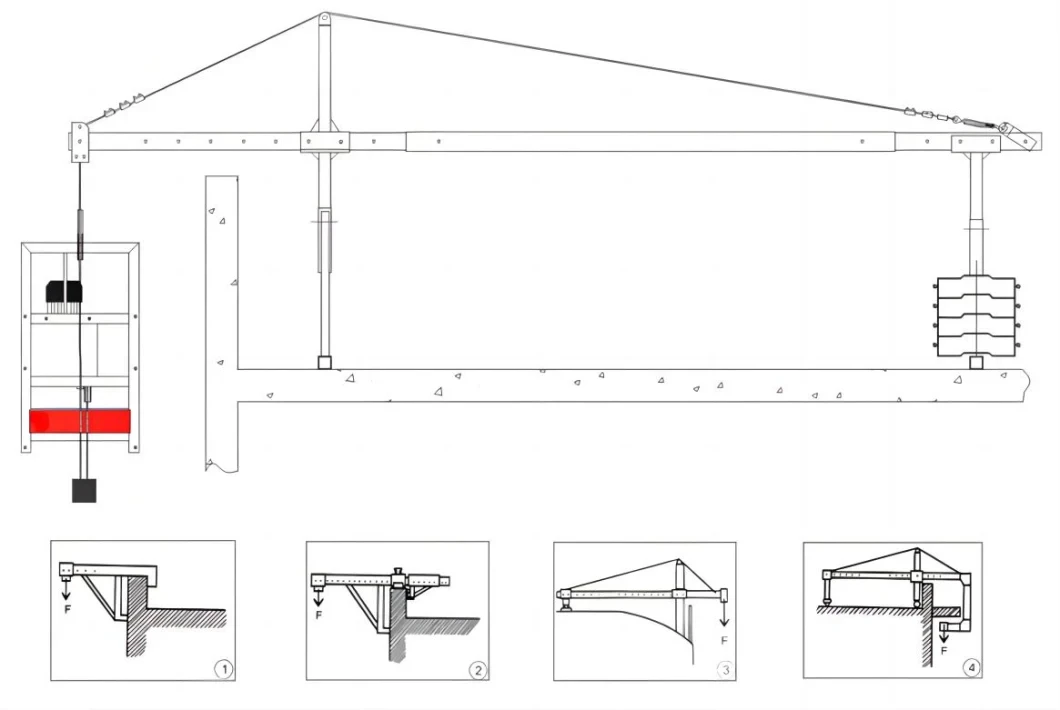

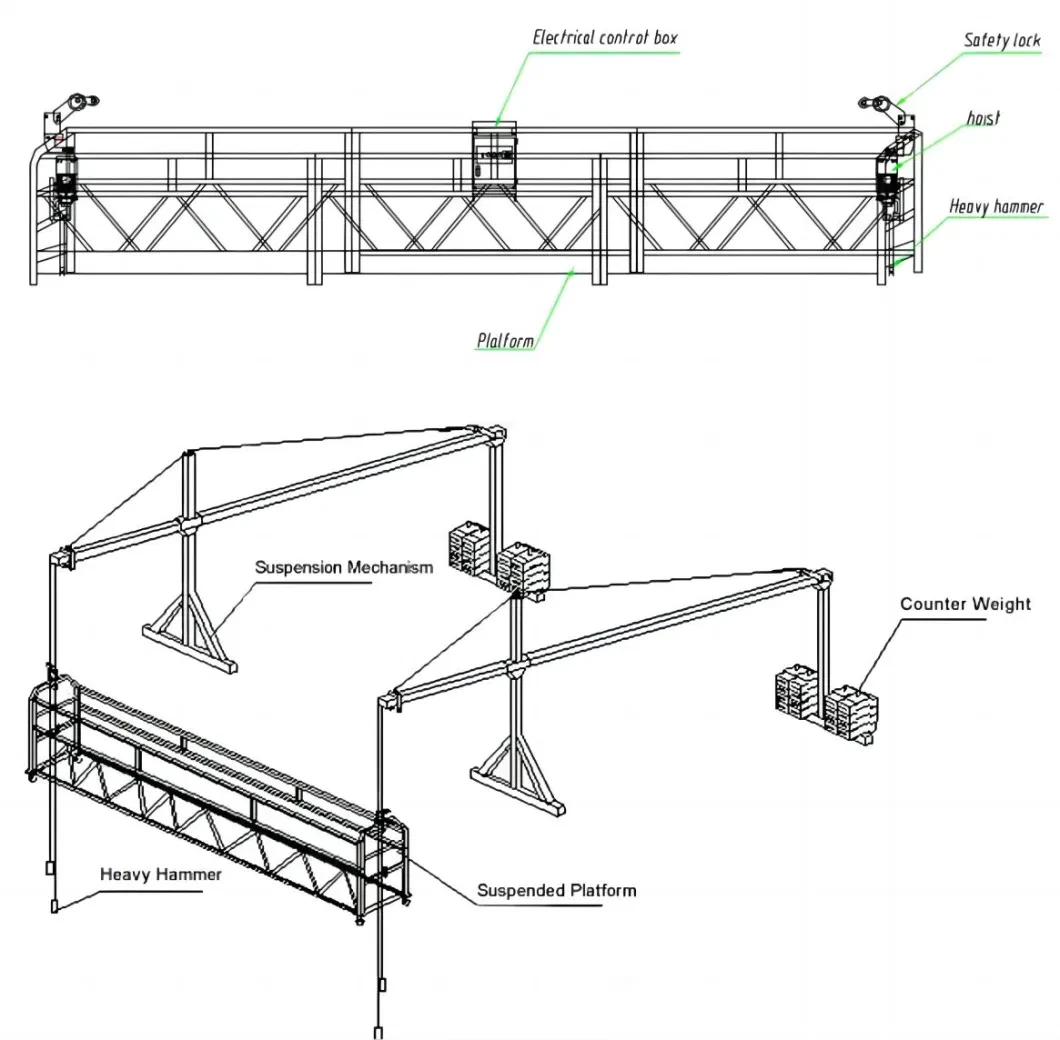

Construction cleaning cradle is throught the top of suspension mechanism on the roof of buildings, hanging with wire rope along building facades, the motor assembly with two side of gondola and drive the load which inside the gondola up and down.

The zlp suspended platform is the core and main product of our factory,which can replace the traditional scaffold and is mainly used in decorating, cleaning and maintenance of external walls of high buildings, such as cement coating, wall brick coating, painting, glass installing, ship building and repairing, big vessels, bridges, dams, chimneys, etc. Using Balance suspended platform can reduce work intensity and raise work efficiency.

Technical Parameter
Type	ZLP500	ZLP630	ZLP800	ZLP1000
Rated Load	500KG	630KG	800KG	1000KG
Platform Sise	5x0.69x1.18m	6x0.69x1.18m	7.5x0.69x1.18m	7.5x0.69x1.18m
Platform material	Aluminum Alloy type, steel type with hot galvanized,steel type with painting
Wire Rope Height	0-200m
Electrical Cable	(3x2.5+2x1.5mm2 )0-200m
Working height	0-200m
Steel rope	4pcsx100m,?8.3mm,?8.6mm,?9.1mm
Hoisting Machinery (Copper winding)	LTD5.0	LTD6.3	LTD8.0	LTD10.0
	1.5kwx2	1.5kwx2	1.8kwx2	2.2kwx2
	15KN	15KN	15KN	15KN
Lifting speed	9.3m/min ± 5%
Safety Lock	LSG20	LSG20	LSG30	LSG30
	20KN	20KN	30KN	30KN
	Locking Cable Angle: 3°~8°
Suspension mechanism Hot Galvanized	Front beam overhang: 1.3 m
Suspension mechanism Hot Galvanized	Support adjustable height: 1.1~1.6m
Power Source	380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
Counterweight	800kg	1000kg	1000kg	1200kg

Products Description

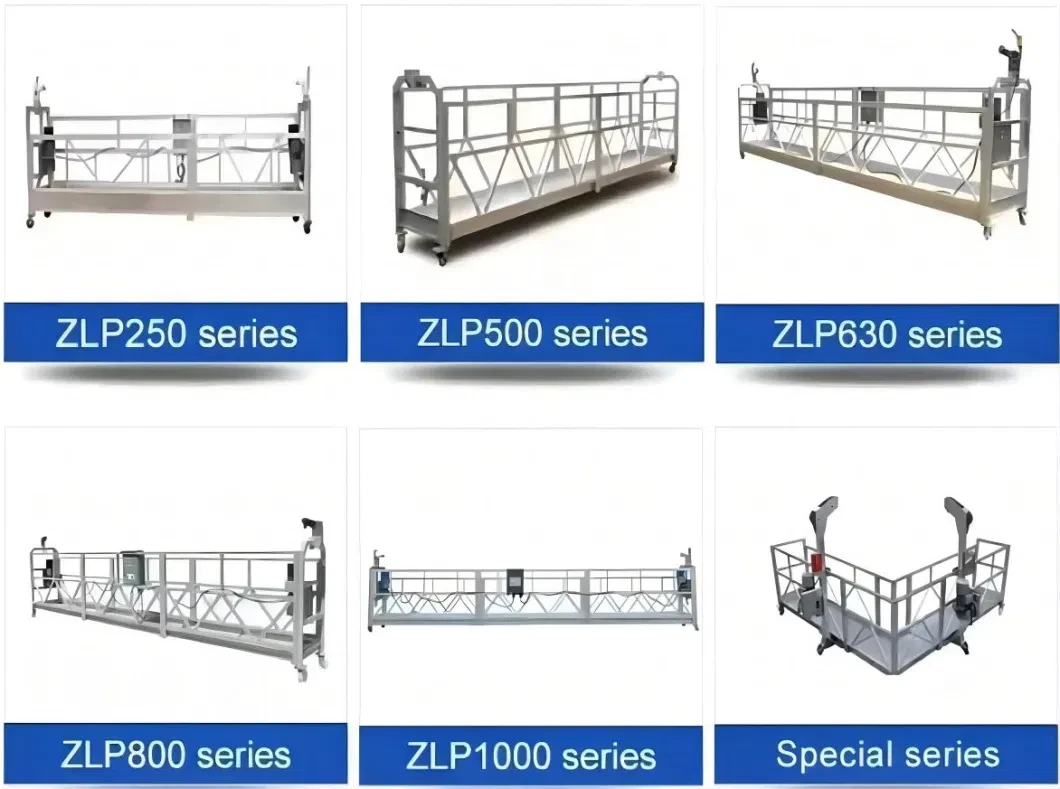

Product display

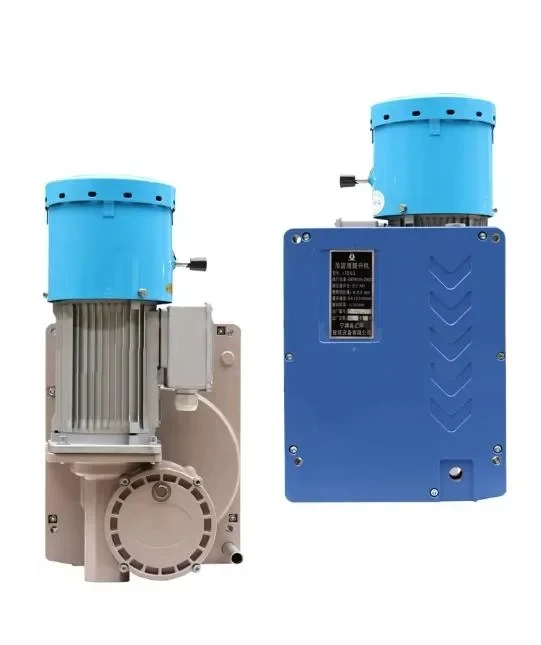

Hoist
Model	LTD6.3
Quantity	2 pcs
Lifting Speed	9.3±0.5m/min
Lifting Force	8.3KN
Weight	45kgx2
Motor Brand	Tianjin YONGHENG
power	1.5kw2,1.8kw2,2.2kw*2
Voltage	3 Phase 380V 50Hz
Rotational Speed	1420rpm

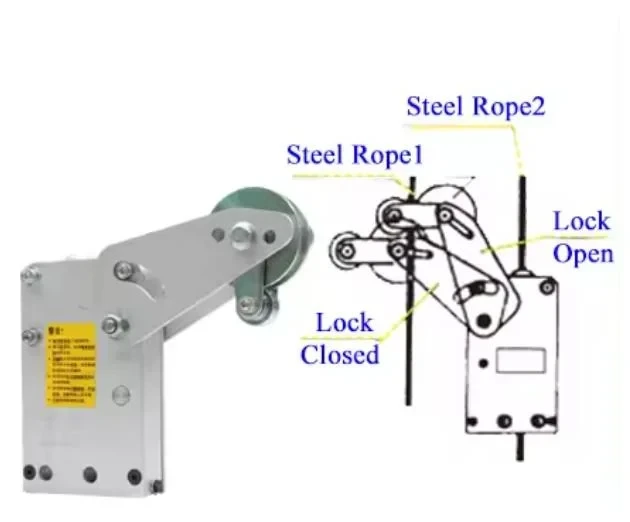

Safety Lock

Model: LSG30
Quantity: 2 pcs
Locking Rope Angle: 3°~8°
Allow impulsive force: 30KN
Steel Wire Diameter: 8.3mm
Weight:5kgx2

Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

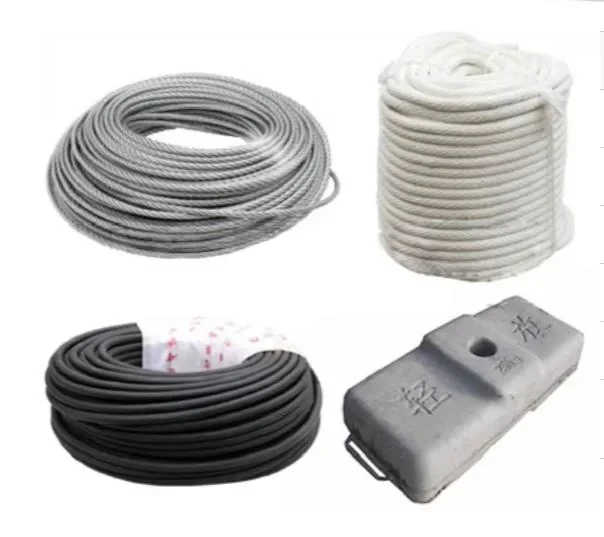

Steel Rope
Length	100 m/pc, 4pcs
100 m/pc, 4pcs	30 kg x 4
Diameter	9.1 mm
Nylon Safety Rope	1 Pc=100 m
Electric Cable	1 Pc=100 m, 1.5m-2.5mm2
Counter Weight (Optional)	Cement or Cast Iron

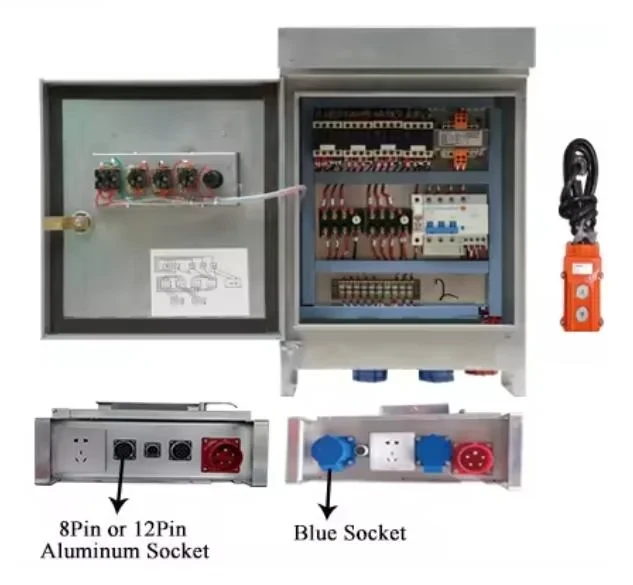

Electric Cabinet

Surface: Cold Galvanized
With manual Switch
Voltage: 380V 50Hz 3PH
On Electric Control Cabinet, there are 4 buttons and a 220V 50Hz outlet for necessary use.

( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button are in the door board of the cabinet. )

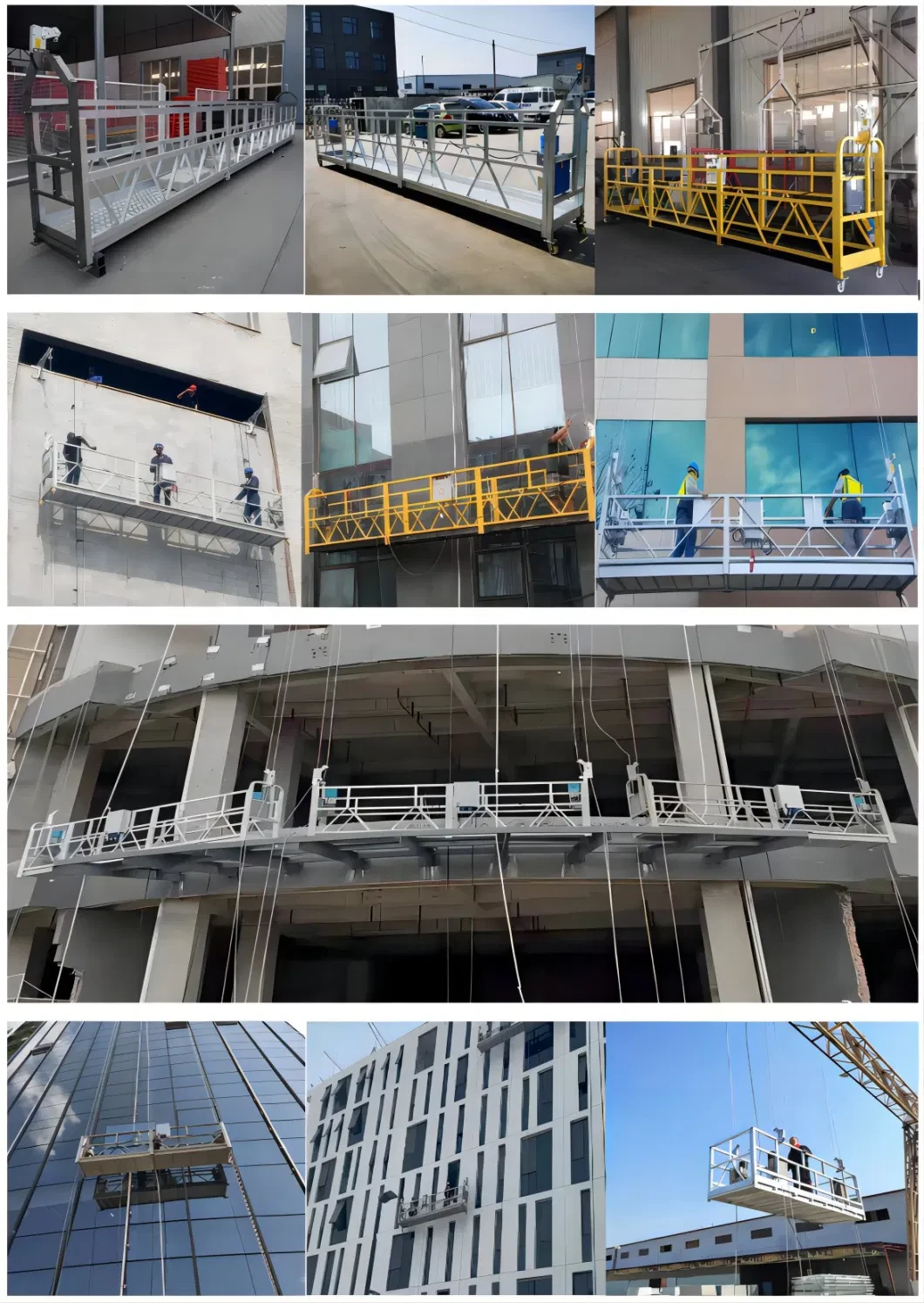

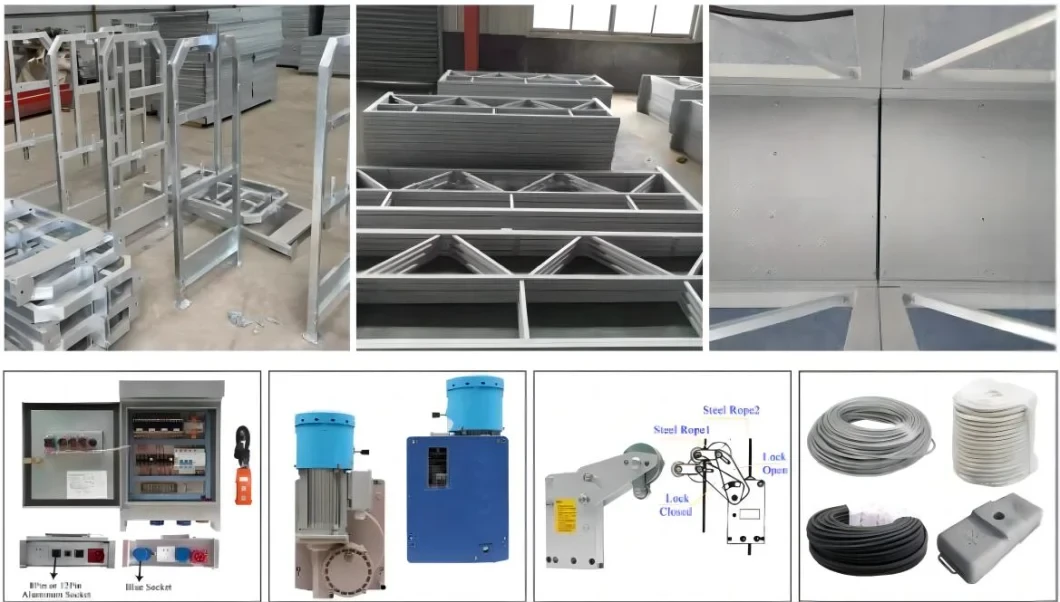

Product display

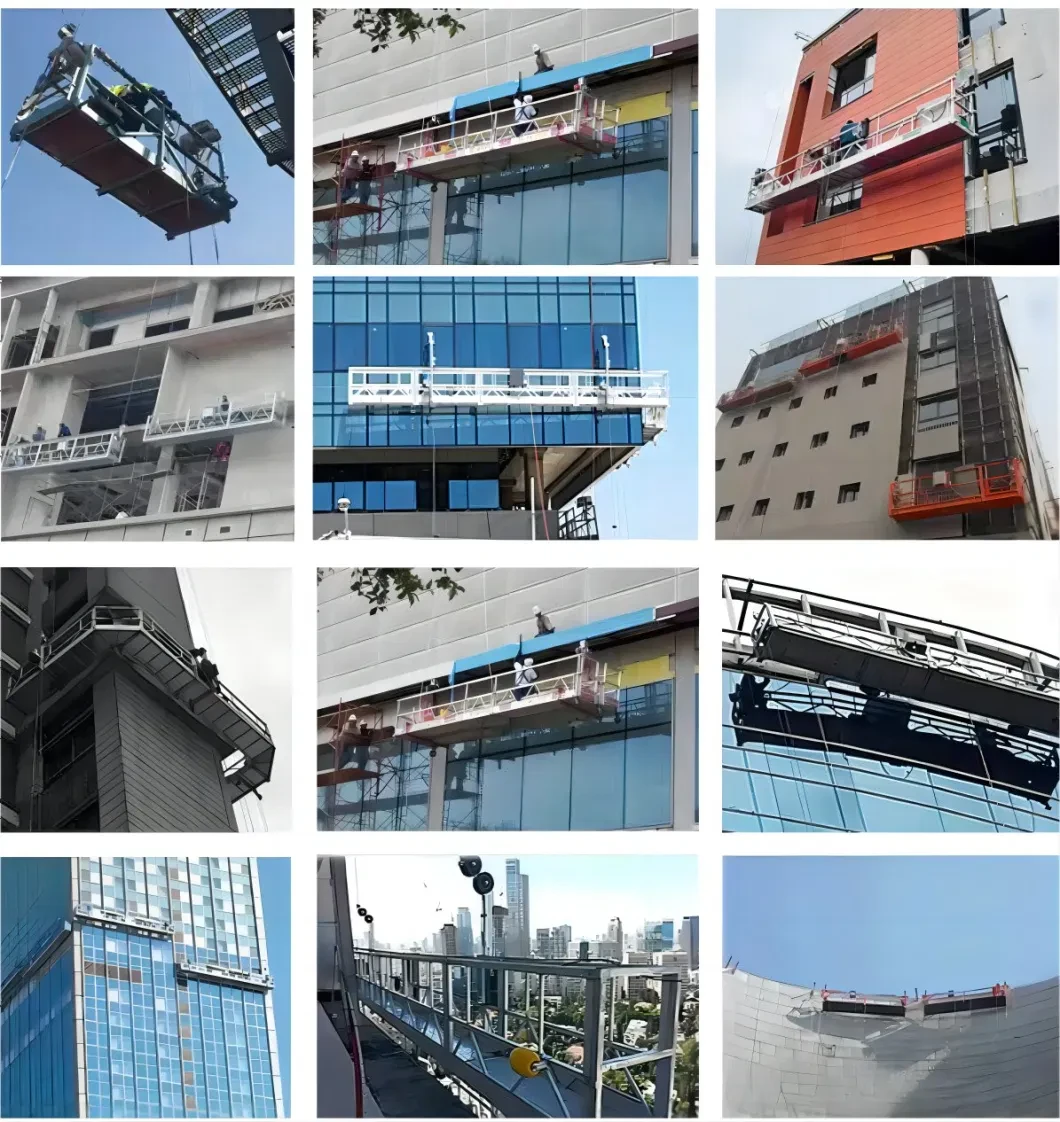

Successful Case

Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.

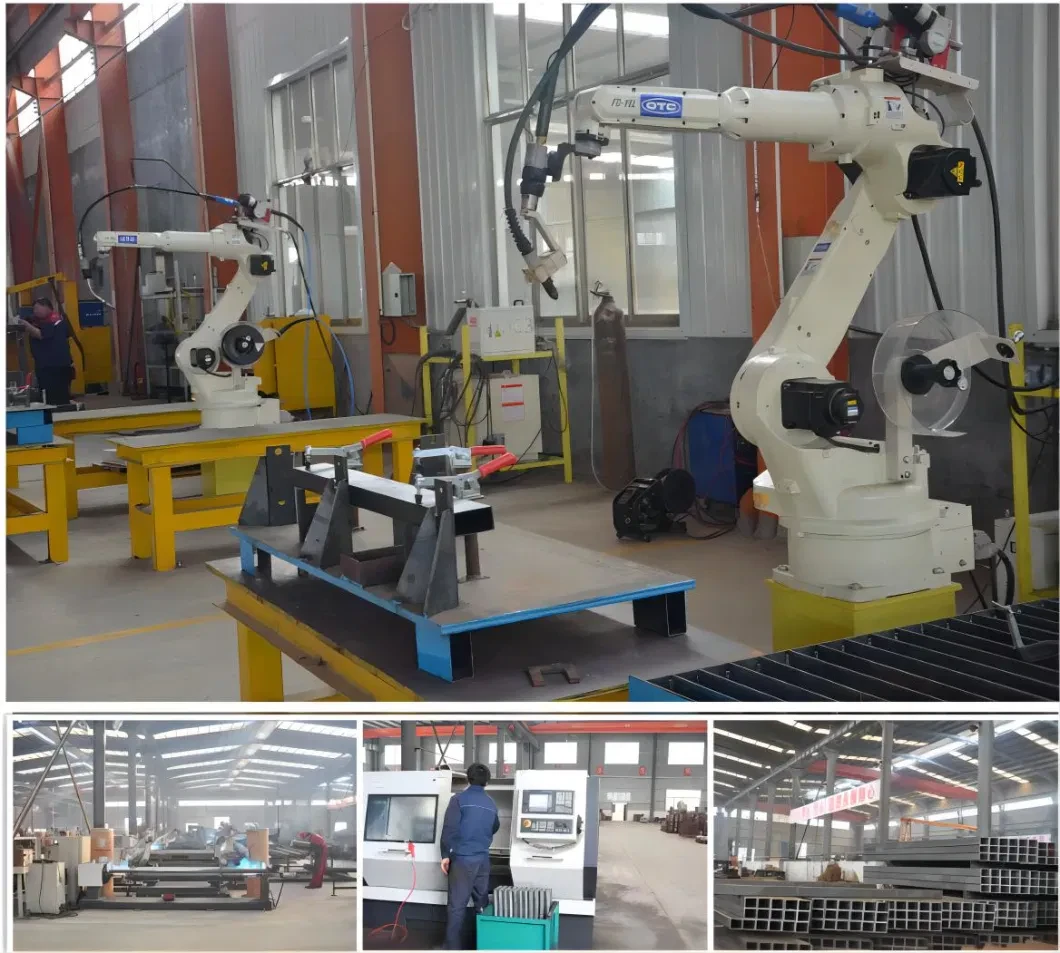

Technological process

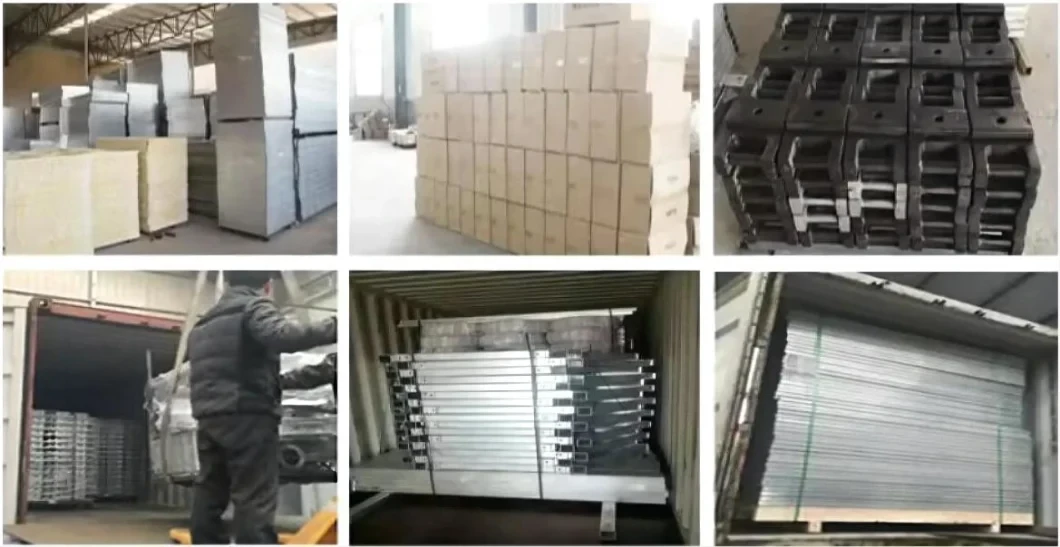

Packing&Delivery

FAQ

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity,
material, painting coat or galvanzied, voltage,with counterweight or not and price terms.

2. Features for Steel Platform with Plastic coating finish? Color plastic spraying on platform surface with comptitive price compared with the aluminum alloy and hot dip gavalnized surface. ----Hot dip galvanized steel platform with good anti corrosion and Lower price than aluminum alloy platform.
3. What quality certificate you own for your products?Our products own CCC, CE, EAC and ISO9001 certificate.
4. Product quality assurance and after-sales service?One Year Quality Warranty And Life-time Technical Support. If any parts get damaged because of quality. within 12 months after shipping date. We will send new parts to replace right away.
5. Can you make suspended platform with our brand?Yes.
6. How you arrange shipment?By Sea/By Train/By Air or By Express,15-20days Against Deposit.
