| MOQ | 1 set |
| Port | Qingdao |
| Packaging | wooden case |
| Lead Time | within 7 days |
| Product name | XY-100 hydraulic core drilling rig | Application | core drilling rig, geological exploration and prospecting |

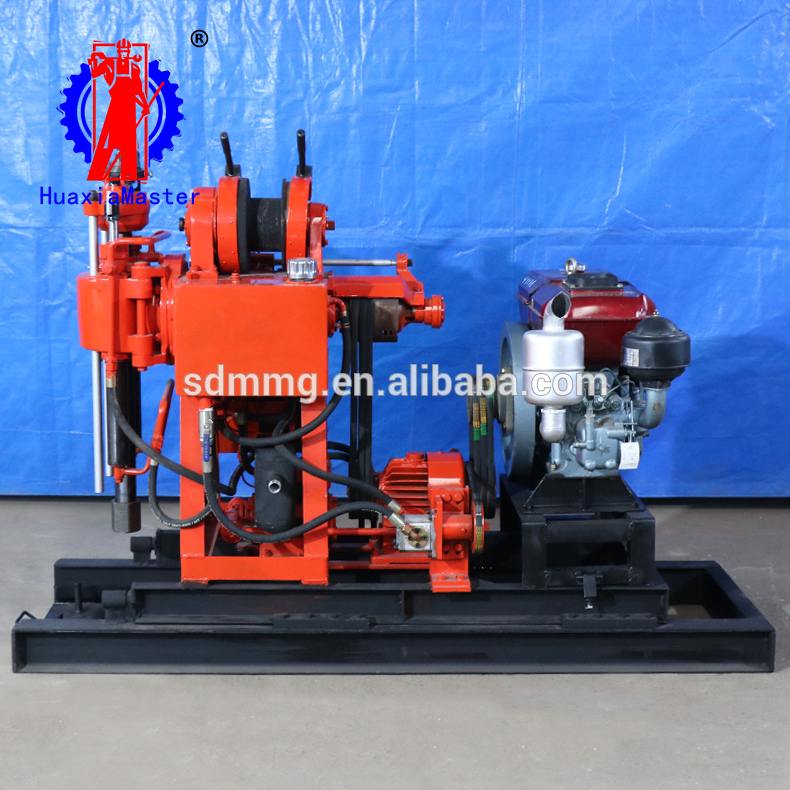

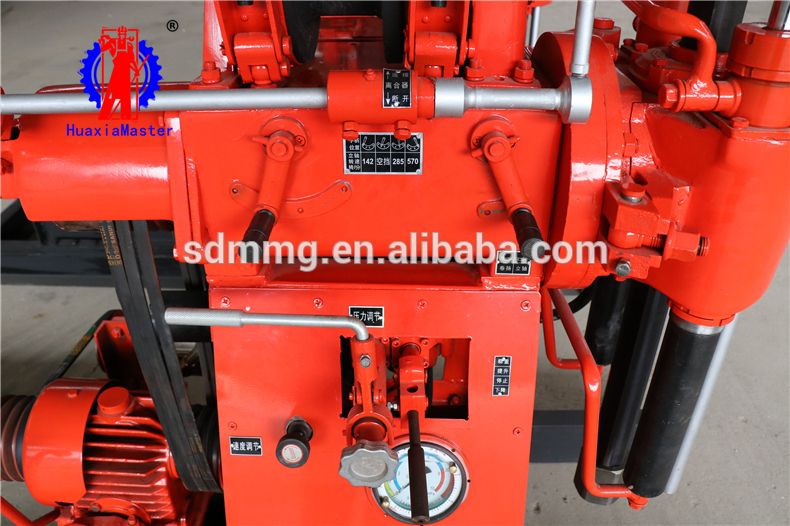

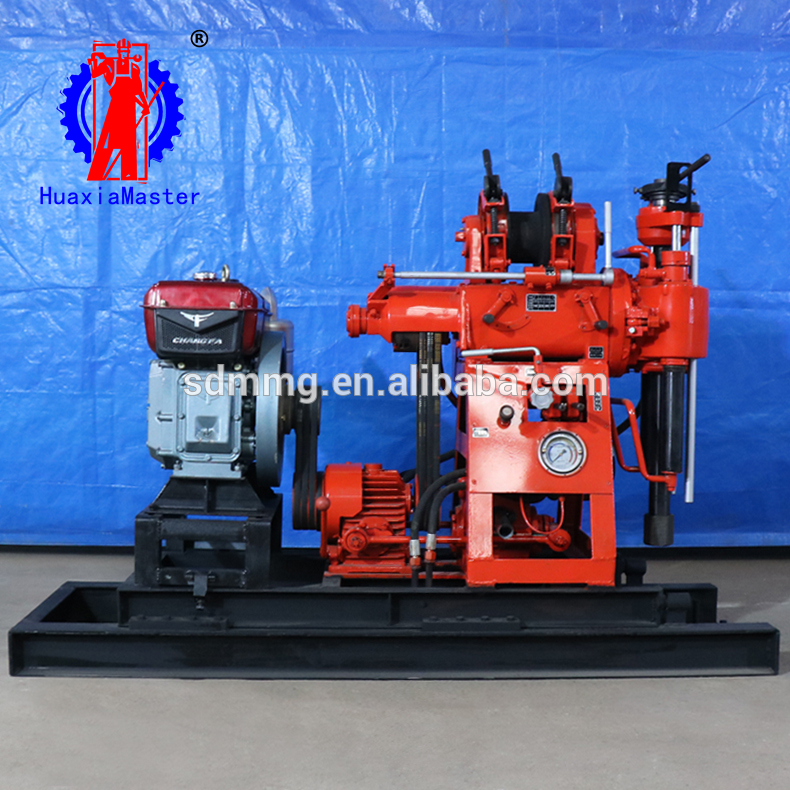

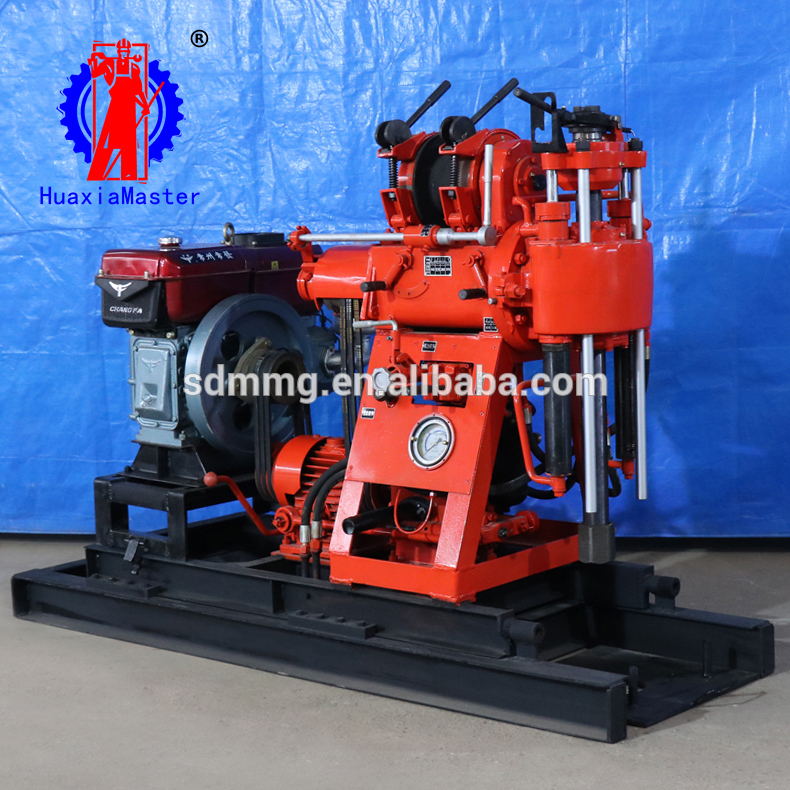

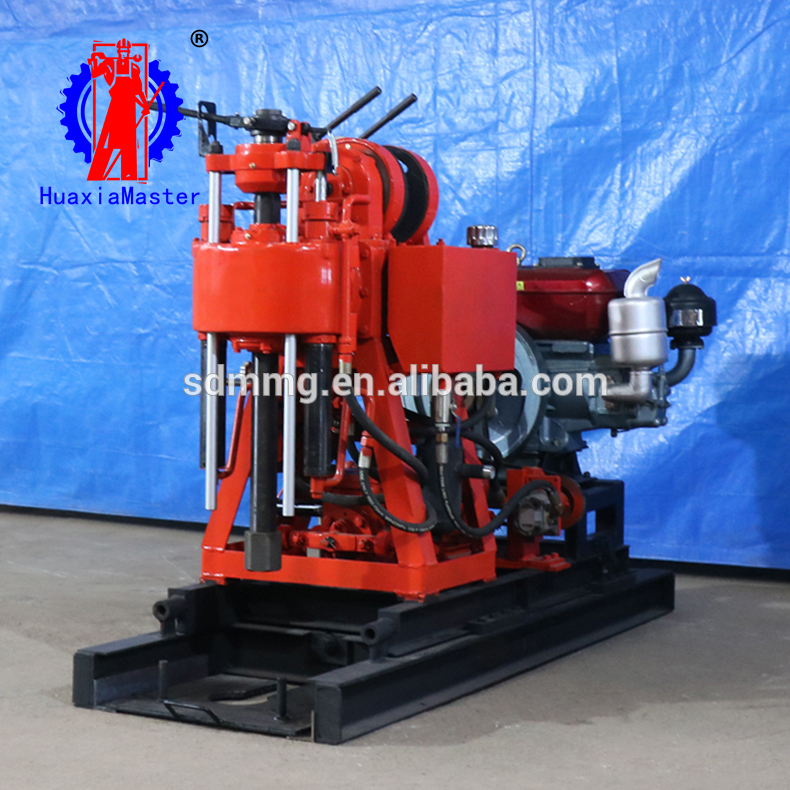

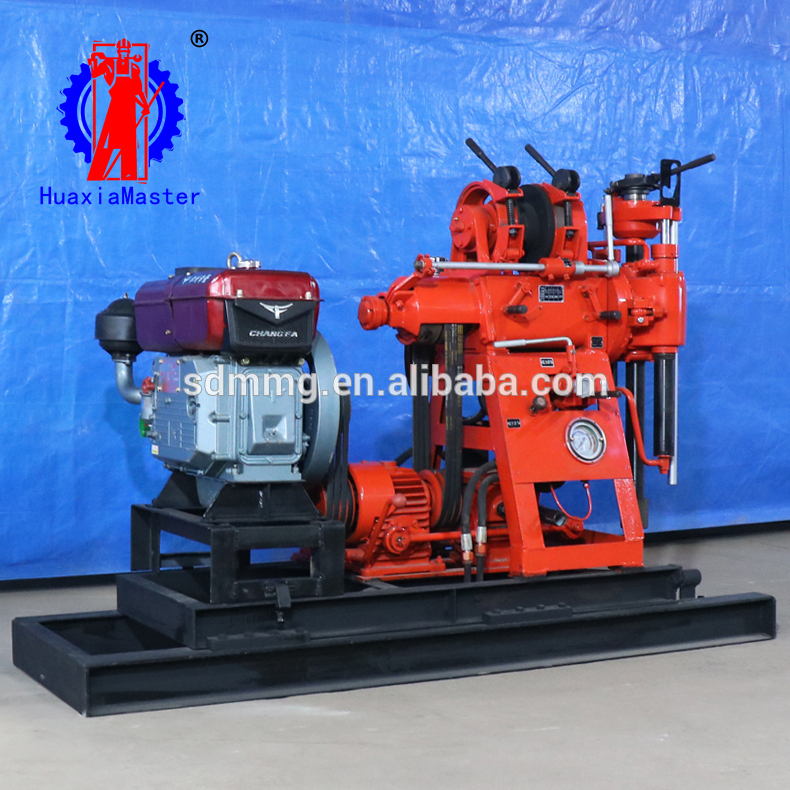

XY-100 hydraulic core drilling rig
1. Applications of XY-100 hydraulic core drilling rig
XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.
2. Specifications of XY-100 hydralic core drilling rig
|
Drilling depth |
110 |
|
Maximum open hole caliber |
220mm |
|
End hole caliber |
75mm |
|
Drill rod caliber |
50mm /42mm |
|
Drilling angle |
90 |
|
Drilling rig weight (exclude diesel engine) |
610kg |
|
Unity machine dimensions |
2.1*0.9*1.3m |
|
Spindle |
|
|
Spindle speed |
130/300/480/730/830/1045 r/min |
|
Spindle stroke |
450mm |
|
Hoist |
|
|
Max. lifting capacity with single rope |
1600kg |
|
Lifting speed with single rope |
1.06/0.67/0.32 m/s |
|
Wire rope caliber |
13mm |
|
Wire rope cubic measure |
35mm |
|
Hug floodgate caliber |
254mm |
|
Hug floodgate belt width |
50mm |
|
Distance between drill and hole |
230mm |
|
Mud pump |
|
|
Type |
Horizontal single-urn twin-action |
|
Displacement (with diesel engine/electric motor) |
170l/min |
|
Max. pressure |
1.5mpa |
|
Work pressure |
0.7mpa |
|
Power |
|
|
Diesel engine |
S1100 |
|
Electric motor |
Y160M-4 / 10KW |
