Soybean Corn Wheat Maize Feed Grain Milling Machine

FOB Price 5000 - 8000 USD / unit

Quantity	1 - 10
Price	5500

MOQ	1 unit
Port	Shanghai Port, China
Packaging	wooden case packing
Lead Time	30 days after receive the advance payment

Quick Details (View All)

Model	AST-ZW60B	Function	Milling corn maize wheat etc
Power	55/75/90kw

Product Details

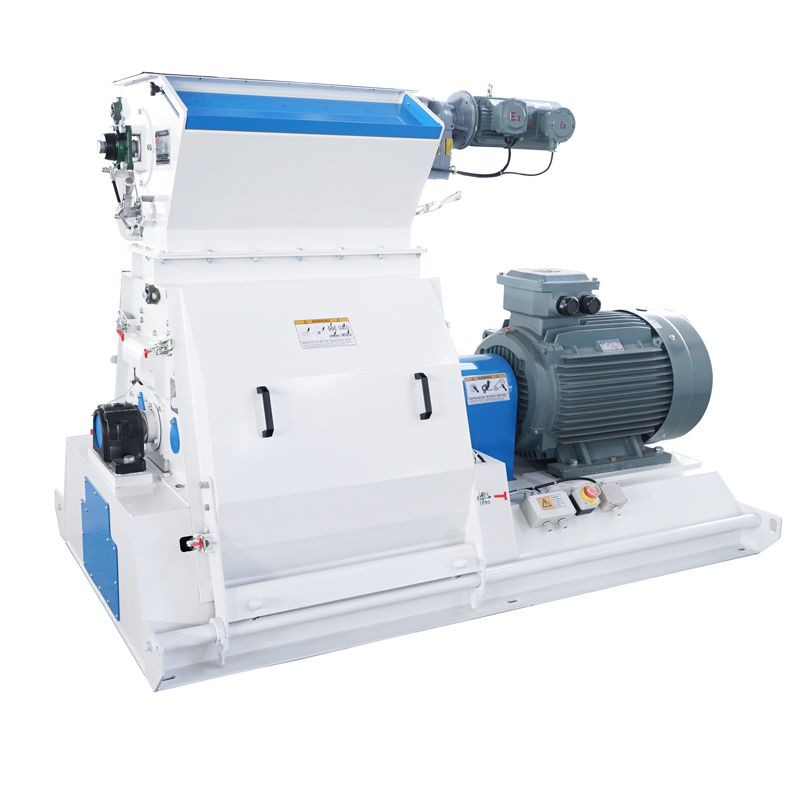

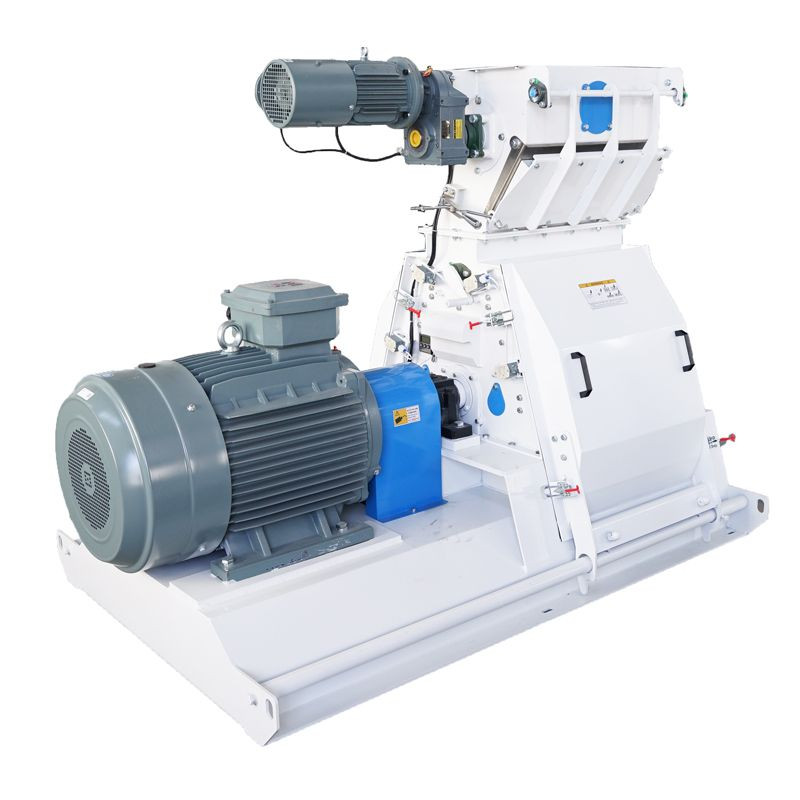

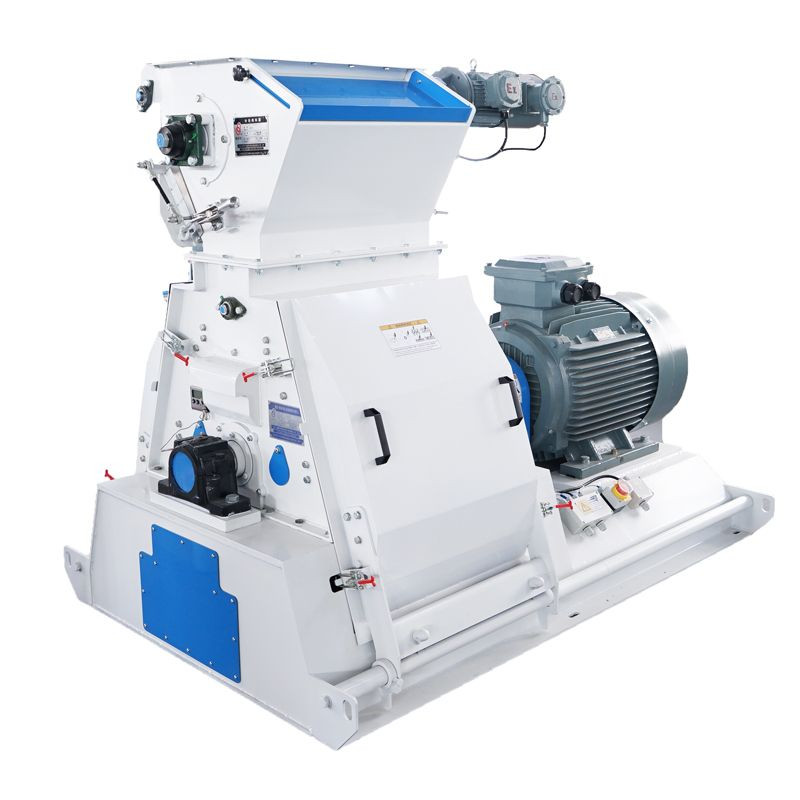

Soybean Corn Wheat Maize Feed Grain Milling Machine

AST-ZWB series hammer mill:

1. It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .it’s use for fine grinding .

2. The design of overall base is high in structural strength and beautiful in appearance.

3. Direct transmission and advanced falk flexible coupling are adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .

4. Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .

5. The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .

6. Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .

7. The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .

Product Technical Parameters :

Model		AST-ZW60B		AST-ZW80B		AST-ZW100B	AST-ZW120B
Rotor diameter(mm)		660		660		660	660
Spindle speed(RPM)		2980		2980		2980	2980
Linear speed of hammers ( m/s)		78		78		78	78
Pulverizing room width (mm)		600		800		1000	1200
Hammers Qty ( Pcs)		112		128		144	156
Power( kw)		55	75	90	110	132	160
Normal Air Volume ( M3/h)	Rough crushing	42	46	55	61	80	100
	Fine crushing	55	60	72	78	100	130
Ordinary grinding output( t/h)		9	12	14	16	18	20
Fine grinding output(T/H)		2	3.5	4.5	6	8	10
