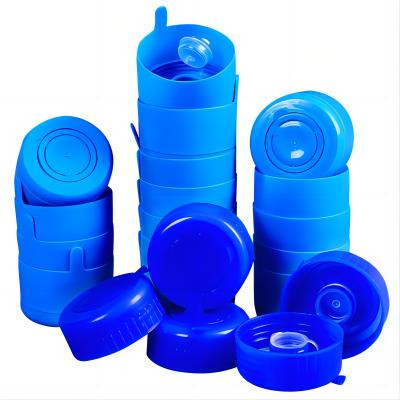

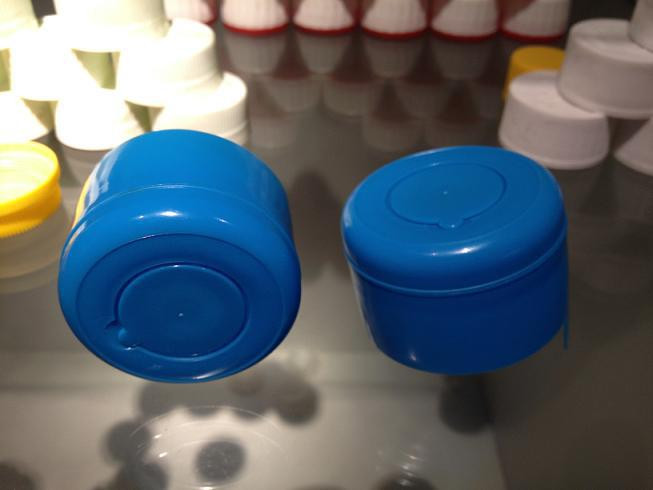

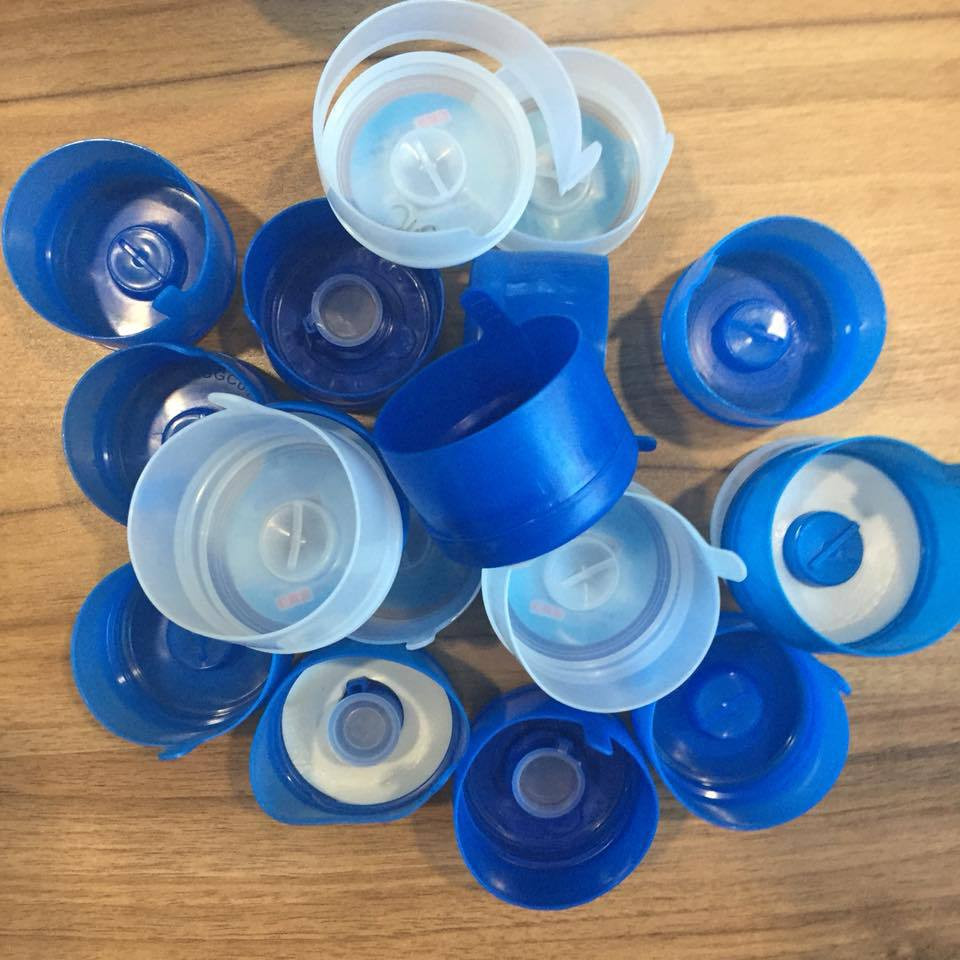

Small Plastic Injection Molding Machine 5 Gallon Water Bottle Cap Making Machine

Name: Small Plastic Injection Molding Machine 5 Gallon Water Bottle Cap Making Machine
Brand: Turn Machine (Zhejiang) Co., Ltd
SKU: Tradewheel_2429146
Availability: InStock

FOB Price 6700 - 12900 USD / sets

Contact Now

Quick Details (View All)

Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP	Condition	New
Style	Horizontal	Distance between Tie Bars(Width)(mm)	240mm
Distance between Tie Bars(Height)(mm)	210mm	Plasticizing Capacity(g/s)	30
Mold Height(mm)	60 - 195 mm	Ejector Stroke(mm)	40 mm
Ejector Force(kN)	13 kN	Theoretical Shot Volume(cmu00b3)	37 cmu00b3
Injection Rate (g/s)	30 g/s	Machine Type	Hydraulic
Injection Weight (g)	33.6 g	Screw Speed (rpm)	1 - 200 rpm
Screw diameter (mm)	25 mm	Screw L/D Ratio	18
Weight (KG)	1100 kg	Type	Preform Injection
Place of Origin	China	Open Stroke(mm)	155 mm
Power (kW)	3 kW	Warranty	1 Year
Key Selling Points	Automatic	Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Restaurant, Retail, Food Shop, Construction worksu00a0, Energy & Mining, Factory
Showroom Location	None	Machinery Test Report	Provided
Video outgoing-inspection	Provided	Warranty of core components	1 Year
Core Components	Bearing, Motor, Gear, PLC, Engine, Screw	Clamping Force (kN)	300 kN
Marketing Type	New Product 2023

Product Details

Product Description

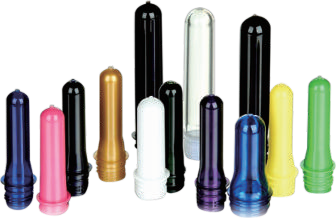

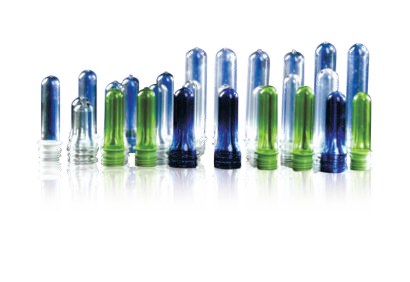

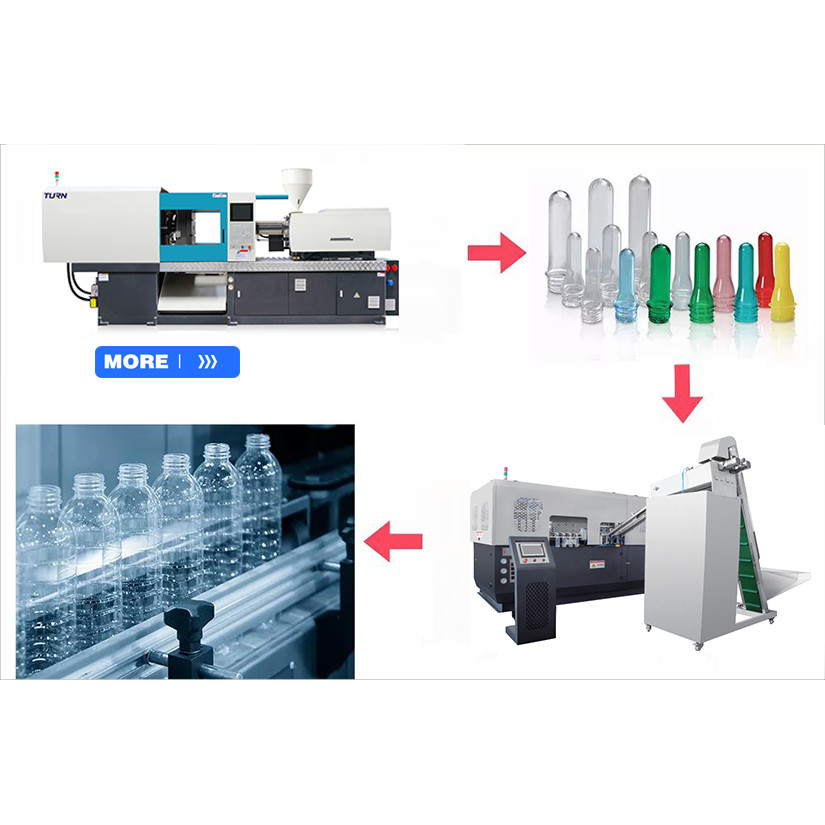

Features of Our Servo PET PERFORM Injection Molding Machine

* Double cylinder balanced injection system; * Multi-stage pressure &speed injection;
* Back pressure adjustment device; * Low-pressure mould protection;
* Single hydraulic core pulling and inserting; * Multiple hydraulic ejector knock-out;
* Mechanical, electrical safety device; * Auto lubrication system;
* Hydraulic pressure full proportional control; * Computer control system;
* Molding data memory system; * Automatic mould adjust function;
* Energy-saving with servo motor;

Save The Cooling Water

No constant flow pump and speed set motor overflow heating.When the temperature of hydraulic oil is lower, the cooling wateris reduced greatly.

Low Noise

The noise is below 78db. Servo motor has almost no noise when no movement of machine.

High Precision High Response

The pressure sensor and rotary encoder with high precision and high sensitvity achieve
pressureflow closed-oop control allows the repeatprecision error to be less than 19%. lt only takes 0.05 second to reach the largest output power.
