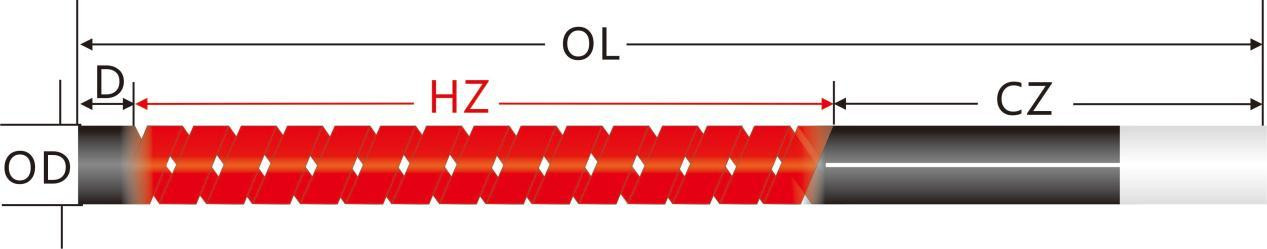

SCR(SGR, SEU) type double-spiral silicon carbide heating elements are cut so as to place both electrical terminations on the same end of the element.They are supplied with the terminal assembly attached. SGR (SCR) type Torch Furnace silicon carbide design or dimensions preclude wiring from both sides of the furnace. This type is ideal for blind holes and the operating temperature can be up to 1500 deg C.

it is also widely used in various high temperature electric furnaces and other electric heating debices, such as in the industrial of magnet, ceramics, powder metallurgy, glass, metallurgy and michinery etc.

Features:

1, High temperature resistance, resistance to oxidation and corrosion

2, Fast heating, long life, small deformation at high temperature, easy to install and maintain

3, With automatic electronic control systems, precision constant temperature can be obtained, curve temperature control can be obtained too according to the needs of production

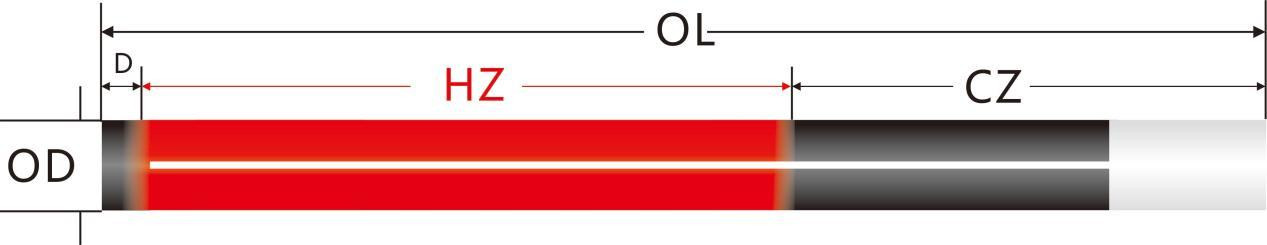

To Order SCR (SGR, SEU) Type Silicon Carbide Heating Rod, please provide the following information:

Type: SCR

Outer diameter (OD): mm

Hot zone length (HZ): mm

Cold end length (CZ): mm

Overall length (OL): mm

Example:

SCR,OD=31.7mm,HZ=305mm,CZ=241mm,OL=546mm,Resistance 4.46 ohms

Specify as: SCR,31.7/305/546/4.46 ohms

Outer Diameter (OD, mm)	Hot zone (HZ, mm)	Cold zone (CZ, mm)	Overall length (OL, mm)	Range of resistance (ohms)
8	100-300	60-200	240-700	2.1-8.6
12	100-400	100-350	300-1100	0.8-5.8
14	100-500	150-350	400-1200	0.7-5.6
16	200-600	200-350	600-1300	0.7-4.4
18	200-800	200-400	600-1600	0.7-5.8
20	200-800	250-600	700-2000	0.6-6.0
25	200-1200	250-700	700-2600	0.4-5.0
30	300-2000	250-800	800-3600	0.4-4.0
35	400-2000	250-800	900-3600	0.5-3.6
40	500-2700	250-800	1000-4300	0.5-3.4
45	500-3000	250-750	1000-4500	0.3-3.0
50	600-2500	300-750	1200-4000	0.3-2.5
54	600-2500	300-750	1200-4000	0.3-3.0
