Sawdust Wood Charcoal Stick Carbonization Furnace Charcoal Stove Machine

FOB Price 1456 - 1699 USD / 1

Quantity	1456 - 1699
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	Container
Lead Time	15

Contact Now

Quick Details (View All)

effective volume	200	power(w)	2.5KW
voltage	380V	core components	Motor
warranty	1 Year	key selling points	Easy To Operate
machinery test report	Provided	video outgoing-inspection	Provided
place of origin	Henan, China	weight (kg)	400
brand name	KUNTENG	dimension(lwh)	1.51.21.4m
Product name	smoke free charcoal stove	Raw material	Wood Log Coconut Shell Palm Shell sawdustMaking palm shell Charcoal, sawdust Charcoal, coconut shell charcoal
Usage	Making palm shell Charcoal, sawdust Charcoal, coconut shell charcoal	Name	smoke free charcoal stove
Keywords	smoke free charcoal stove	Advantage	Continuous Working Environment Friendly
Final product	palm shell charcoal, sawdust charcoal, Coconut shell Charcoal	Application	Making palm shell Charcoal, sawdust charcoal Coconut shell Charocoal
Capacity	1-5t	Color	Customer Required

Product Details

PRODUCT OVERVIEW

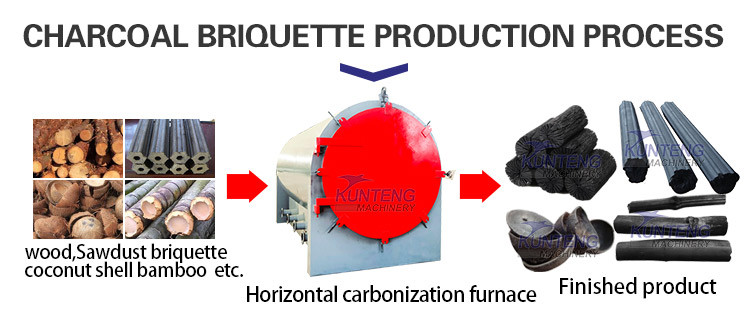

Carbonization Process: Feeding raw material and sealing the furnace→Preheating and drying the raw material → Anaerobic carbonization →Cooling and discharging the carbon.

DETAILS DISPLAY

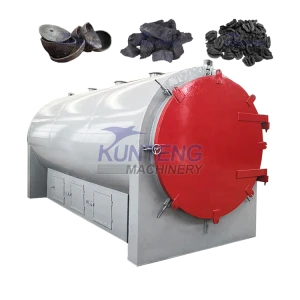

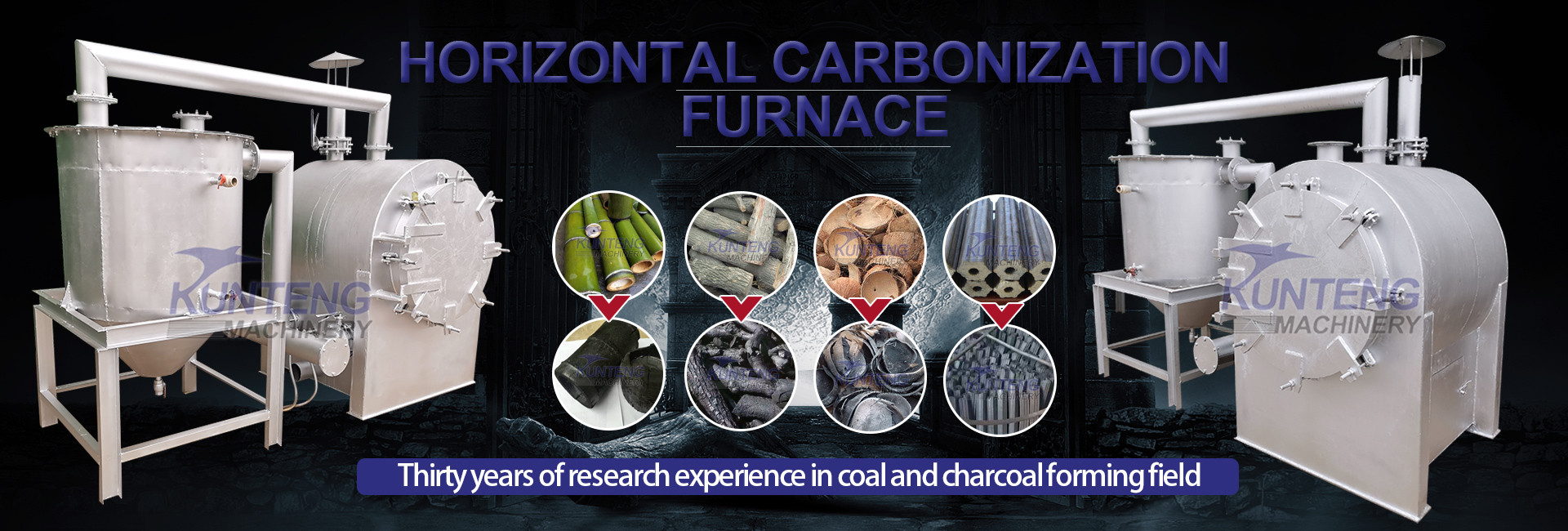

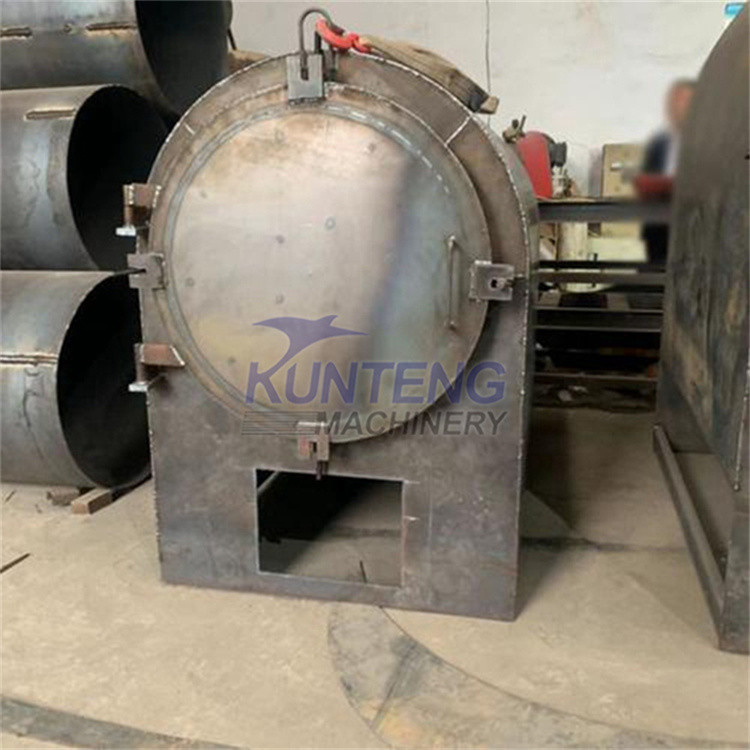

SAWDUST CHARCOAL STICK CARBONIZATION FURNACE

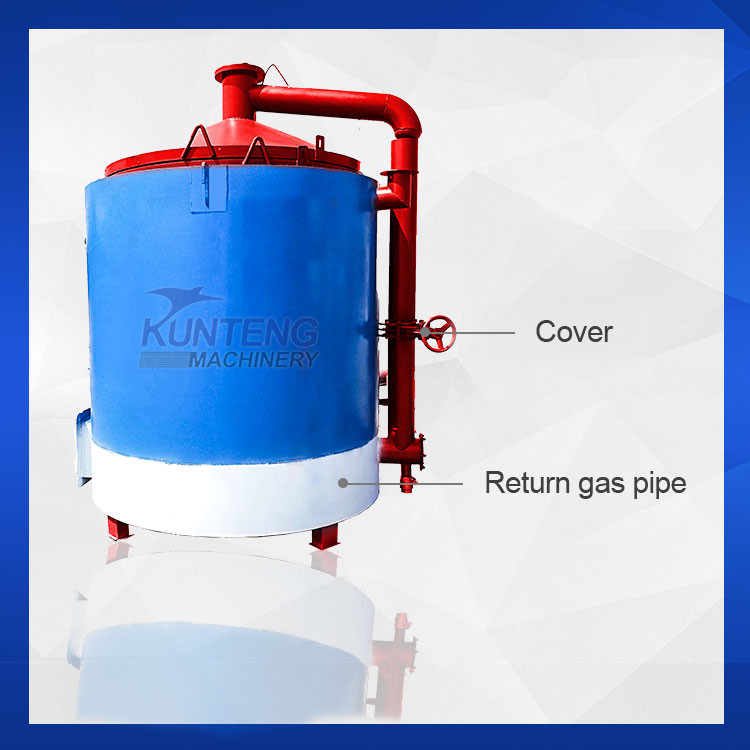

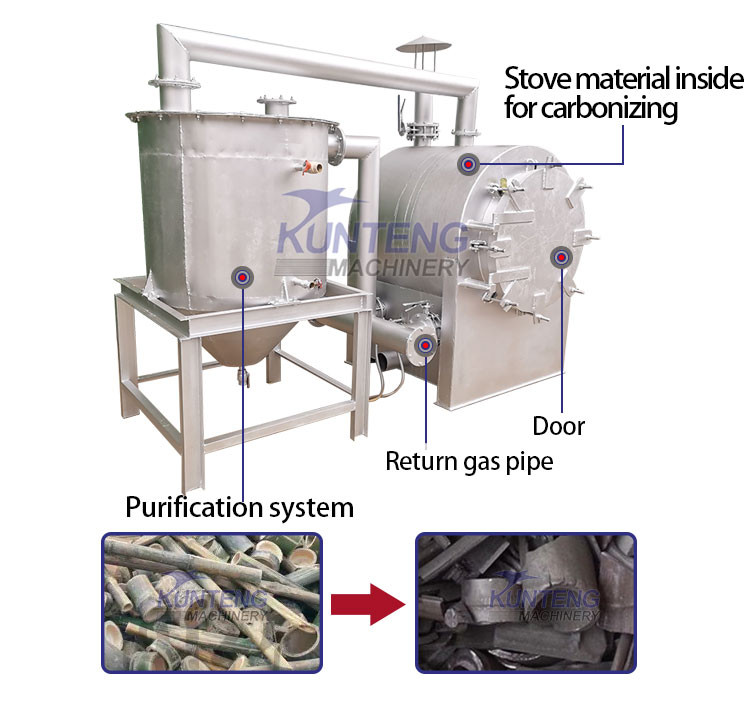

Sawdust charcoal stick carbonization furnace, charcoal stove and wood charcoal machine are made by horizontal manufacturing process, in which there is a three-layer structure with polyurethane insulation material in the middle to keep the temperature inside the furnace. The door of the furnace is sealed with filler, which does not enter the air, and the carbon output is much higher than that of the conventional charring furnace. It is called green carbonization furnace because the carbonizing process produces a lot of yellowish combustible gases from the sticks. These gases pass through the charring furnace with its own pipeline, which allows the combustible gases to be transferred to the charring furnace combustion area for secondary fire heating. It is more environmentally friendly and saves fuel. Excess gas from the charring furnace can be used to dry sawdust or to fire the boiler. The cooling time of the charring furnace is shorter, we use the gap between the intermediate layers to naturally cool the carbonization furnace with unit water cooling, which is more efficient and convenient.

Sawdust charcoal stick carbonization furnace, charcoal stove and wood charcoal machine can use different material as heating source.Such as the waste wood, coal, gas, natural gas, liquefied gas, combustible gas(produced during the carbonized process).

Peanut shell, Palm shell, Wood log, Coconut shell, sawdust, bamboo or other biomass can be carbonized into peanut shell, palm shell charcoal, coconut shell charcoal, bamboo charcoal, sawdust charcoal, biomass charcoal by carbonization equipment.

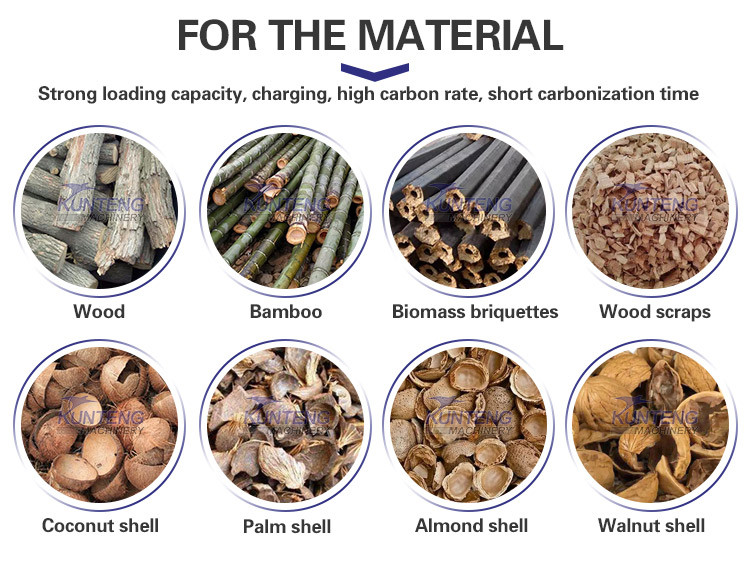

Raw materials of sawdust charcoal stick carbonization furnace, charcoal stove and wood charcoal machine can be peanut shell, coconut shell, wood, biomass, some crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallet, sawdust, shavings, wood chips, fruit wood, rice husk, corncob, peanut shell, furfural residue, palm shell, semi-coke and etc.

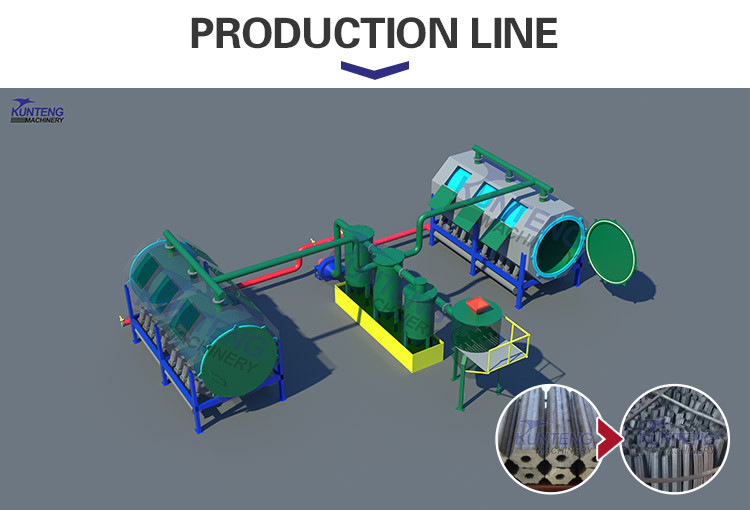

We could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements.

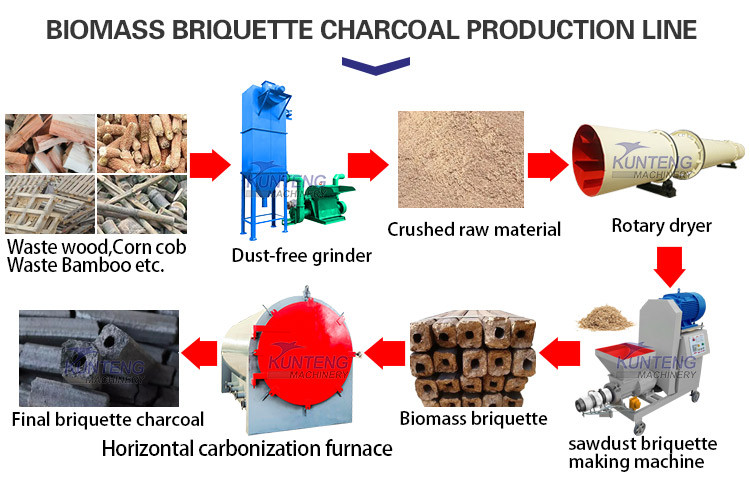

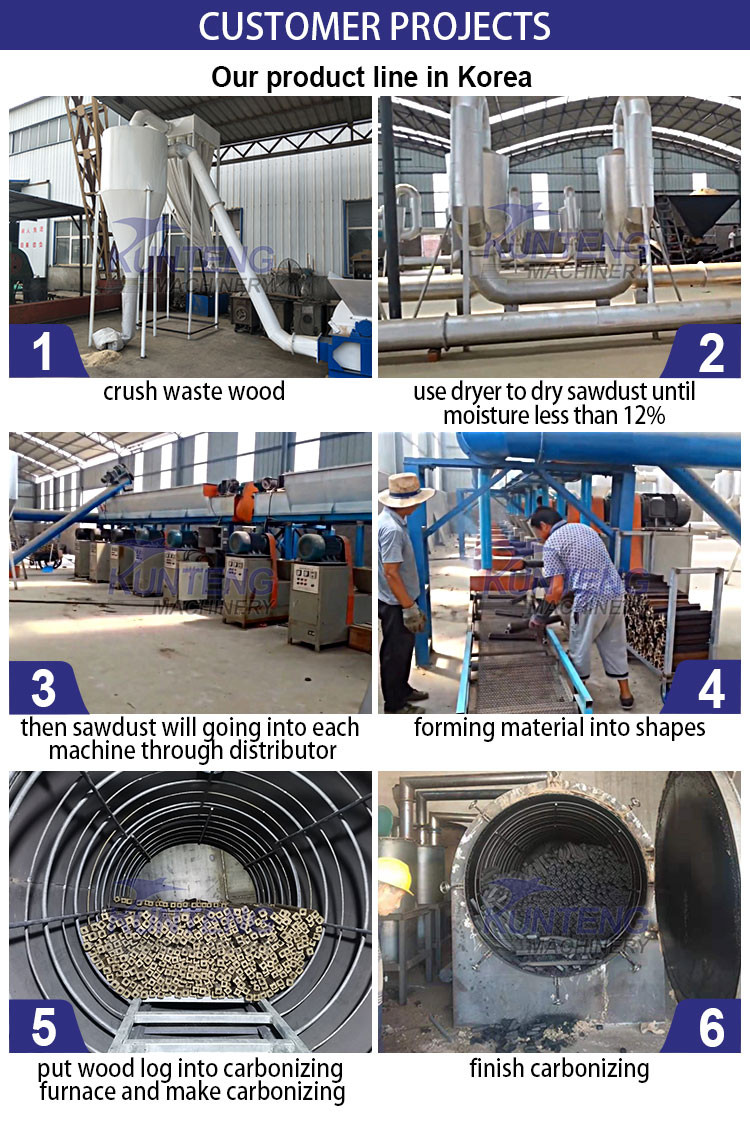

Firstly, rice husk, sawdust or other biomass are crushed by dust free crusher and dryer.

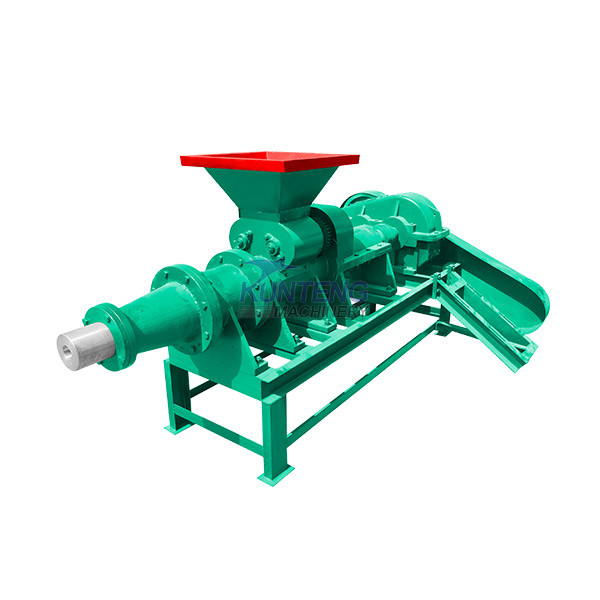

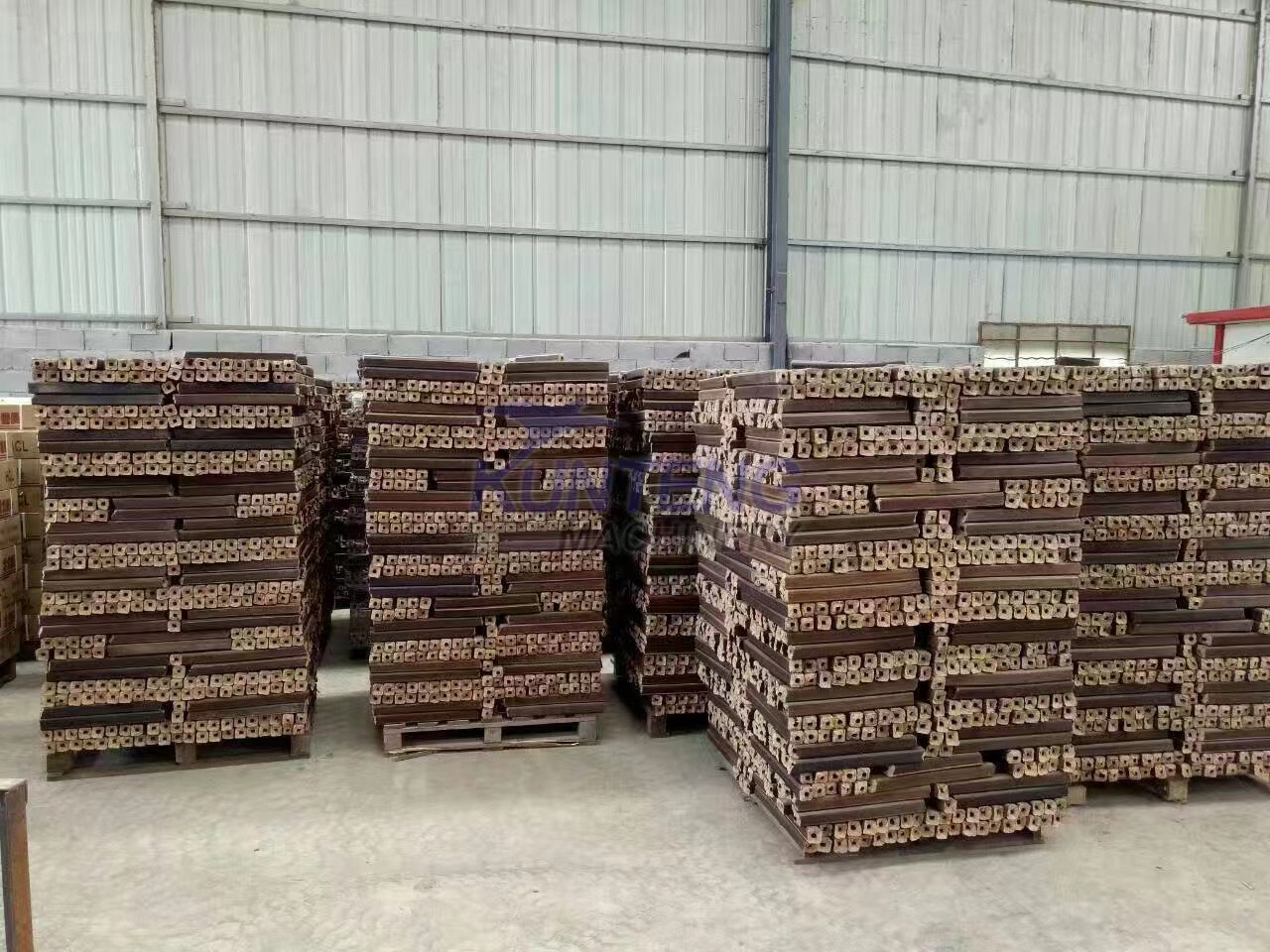

Secondly, biomass powder can be shaped by sawdust briquette machine.

In the end, sawdust stick can be carbonized by carbonization furnace.

The whole charcoal carbonization furnace, smoke free charcoal stove and sawdust wood charcoal machine production line are fully automatic.

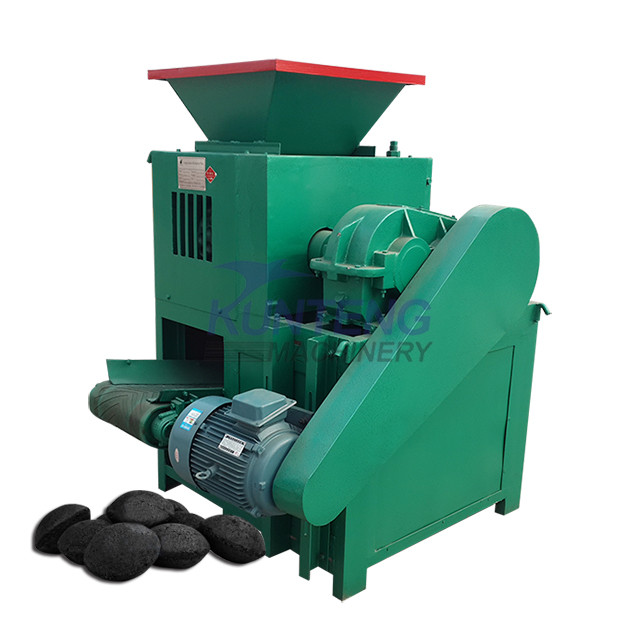

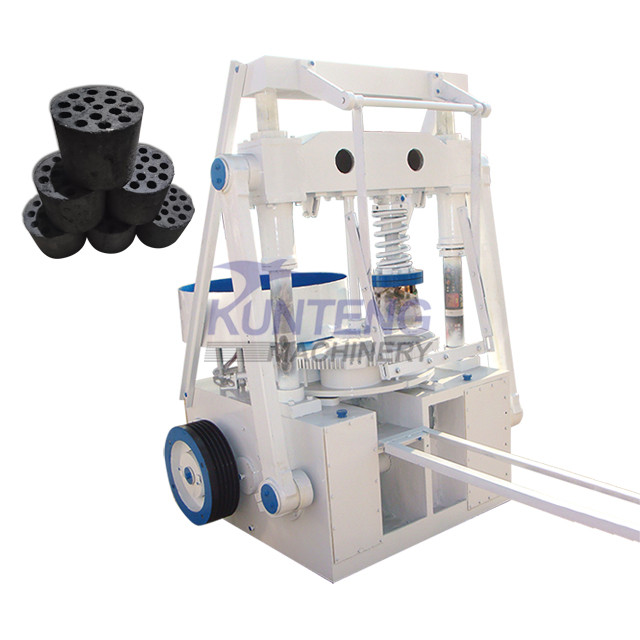

Click the machines below for more details

PARAMETER

TYPE	SIZE	CAPACITY(kg)	GROSS WEIGHT(kg)	THICKNESS OF STEEL
KT1500-1000	1.5*φ1m	700	400	6mm
KT1500-1200	1.5*φ1.2m	850	500	6mm

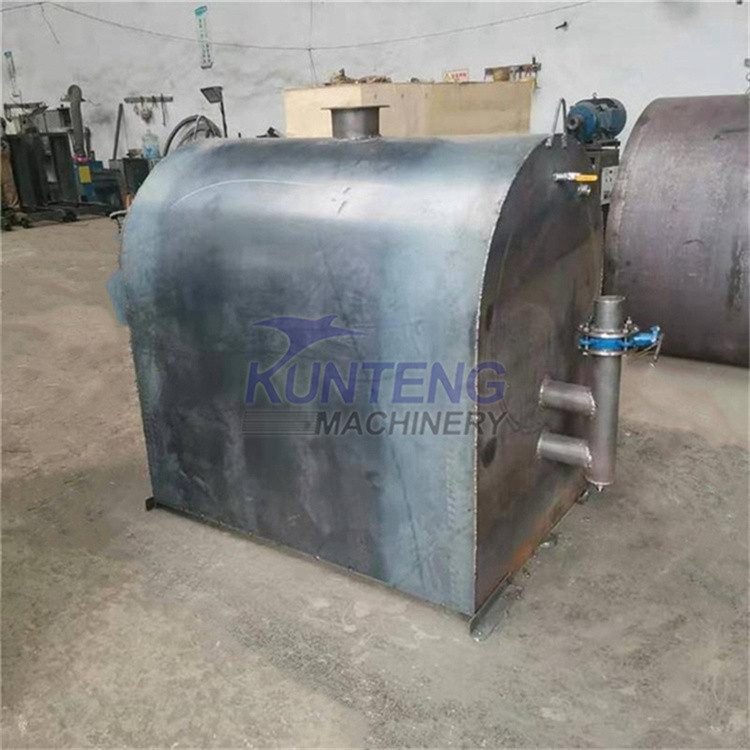

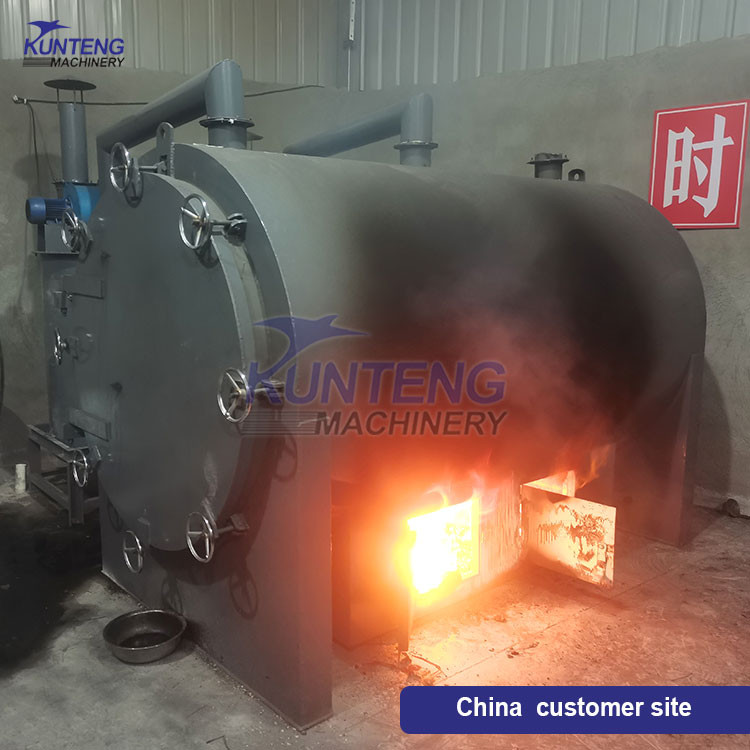

CUSTOMER SITES

SAWDUST CHARCOAL STICK CARBONIZATION FURNACE customer sites

Our team have more than 20 years export experience for carbonization furnace production line. We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

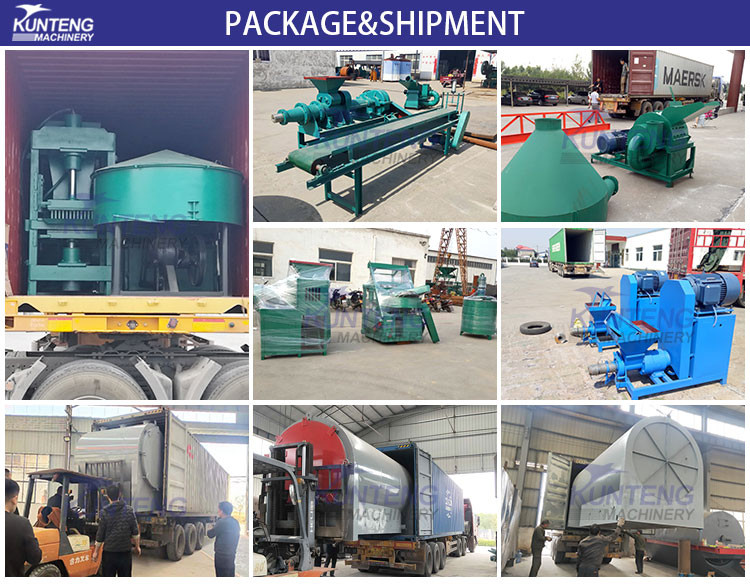

PACKING & SHIPPING

The plastic film bag wrapped machine, according to the size and weight to make wood case, put machine in and fixed the box after loading. (The box material can be made as your requirements) The carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

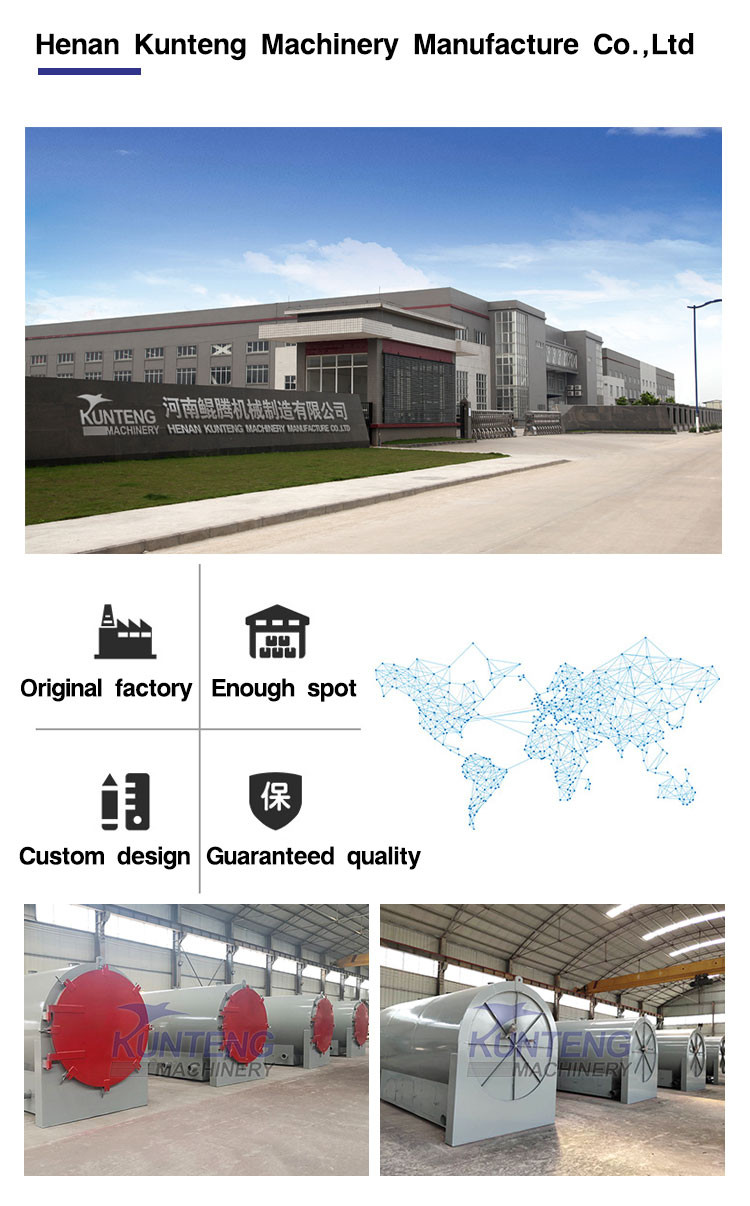

COMPANY PROFILE

Henan KUNTENG Machinery Manufacture Co.,Ltd is specilize in producing briquette machine, there are many useless material in the world, our machine can make these material recycling use, and make high profit for user. Our equipment can make charcoal or briquette from waste material. Since our company's inception, has high credibility. And we help customers design the best quality product line for different types machine. Our machine sold at home and abroad. We supply those certifications like CE ISO9001, CO,

Form E, COC, CIQ, to help customers from different countries clearance.

KUNTENG Group Service Items

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

FAQ

Q: What is your Business Model? Trading company or factory?
A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO. We will pick you up at airport. Welcome to visit our factory.

Q: What is the Quality of your products?
A: KUNTENG Group products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What is the Installation of your products?
A: KUNTENG Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, food and lodging, most importantly to guarantee the technician's safety.

Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.

Q: What should I provide to get the suitable quotation?
A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.

Plz feel free to contact us for details.
