Applicable Industries | Manufacturing Plant, Energy & Mining | Condition | New |
Type | Magnetic Separator | Place of Origin | Henan, China |
Voltage | 380V, 440V,etc.. | Dimension(L*W*H) | 3440x2220x1830mm |
Weight | 4.3t | Certification | ISO,CE |
Warranty | 1 Year | After-sales Service Provided | Field installation, commissioning and training |
Introduction

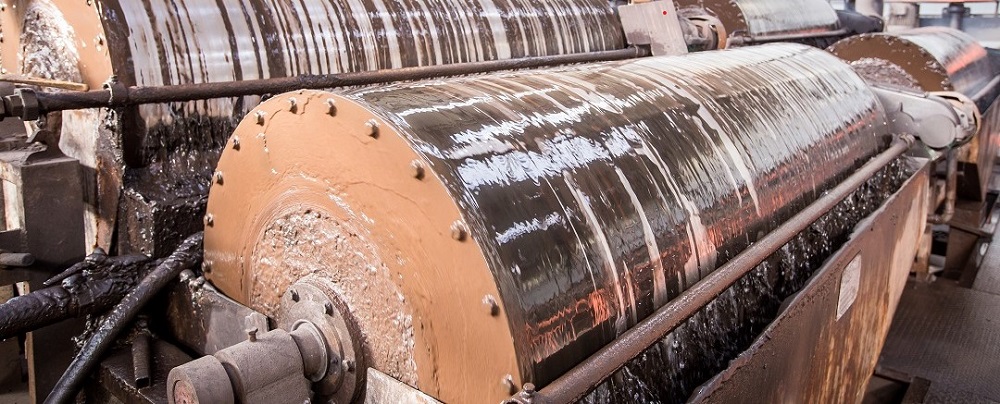

Magnetic separator is suitable for materials with magnetic difference, which is widely used for resource recovery, timber industry, mining industry, ceramics industry, chemical industry, food,etc.. Magnetic separator is suitable for wet separating of materials with below 5mm sizes, such as magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used to remove iron from coal, non-metallic minerals, building materials,etc.. it is one of the most extensive and high versatility devices.
Technical Data
Model | CTB612 | CTB618 | CTB7512 | CTB7518 | CTB918 | CTB924 | CTB1018 | CTB1024 | |
drum diameter(mm) | Φ600 | Φ600 | Φ750 | Φ750 | Φ900 | Φ900 | Φ1050 | Φ1050 | |
drum length (mm) | 1200 | 1800 | 1200 | 1800 | 1800 | 2400 | 1800 | 2400 | |
Speed (r/min) | 35 | 35 | 35 | 35 | 20 | 20 | 20 | 20 | |
magnetic intensity (Gs) | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | 1200-1500 | |
Feeding size (mm) | 0.4-0 | 0.4-0 | 0.5-0 | 0.5-0 | 0.8-0 | 0.8-0 | 0.8-0 | 0.8-0 | |
Feeding density(%) | 20-25 | 20-25 | 20-25 | 20-25 | 25-35 | 25-35 | 25-35 | 25-35 | |
Work clearance(mm) | 30-40 | 30-40 | 30-40 | 30-40 | 45-75 | 45-75 | 45-75 | 45-75 | |
Capacity | dry ore (t/h) | 10-15 | 15-20 | 20-30 | 30-35 | 35-50 | 40-60 | 50-100 | 70-130 |
pulp (m3/h) | 30-45 | 40-60 | 60-90 | 90-100 | 100-150 | 120-180 | 170-120 | 200-300 | |
Power (kw) | 2.2 | 2.2 | 2.2 | 3 | 4 | 4 | 4 | 5.5 | |
Weight (kg) | 1200 | 1500 | 1830 | 2045 | 3500 | 4000 | 4095 | 5071 | |
Overall dimension (mm) |
2280x1300 x1250 |
2280x1300 x1250 |
2256x1965 x1500 |
2280x1965 x1500 |
3000x1500 x1500 |
3600x1500 x1500 |
3440x2220 x1830 |
3976x2250 x1830 |
