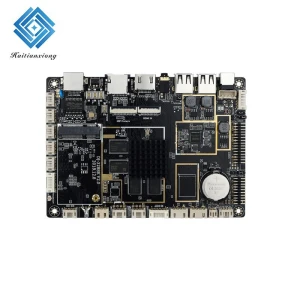

Rockchip RK3288 motherboard Embedded terminal Android board of Quad Cortex-A17 at 1.8GHz DJ-3288

Quantity	2 - 99	100 - 499	500 - 1000
Price	89	81	79

Contact Now

Product Details

Introduction

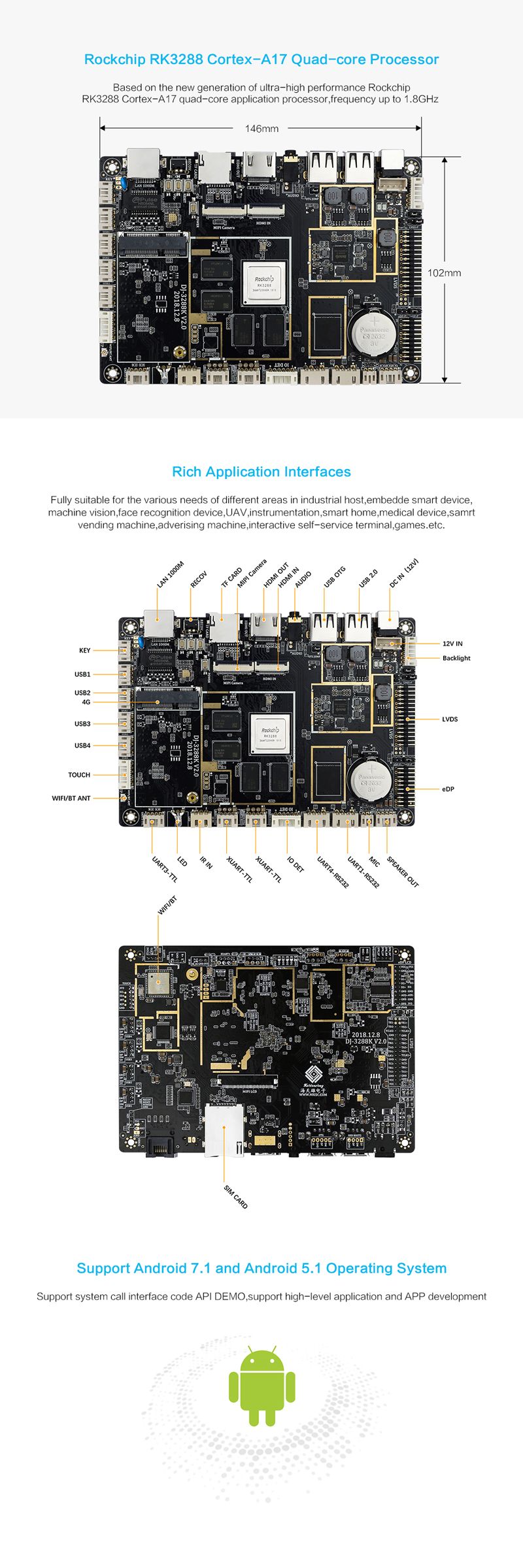

DJ-3288K is a standard 3.5 " industrial single board computer (SBC) based on Rockchip RK3288 quad-core ARM Cortex-A17 processor, frequency at1.8GHz, on-chip Mali-T764 GPU, perfectly support for 4K, H.265 hardware decoding. And offer rich interfaces including Gbit Ethernet, UART, USB, Mini-PCIe, GPIO, MIPI / LVDS /eDP, MIC / headphone / amplifier audio interfaces.

The SBC targets a wide range of industrial applications such as Commercial Display, Digital Signage, Industrial control products, IoT Device, Smart Embedded Device, Robotics, Games and much more.

Features

● Standard 3.5-inch industrial ARM Single Board Computer with CPU cooler

● Dual Channel 30/24/18bit LVDS, HDMI1.4 4k x 2k at 60Hz, eDP 4k x 2k @30fps, support HDMI

● Support 4K H.265/H.264 video decoder

● Onboard WiFi/BT modules, mini-PCIE for 4G option with SIM slot

● 6x USB2.0,6x UART,1x GbE Lan, 1x TF Slot

● Support Android 10, Android 7.1 and Android 5.1

CPU	Rockchip ARM Cortex-A17 RK3288 Quad-core processor, frequency at 1.8GHz
GPU	Mali-T764 GPU，support 4K、H.265/H.264 hardware decoder
Memory	Onboard 2GB DDR3L（optional 4GB）
Storage	Onboard 8GB eMMC Nand Flash（optional 16GB/32GB...）
Ethernet	1x RJ45 LAN, 10/100/1000Mbps 1x Mini PCIe slot with SIM Card Slot, support 3G/4G Onboard Wi-Fi/BT Module, support 802.11 b/g/n and BT4.0
Display	1x 30/24/18-bit LVDS with 19201080 for dual channels at 60Hz(30Pin header) 1x Backlight 5V / 12V voltage selection (Jumper) 1x Touch screen signal (I2C, 6PIN header) 1x eDP (20Pin header) 1x Dual 4 Lane MIPI DSI (50Pin header) 1x HDMI OUT, up to 38402160 at 60Hz 1x HDMI IN(24Pin header)
USB	1x USB2.0 Type A 1x USB2.0 Type A(Host/OTG optional) 4x USB Pin header
UART	4x 4-wire RS232/TTL, Pin header
Audio	1x 3.5mm Head phone slot 1x MIC In(2Pin header) 1x Speaker interface (4Pin header) With power amplifier circuit
I/O	1x TF Card slot 1x MIPI CSI (4 Lanes 30Pin header) 4x GPIO via pin header 1x Buttons (volume plus/minus button, reset button, power button) 2x LEDs (red, blue) 1x IR circuit, support infrared remote control
RTC	Support
Sleep/Wake up	Support
Power Supply	DC-in 12V, 1x DC-in Slot, 1x 4Pin header
Temperature	Operating Temperature: -20℃ - 60℃ Humidity: 5%~95%RH, no condensation
Temperature	Storage Temperature: -40℃ - 60℃ Humidity: 5%~95%RH, no condensation
Dimensions (W x D)	146 x 102mm
OS	Android 10, Android 7.1 and Android 5.1
