MOQ | 1 Set/Sets |
Condition | New | Place of Origin | Zhejiang, China |
Brand Name | Zhonglong | Type | Recycling Granulator |
Screw Design | Double | Model Number | SJ series |
Voltage | 380V(220V, 415V optional) | Certification | CE |
After-sales Service Provided | Engineers available to service machinery overseas | Warranty | One Year |
Material | PP/PE |

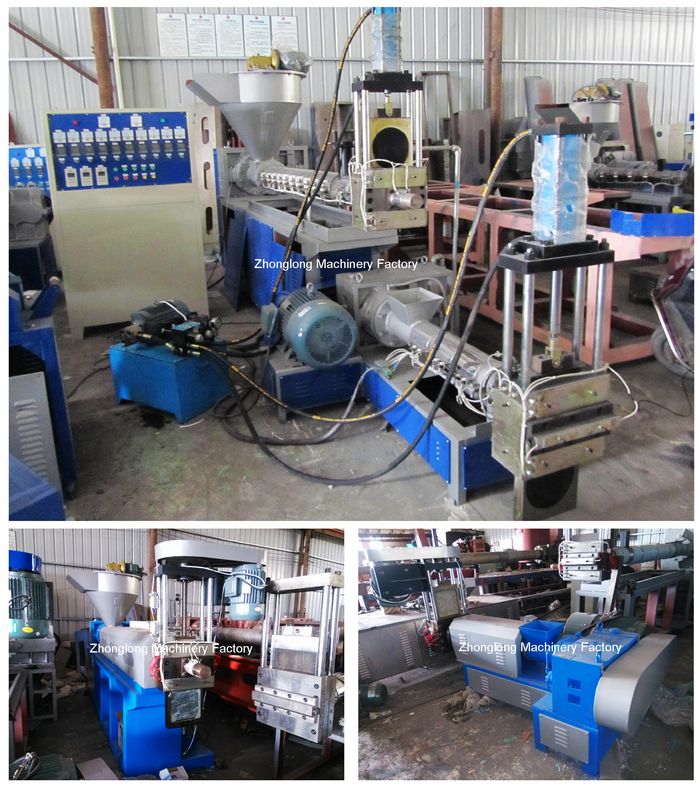

Two screws plastic recycling pelletizer granulator.
Waste Plastic recycling granulator
Option with:
force feeding.
frequency inverter speed control
38CrMoAl screws
motor electric filter changer
water ring hot cutting.
USAGE
This machine is two screws
plastic recycling granulator designed for PP, LDPE, HDPE, EVA,
etc.,to make pellets.
This machine can make very good
and clean plastic pellets and suitable for several types waste
materials, like plastic film, bags, drums, etc.
PARAMETER
Model |
SJ-100/90 |
SJ-120/90 |
SJ-120/100 |
SJ-135/120 |
SJ-160/130 |
Screw Diameter |
100mm, 90mm |
120mm, 90mm |
120mm, 100mm |
135mm, 120mm |
160mm, 130mm |
Screw Ratio |
12:1-10:1(L: D) |
12:1-10:1(L: D) |
15:1-10:1(L: D) |
22:1-10:1(L: D) |
22:1-10:1(L: D) |
Screw Speed |
10-110rpm |
10-110rpm |
10-110rpm |
10-110rpm |
10-110rpm |
Main Motor Power |
15kw+7.5kw |
18.5kw+7.5kw |
22kw+7.5kw |
55kw+18.5kw |
75kw+22kw |
Main Output |
80-100kg/h |
90-110kg/h |
130kg/h |
150-200kg/h |
250-300kg/h |
Weight |
2.0t |
2.2t |
2.5t |
3.0t |
3.5t |
Overall Dimensions |
4500*700*1500 |
4700*800*1550 |
5100*900*1550 |
7600*900*1550 |
9000*1000*1600 |
Development zone ave, Rui'an economic development zone, Zhejiang, China
