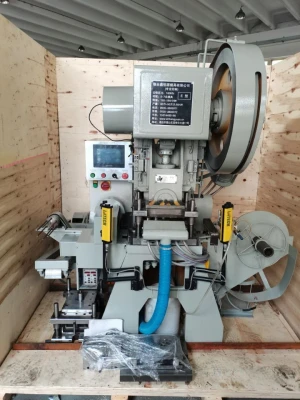

punch machine with mold for flip off seal

Product Details

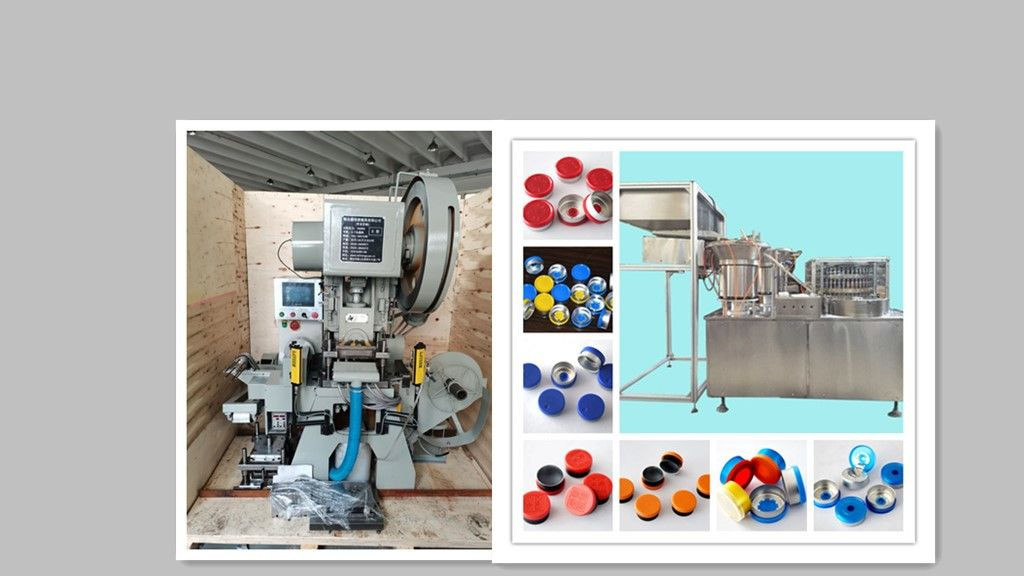

ITEM 1. 16 - TON PUNCH MACHINE CAVITIES MOLD

Components of the Machine:

1.1a. 16 - ton power press, 380V (compatible with 440V);

1.2b. Mould with 5 cavities for 20mm cap, made according to the customer's cap drawing and samples;

1.3c. Machine control system;

1.4d. Uncoiler and servo - motor - powered material feeder;

1.5e. Aluminum coil lubrication system;

1.6f. Air generator and cap blowing system;

1.7g. Ring separator and conveyor belt;

1.8h. Recoiler of waste material;

1.9i. Mould protection system;

1.10j. Hand protection system;

1.111.2 Capacity: 40,000 - 45,000 caps per hour (frequency: 120 - 135 times/min)

1.121.3 Aluminium coil width: 151mm

1.131.4 Spare parts: 50% of the parts for the 5 - cavity mould.

1.141.5 Tools: Standard tools for the repair and maintenance of the machine and mould.
