Pool accessories 100W DC12V waterproof power supply

FOB Price 31.85 - 31.85 USD / Pieces

Quick Details (View All)

Place of OriginGuangdong, China Brand Namebirmate
Model NumberHG-12DC-100WH-FS Output Power100W
Output TypeSingle Input Voltage220V
Output Voltage12VDC Output Frequency47-63HZ
Output Current1A Voltage12V DC

Product Details

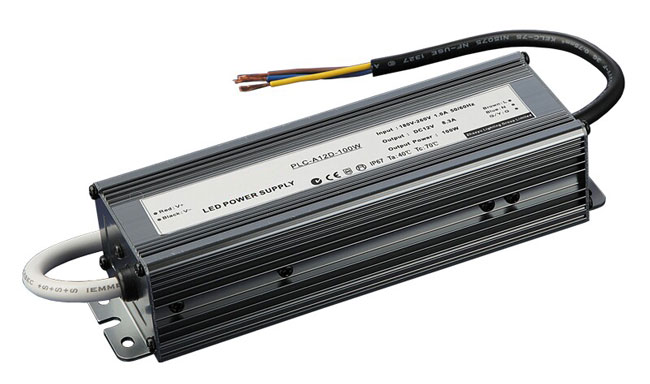

100W AC 110V input voltage DC12V output voltage LED pool light IP67 waterproof power supply



Features:

 1.Protections: Short circuit/Over load/Over temperature.

 2.IP67 design for indoor or outdoor installations.

 3.EN60950-1 power unit.

 4.Cooling by free air convection.

 5.100% full load burn-in test.

 6.High reliability.

 7.Suitable for moving sign applications.

 8.2 year warranty.



Specifications:



HG-12DC-100WB-FS

Output

Rated Power

100W(MAX)

DC Voltage

DC 12V

Rated current

8.3A

Voltage Tolerance

±5%

Input

Voltage Range

100-120V DC

Frequency range

47-63Hz

Efficiency (Typ)

86%

AC Current

1.0A / 230V AC

Power Factor

PF>0.6

Protection

Over Load

>120%

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

MTBF

20000hrs min.

Package

Dimension

174*52*40mm

Package

40PCS, 24Kg

Remark!!

IP rating

IP67

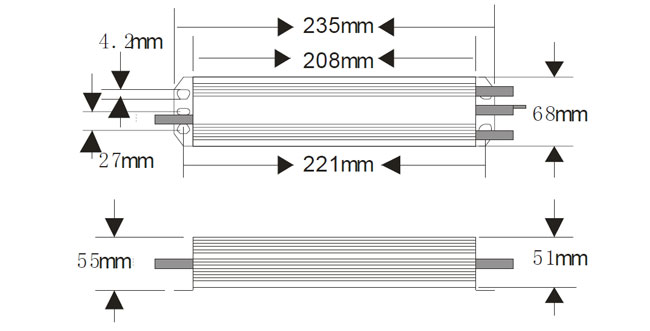

Dimension:





FAQ:



1. Q: When can I get the price?

A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us or tell us in your email so that we will give priority to your inquiry .



2, Q: Do you accept the OEM&ODM?

A: Yes,OEM or ODM service are available.



3, Q: May I get samples to test quality and how long can I get them?

A: Yes, quote of sample is same as normal order and can be ready in 3-5 days.



4, Q: What is the MOQ?

A: One piece is OK. Because any order is from sample.



5, Q: Can you accept small trial order?

A: Yes, no matter large or small trial order, your needs will get our full attention. It’s our great honor to cooperate with you.



Our service:



1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and passionate sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.



R&D team:



1.Two wires of RGB synchronous controller has the Patent number:

2.Two wires of DMX controller and decoder is also invented by our R&D team. And it saves the most cost of the cable from 5 wires to 2 wires. The effect of DMX is same.

3.All molds of our swimming pool light and underwater light is made by ourselves.

4.Quality is always our life to our R&D team and our manufacturer.
