Applicable Industries | Building Material Shops, Machinery Repair Shops, Retail, Construction works , Energy & Mining | Condition | New |
Type | Flotation Separator | Production Capacity | 98% |
Place of Origin | China | Brand Name | mingze |
Voltage | 220V/380V | Dimension(L*W*H) | 1215*850*2720 |
Weight | 150-800kg | Certification | ISO |
Warranty | 1 Year | After-sales Service Provided | Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service |

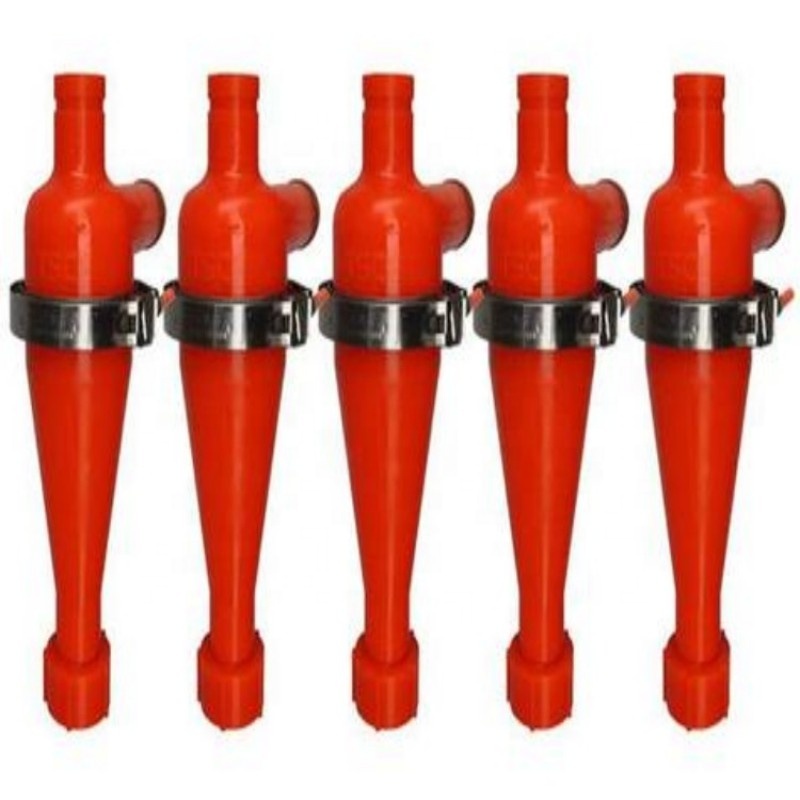

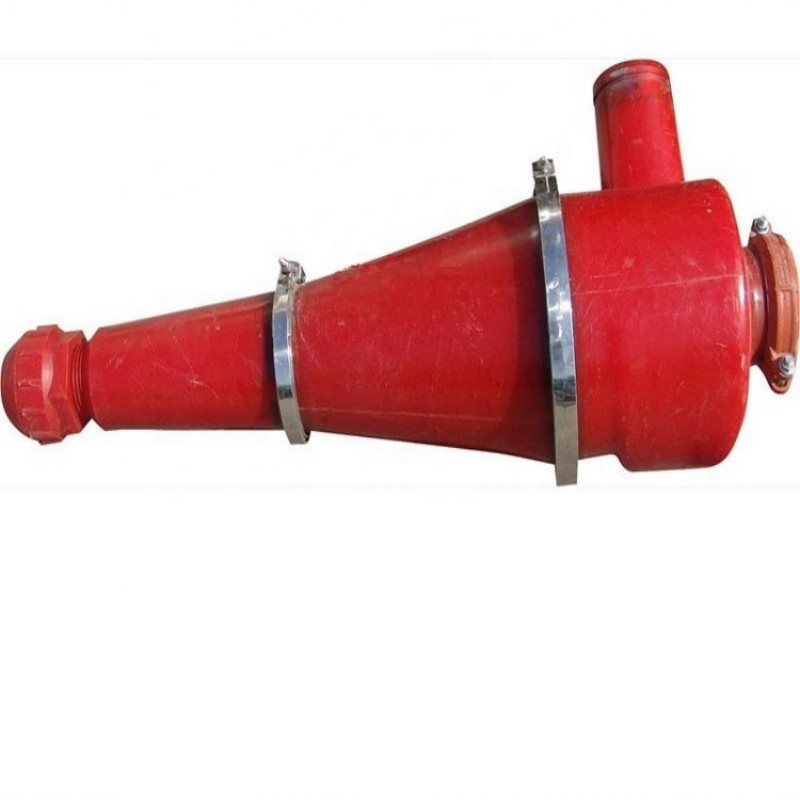

Product name | Polyurethane Hydrocyclone Ore Washer Mineral Separator | Material | Polyurethane |
Usage | Mining Separatoion | Color | Red |
Higher capacity
Longer service life of wear parts
Wider application range
Finer Separation size
Higher efficiency
Design and model selection available
Hydrocyclone Specifications and Technical
Parameters
Moels | Cylinder Diameter mm | Grit mouth diameter mm | Max feeding size mm | feed pressure MPa | processing capacity m3/h | separation size μm |
MZ75 | 75 | 4,5,6,8,10,12,14,16 | 1 | 0.1-0.2 | 5-10 | 10-30 |
MZ100 | 100 | 10,12,14,16,18,20 | 1 | 0.1-0.2 | 10-16 | 10-30 |
MZ150 | 150 | 14,16,18,20,22,24 | 1 | 0.1-0.2 | 15-30 | 20-74 |
MZ250 | 250 | 25,30,35,40,45,50 | 3 | 0.08-0.12 | 40-75 | 30-100 |
MZ350 | 350 | 30,40,50,60 | 6 | 0.08-0.12 | 80-150 | 50-150 |
MZ500 | 500 | 50,60,70,80,90,100,110 | 10 | 0.08-0.12 | 140-230 | 74-200 |
MZ610 | 610 | 80,90,100,110,120,130 | 12 | 0.08-0.12 | 200-260 | 74-200 |
MZ660 | 660 | 80,90,100,110,120,130,140 | 16 | 0.08-0.12 | 280-400 | 74-220 |
MZ750 | 750 | 90,100,110,120,130,140,150 | 16 | 0.08-0.12 | 360-500 | 74-250 |
