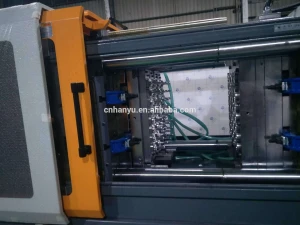

plastic injection molding machine

FOB Price 15000 - 20000 USD / Set

MOQ	1 Set/Sets

Contact Now

Quick Details (View All)

Plastic Processed	PP, PC, PET, HDPE, PE, HDPE/PP, PE/PP	Condition	New
Style	Horizontal	Distance between Tie Bars(Width)(mm)	410mm
Distance between Tie Bars(Height)(mm)	410mm	Plasticizing Capacity(g/s)	31
Mold Height(mm)	150 - 420 mm	Ejector Number	5
Ejector Stroke(mm)	110 mm	Ejector Force(kN)	38 kN
Theoretical Shot Volume(cmu00b3)	310 cmu00b3	Injection Rate (g/s)	116 g/s
Machine Type	Hydraulic	Injection Weight (g)	282 g
Screw Speed (rpm)	1 - 200 rpm	Screw diameter (mm)	48 mm
Screw L/D Ratio	20	Distance between Tie Bars	410x410 mm
Weight (KG)	3800	Type	Preform Injection
Place of Origin	Zhejiang, China	Open Stroke(mm)	380 mm
Model Number	HY-1500	Brand Name	HANYU
Power (kW)	21 kW	Warranty	1 Year
After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Online support, Engineers available to service machinery overseas	Key Selling Points	High Safety Level
Applicable Industries	Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Food & Beverage Shops	After Warranty Service	Video technical support, Online support, Spare parts
Local Serviceu00a0Location	Viet Nam, Mexico, Russia, Thailand	Showroom Location	Viet Nam, Mexico, Russia, Thailand
Marketing Type	Ordinary Product	Machinery Test Report	Provided
Video outgoing-inspection	Provided	Warranty of core components	1 Year
Core Components	Motor, PLC, Pressure vessel	Product name	Injection Moulding Machine
Name	Used Plastic Injection Molding Machines	Voltage	380V/ 50Hz 3P
Screw Diameter	45mm	Machine weight	4T
Keyword	Pet Preform Injection Making Machine	Product	Plastic Box Injection Moulding Machine
Plastic injection moulding machine	Comestic Box Making Injection Molding Machine	Plastic Type	Thermoplastic
