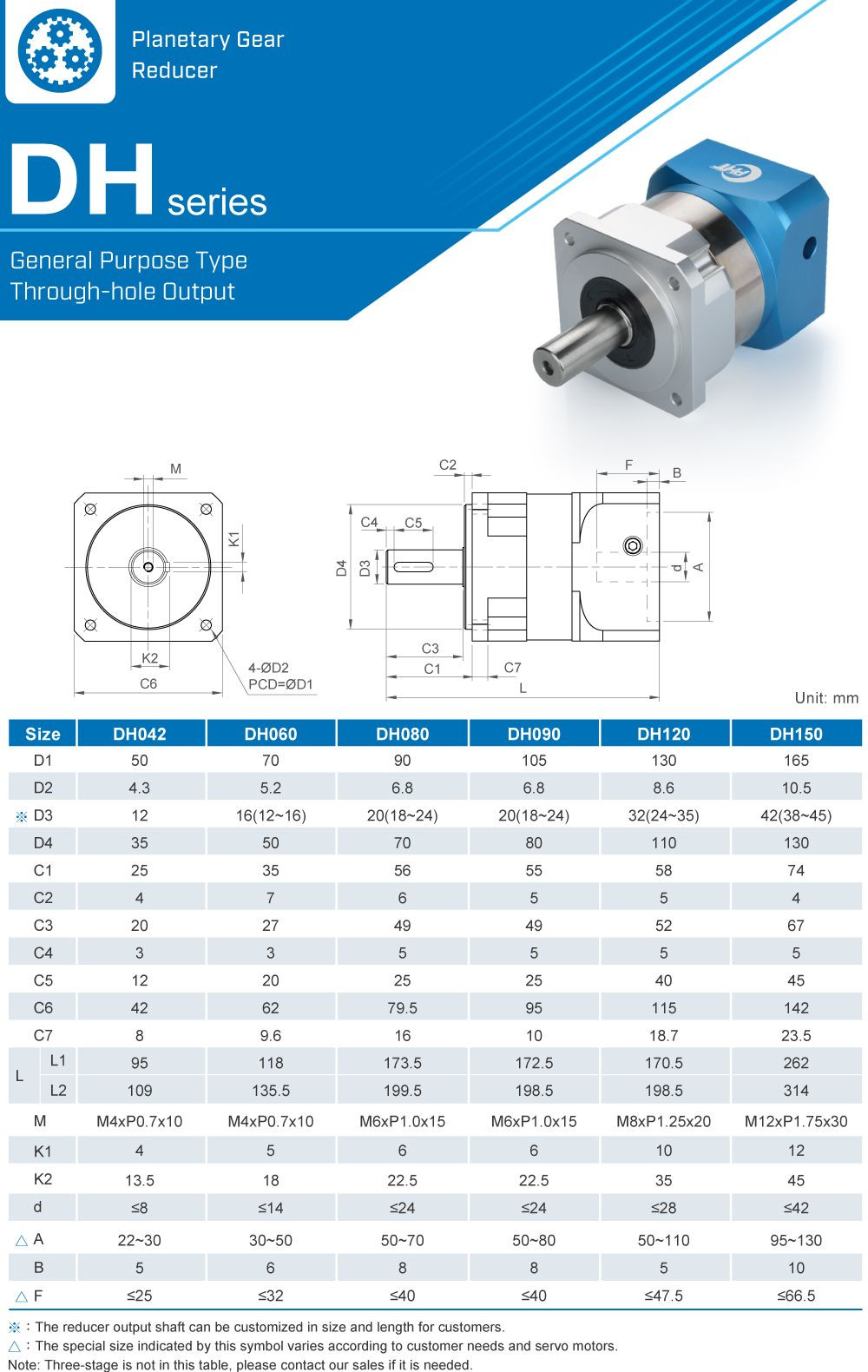

Planetary gearbox DH series

Product Details

It is widely used for various kinds of automation equipment; easy installation by the output through holes.

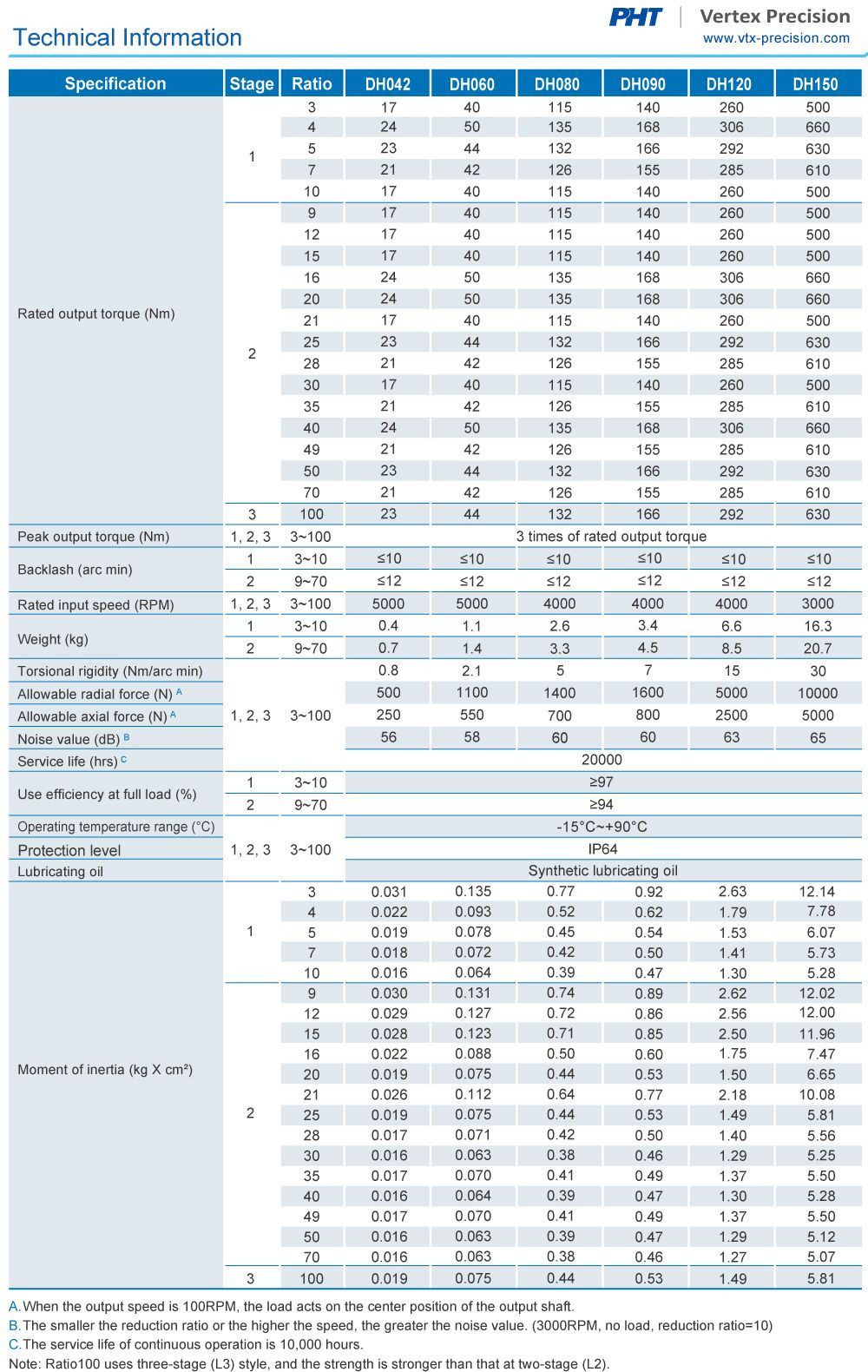

• Size 42 / 60 / 90 / 120 / 150
• General purpose (spur)
• Through-hole output
• Backlash 10 - 12 arc min
• Noise 56 - 65 dB
• Operating temperature -15°C ~ +90°C
• Efficiency 94% - 97%
• International Protection IP64

Applications of Planetary Gearbox

Planetary gear reducer is often used in the field of precision motion control for satisfying the requirements of high torque, torsional rigidity, and low backlash. The selecting of an appropriate reduction ratio can provide greater torque, make the mechanism to be operated at the optimal speed, and reduce the moment of inertia of the load to increase the equipment stability. Planetary gear reducer allows the machine builder to minimize the space in designing the whole motion control module, furthermore reduces the cost. The applying scope of Planetary gear reducer covers the entire automation field as following:

▶️ Pick and Place System. ▶️ Rotary Drive. ▶️ Plasma Cutting Machine. ▶️ Positioning Platform. ▶️ CNC Engraving Machine. ▶️ Material Handling System. ▶️ Industrial Conveyor System. ▶️ Industrial Printing Machine. ▶️ Laser Cutting System. ▶️ Optical Inspection Equipment. ▶️ Gantry Type Loading and Unloading Robotic Arm. ▶️ Machine Tools (Automation Peripheral). ▶️ Automatic Testing Machine. ▶️ Feeding Machine (Feeder). ▶️ Packing Machine. ▶️ AGV Robotics. ▶️ Solar Energy. ▶️ Power Transmission System. ▶️ Semi-conductor Equipment. ▶️ Mining System. ▶️ Lifting System. ▶️ Linear Motion. ▶️ Ball Screw System. ▶️ Linear Guide System. ▶️ ...many designs you can imagine, and institutions you can't imagine.
