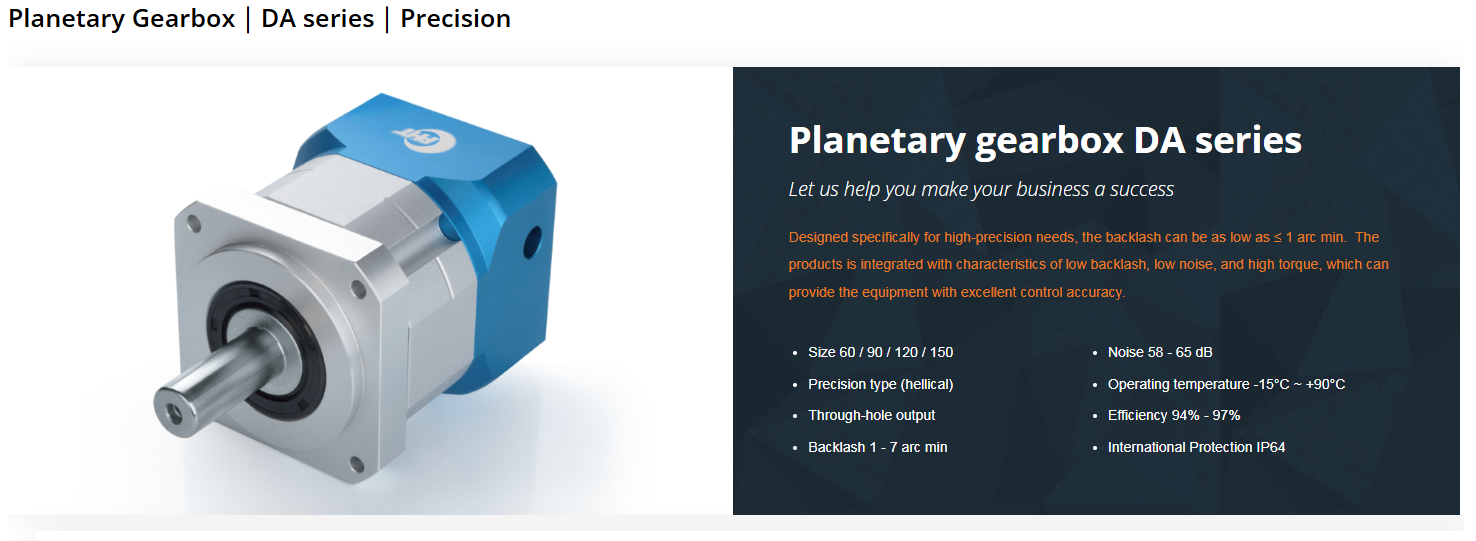

Planetary gearbox DA series

Product Details

Designed specifically for high-precision needs, the backlash can be as low as ≤ 1 arc min. The products is integrated with characteristics of low backlash, low noise, and high torque, which can provide the equipment with excellent control accuracy.

• Size 60 / 90 / 120 / 150
• Precision type (hellical)
• Through-hole output
• Backlash 1 - 7 arc min
• Noise 58 - 65 dB
• Operating temperature -15°C ~ +90°C
• Efficiency 94% - 97%
• International Protection IP64

Applications of Planetary Gearbox

Planetary gear reducer is often used in the field of precision motion control for satisfying the requirements of high torque, torsional rigidity, and low backlash. The selecting of an appropriate reduction ratio can provide greater torque, make the mechanism to be operated at the optimal speed, and reduce the moment of inertia of the load to increase the equipment stability. Planetary gear reducer allows the machine builder to minimize the space in designing the whole motion control module, furthermore reduces the cost. The applying scope of Planetary gear reducer covers the entire automation field as following:

▶️ Pick and Place System. ▶️ Rotary Drive. ▶️ Plasma Cutting Machine. ▶️ Positioning Platform. ▶️ CNC Engraving Machine. ▶️ Material Handling System. ▶️ Industrial Conveyor System. ▶️ Industrial Printing Machine. ▶️ Laser Cutting System. ▶️ Optical Inspection Equipment. ▶️ Gantry Type Loading and Unloading Robotic Arm. ▶️ Machine Tools (Automation Peripheral). ▶️ Automatic Testing Machine. ▶️ Feeding Machine (Feeder). ▶️ Packing Machine. ▶️ AGV Robotics. ▶️ Solar Energy. ▶️ Power Transmission System. ▶️ Semi-conductor Equipment. ▶️ Mining System. ▶️ Lifting System. ▶️ Linear Motion. ▶️ Ball Screw System. ▶️ Linear Guide System. ▶️ ...many designs you can imagine, and institutions you can't imagine.
