Olive Pomace Dryer Cassava Pulp Drying Machine Beer Brewing Waste Vinasse Drying Machine Single Rotary Drum Dryer

FOB Price 9500 - 9800 USD / 1

Quantity	9500 - 9800
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

type	Drum Drying Equipment	heating method	Gas Heating,oil,steam,biomass pellet

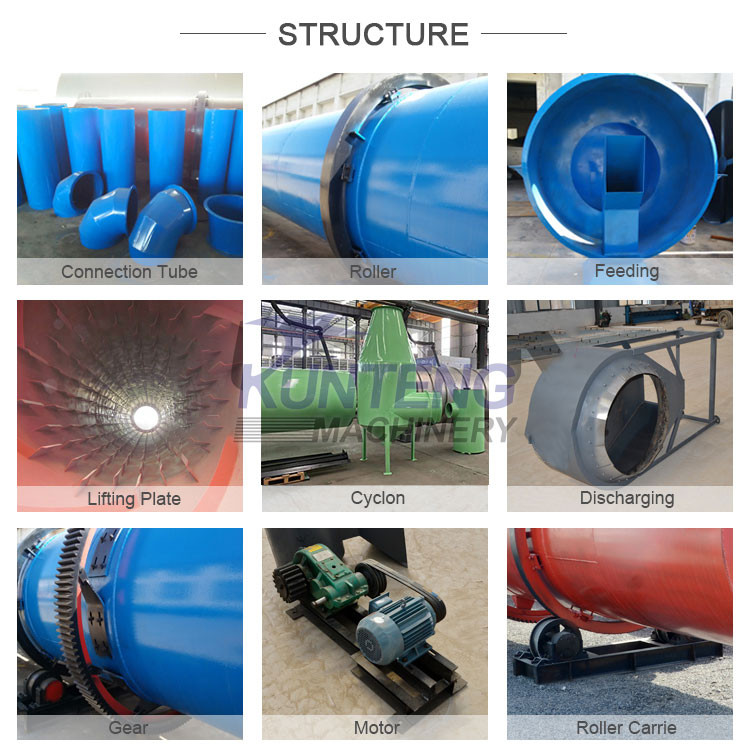

material	Other	core components	Other, Engine, Motor, Pump, Bearing, Gear, Gearbox, PLC, Rotary drum, Wheel supporting device, Feed and discharge device, Transmission device
application	Chemicals Processing, Plastics Processing, Food Processing, Cocopeat Processing	voltage	380V or customized
power(w)	7.5KW	key selling points	High Productivity
warranty	1 Year	machinery test report	Provided
video outgoing-inspection	Provided	place of origin	Henan, China
weight (kg)	2000	brand name	KUNTENG
dimension(lwh)	8008008000mm	Product name	rotary drum dryer
Keywords	pomace rotary drum dryer	Application	Cassava residue,pomace,beer yeast,Cocopeat coal slime sand sawdust.etc
Advantage	Low Consumption High Efficiency Dryer	Certification	CE ISO
Fuel	Gas Heating,oil,steam,biomass pellet.etc	Temperature range	60~500℃
Drying process	Automatic continuous Drying Machine	Other Name	Cassava residue dryer
After-sales Service Provided	Online Support

Product Details

Continuous fruit pomace rotary dryer, cassava pulp dryer, cassava waste dryer

Production Description

Features of rotary dryers:

1.Large Processing Capacity
2.Less Fuel Consumption
3.Low Drying Cost
4.High Temperature Resistance
5.Operate Steadily and Simple Structure
6.Strong overload Resistance

Heat Source: coal, natural gas, wood, biomass particles, etc.

Continuous pomace rotary drum dryer cassava slurry drying machine Manioc waste Cassava residue dryer machine
Model	Power (kw)	Rotor Diameter (mm)	Drum Length(mm)	Speed(r/min)
KT-800	7.5	Φ800	10000	7.2
KT-1000	7.5	Φ1000	10000	6.73
KT-1200	15	Φ1200	12000	5.8
KT-1500	22	Φ1500	15000	4.8
KT-1800	37	Φ1800	14000	3.2
KT-2000	55	Φ2000	18000	3
Rotary drum dryer diameter : 800~4000cm,the length according to drying requirement can be customized

Working principle:

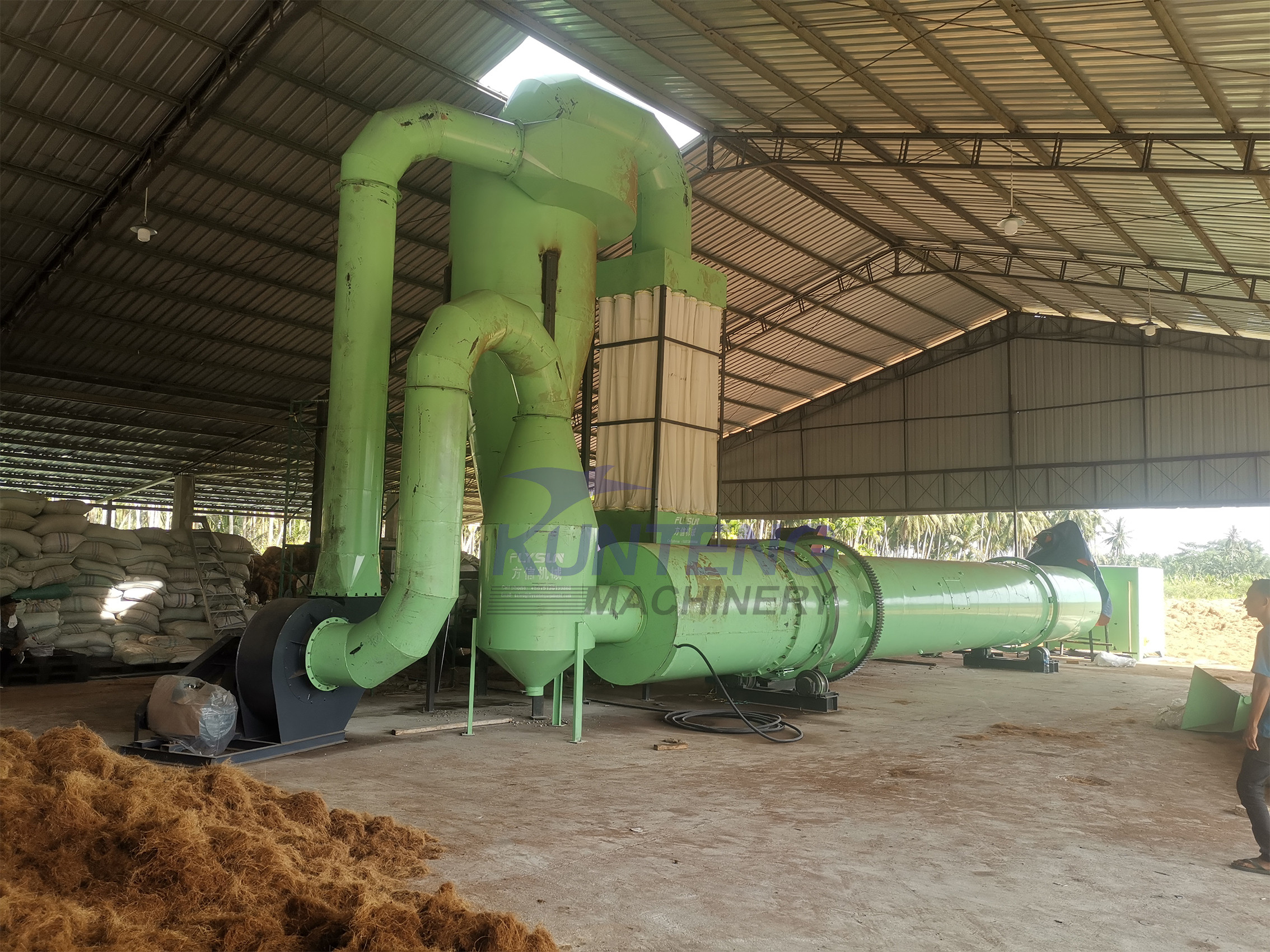

The raw material is transported to the inside of the rotary drum dryer by conveyor. High temperature hot air quickly evaporate the moisture, Materials is constantly turned under the action of the lifting plate, finally take the moisture out, the dried material come out at the cyclone.

It can dry wet material to 15% moisture content.

Continuous pomace rotary drum dryer cassava slurry drying machine Manioc waste Cassava residue dryer machine

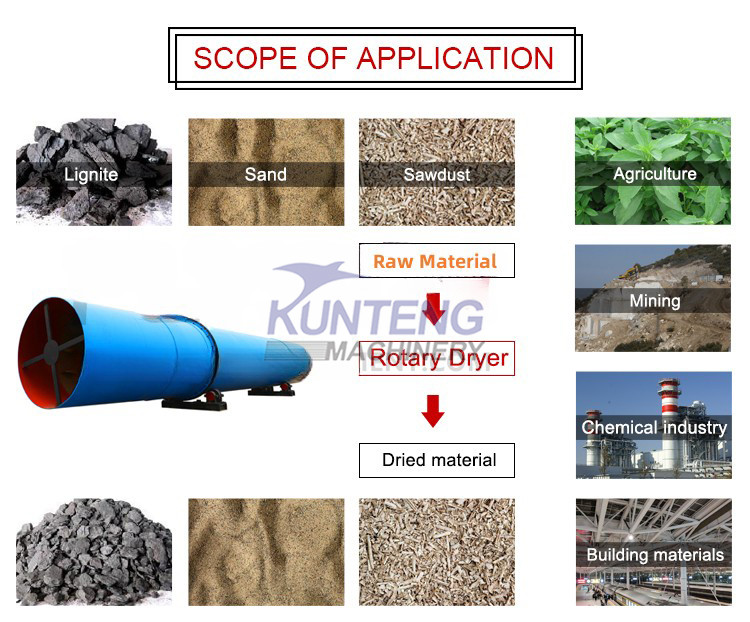

The Rotary drum dryer Widely used in metallurgy, chemical industry, coal, fertilizer, ore, sand, sawdust, cocopeat, wood chips, cassava residue, pomace, beer yeast, bagasse, manure, etc.

Company Profile

KUNTENG company was founded in 1999. has been focusing on machinery manufacturing for many years.include Rotary drum dryer, heat pump dryer, Mesh belt dryer, Freeze dryer, Charcoal making machines, Waste sorting machines, Coconut husk processing machines.We got more patented technologies and honor. Our machine has passed ISO9001:2000 CCC,CE certification, We provide customers with a one-stop service of design solutions, complete equipment, on-site installation, and after-sales support.

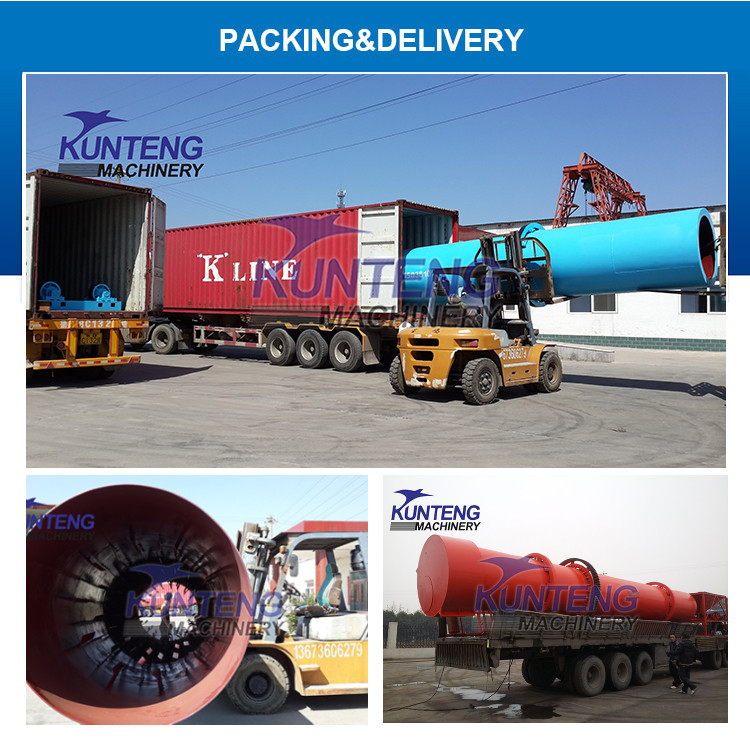

PACKING & SHIPPING

FAQ

Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, certified by . Q2

: What is the warranty period?
A2: Usually 12 months, excluding consumable parts.

Q3: What is your delivery time? A3
: We will arrange factory shipment within 15 working days after receiving your prepayment.

Please feel free to contact us for details.
