MOQ | 1 Set |
Port | Qingdao or Tianjin port |
Packaging | 40HQ & 40FR |
Lead Time | 25 |
Material of Reactor | standard Q245R boiler steel | Raw material | waste tyres, plastics, rubber |
Warranty | 1 year | Outputs | fuel oil, carbon black, steel wire |
Production Description of Fully Continuous Waste Tire Pyrolysis Plant:
Fully continuous waste tire plastic to fuel oil pyrolysis
plantcan convert waste tire/plastic into fuel oil. The raw
material is cheaper and can be easily available in the world.
Fully continuous waste tire plastic to fuel oil pyrolysis plant
is feasible in technology with small amount of invement, high
availability of materials, short recovery period and with bright
future, is the ideal choice of investment.
Main feature of fully continuous waste tire plastic to fuel oil
pyrolysis plant:
1. Feeding in every second and minute, automatically discharging
wastes residue, fuel oil producing day and night.
2. Fully continuous waste tire plastic to fuel oil pyrolysis
plant, advanced technology, full automation.
3. Large capacity(30-100tons tire/plastic per day), high oil
yield, good oil quality, high profit.
4. Low cost in operation. No need energy to heat the reactor,
generated syn gas is enough, less manpower.
5. High quality and environment, to meet your strict emission
standards.
6. Safety. Mature safety devices, such as alarm for over
temperature and pressure, auto pressure releasing system, extra
gas recycling system and fire fighting device, guarantee 100%
safety in the continuous tyre to oil recycling process.

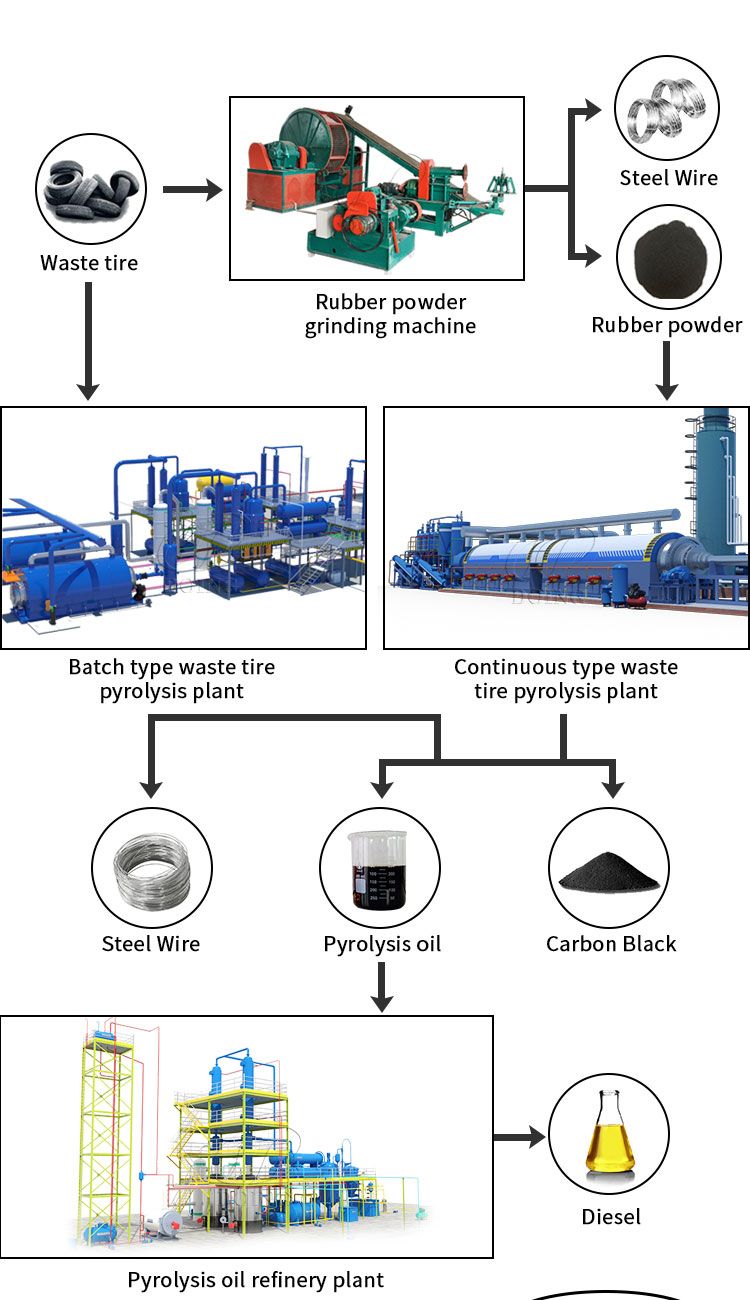

Fully continuous waste tire plastic to fuel oil pyrolysis plant
working process:
1. Collect waste tires: All kinds of waste tires are available,
from small car tires to big OTR tires.
2. Remove steel wire: Use a steel wire pulling machine to pull
out the steel wire from waste tires. The steel wire pulling
machine is operated automatically, which only need one work for
operation.
3. Shred tires: Use a specialized tire shredder to process big
whole tires into 3-5cm small pieces for easy feeding. The tire
shredder is a single and fully automatic shredding system, which
can be directly connected to the feeding system of the continuous
pyrolysis plant, which no need any transfer process.
4. Continuous pyrolysis process: Shredded tires go into the
Continuous scale tire pyrolysis unit, will firstly go through a
mutiple pyrolysis reactor system to be pyrolyzed into oil gas.
And oil gas will be cooling down to liquid oil through the
cooling system. The residues (carbon black) will be pushed by
continuous feeding tires to the carbon black dischrge system for
discharge.
Final product and their applications:
Fuel Oil (45% to 52%)
The main application of oil products produced by our fully
continuous waste tire plastic to fuel oil pyrolysis plant is the
fuel oil that is wide used for industrial and commercial
purposes. 45% to 52% oil of the amount of recycled scrap tyres
can be carried with licensed tanker trucks.
Carbon Black (30%)
The second product of fully continuous waste tire plastic to fuel
oil pyrolysis plant is carbon black. The quantity of carbon black
is about 30% to 35% according to tyre quality. The use of carbon
black is as a chemical strengthener in rubber and coloring agent
in pigment industries. This carbon black price is very
competitive compared to petroleum carbon black, so our pyrolysis
carbon black is good option in stead of petroleum carbon
black.
Steel Wire (12% to 15%)
The third product of fully continuous waste tire plastic to fuel
oil pyrolysis plant is steel wire, the quantity of steel wire is
about 10% to 15% according to tyre quality. It is very easy to
sell steel wire scrape in local market.
Combustible Gases (About 10%)
We get about 10% oil gases during pyrolysis process. The main
component of this gases are methane (CH4), so we can not condense
and store this gases. We use this gases to heat the reactor and
we can use exceed gases for other heating application.
For more information, welcome to contact us!
