| Description | Android Smart Board | Model Number | XY8390 |
| Type | Development Board | Place of Origin | ShenZhen, China |
| Brand Name | XinYi | Core Processor | MediaTek MT8390 |
| Operating System | Android | Platform | MediaTek MTK |
| Processor | 2xA78 2.2GHz + 6xA55 2.0GHz | GPU | Mali-G67 MC3 45fps |
| NPU | 4.4T | OS | Android & Linux |
| Memory | 4GB+64G/6G+128G/8G+256G | Network support | 1000M Ethernet |
| Camera interface | 2xMIPI CSI(4 Data lanes)16MP @ 30fps | video decode | AV1/VP9/HEVC/H.264 4K 75fps |
| video encode | 4K 30fps H.264/ HEVC | Size (mm) | 45x45x2.3 |

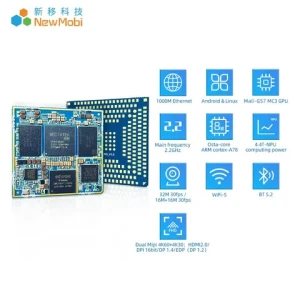

The XY8390ZA core board is based on MT8390 (Genio 700) and is a highly integrated and powerful platform designed specifically for various artificial intelligence (AI) and Internet of Things (IoT) use cases. The processor uses Arm ® DynamIQ ™ Technology, combined with high-performance Cortex-A78 core and high-efficiency Cortex-A55 core, equipped with Arm Neon ™ Engine. Single core AI processor (APU) cadence with AI accelerator (AIA) ® Tensilia ® VP6 processor, single core Cadence HIFI 5 audio engine DSP, with memory data rate higher than LPDDR4 (X) -3733, multiple hardware interfaces, and up to 5 video output ports (HDMI/eDP/DP/MIPI/DPI).
The XY8390ZA core
board adopts a high-efficiency 6nm process technology,
coupled with an eight core CPU, including 2 2.2GHz A78 and
6 2.0GHz A55 cores, high-performance GPU Arm Mali-G57, and
up to 8GB of four channel LPDDR4X memory and UFS flash
memory. Genio 700 supports both Yocto Linux operating
system and Android system, making it a high-performance
edge artificial intelligence IoT platform that can be
applied in fields such as smart retail, industry, and smart
home.
Networt band
| Type | Network band |
| WiFi 802.11a/b/g/n/ac WiFi 2T2R | 2400~2497MHz/5150~5350MHz/5470~5850MHz 5725~5850MHz/5850~5925MHz |
| BT5.1 | 2400~2483.5MHz |
*Note: The frequency band is subject to specific shipment.
XY8390 is a SMT module, packaged in BGA314_ 45x45, with a total of 314 pins. It can be embedded in various M2M product applications through solder pads, making it very suitable for developing mobile devices such as in car computers, multimedia terminals, smart homes, and IoT terminals.
| Process |
6nm
|
| Application Processors | 2xCortex-A78 up to 2.2GHz + 6xCortex-A55 up to 2.0GHz |
| GPU | Mali-G67 MC3 45fps |
| Camera interface | 2xMIPI CSI(4 Data lanes)16MP @ 30fps |
| video decode | AV1/VP9/HEVC/H.264 4K 75fps |
| video encode | 4K 30fps H.264/ HEVC |
| Display | 4K60+4K30 MIPI 4 lanex2, Edp 2lane,DP 4lane, HDMITX 2.0,DPI |
| APU | 1xVP6,1XMDLA3.0 3.4TOPs |
Other performance parameters
| Performance | Description |
| Electricity supply |
VSYS power supply voltage range: 3.5V~4.35V Typical power supply voltage: 4.2V |
| WLAN features | Compliant with IEEE 802.11 a/b/g/n/ac standard, 2.4G supports 20/40M bandwidth, 5G supports 20/40/80M bandwidth dual band 2T2R mode, data rate up to 867Mbps, supports MU MIMO RX, optional external LNA and PA support |
| Bluetooth features | Bluetooth V5.1+BLE, compatible with Bluetooth V4.2 |
| Serial NOR Flash | NOR Flash capacity up to 512Mbit, SPI clock up to 52MHz |
| EMMC | EMMC5.1/1.8/HS400 x1 |
| DDR |
High fidelity 8G bytes @ 4 CH x LPDDR4 (x) 3733MHz Maximum support 8G bytes @ 4 CH x DDR4 3200MHz |
| PCIE | PCIE Gen2,1-lane,RC mode |
| Ethernet | Gigabit Ethernet (RGMII) interface |
| Audio Interface |
Audio input: 3 sets of analog microphone inputs, MIC0 is the main microphone, and MIC2 is the call noise reduction MIC 1 headphone MIC input 4-way DMIC 3-way SPDIF IN 2-way I2S IN Audio output: Stereo Headphone Output Differential output to external audio amplifier 1-way SPDIF OUT 2-way I2S OUT |
| USB Interface |
USB2.0 DRD *2 + SS USB3.1 Gen1 DRD USB 3.1 data transfer rate maximum 5.0Gbps |
| DP Interface | DP V1.4, 4 x lanes with each channel up to 5.4Gbps |
| eDP Interface | DP V1.2, 2 x lanes up to 5.4Gbps per channel |
| HDMI Interface | HDMI 2.0 supports 3D HDMI, SD mode, HD/FHD/UFHD mode |
| SDIO Interface |
Supports SD/SDHC/MS/MSPRO/MMC/SDIO 2.0/SDIO 3.0,4bit SDIO Supports hot swapping |
| I2C Interface | 5 * I2C+2 * I3C, the maximum speed of I2C can reach 400K, and when using DMA with I2C, the maximum speed can reach 3.4Mbps, which is used for peripheral devices such as TP, Camera, Sensor, etc |
| SPI Interface | 6 sets of SPI interfaces, SPI0 supports single/dual/quad mode to 52Mbit/s quad mode only, SPI1-5 supports single/dual mode to 52Mbit/s, supports TX and RX DMA modes. |
| ADC Interface | 5-way, used for universal 12 bit ADC, Input range=0.05~1.45V |
| Antenna Interface | 2 WiFi antennas, 1 BT antenna |
| Physical Characteristics |
Size: 45±0.23×45±0.23×2.3±0.12 mm Interface: BGA314 Warpage: |
