| Brand Name | MX | Place of Origin | Maharashtra, India |
| Type | Front Loader, Mini Loader | Moving Type | Wheel Loader |
| Dimension(Long * Breadth * High) | 11,13 and 15 feet | Warranty | 1 Year |
| Machine Weight | 10 kg | Hydraulic Cylinder Brand | NA |
| Hydraulic Pump Brand | Parker | Hydraulic Valve Brand | NA |
| Engine Brand | MITSUBISHI | UNIQUE SELLING POINT | High load Moment |
| Power | 75 KW, 60 KW, 44.7 KW, 37 KW, 15.7 kw, 17.2 kw, 55 kw, 70 KW, 92 KW | Bucket capacity | NA |
| Machinery Test Report | Not Available | Video outgoing-inspection | Not Available |
| Core Components | NA | After-sales Service Provided | Engineers available to service machinery overseas |

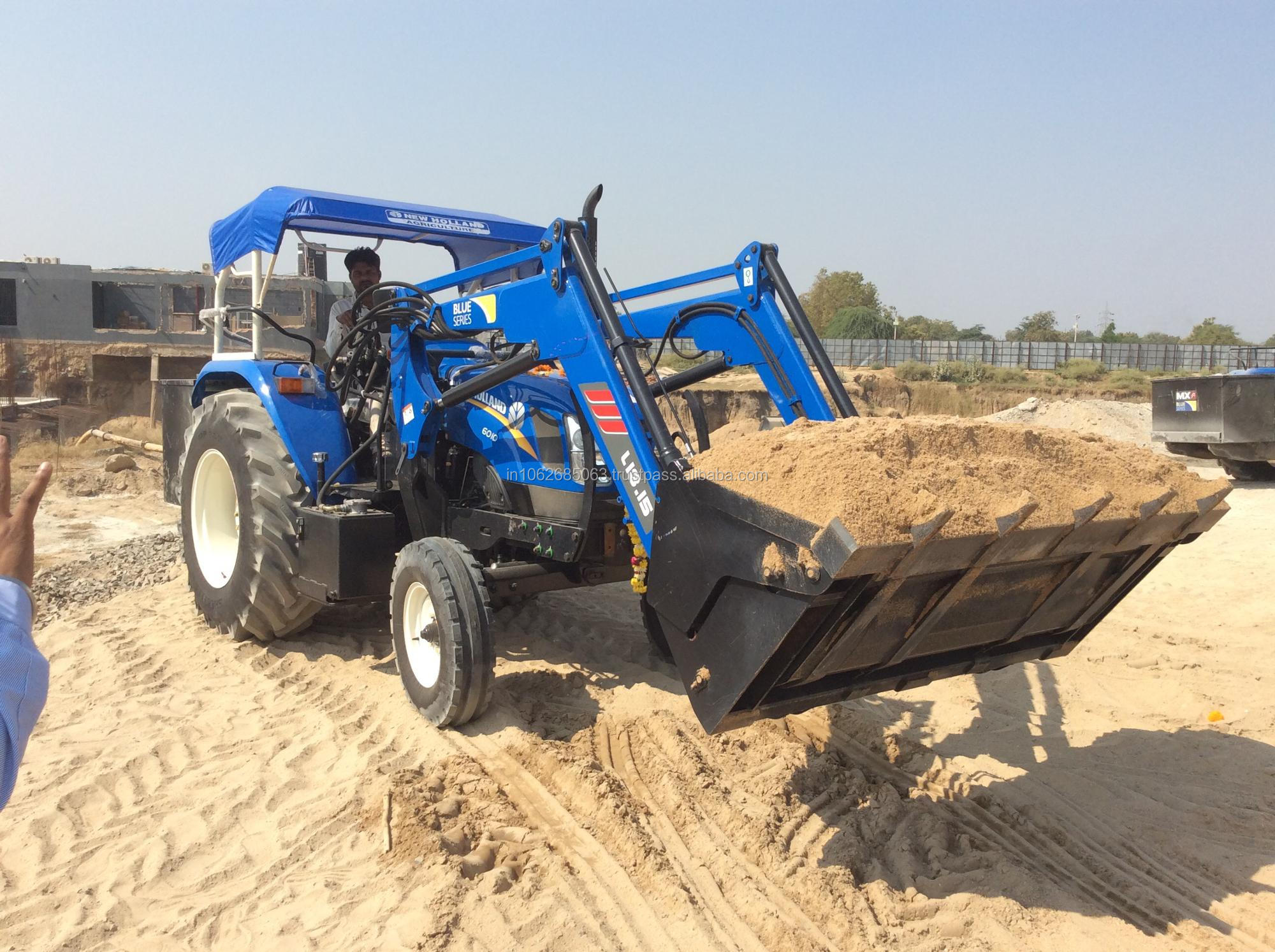

| Product name | FRONT END LOADER | Color | AS PER TRACTOR COLOUR |
| Attachments | QUICK HITCH | Operating weight | 1200 KG |
| Certification | ISO9001:2008 | Showroom Location | United Kingdom, France, Germany, Peru, Saudi Arabia, Mexico, Argentina |
| Condition | New | Marketing Type | Other |
| Warranty of core components | Not Available | Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction works, Energy & Mining, Food & Beverage Shops, NA |
| Front Loader MX France | ||||
| Model | Working Length | Loader Capacity | Price with GP Bucket in USD | Price with Graber Bucket or 4 In One Bucket in USD |
| MXL11 | 11 Feet | 700 kg(0.4 Cu.m) | 4166 | 4545 |
| MXL13 | 13 Feet | 1100 kg(0.72 Cu.m) | 4924 | 5500 |
| MXL15 | 15 Feet | 1100 kg(0.72 Cu.m) |
5900 USD (with Buster Bucket) |
|
· MX Loader attachments Specifications –
|
Loader Parameters |
Specifications |
|
Loader Models |
L11 |
|
Lifting pivot pin Height |
3350 mm (11 ft.) |
|
Height under horizontal (1) |
3100 mm (10.2 ft.) |
|
Height dumped with GP bucket (2) |
2800 mm (9.6 ft.) |
|
Payload Capacity kgs. |
900 |
|
Digging depth (5) |
150 mm |
|
Dumping angle at maximum height (3) |
58 degree |
|
Loading angle at ground level (4) |
45 degree |
|
Dumping angle at ground level |
48 degree |
|
Lifting time (40 lpm) |
2.9 seconds |
|
Dumping time (40 lpm) |
1.8 seconds |
|
Bucket capacity kgs. (cum.) |
700 (0.50) |
|
Bucket Types |
General Purpose (GP) |
|
Hose pipes |
R2 series SAE10 High Pressure Parker make |
|
Loader Parameters |
Specifications |
|
Loader Models |
L13-L15 |
|
Lifting pivot pin Height |
3950 mm (13 ft.) |
|
Height under horizontal (1) |
3650 mm (12 ft.) |
|
Height dumped with GP bucket (2) |
3050 mm (10.6 ft.) |
|
Payload Capacity kgs. |
900 |
|
Digging depth (5) |
150 mm |
|
Dumping angle at maximum height (3) |
58 degree |
|
Loading angle at ground level (4) |
45 degree |
|
Dumping angle at ground level |
48 degree |
|
Lifting time (40 lpm) |
2.9 seconds |
|
Dumping time (40 lpm) |
1.8 seconds |
|
Bucket capacity kgs. (cum.) |
700 (0.50) |
|
Bucket Types |
General Purpose (GP) |
|
Hose pipes |
R2 series SAE10 High Pressure Parker make |
· Salient Features of MX Loader Attachment –.
With 3 point linkage counter weight:-
Ø Detach-Attach - One person can detach-attach to-from the tractor without using any tool, within few minutes.
Ø QRC System - Provided Quick Releasing Coupling (QRC) hydraulic system to easy detach hose routine.
Ø Multipurpose Tractor Usage -Tractor can be used for other work. And all features for fixed and 3 point linkage counter weight
Ø Hydro Design - Provided Pressure Relief Valve inline to avoid back pressure and to prevent any hydraulic failures in tractor as well as in the circuit.
Ø Easy Operation - User friendly single Joystick control operation with optional and sectional spools.
Ø Easy Replacement - Easy parts interchangeability.
Ø Good Visibility - Total visibility while working in the field.
Ø Easy Repairs - Easy accessible for tractor maintenance and repairs.
Ø Bucket Levelling - Designed Parallelogram self-levelling system.
Ø Bucket Angle - Excellent bucket loading-unloading angle on top and bottom.
Ø Engineering Design - Durable and Reliable structure with pressed single plate hollow section construction.
Ø Pin-Bush Life More - Provide hardened wear bushes and pins to avoid wear & tear.
Ø No Failures in Tractors -Scientific engineering designed follow with quality standards for tractor matching to prevent any failures in tractors, while to save the time and money.
Ø Tractor’s Clutch Plate -Assured longer life of tractor’s clutch plate.
Ø Hydraulic Systems - Designed to use tractor’s hydraulics to save the maintenance & operating cost with the better working cycle time and earning more.
Ø More Earning – Free and speedy Loader operation, less working cycle time, less breakdown hours, low maintenance cost, low operational cost.
Ø Tractor original configuration – Loader fitted on tractor without any modifications in tractor, tractor stays as original configuration. Tractor is available as original when loader dismounted, hence, tractor gets market resale value.
We provide Front End loader with selected tractor also.
This Loader is world number one famous loader company.
We always welcome you for visit us.
OFFICE NO LF1C,LOTUS AURA 1, SAMA SAVLI ROAD ,VADODARA ,GUJARAT ( INDIA 39008), VADODARA, Gujarat, India
