Condition | New | Place of Origin | Shanghai, China |
Brand Name | HONG | Model Number | PA1200 |
Usage | Drywall Panel Hoist | Power Source | Electric |
Sling Type | Wire Rope | Lift Speed | 10 m/min |
Certification | CE | color | yellow |
Maximum Lifting Height | 30m | Maximum Lifting Weight | 2T |
Warranty | 1 year | After-sales Service Provided | Overseas service center available |

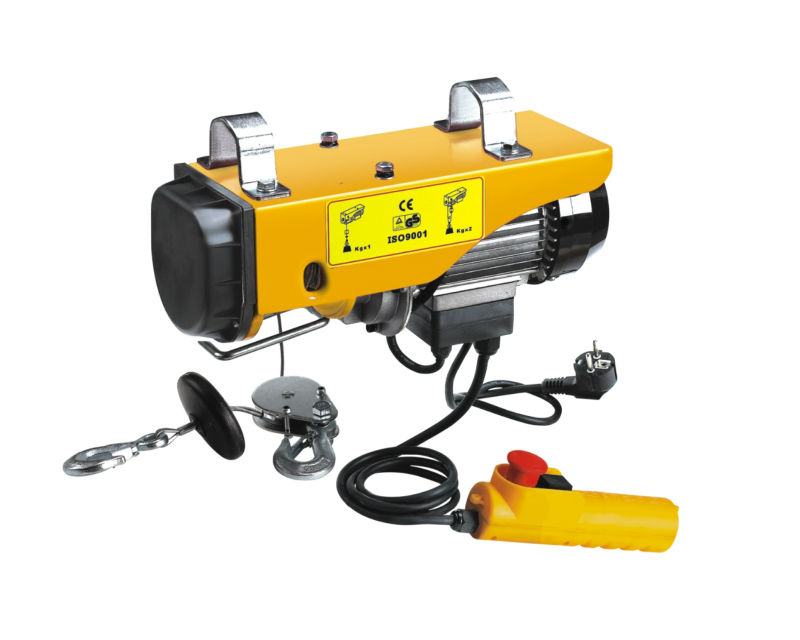

Mini electric hoist 1000KG
1.KMD series electric hoist is an improvement electric
hoist that is can completely resolved the problem of that the
electric hoist reaches the up limited position,guide rope
device is embrittlement cracking,the wire rope is disorder,the
reducer is losing oil,the frequent trouble about electric and
so on.
2.Adopting heavy punch to limited the position ,is has
simple structure ,reliable movement which can prevent the
phenomenon of the electric hoist reaches the limited position
that caused by the chock block in gag lever post to side down
the unreliable movement of the spark out limited position and
so many factors.
3.TO prevent the disorder of the guide rope device,
also can prevent the phenomenon of the wire rope wind misorder
that appeared in the process of going up and going down. It can
make sure that under the circumstance lack of hanger hook
acting force, the wire rope can pass through the hole in the
rope device regularly, The guide rope nut use whole to
bisection structure , the spring can adjust the degree of
tightness automatically, it is endurable.
Model
|
KMD-10--KMD-16T
|
||||||||||||
Weight (t)
|
10
|
16
|
|||||||||||
Lifting height (m)
|
6
|
9
|
12
|
18
|
24
|
30
|
6
|
9
|
12
|
18
|
24
|
30
|
|
Lifting speed normal speed (slow speed)(m/pm)
|
8 (0.8)
|
||||||||||||
Running speed (m/pm) |
20 (30)
|
||||||||||||
Wire rope
|
Diameter of the rope (mm)
|
15.5
|
11
|
||||||||||
Diameter of the line (mm)
|
0.7
|
||||||||||||
Structural style
|
D-6 x37+1
|
||||||||||||
I-beam track modle (GB706-65)
|
25a~28b
|
20a~32c
|
|||||||||||
The minimum radius of O ring track (m)
|
2.5
|
3.5
|
4
|
6
|
7.5
|
9
|
2.5
|
3.5
|
4
|
.6
|
7.5
|
9
|
|
Lifting
Electric
motor
|
Model
|
ZDI51~4 (ZDSI1.5/13)
|
|||||||||||
Capacity (k/w)
|
13 (1.5/13)
|
||||||||||||
Rotating speed (r/m)
|
1400
|
||||||||||||
Phase
|
3
|
||||||||||||
Voltage (V)
|
380
|
||||||||||||
Current (A)
|
30(4.3/30)
|
||||||||||||
Frequency (c/s)
|
50
|
||||||||||||
Running electric
motor
|
Model
|
BZDYI21~4
|
|||||||||||
Capacity (k/w)
|
0.8 x2
|
||||||||||||
Rotating speed (r/s)
|
1380
|
||||||||||||
Phase
|
3
|
||||||||||||
Voltage (V)
|
380
|
||||||||||||
Current (A)
|
2.4 x2
|
||||||||||||
Frequency(c/s)
|
50
|
||||||||||||
Connection times (t/ph)
|
120
|
||||||||||||
Working rate (JC%)
|
25%
|
