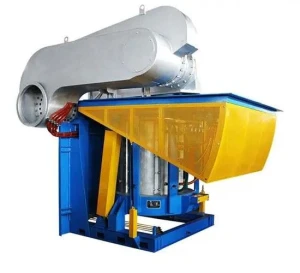

Melting Induction Furnace

Product Details

NEW ENERGY-SAVING KGCL THYRISTOR SERIES MIDIUM FREQUENCY FURNACE

Equipment Introduction

KGCL medium frequency series power supply can realize single power supply, double power supply and multi-power supply configuration. One set of medium frequency power supply can work with two furnaces in the same time. The total power of IM power supply can be distributed or changeover between two furnaces through adjusting power knob or digital display so as to realize one furnace is for melting, the other is for thermal insulation and realize one-time pouring for casting big part or continuously supply iron liquid to production line. It offers non-stop melting and refining production mode and remarkably improve productivity and save energy.

Adopting full-wave rectifier power supply series, the rectifier is always in a state of full open (equivalent to a diode A rectifier) in the whole working process. It does not produce higher harmonic, basically no pollution to power network, does not affect the operation of substation reactive power compensation capacitor. It meets international harmonic current and voltage allowable value standard! Compared with common parallel inverter, power energy saves about 20% (electricity consumption of 1 ton liquid iron is about 530kwh/T.

1. Compared to common parallel inverter power sources, it can save about 20% energy (approximately 530kwh per ton of molten iron)

2. No high order harmonics are generated, and there is basically no pollution to the power grid

3. Realizing one furnace is for melting, the other furnace is for thermal insulation.

KGPS THYRISTOR PARALLEL MIDIUM FREQUENCY ELECTRIC FURNACE

Our company produces a full series of parallel medium frequency power supplies such as 380V, 660V, 750V and so on.

1. 24 Hours Non-stop Working

2. Easy operation

3. Fast heating speed

Advantages of Parallel Medium Frequency Power Supply

1. Zero-voltage soft start, automatic frequency sweep, any load state, the success rate of equipment start-up is 100%

2. High efficiency, power saving, time saving, stable operation of the power supply, high reliability and long life of components.

3. Reliable protection: offering protection under conventional over-current, over-voltage, cut-off voltage, lock of phase, water stop delay, inverter failure, etc. The uniquely design of anti-misoperation protection gains good comment by our users.

4. Simple maintenance: the main board is a fully integrated single board structure, which is simple and reliable. The circuit adopts a unitized design, and each working unit has working status and fault display, maintenance and repair are extremely simple.

STEEL SHELL FURNACE

EQUIPMENT INTRODUCTION

Adopting the hydraulic inclining device for pouring out, the furnace body is made of high quality steel structure by welding. It is safe, solid and durable. The sensor is enclosed with a magnetic yoke, coverage area is over 65%, saving energy by 5% more than aluminum shell body furnace because of small magnetic leakage and high heat efficiency. Anti-leakage furnace and alarm device are available for option which can ensure furnace is in safety production status. Dust suction cover and ring type dust suction device are designed to meet requirement on environment protection control. User can select one of them on-demand.

ALUMINUM SHELL FURNACE

(Electric mechanical melting furnace)

Adopting reducer for furnace inclining device. The furnace body is made of alloy aluminum. Less cost, easy to maintain, easy to observe.
