Medical waste household waste sorting shredding and RDF forming production line, waste incineration and reuse project

FOB Price 84000 - 86000 USD / 1

Quantity	84000 - 86000
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

type	Waste sorting machine	warranty	1 Year
machinery test report	Provided	video outgoing-inspection	Provided
weight (kg)	24000	place of origin	Henan, China
brand name	KUNTENG	model number	JTS1500
Product name	CMedical waste sorting shredding and RDF forming production line	core components	Motor, Bearing, Gear, PLC, Engine, Fan
Power	160 Kw	Voltage	220-420V(can customized)
Keywords	municipal waste to energy system	Advantage	Environmentally Friendly, High Sorting Rate
Application	Municipal waste,Landfill Stale waste,Construction Demolition waste,etc	Capacity	>100t/h
Function	Organic Waste Pretreatment Sorting Recycling	Technology	Trommel Screen,Air Separator,Magnetic separator,waste crusher,brick
Dimension	130015004000mm/customized	Installation	Overseas Engineer Guide
Certification	CE ISO	Other name	organic waste processing machine
After-sales Service	Online Video Technical Support	Usage	solid waste sorting,treatment,recycling,baling,rdf,gasification.etc

Product Details

COMPANY PROFILE

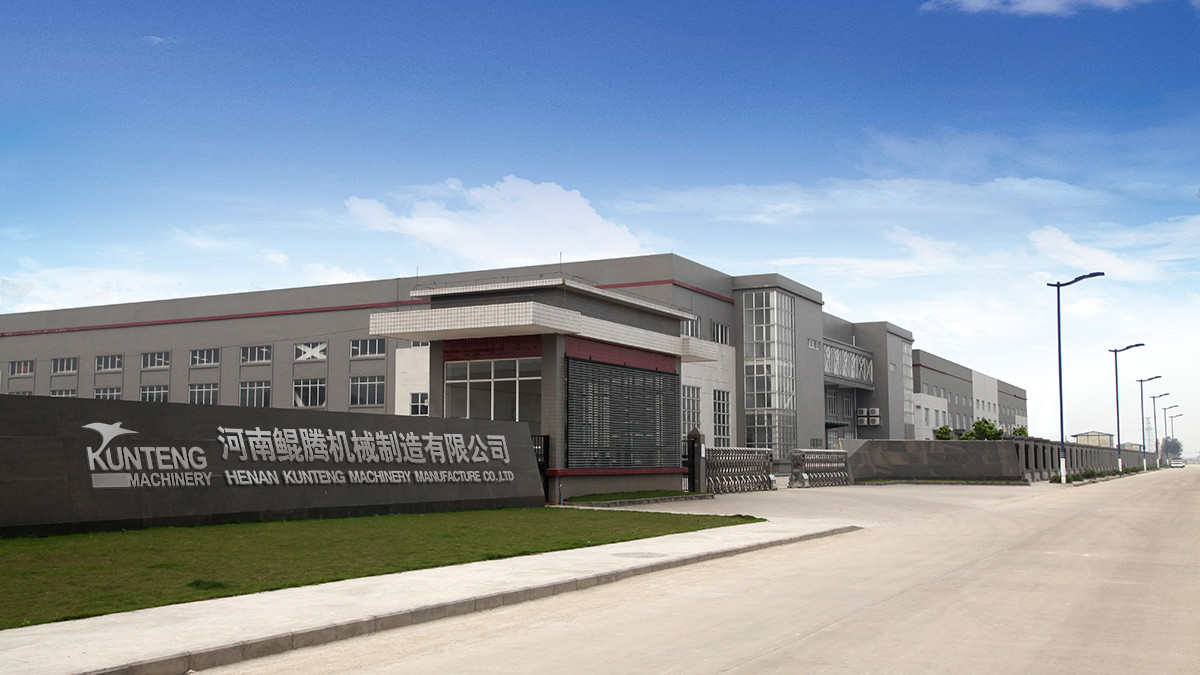

Henan Kunteng Machinery Manufacturing Co., Ltd.

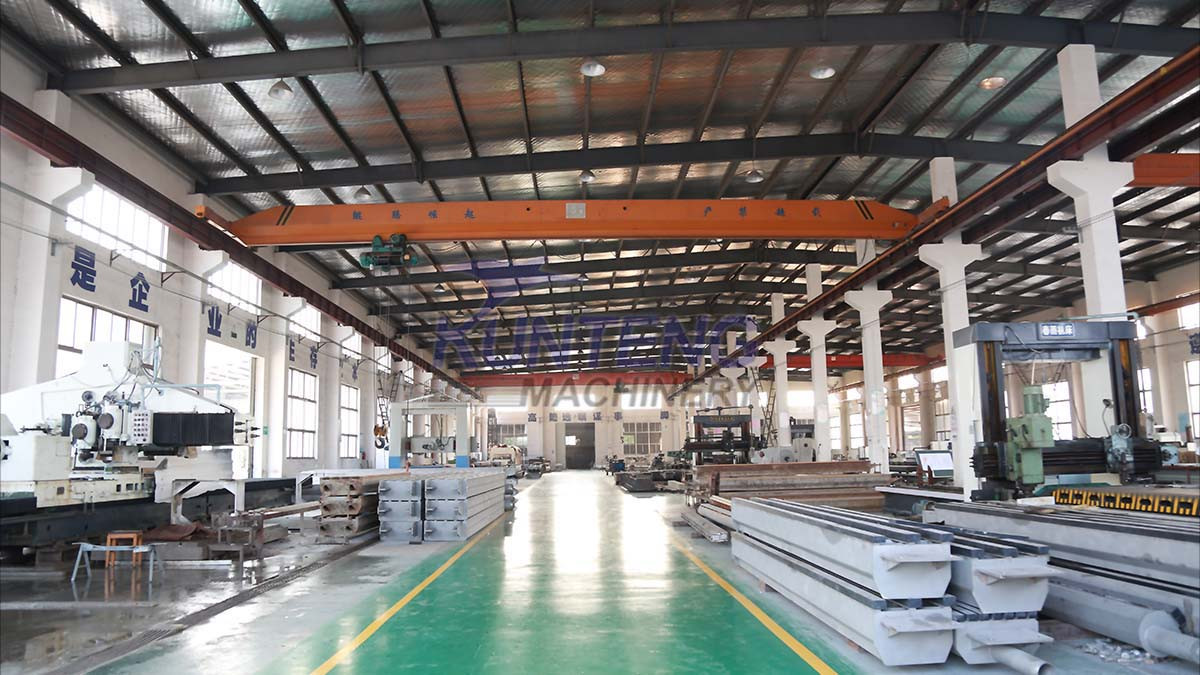

Kunteng Machinery is established in 1999 and is located in Zhengzhou City, Henan Province, China. We are a comprehensive enterprise integrating R&D, production, sales, and service.

With independent R&D team, our own factory, and professional sales and service departments, we can manufacture high-quality waste sorting machines and provide powerful technical support for our customers.

PRODUCT OVERVIEW

High efficiency waste treatment plant waste sorting conveyor system waste handling equipment

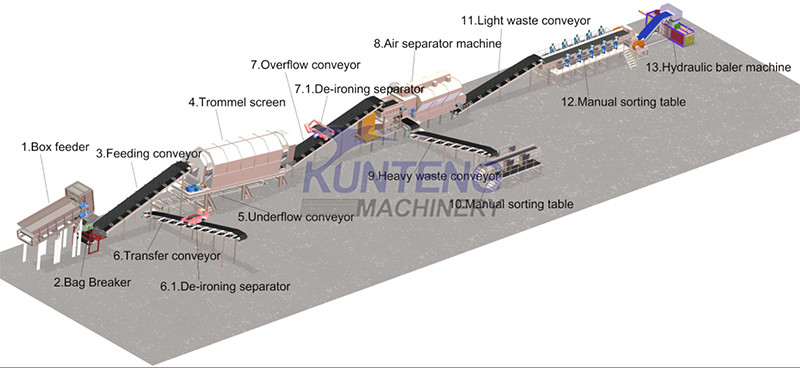

Main process description of waste treatment plant:

1. Loading MSW to the box feeder machine; 2. Trommel screen separates MSW into organic matter and non-organic materials; 3. The non-organic materials passes through the air sorting system, which separates the materials into heavy and light materials; 4. Heavy and light materials are separately conveyed to the manual sorting table for precise sorting; 5. The sorted light materials are conveyed to the hydraulic baler for baling.

APPLICATION

The purpose of waste sorting is to achieve exact separation and turn useful parts to recycle or into energy. It means that our machines are devoted to turning waste into something of value.

Municipal solid waste is mainly divided into the following categories after being processed by the Kunteng waste treatment machinery: inert non-combustible materials, (such as stones, gravel, ceramics, etc.), metals (such as wire, cans, etc.), plastics (such as plastic blocks, mineral water bottles, beverage bottles, etc.), and other combustible materials (such as wood, leather, cloth, etc.).

No.	Type of waste after sorting	Applications
1	Inert non-combustible materials (such as stones, gravel, ceramics, etc.)	Crushed for construction aggregates or landfills
2	Metals (such as wire, cans, etc.)	Recycling
3	plastics (such as plastic blocks, beverage bottles, etc.)	Recycling
4	other combustible materials (such as wood, leather, cloth, etc.)	Can be made into RDF fuel
....	....	....

MAIN MACHINES OF THE LINE

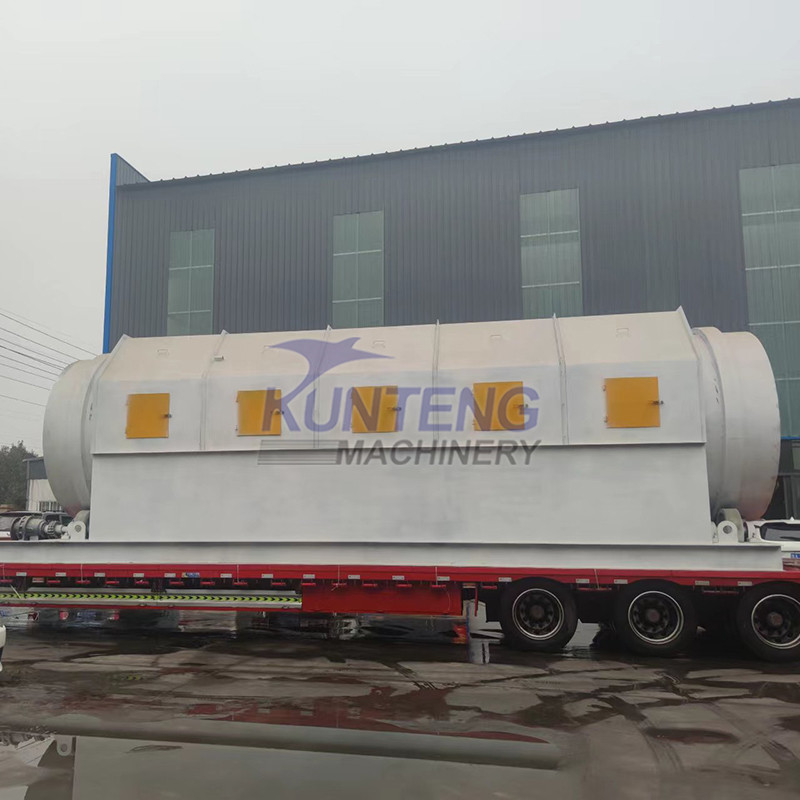

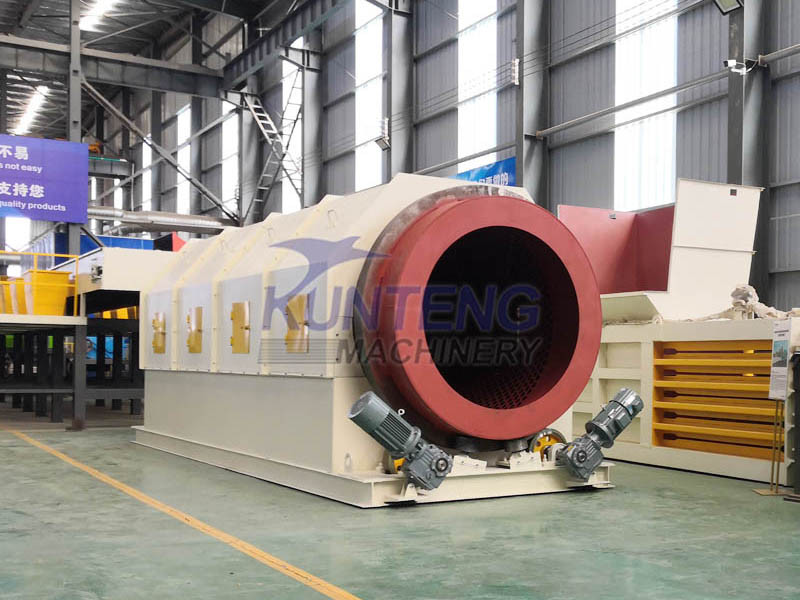

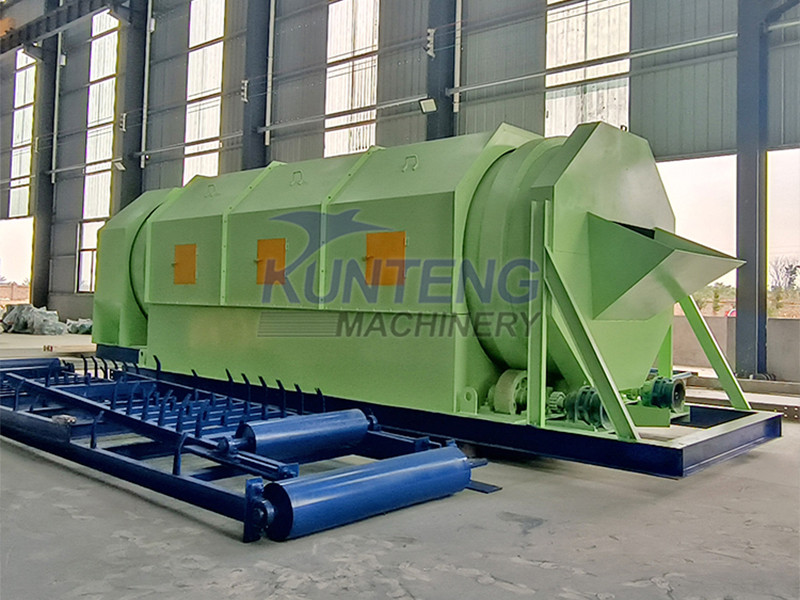

1.Trommel screen

Trommel screen is used to separate MSW into organic waste and non-organic waste. The organic waste will be screened out under the screen. The non-organic waste will move forward to the next machine.

The diameter of trommel screen can be customized from 30 to 200 mm, and the diameter of trommel screen for municipal solid waste is usually 50 mm.

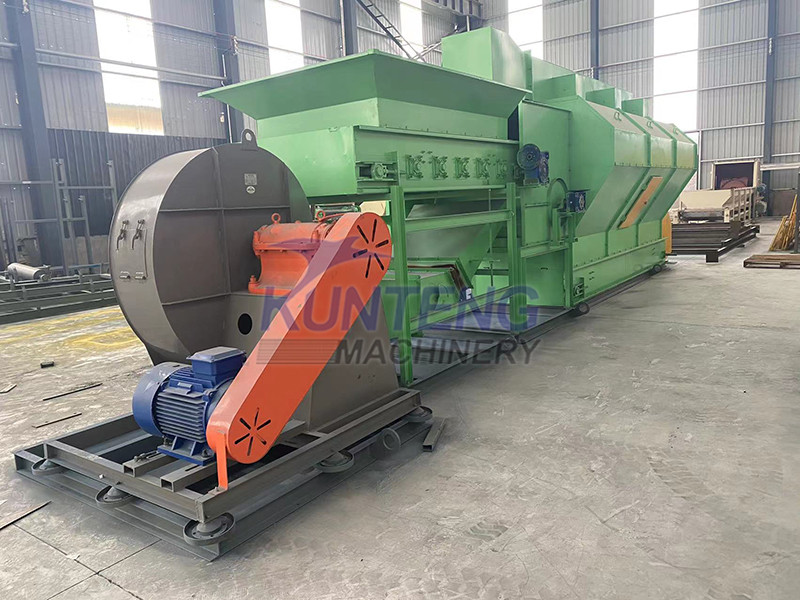

2.Air sorting machine

This air sorting machine can out heavy substances (such as stones, glass bottles) and light substances (can bottles, plastic, paper, etc.), with lower power, lower noise, large processing capacity, and high efficiency. The air sorting system is stable and reliable, easy to maintain, and the sorting efficiency can reach more than 95%.

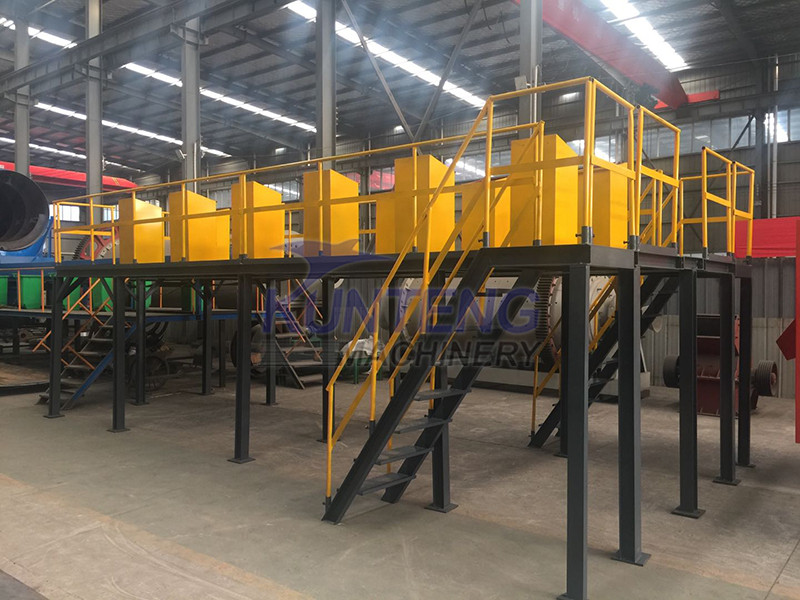

3.Manual sorting table

The waste is sorted through the air sorting system and then conveyed to the manual sorting table for precise sorting, where trained workers manually sort the waste into different categories. This may include sorting out glass, plastic, paper, etc.

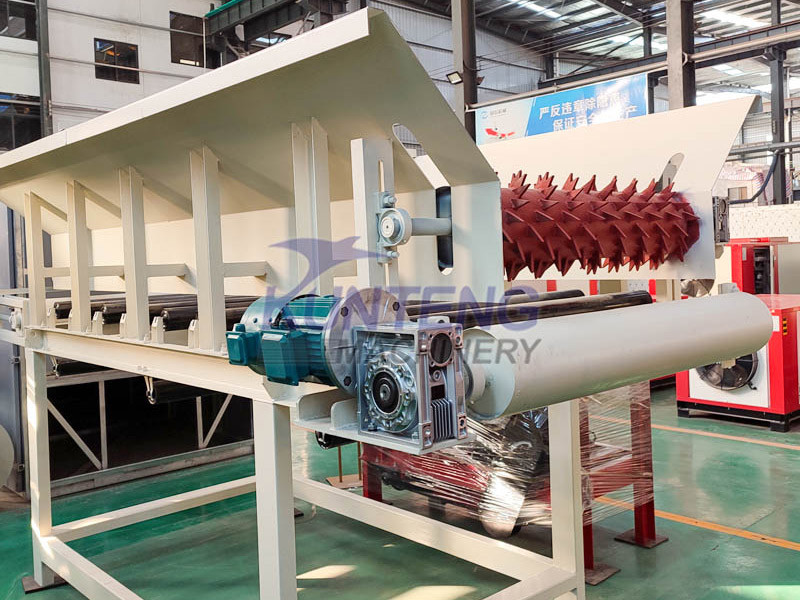

4.Bag breaker machine

The bag breaker is mainly used to open the plastic bags and woven bags containing MSW, and then convey the waste to the next sorting system, which can greatly improve the sorting efficiency.

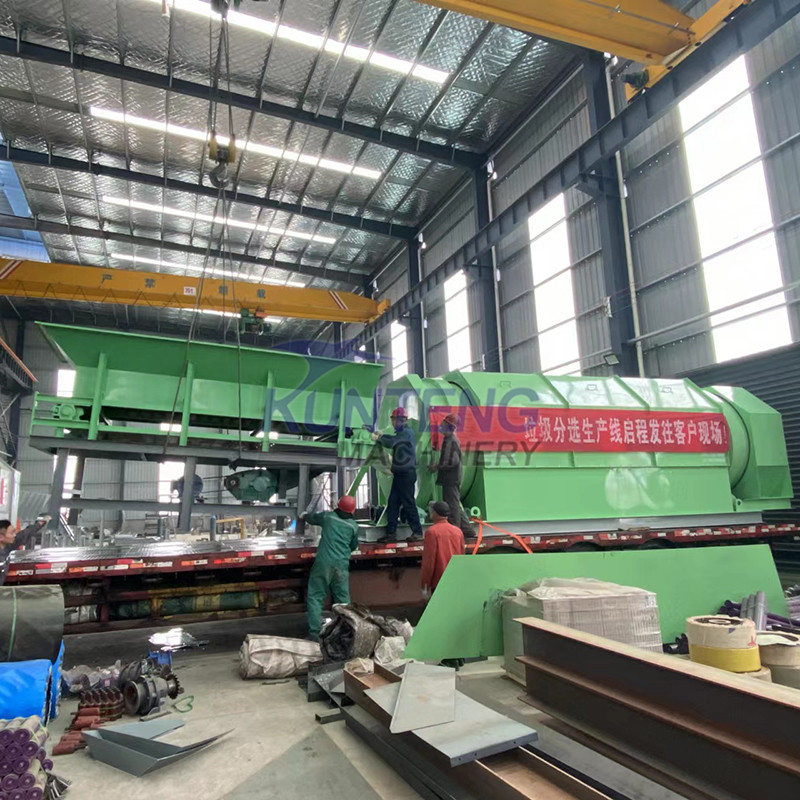

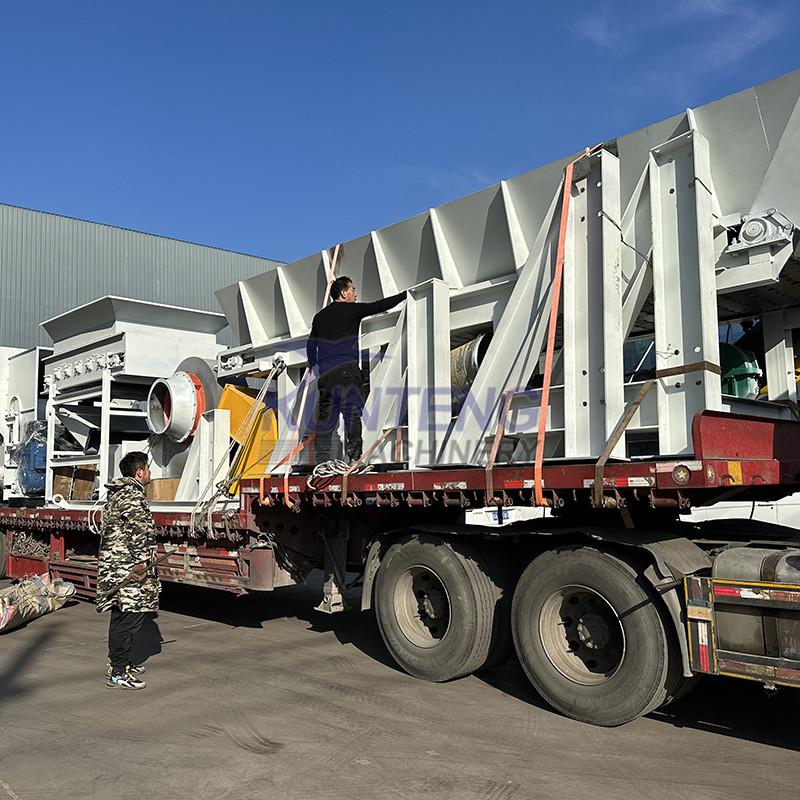

SHIPPING

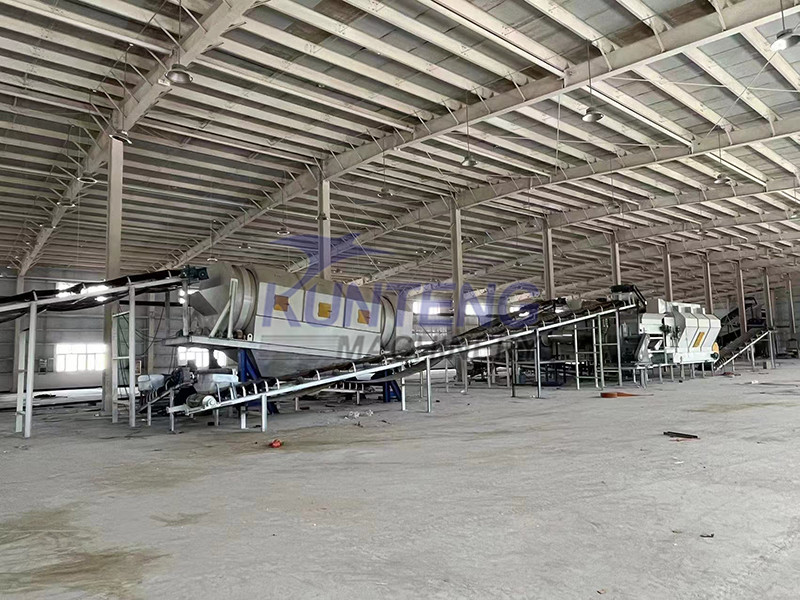

CUSTOMER CASE

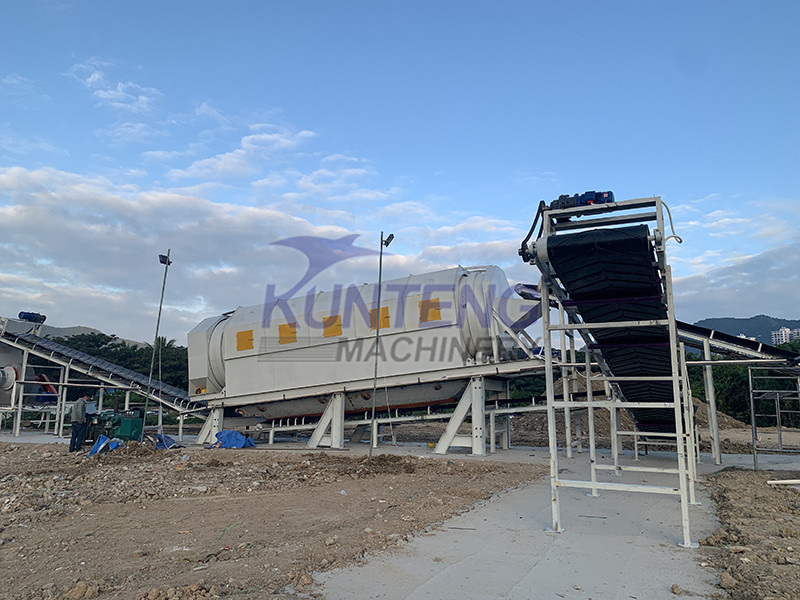

Kunteng MSW sorting line customer site in Indonesia

Kunteng MSW sorting line customer site in Philippines

FAQ

FAQ
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time?
A3: We will arrange for shipping in factory within 10 working days after receiving the advance payment. When there are Coconut Fiber Extracting Machine in stock, it will be shorter.
