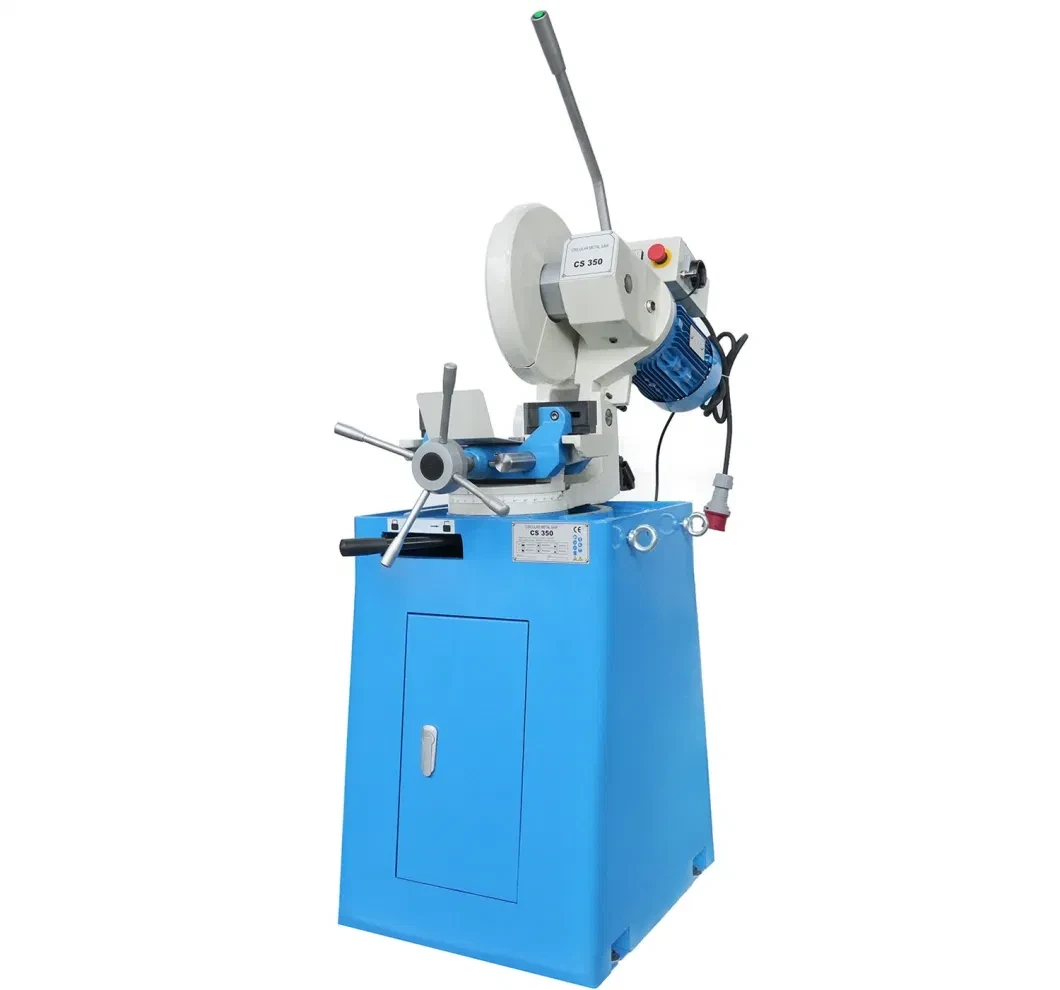

Manual Pipe Cutting Machine Saw Cutting Machine Circular Cutting Machine for Metal Pipe Motor

Name: Manual Pipe Cutting Machine Saw Cutting Machine Circular Cutting Machine for Metal Pipe Motor
Brand: Yangzhou Eowin Import and Export Co., Ltd.
SKU: Tradewheel_2526903
Price: 1500 USD
Availability: InStock

FOB Price 1500 - 2000 USD / pieces

Contact Now

Quick Details (View All)

Condition	New	Head Rotation	u00b145u00b0
Clamping Vice	Double	Max.Vice Opening	110mm/140mm/150mm
Coolant Pump Motor	40W	Transport Package	Plywood Case
Specification	CUSTOMED	Origin	Jiangsu China
HS Code	8461500090	Production Capacity	50000 Units/Year

Product Details

Product Description

Company Info.

Overview
Feature
Recommended pitch of saw blade

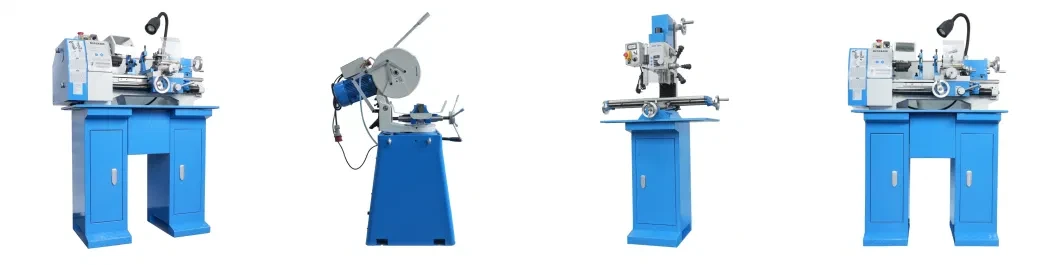

More products

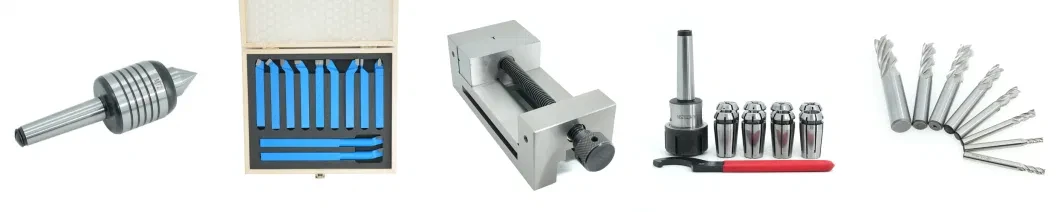

Accessory
Company Profile
Certifications
Packaging & Shipping
FAQ

Product Description

Model			CS275	CS315	CS350
Motor power			2.0Kw/1.4Kw (2/4Pole)	1.5Kw/0.75Kw (4/8Pole)	1.5Kw/1.1Kw (4/8Pole )
Head rotation			±45°	±45°	±45°
Max.viceOpening			110mm	140mm	150mm
Saw blade speed			96/48rpm	38/19rpm	38/19rpm
Clamping Vice			Double	Double	Double
Coolant pump Motor			40W	40W	40W
Saw blade size	Max.diameter	Φ275mm		Φ315mm	Φ350mm
	Bore	Φ40mm		Φ40mm	Φ40mm
	Pin holes	2XΦ8XPCD55mm		2XΦ8XPCD55mm	2XΦ8XPCD55mm
0° Max.cutting capacity	Round	60		70	120
	Square	60X60		70X70	120X120
	rectangle	100X60		130X70	135X110
45° Max.cutting capacity	Round	60		70	110
	Square	60X60		70X70	110X110
	rectangle	70X60		90X70	110X90
Packing dimensions(LXWXH)		940X560X1470mm		980X630X1530mm	1000X630X1560mm
NW/GW		175/200kg		235/265kg	260/290kg

Powerful motor for ample cutting force

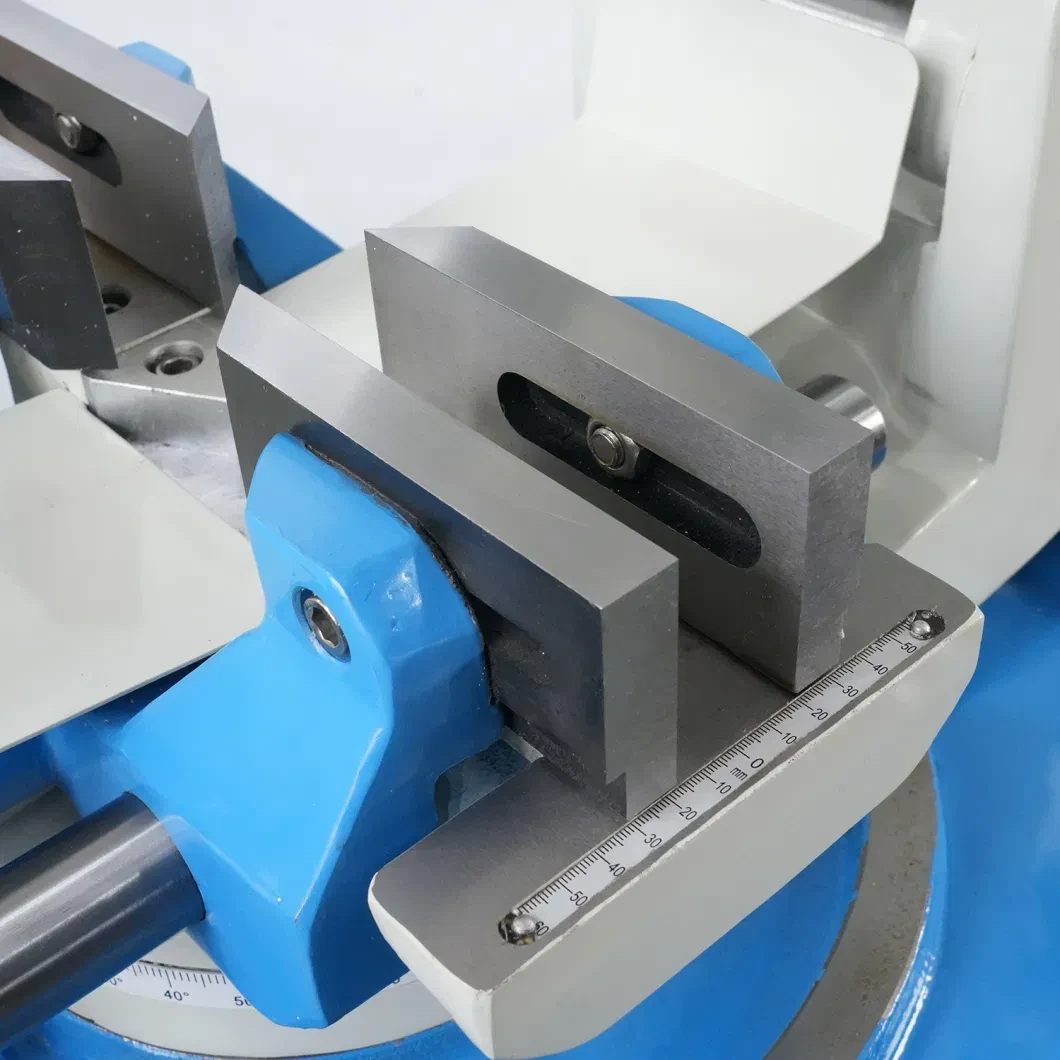

Centrally tensioned vice with quadruple guiding and individually adjustable jaws

Optimal cutting position towards the workpiece

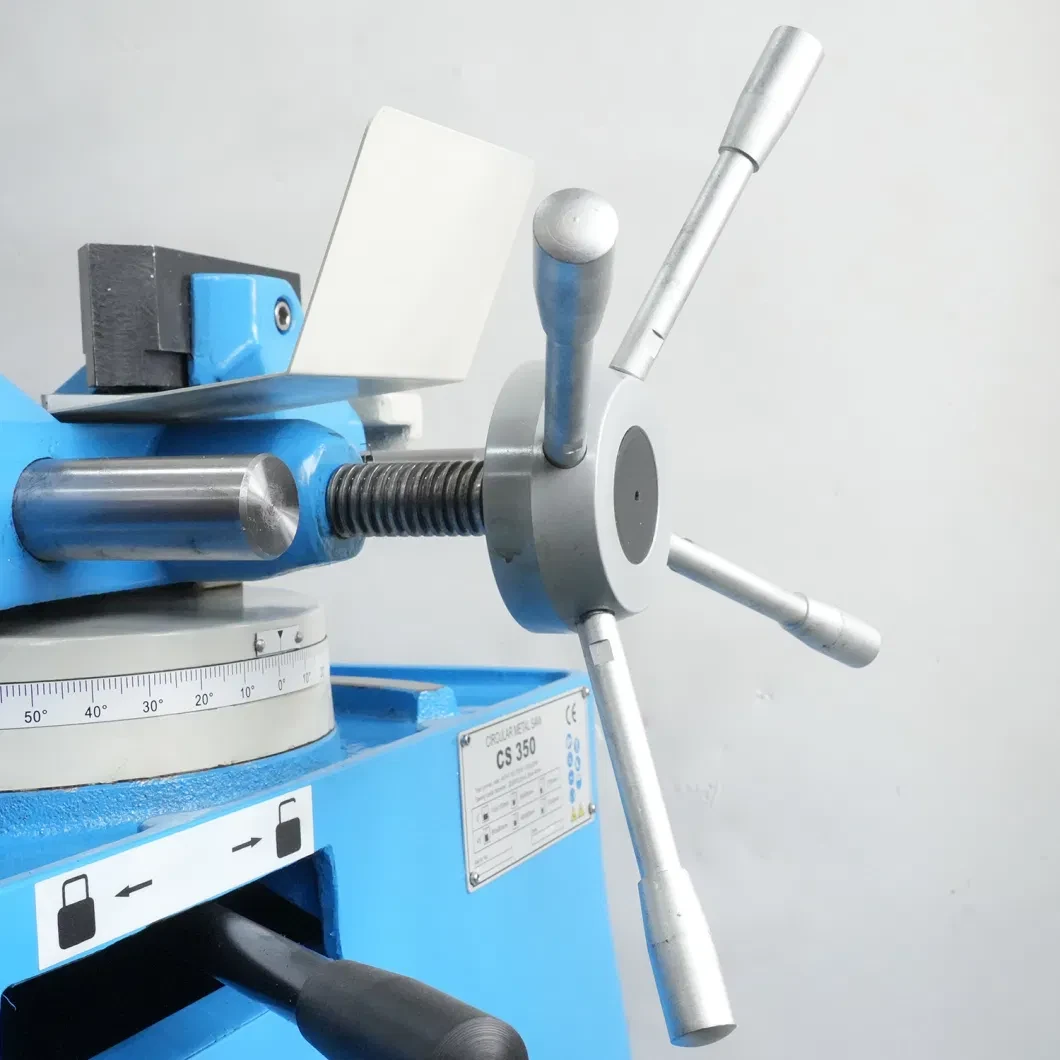

Clamping system with 4 levers

Sturdy machine substructure with holes for material stand assembly on both sides

Removable coolant tank with an integrated powerful pump

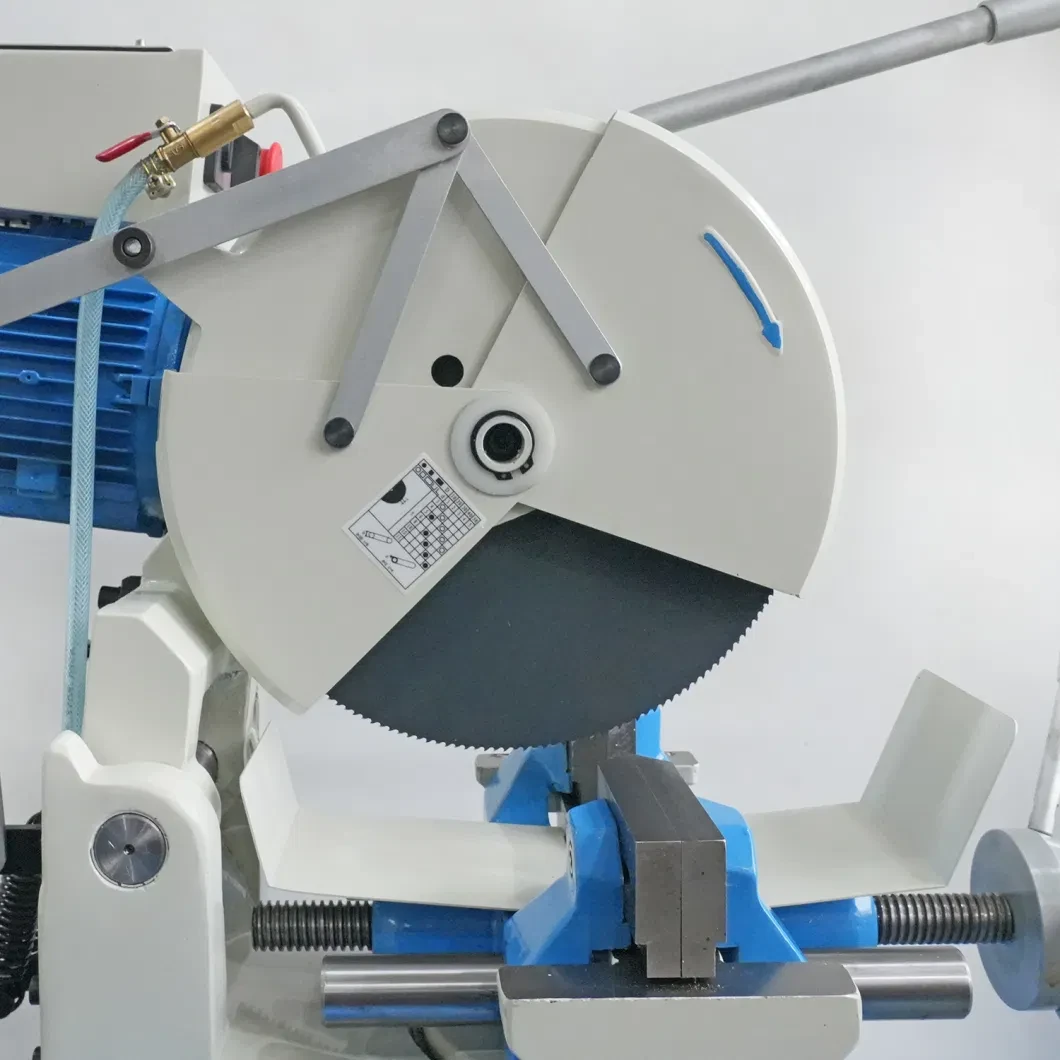

High-grade, fracture-proof movable protective device with a rapid opening mechanism for optimal cutting protection

Functional, all-encompassing movable protective device with a rapid opening mechanism

Long handle for effortless sawing

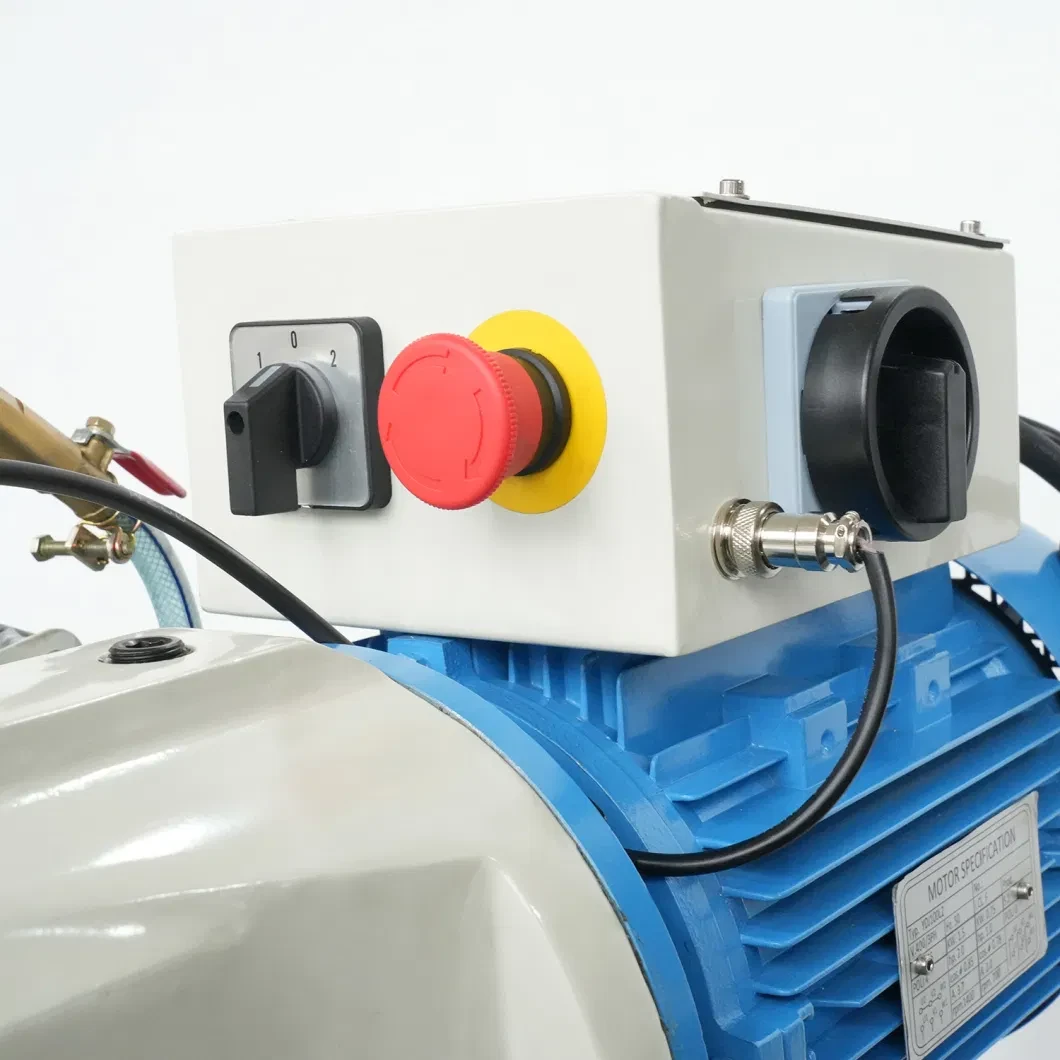

Built-in switch with a handle

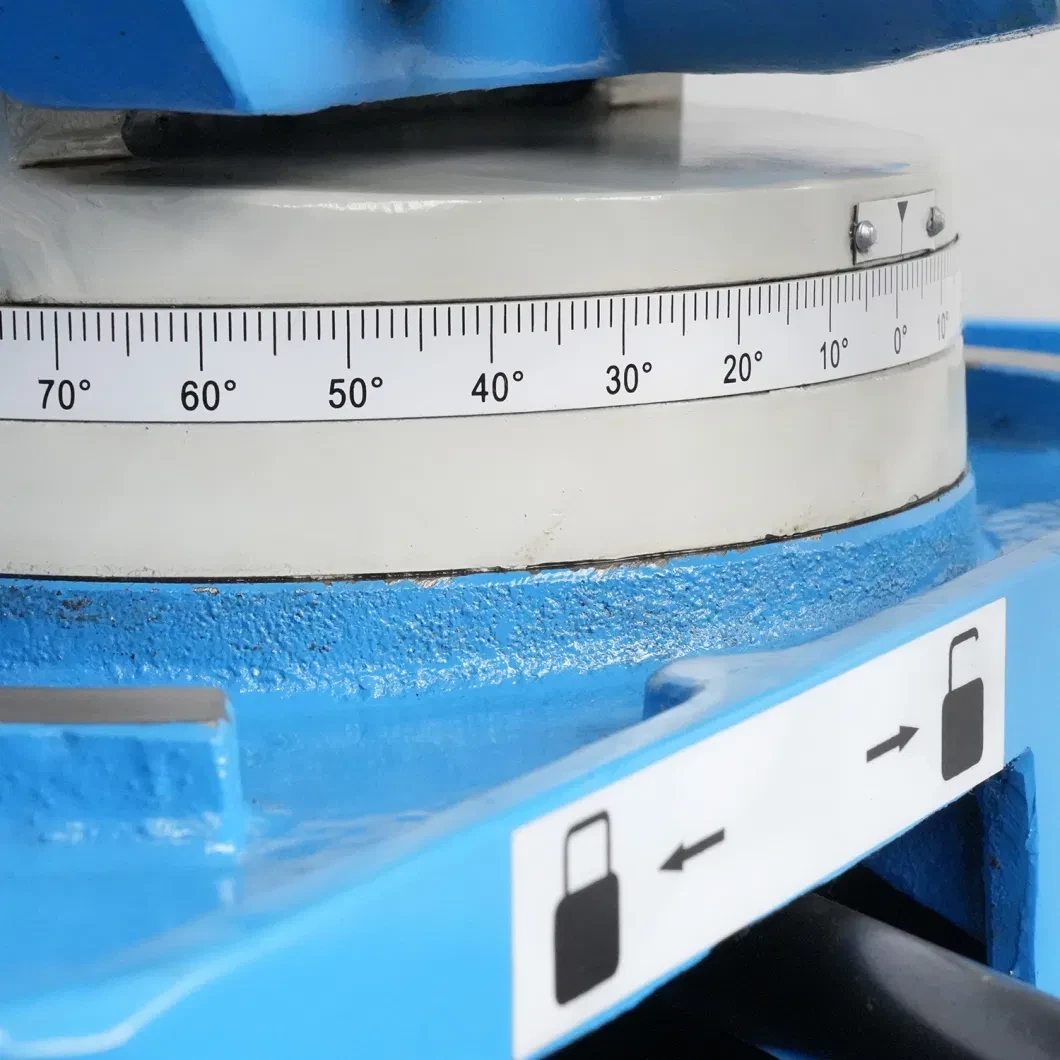

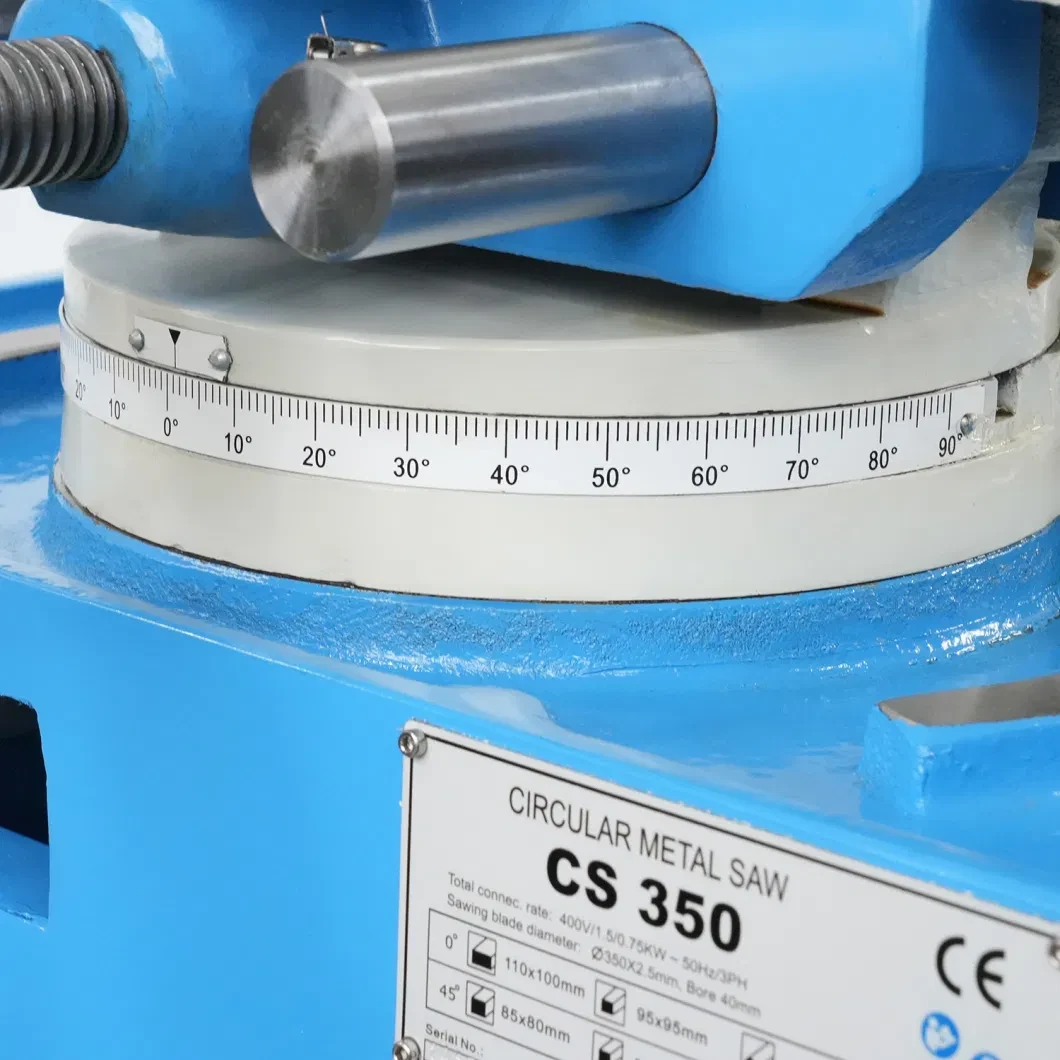

Well-readable angular scale for precise sawing

Head swivel range up to ±45°

Rapid adjustment of the mitre

Solid Bar	Pitch	Pipe	Pitch
Φ10-Φ15	4-6	Thin pipe	3-6
Φ15-Φ20	6-8	Medium pipe	6-8
Φ20-Φ30	8-10	Thick wall pipe	8-12
Φ30-Φ50	10-12	Choose correct pitch of saw blade for perfect cutting
Φ50-Φ70	12-14
Φ70-Φ80	14-16

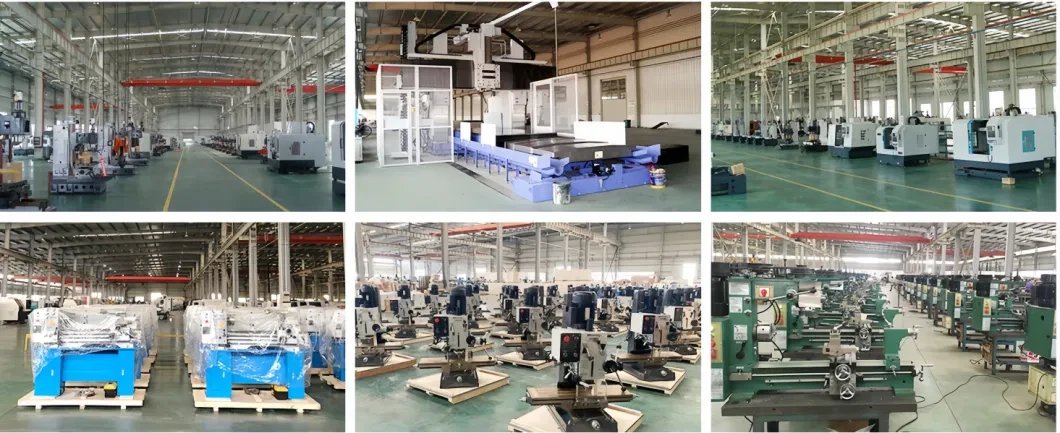

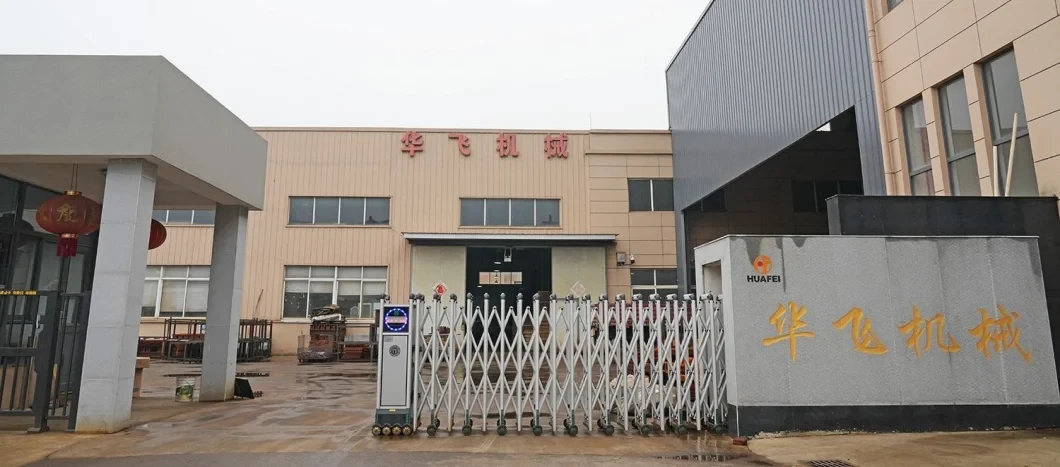

Company Profile:

The Yangzhou Huafei General Machine Factory is located in the historical city Yangzhou suburb, already have 20 years history. We specialized produce each kind of series lathe, driling & milling machine, metal circular saw,multi-function lathe.The product exports to USA,Japan,Germany, France, Holland, Russia and U.K.etc,more than 50 countries and the area.

Our factory registered capital 10,000,000 Yuan, fixed asset 20,000,000 Yuan, each kind of specialized production equipment more than 200 sets, staff more than 300 peoples. We have the ability of independent design, making the machinery, the professional contingent and equipment. Besides provides the standard product, we may carry on the design and the production according to the customer request. We have the confidence, have able to produce the quality first-class product and provide the first-class service. We want in front of the customer, their needs is our diligently direction.

Management ldea:

Take the good faith as this, depend on the scientific management, produce the first-class product, struggle the international market.
