Luxury Expandable Shipping Residential Two Bedrooms Container House

FOB Price 1750 - 1850 USD / per piece

Port	shanghai
Packaging	External(L5800W6400H2480);Internal(L5210W6260H2240);Folded(L5800W2200H2480)
Lead Time	30

Contact Now

Product Details

Product Description

Luxury Expandable Shipping Residential Two Bedrooms Container House

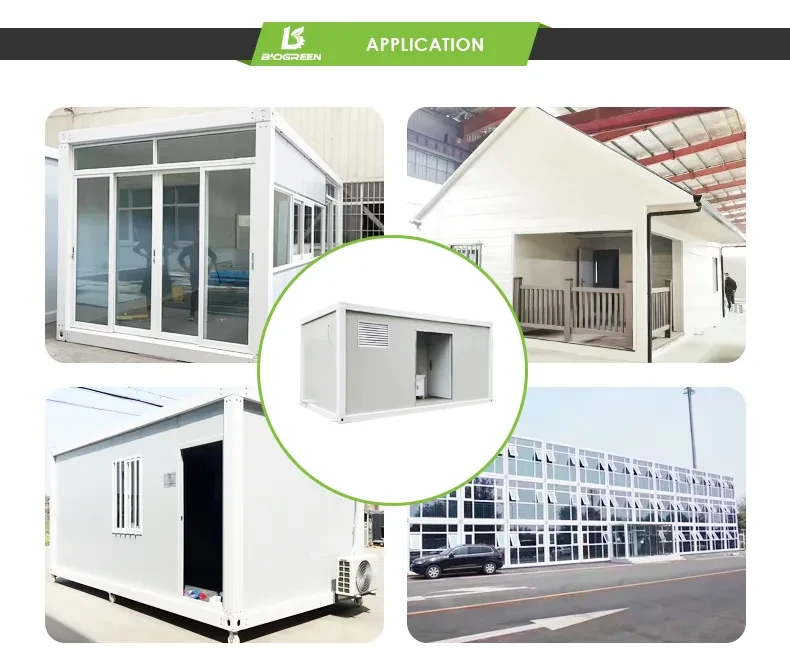

Application:

1) Can be usedas dormitory temporary hospital toilet office storage room etc
2) Can be installed in a short time assembled by bolts with a high intensity
3) Can be used repeatedly with a life span of more than 15 years
4) With a well-sealed and reliable structure water-proof fire-resistant moisture-proof and anti-corrosive
5) With supporting facilities such as washbasin shower air-conditioner, socket and so on;
6) The special design enables to carry this container house in a whole without damages, so it's quite suitable
for movable projects.
Specification and size:

Product Name	Folding Flat Pack Container
Product specifications	Folded Height	H=440mm
	Loading capacity	1*40HQ=10 units
	LengthWidthHeight(mm)	5830mm2500mm2470mm
	Roof Form	Flat Roof
	Number Of Layers	≤2 layers
Structure	Column	Specifications=50mm*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
	Roof Main Beam	Specifications=50*160mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
	Roof Secondary Beam	Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.0mm,6 Pices,Material=Q235B
	Ground Main Beam	Height=50*140mm,Roller beam,Material Thickness=2.3mm,Material=Q235B
	Ground Secondary Beam	Galvanized Cold Rolled Section Steel C Type,Material Thickness=1.5mm,9 Pices,Material=Q235B
	Bolt	8.8 Class High-Strength Bolts, 6
	Paint	Electrostatic spraying plastic powder baking varnish ≥80μm
Roof	Roof Panel	EPS Color Steel Sandwich Panel,Thickness=50mm,Color=White-Gray, Falls freely into the water
Floor	Substrate	18mm Fireproof Glass Magnesium Board
Panel	Insulation Cotton	50mm Thickness Color Steel EPS Sandwich Panel,Class B Fire Protection
	Color steel Plate	Panel Coler Streel Plate Thickness=0.4mm
Door	Specification	WidthHeight=840mm1900mm
	Material	Steel Door, Concealed Buckle Lock
Window	Specification	950mm*1100mm
	Fram Material	Plastic Steel
	Glass	Single Glass
Other	Folding hardware	Special Parts, No Hinges
