Description
EXC-B120TBL full-color series consists of ultra-thin flat-panel flood lights with high-strength aluminum alloy housing specially designed by EXC for outdoor landscape lighting. It could be used for illumination in specific areas or landscape wash lighting, applicable on building facades, bridges, stages, etc.
Features
lThe newest generation technology: DMX512 parallel bus design
lHigh strength aluminum and low thermal resistance path cooling design
lHigh reliability modularization design
lOutdoor lighting protection and electrostatic discharge (ESD) protection design
lLoad safety design
lProjection distance: 3-15m
Basic Specifications
Color Range |
W, RGB |
Working Voltage |
DC 24V |
Max. Power Consumption |
15W |
Light Source |
9 PCS High Power LEDs |
LED chip Brand |
Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
CRI |
80 |
Control |
DMX512, ON/OFF |
Source Life |
50,000 h |
Housing |
High Strength Aluminum |
Cover |
Tempered glass |
Weight |
0.6Kg |
Dimensions |
168mm x 124mm x 17mm (L x W x H, exclude Mounting Bracket) |
Installation |
Installation with screws or adhesive |
Working Temperature |
-40°C to 60°C |
Storage Temperature |
-40°C to 70°C |
Protection Rating |
IP66 |

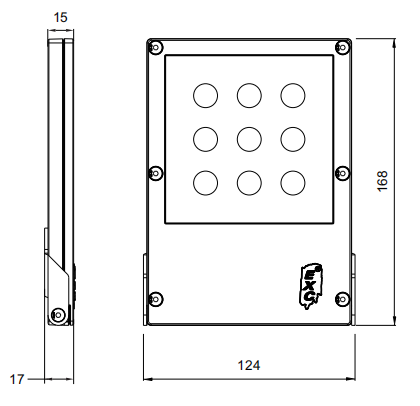

Physical Dimension

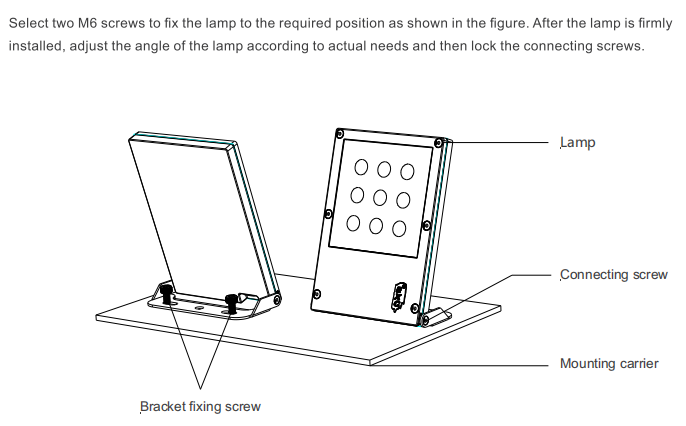

Installation Diagram
