Laser marking machine

FOB Price 1750 - 6500 USD / 1

Quantity	1 -
Price

Port	Changchun
Packaging	plywood case
Lead Time	15

Contact Now

Quick Details (View All)

after	sales service provided-engineers available to service machinery overseas	certification	ce
cnc or not	easy to operate	control software	ezcad
cooling mode	fiber laser source	key selling points	new product 2026
laser source brand	30w	laser source	china
laser type	metal welding	machinery test report	1 year
marketing type	1 year	marking area	1064nm
origin	china	place of origin	china
trademark	Eagle	transport package	plywood case
type	optical fiber laser marking machine	warranty of core components	1 year
warranty	1 year	working accuracy	0.01mm

Product Details

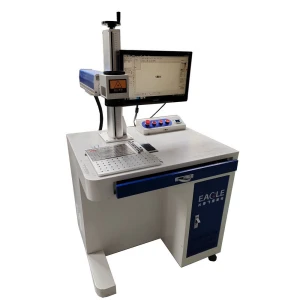

The Vilun Fiber Laser Marking Machine adopts a high-quality fiber laser source and high-speed scanning galvanometer system, delivering precise, permanent marks on a wide range of metal and non-metal materials. With its compact design, full air-cooling system, and zero consumables, it is built for 24/7 industrial continuous operation.

Core Advantages

表格

Advantage Description


Non-Contact Processing	No tool wear, no damage to workpiece, no heat deformation
Zero Consumables	No ink, no solvents, no ribbons — drastically reduces operating costs
Ultra-High Precision	Marking accuracy down to ±0.01mm, minimum line width 0.03mm
High Speed	Max marking speed up to 7,000mm/s, 3× faster than traditional methods
Maintenance-Free	Fiber laser lifespan up to 100,000 hours, full air-cooled design
Easy Automation	Computer-controlled, supports AI/DXF/PLT/BMP formats, MES integration ready

Technical Specifications

表格

Parameter VL-M20 VL-M30 VL-M50 VL-M100


Laser Power	20W	30W	50W	100W
Laser Wavelength	1064nm	1064nm	1064nm	1064nm
Beam Quality (M²)	<1.3	<1.3	<1.3	<1.3
Min. Line Width	0.03mm	0.03mm	0.03mm	0.03mm
Min. Character Height	0.2mm	0.2mm	0.2mm	0.2mm
Marking Depth	0.01–0.4mm	0.01–0.4mm	0.01–0.4mm	0.01–0.4mm
Max Marking Speed	7,000mm/s	7,000mm/s	7,000mm/s	7,000mm/s
Marking Area (Standard)	110×110mm	110×110mm	175×175mm	175×175mm
Marking Area (Optional)	150×150 / 200×200mm	150×150 / 200×200mm	200×200 / 300×300mm	200×200 / 300×300mm
Cooling Method	Air-cooled	Air-cooled	Air-cooled	Air-cooled
Power Supply	AC220V±10% / 50Hz	AC220V±10% / 50Hz	AC220V±10% / 50Hz	AC220V±10% / 50Hz
Supported Formats	AI, DXF, PLT, BMP, DWG	AI, DXF, PLT, BMP, DWG	AI, DXF, PLT, BMP, DWG	AI, DXF, PLT, BMP, DWG
Certification	CE	CE	CE	CE

Custom marking areas and laser source brands (Raycus / IPG / JPT) available upon request.

Applicable Materials

Metals

Stainless Steel, Carbon Steel, Aluminum, Copper, Brass, Titanium, Gold, Silver, Hard Alloys, Electroplated Products

Non-Metals

Engineering Plastics (ABS, PC, PA66, PBT, PP-R), PVC, Epoxy Resin, Ceramics, Coated Products, Ink-Coated Surfaces

Industry Applications

Industry Typical Applications


Automotive & Aerospace	Engine block serial numbers, VIN plates, brake disc traceability, bearing codes, dashboard buttons
Electronics & Semiconductor	IC chip marking, PCB labeling, connector serial numbers, SMT component IDs
Medical Devices	Surgical instrument UDI codes, catheter marking, stainless steel tool ID
Hardware & Tools	Wrench specification marks, bolt grade IDs, cutting tool branding
Jewelry & Watches	Precious metal engraving, watch case serial numbers, ring inner text
Packaging & Food/Pharma	Bottle batch codes, capsule printing, carton date marking, QR code traceability
Plastics & Pipes	PVC pipe labeling, HDPE/PPR pipe marking, plastic profile coding
Advertising & Decoration	Acrylic signage, metal nameplates, customized gifts

Machine Types Available

表格

Type Description Best For


Desktop Type	Compact benchtop design, integrated controller + head	Workshop / lab / small-batch production
Split Desktop	Separated laser head and controller for flexible placement	Space-limited environments
Portable / Handheld	Lightweight integrated box, handheld marking head	On-site marking, large / heavy workpieces
Floor-Standing	Full-size industrial station with optional dust collector	High-volume production lines
Large Format	Extended marking area up to 300×300mm	Oversized workpieces, industrial batch marking

Optional Accessories

Rotary Axis (Ø80 / Ø125mm) — for cylindrical objects (pipes, bearings, valves)
Dual-Column Dust Collector — for clean workshop environment
Conveyor Belt Integration — for inline production marking
Protective Enclosure — Class 1 laser safety compliance
Red Light Preview — for accurate positioning before marking

Cost Comparison: Laser Marking vs. Traditional Methods

表格

Item Laser Marking Inkjet Printing Mechanical Engraving


Cost per Mark	~$0.02	~$0.07+	Moderate
Consumables	None	Ink, solvent, ribbons	Cutting tools
Maintenance	Very Low	High (nozzle clogging)	Medium (tool wear)
Mark Durability	Permanent, corrosion/abrasion resistant	Fades over time	Permanent
Speed	Up to 1,500 pcs/hr	~450 pcs/hr	Slow
Material Waste	<0.5%	~4%	Moderate

Estimated annual savings: Fiber laser marking can save $10,000–$30,000+ per year in consumables and maintenance alone, compared to inkjet systems.

Why Choose Vilun?

表格

Reason Details


14 Years of Experience	Established manufacturer with deep expertise in laser equipment
Triple ISO Certification	ISO 9001 / ISO 14001 / ISO 45001
20+ Patents	Proprietary technology in laser application
Global Trademark	"Vilun" registered in 20+ countries
Export to 30+ Countries	Proven track record across North America, Europe, Southeast Asia, Middle East, Africa
Laser Source Options	Raycus / IPG / JPT — choose based on your precision and budget needs
Custom Solutions	OEM/ODM available, custom marking area, automation integration
Full After-Sales Support	12-month warranty, remote technical support, video training, spare parts supply
