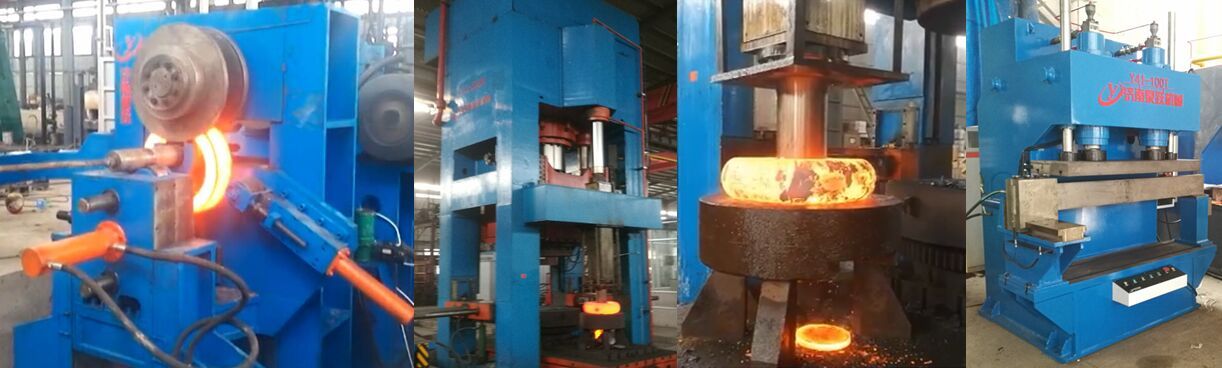

Large
forging hydraulic press Y13-800
1000 1600 2000 3150 tons mainly used in metal materials of free
forging process, such as: upsetting, punching, horse bar reamer,
wrong move, coarse turn, cutting, bending, drawing out, etc. Can
add special used for ring blank system hole's device, punching
device.
Hydraulic
system has multiple overload protection, oil temperature alarm,
oil level alarm protection automatic protection device,
electrical system USES mature PLC control, to ensure the safety
of the equipment and the operator. Work under pressure cylinder
are made big flow charging valve and drop tank at the same time
for liquid, will be able to realize the rapid filling oil, oil
compensating, improve the oil return, effectively save forging
auxiliary time, improve the efficiency of forging. Equipment
installation have reliable cooling circulatory system, and can
steadily control temperature rise to ensure that the system is
safe and reliable operation.
Large hot forging hydraulic press series technical parameters |
|||||||
specification |
800 t |
1250 t |
1600t |
2000T |
2500T |
3150T |
4000T |
Nominal pressure(MN) |
8 |
12.5 |
16 |
20 |
25 |
31.5 |
40 |
System pressure (MPa) |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Oil cylinder diameter (MM) |
Ф640 |
Ф800 |
Ф740 |
Ф740 |
Ф900 |
3-Ф730 |
Ф900 |
Fluctuation loading die distance (MM) |
2300 |
2400 |
2600 |
2800 |
3000 |
3200 |
4000 |
Slide stroke(MM) |
1000 |
1200 |
1400 |
1600 |
1600 |
1900 |
2200 |
Stand column center distance (MM×MM) |
2200×1100 |
2200×1300 |
2600×1400 |
2800×1500 |
3200×1600 |
3500×1800 |
4400×2100 |
Diameter of stand column (MM) |
Ф260 |
Ф300 |
Ф340 |
Ф360 |
Ф420 |
Ф480 |
Ф570 |
Idle
speed |
300 |
300 |
250 |
250 |
250 |
200 |
200 |
Working speed (MM/S) |
45 |
45 |
45 |
45 |
45 |
45 |
45 |
Descending speed MM/S) |
300 |
300 |
300 |
250 |
250 |
200 |
200 |
Portable table size(MM×MM) |
2500×1400 |
3000×1400 |
3500×1600 |
4000×1600 |
4000×2000 |
5000×2200 |
5500×2200 |
Portable table stroke (Left/Right)MM) |
800 |
1000 |
1500 |
1500 |
2000 |
2500 |
3500 |
Portable table speed(MM/S) |
200 |
200 |
150 |
150 |
150 |
150 |
100 |
Fast forging times (times/Min) |
45 |
45 |
45 |
45 |
45 |
35 |
35 |
Maximum eccentric distance(MM) |
80 |
80 |
120 |
120 |
120 |
150 |
150 |
The biggest forging steel ingot (T) |
5 |
10 |
15 |
20 |
35 |
45 |
50 |
Motor power(KW) |
330 |
440 |
990 |
1100 |
1320 |
1650 |
2090 |
Height above floor (≤MM) |
7500 |
8000 |
9000 |
9000 |
9500 |
10500 |
11500 |
The above parameters are only for reference and we should subject to the both technical agreement
