Kyt420d Automatic Twin Pack Packing Machine for Weighing Filling Sealing Packaging 100g 500g 1kg Salt, Rice, Seeds

Name: Kyt420d Automatic Twin Pack Packing Machine for Weighing Filling Sealing Packaging 100g 500g 1kg Salt, Rice, Seeds
Brand: Anhui Koyo Machinery Co., Ltd.
SKU: Tradewheel_2451691
Availability: InStock

FOB Price 2500 - 4500 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	KYT420D	Transport Package	Export Standard Wooden Cases
Specification	800x800x1050mm	Trademark	Koyo
Origin	Hefei, China	HS Code	8422303090
Production Capacity	50000 Sets/Year

Product Details

Overview
Product Description
Detailed Photos
Product Parameters
FAQ

Product Description

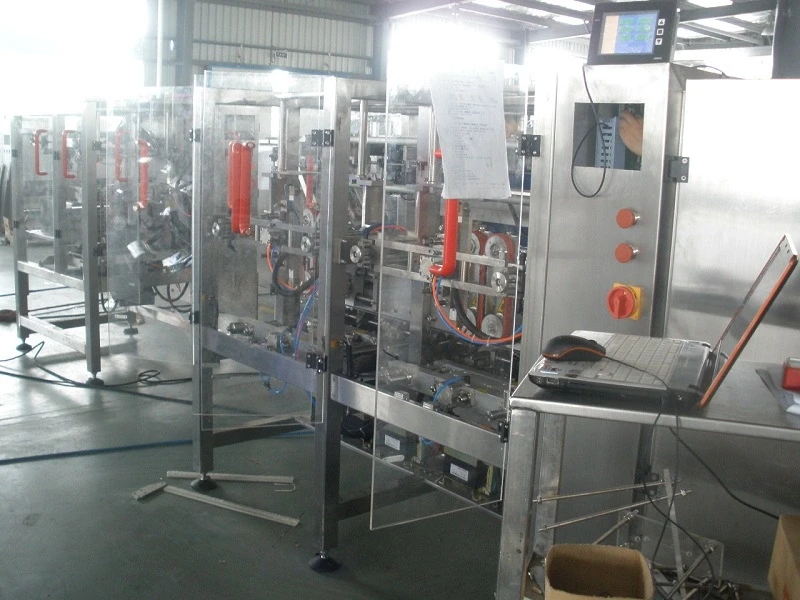

This packing unit consists of two vertical packing machine for bagging two sets cup filler for weighing , two screw elevator for feeding ,two conveyor for taking off the finished bags .It integrates functions of automatic bag-making, weighing, filling, sealing, printing, punching, cutting and sealing into one. The advanced design has guaranteed this machine suits for different kinds of granules,like salt,rice,etc. Its adjustment , operation and maintenance are very convenient.

Advantages:

Cup filler	This machine is for salt weighing and filling. Including hopper,rotation panel with cups, cup volume adjustment device and frame etc. The contact parts be made by 316S.S and the frame be made by 304 S.S.
	China main 3 Phase motor for filling; Separate motor Hopper agitator to prevent salt block inside the hopper; Siemens control for cup filling; Schneider electronics; Dust extraction connection can be choose.
	The cup volume can be adjust 20% up and down

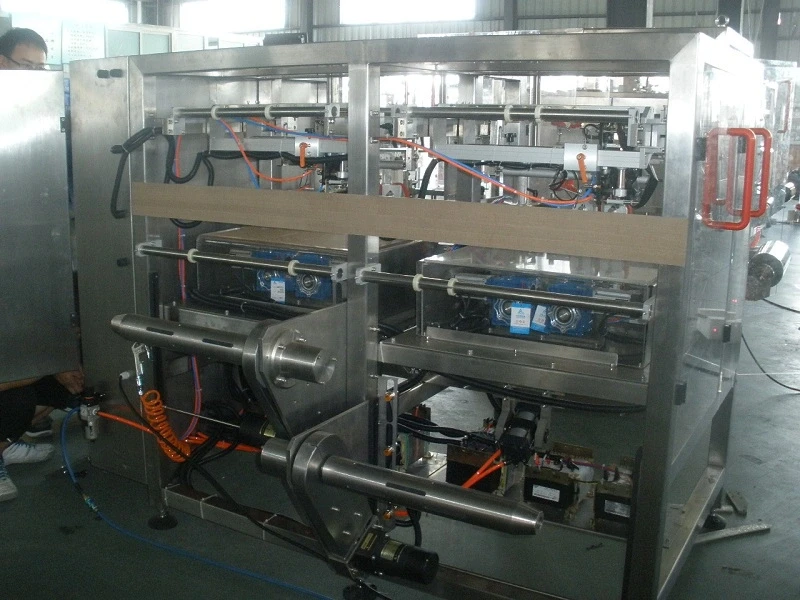

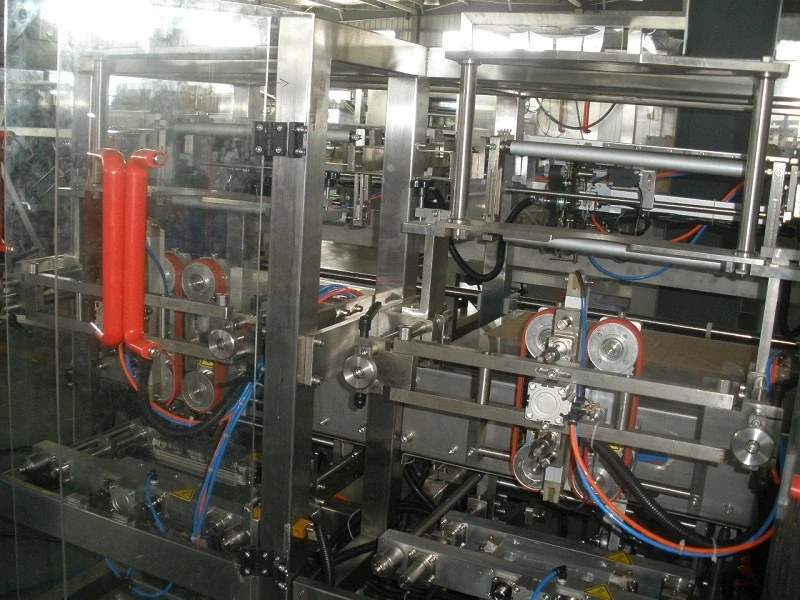

Vertical packing machine	This machine own functions of bag-making,sealing,date printing,cutting,etc.

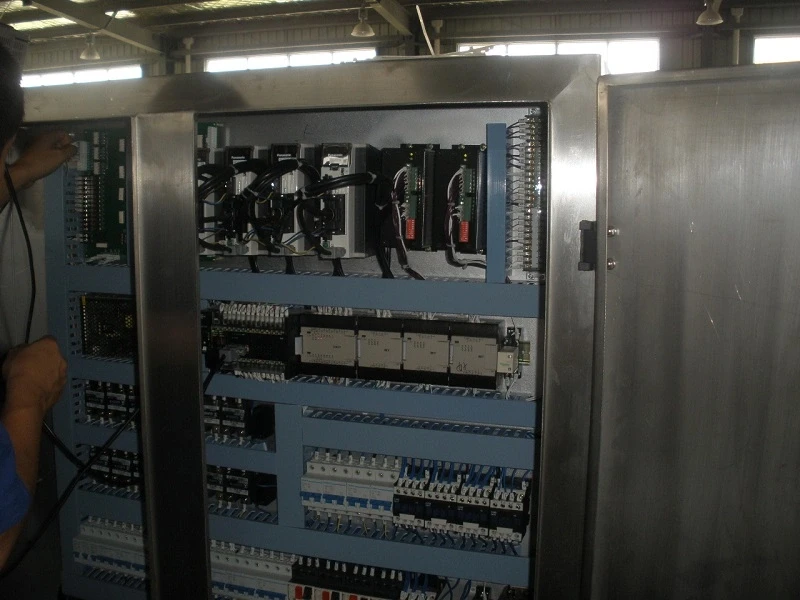

	Adopts Siemens PLC & Touch Screen,PANASONIC servo motor, Japanese Photo Sensor, Korean Air valve,Schneider electrical components,etc.
	Can be used for making pillow bag,gusset bag,hole-punching bag, box type bag,etc.
	Can be installed with ribbon printer, thermal transfer coding machine,label sticking machine for printing dates,letters,QR code,bar code and sticking labels on bag.
	Automatically form and make a bag by using roll film
	With independent touch screen for seting parameters

Packing machine	Weighing machine	Bag type/ Bag Material	Max Roll Film width	Bag size:(mm)	Max speed BPM
KYT420D	Cup filler	Pillow bag,gusset bag,hole punching bag/LDPE film, Laminated film	420mm	W(80-200)*L(80-280)	100BPM
KYT540B	Cup filler		540mm	W(120-260)*L(80-340)	80BPM

1.Who we are?

We are manufacturer of automatic weighing packing machines , located in Hefei city,Anhui province,China.We were founded in 1998, already engaged in this packaging field more than 20 years.

2.What we are producing and selling?

Our products mainly includes automatic vertical weighing packing machines,automatic vacuum packing machine,automatic filling line,automatic bulk packaging& palletizing line, automatic secondary packing line for baler bags in plastic bag / pp woven bag/carton and ancillary equipment.

3.Do we have our own production R&D team?
Yes,We have professional teams for machine design,drawing making,machine assembling and testing,we also have a professional service team who can go abroad to help customer install and test the machines,also giving training.

4.Do we have experience in non-standard design?

Yes, we have designed and made some non-standard design packaging lines for customers, such as the screw weigher for ice cubes, which greatly reduces the problem of ice agglomeration We designed and developed bag edge folding & sealing and bottom flatting device on packing machine to make more beautiful bag shapes.We developed a high speed continuous packaging machine for increasing the packaging speed to 100bags per min.We developed a lifting screw metering machine to solve the dust problem in the ultra fine powder packaging process,etc.

5.What certifications have our products passed?

Our products have passed ISO9001:2008 and CE certificates.

6.How to pack our machines?

After the machine is cleaned up, it is wrapped with film first, and then packaged in a wooden export box.

7.What after-sales service can we provide?

7.1we can communicate with shipping agent and delivery machine for customer;
7.2we will offer customer the user manual,electrical diagram,installation video,etc.
7.3we will offer customer documents for clean custom,includes commercial invoice,packing list, bill of lading, certificate of origin,etc.
7.4 we will answer questions online from customer any time.
7.5we can send engineer to abroad for helping customer install & test machines and training.
7.6In the case of non-man-made damage, we will express the accessories free of charge and let the customer replace it. If it is deemed damaged, we only charge the cost price for the spare parts.

8.Which countries are our products sold to?

Vietnam, Indonesia, Thailand, Malaysia, Cambodia, Singapore, South Korea, Japan, Colombia, Peru, Uzbekistan, Russia, Egypt, Syria, Iran, United States, etc.
