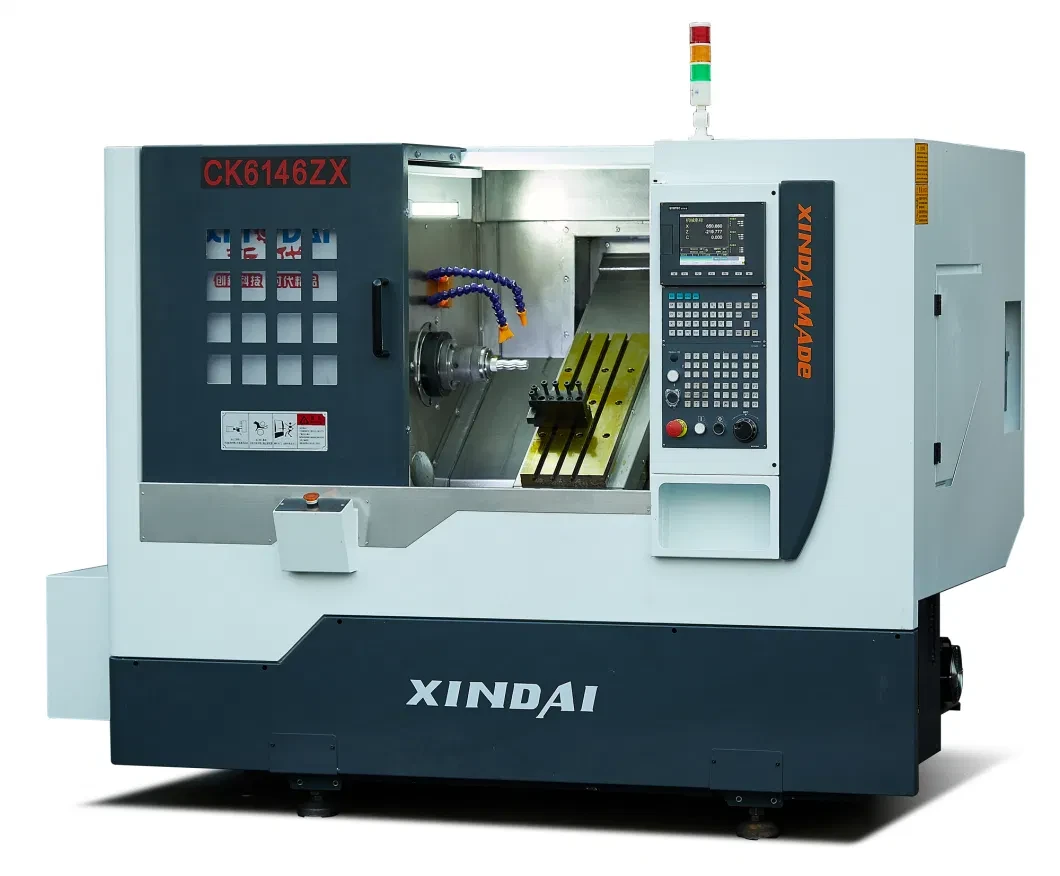

Knife Setting Machine Small CNC Machine Tool Numerical Control Milling

Quantity	1 - 2	3 - 4	5+ - 5+
Price	US $22,000.00	US $21,500.00	US $21,000.00

Contact Now

Quick Details (View All)

Model NO.	6146X	Numerical Control	CNC/MNC
Processing Precision	0.03~0.04(mm)	Performance Classification	Economical CNC Machine Tools
Condition	New	Weight	2500kg
Country of Origin	Guangdong, China	Yield	600
Specification	210015501780	Trademark	xindai
Origin	Guangdong, China

Product Details

Product Description

Company Info.

Product Description

1, the machine adopts a horizontal high rigidity of the whole cast iron bed, the bed adopts a small giant design structure, the guide rail is placed horizontally, suitable for high-speed and high-strength cutting, with excellent reliability and accuracy retention, 35° inclined bed design is convenient for the operator to upper and lower the workpiece, but also to ensure smooth chip removal.
2, spindle high precision, strong rigidity, can achieve stepless speed regulation and constant speed cutting, start quickly.
3, the main transmission system of the machine tool is driven by AC servo motor, with high efficiency synchronous belt to directly drive the spindle. Noise problems caused by the gearbox transmission chain are avoided.
4, X/Z axis adopts servo motor and ball screw directly connected, high feed accuracy, can obtain higher machining accuracy.
5, each lubrication point can be quantitative lubrication, temperature rise and thermal deformation

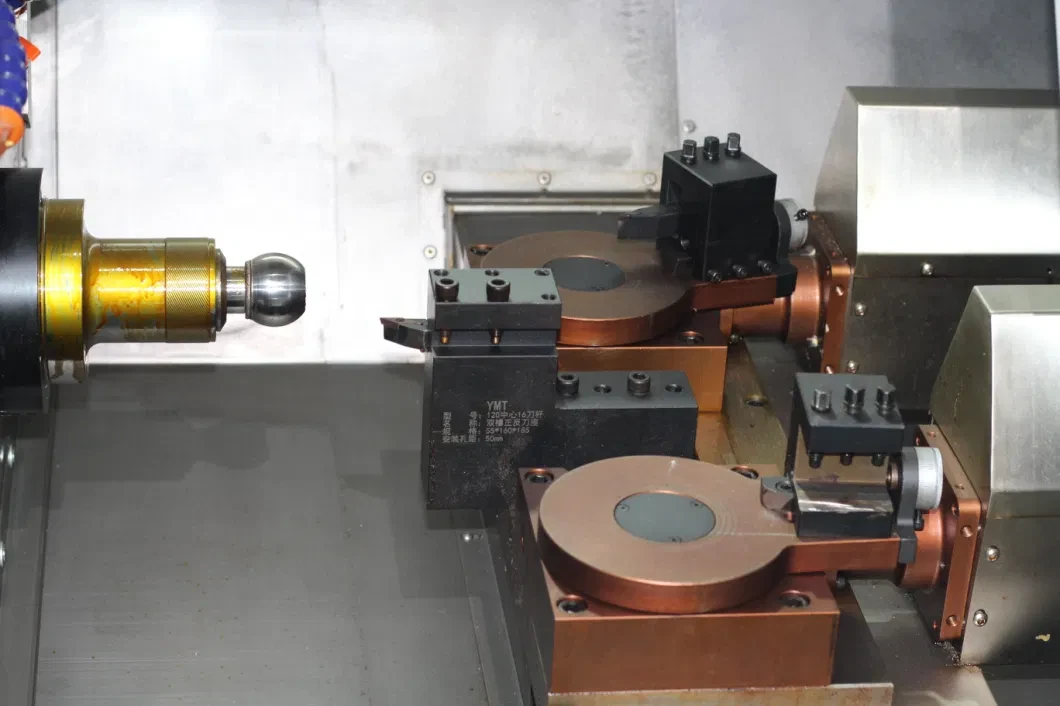

6, T-type tool rack to reduce tool change time, a variety of tool arrangement combination, improve production efficiency.
7, full anti-internal protection, effectively isolate the important components from the processing area, oil, water, dust effect is better, longer service life of the machine.
