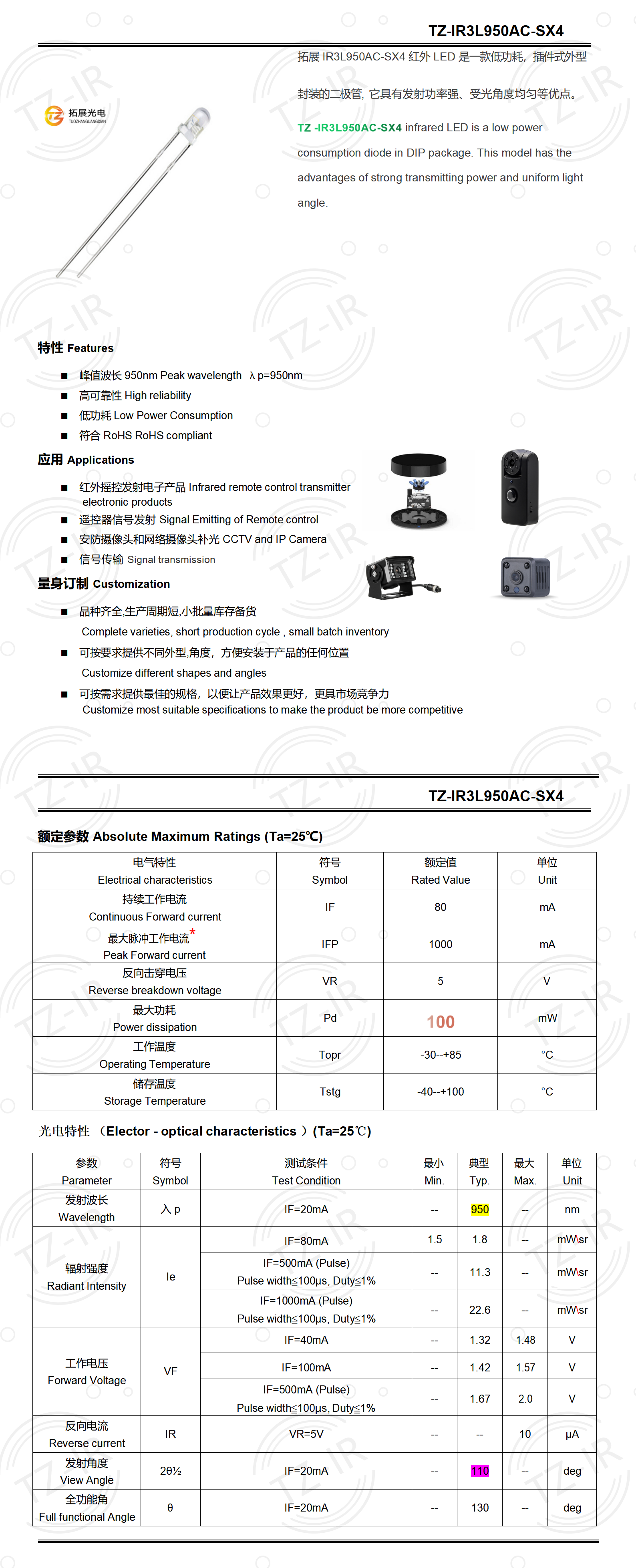

| Model Number | TZ-IR3L950AC-SX4 | Type | LED |
| Place of Origin | Guangdong, China | Brand Name | Tuozhan |
| D/C | 3mm 5mm Prewired LED Diodes | Package Type | Through Hole |

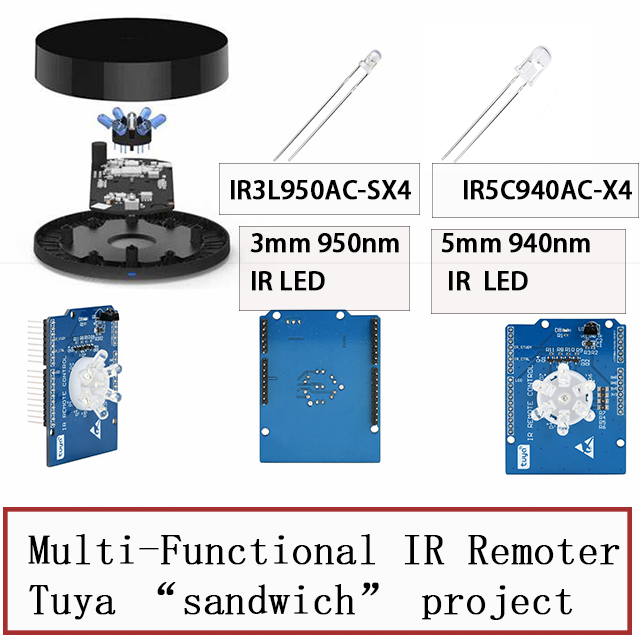

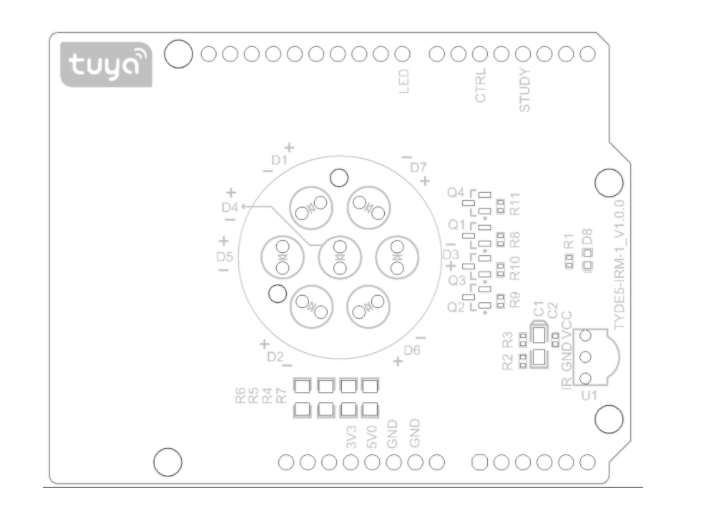

| Application | Tuya sandwich infrared remote | Supplier Type | Original manufacturer |
| Media Available | datasheet | Max. Forward Voltage | 5V |
| Max. Reverse Voltage | 5v | Max. Forward Current | 80mA |
| Max. Reverse Current | 1000mA | Brand | 3V-14V low voltage |
| Diode Type | ir led | Technology | high intensity brightness output powerconsuption |
| Voltage - Peak Reverse (Max) | 5V | Current - Average Rectified (Io) | 50MA |
| Voltage - Forward (Vf) (Max) @ If | 5v | Current - Reverse Leakage @ Vr | 0.01V |
| Operating Temperature | -30--85 | Mounting Type | Pre-Wired |
| Package / Case | Epikote | Diode Configuration | CHip |
| Voltage - DC Reverse (Vr) (Max) | 5V | Current - Average Rectified (Io) (per Diode) | 30mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Reverse Recovery Time (trr) | 0.01S |
| Capacitance @ Vr, F | 20 | Current - Max | 200mA |
| Resistance @ If, F | 0.2 | Power Dissipation (Max) | 0.1W |
| Capacitance Ratio | 1:20 | Capacitance Ratio Condition | LED |
| Q @ Vr, F | 160 @ 4V, 50MHz | Configuration | 20 |
| Voltage - Zener (Nom) (Vz) | 13 | Tolerance | 12 |
| Power - Max | 225mW | Impedance (Max) (Zzt) | 10 |
| size | 3mm Round | Emitting color | infrared |
| Voltage | 3-5V | Color | water color |
| Product name | IR LED | Certification | Rohs Reach |

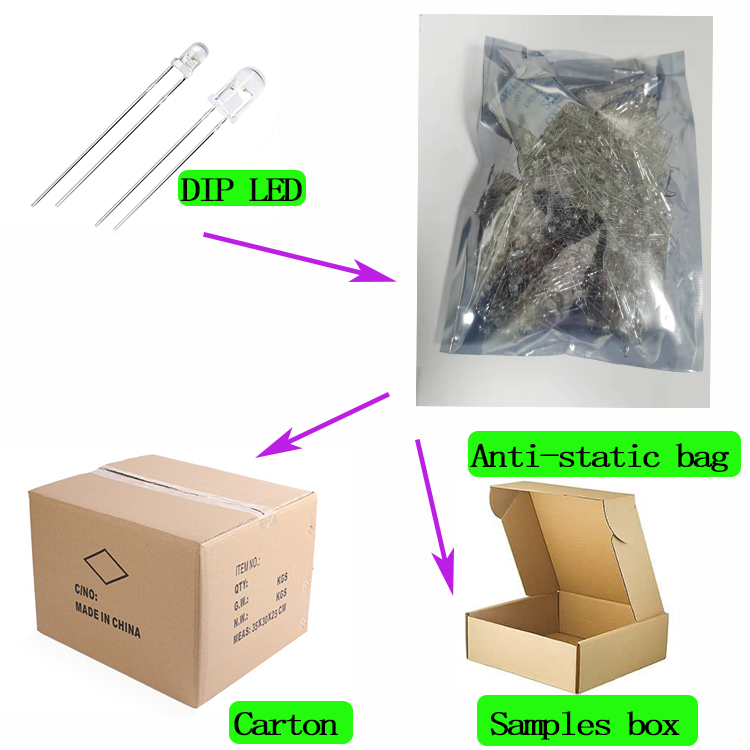

| Payment | T/T | Packing | Anti static bag |
| Shape | Round Straw Hat | Wavelength | 820-980nm |
