| MOQ | 1 Piece/Pieces |
| Place of Origin | Guangdong, China | Brand Name | EXCELIGHTS |
| Model Number | EL-200W-12V | Output Power | 200W |
| Output Type | Multiple | Input Voltage | 85-265V, 85-265V |
| Output Voltage | 12V | Output Frequency | 47 to 63Hz |
| Output Current | 16.7A | Product Name | High Quality 200W LED Driver 12V |
| Color | Silver Black | Size | 264*70*49mm |
| Current | 16.7 A | Overpressure protection range | 280V |
| Overload operating range | 150W | Working environment temperature | -25 to 50°C |
| Storage temperature | -40 to 80°C | Certification | CE RoHS BIS |

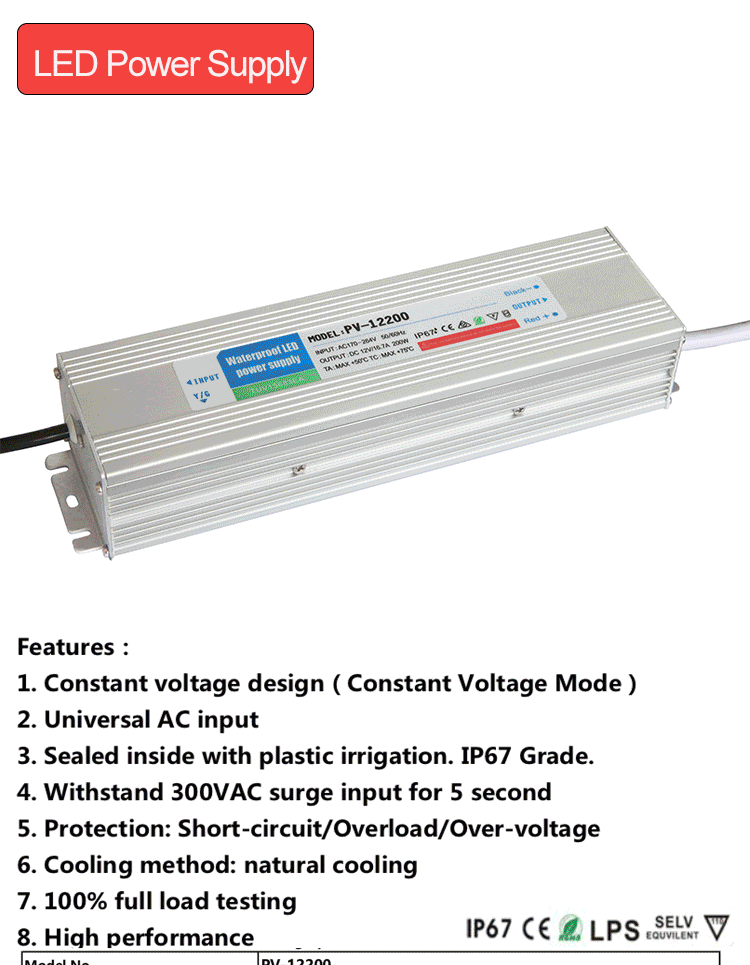

High Quality 200W LED Driver 12V:

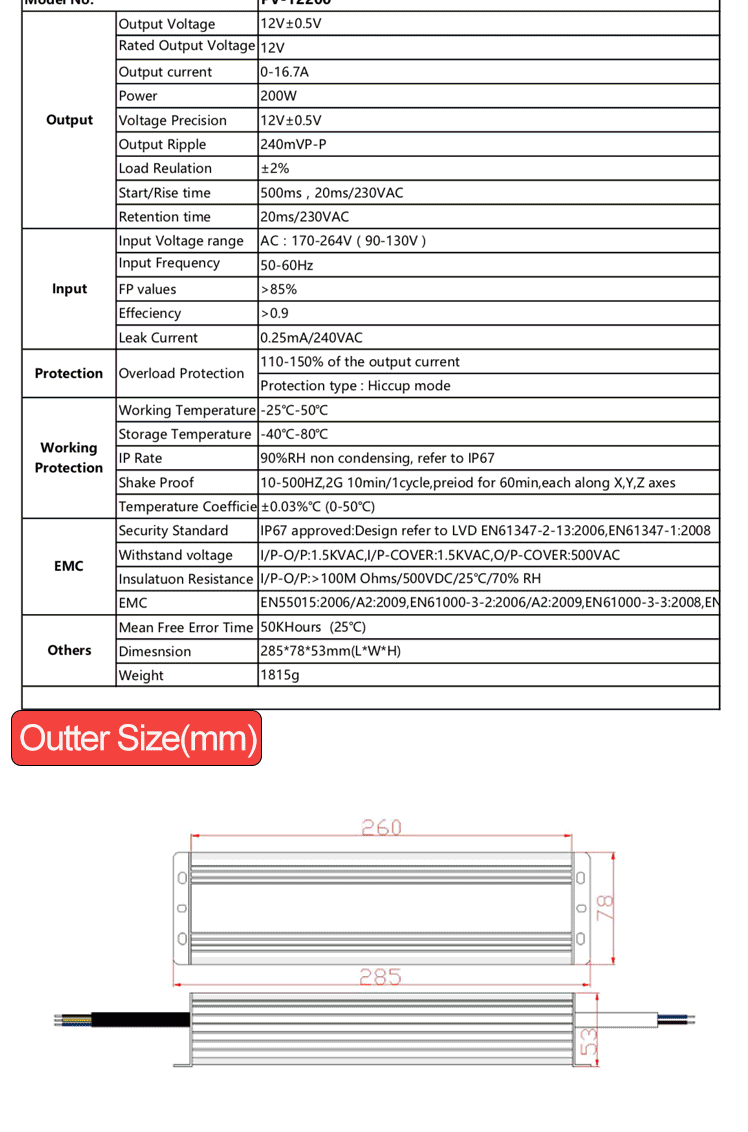

Specifications for High Quality 200W LED Driver 12V
Output voltage range:
85-250V
Output voltage: 5V 12V
24V
Current: 16.7A
Power: 200W
Size: 264 x 70 x
49mm
Weight: 1500g
Output voltage: 12 ±0.5V
DC
Frequency: 47 to 63Hz
Conventional input line: VDE
H03VV-F 3G x 0.75mm2,
Color:brown, blue and
yellow
(20 to 30cm)Conventional output
line: VDE H03VV-F 2 x 0.75mm2, brown and blue VDE (20 to 30cm x
2)
Waterproof grade:
IP67
Storage temperature: -40 to
80°C
Working environment temperature:
-40 to 80°C
Short-circuit protection:
automatic recovery
Overload operating range:
1500W
Overpressure protection range:
280V
Overheat protection range:
85°C
Certification: CE RoHS
BIS
Directive-compliant
Advantages for High Quality 200W LED Driver 12V
Housing material: aluminum alloy
Energy-saving and
eco-friendly
High efficiency,
waterproof grade, multiple
protection,
long lifespan and nice
stability
Hot sales for led power
supply:
1.CE, RoHS approval
2.Provide OEM service
3.Factory directly sales.
| LED Driver | waterproof |
| Watts | 200W |
| Current | 16.7A |
| Output Voltage | 12V 24V 5V DC |
| Input Voltage | 100-240V AC |
High Quality 200W LED Driver
12V:
Size for
Products:264*70*49mm 1500g/pcs
Size for
Carton:32.5*28.5*21.5cm
10pcs/carton 15.5kg
1. Q: Can we get samples?
A: Samples are available for quality check and market test.
2. Q: What is delivery time?
A: 1-2days for samples order. 7-12days for quantity order.
3. Q: How does your factory do regarding the quality control?
A: we have a strong quality control team to guarantee our quality.
The quality control system: IQC→PQC→FQC→OQC.
Every process will be checked strictly.
4. Q: Aging Test
A: All the goods has at least 8 hours’ aging test 100% before sending.
5. Q: Do you have any for led light order?
A: 1 pc for sample checking also available, low MOQ can be acceptable.
6. Q: How do you ship the goods and how long does it take?
A: DHL,UPS,FedEx, TNT: 3-5days.
Airline and sea shipping also optional.
7. Q: Can you offer OEM and ODM Service?
A: Yes, we can offer OEM and ODM service.
8. Q: Do you have warranty for your goods?
A: Yes, we can offer 1-3 years warranty.
9. Q: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
During the guarantee period, we will send new goods with new order for small quantity. For
defective mass products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
