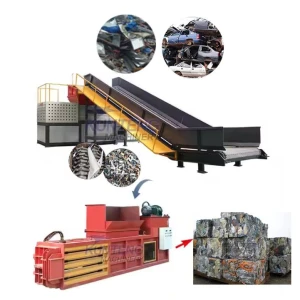

Hydraulic garbage baler waste metal plastic compression packaging equipment garbage disposal machinery

FOB Price 8800 - 8900 USD / 1

Quantity	8800 - 8900
Price	Dollar

MOQ	1 Unit
Port	China
Packaging	container
Lead Time	15

Contact Now

Quick Details (View All)

type	Waste baler	warranty	1 Year
automatic grade	Semi-Automatic	machinery test report	Provided
video outgoing-inspection	Provided	Packaging Type	Cartons, board
place of origin	Henan, China	brand name	KUNTENG
dimension(lwh)	280032005000MM	Product name	New pressing machine for waste plastic waste carton packing machine
Keywords	waste plastic waste carton packing machine	Application	Apparel, Textiles, waste paper, cardboard, plastics
Bale Size(LWH)	1120420900mm	Capacity	5-8T/h
Voltage	380V(can customized)	Advantage	Easy Operation High Efficiency
Bale Type	Hydraulic Rectangular Baling Press	After-sales Service Provided	Field Installation
power	22KW	core components	PLC, Engine, Bearing, Motor, Pressure Vessel

Product Details

Production Description

Our New pressing machine for waste plastic waste carton packing machine waste paper baler are CE marked, It can process high volumes of recyclable materials such as paper,cardboard,plastics,metal,and other sorted waste. It also designed with customer requirements, so making your waste management a simple and economical process.It is an important waste baler equipment in the waste sorting line.

Advantages of New pressing machine for waste plastic waste carton packing machine waste paper baler:

▶ All models are hydraulically driven and can be controlled manually or automatically by PLC. ▶ If there is no power source, diesel engine can be used as power. ▶ Compression chamber size and packaging size can be customized. ▶ The feed port is equipped with a dispersion shear knife for high cutting efficiency. ▶ Low noise, Button operation, PLC control, safe and reliable.

Application Material:

It is suitable for waste paper, waste cardboard, waste plastics, waste woven bags, waste cloth strips, waste hemp bags, metal beer bottles, and other recyclable waste. It is also suitable for other soft materials such as straw, grass, cotton, clothing, wool, yarn, tobacco leaves, wool balls, cocoons, silk, etc.

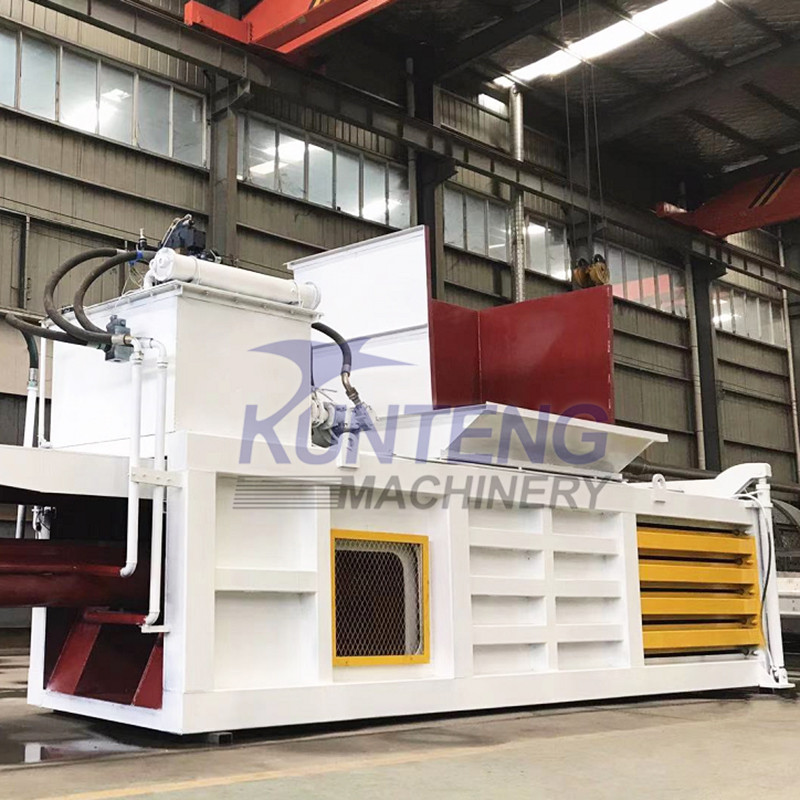

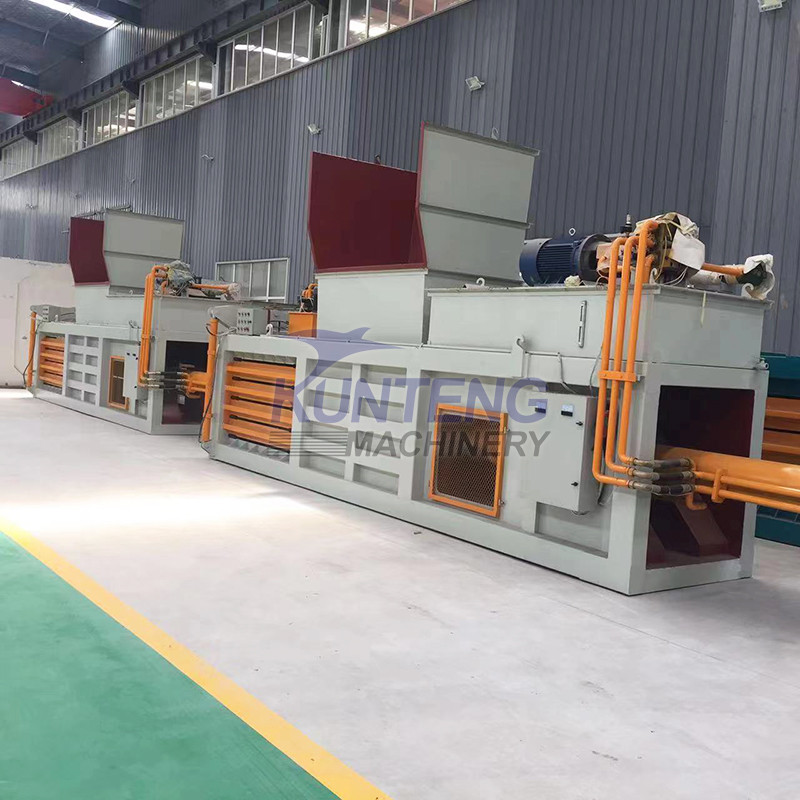

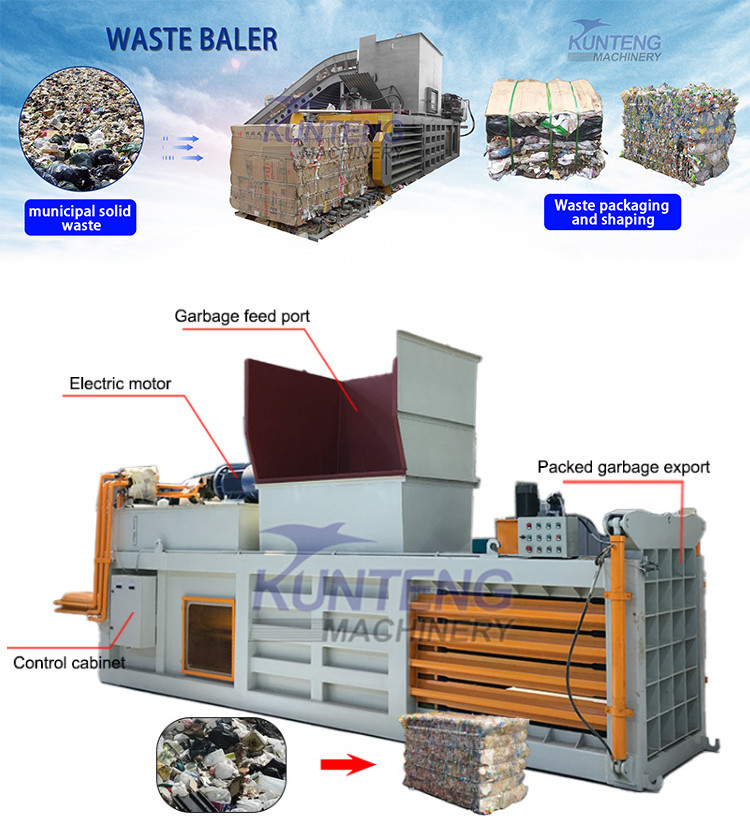

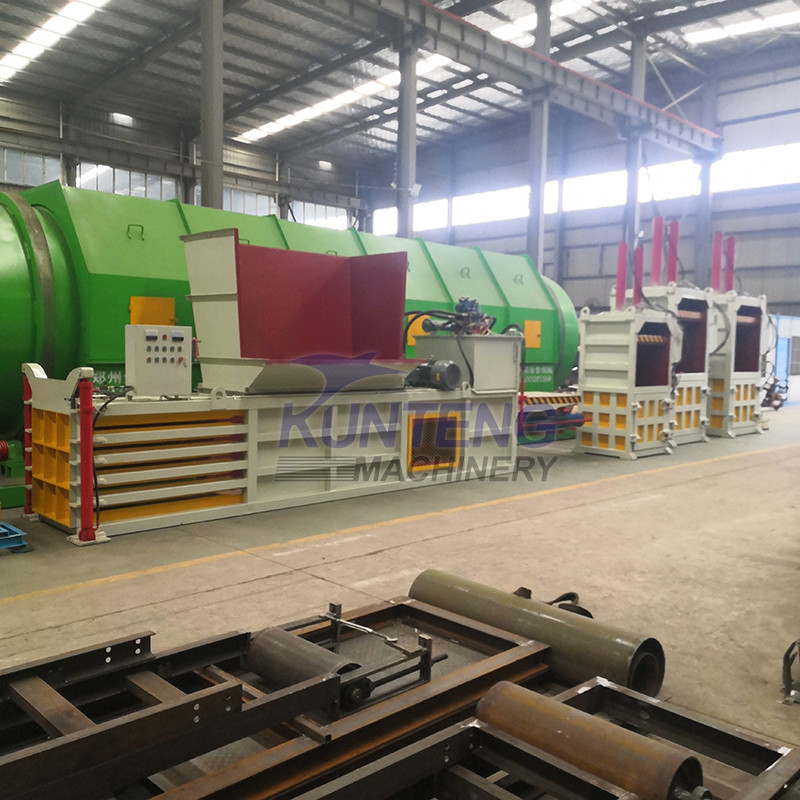

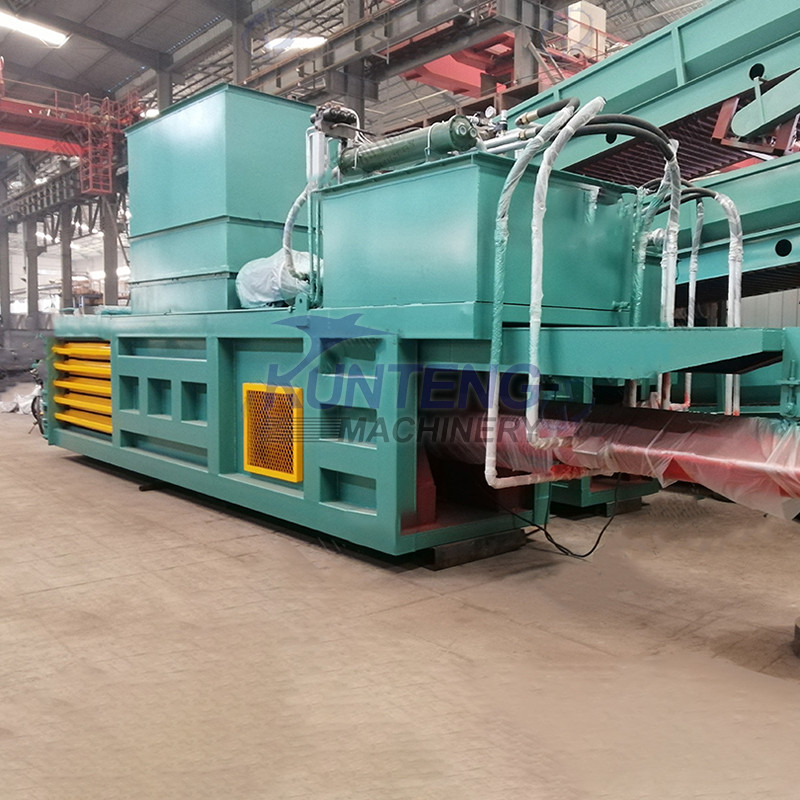

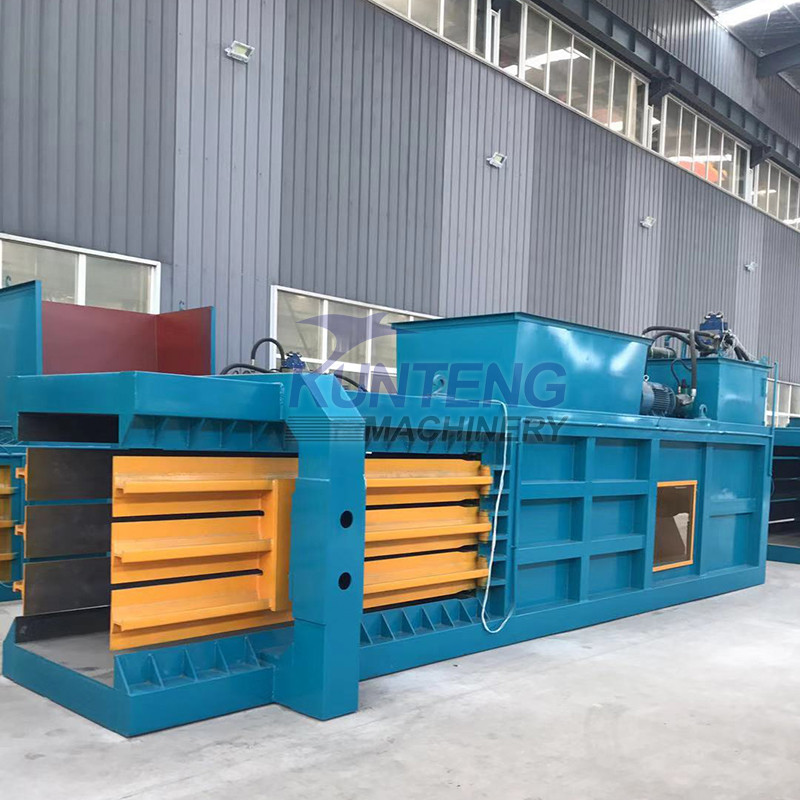

Horizontal waste baler machine
Model	KT-100 Semi-automatic horizontal baler	KT-120 Automatic horizontal baler
Power system	Hydraulic system	Hydraulic system
System pressure	28Mpa	28Mpa
Motor	22kw hydraulic pump	22kw+15kw hydraulic pump
Main thrust	1000kn	1200kn
Inlet size	1500820mm (LW)	1685860 (LW)
Packing size	9001000mm (WH)	9001100 (WH)
Packing density	≥400-450kg/m3	≥400-450kg/m3
Capacity	2-5t/h	5-8t/h

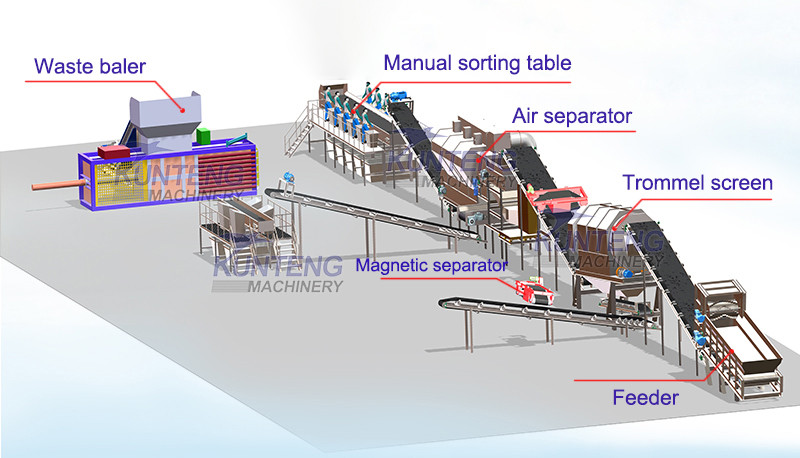

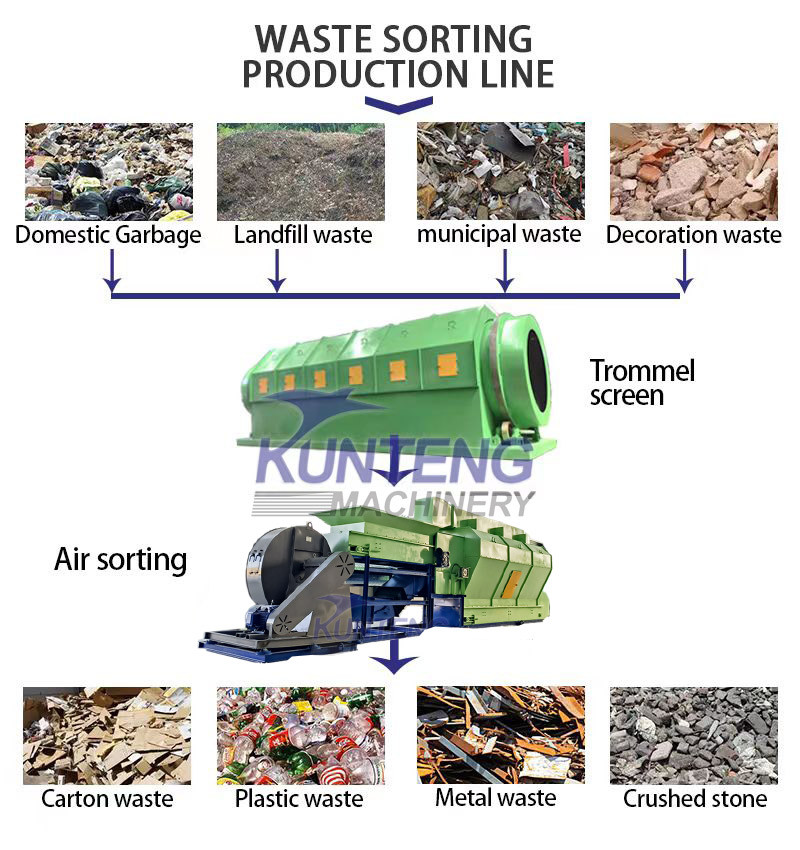

Whole Waste Sorting Production Line

Urban waste, construction waste, or stale waste enters the feeder — Belt conveyor — Waste trommel screen machine (which mesh sizes of 10-200mm. can sorting waste according to the material size) — Magnetic separator(sorting metal) — Air separation machine(Screening waste by material’s weight) — Waste baler machine. Through this series of sorting process, plastic bottles, rubber, metals, cardboard, hard plastics, etc. are selected, finally, the selected light materials are balled by the waste baller machine.

Specifications of Waste Sorting Line

Model	JTS1500	JTS1800	JTS2000	JTS2200	JTS2500
Rated output	50t/day	100t/day	200t/day	300t/day	500t/day
Box feeder	B800×4000	B1000×4000	B1200×4000	B1400×4000	B1400×7000
Trommel screen	T1500*6000	T1800*6000	T2000*6000	T2200*8000	T2500*8000
Magnetic separator	RCYD-6	RCYD-8	RCYD-10	RCYD-10	RCYD-12
Air separator	GX-A60	GX-A80	GX-A100	GX-A120	GX-A160
Baller	B30T	GX-B80	GX-B100	GX-B120	GX-B160
Number of conveyors	B650*6	B800*6	B1000*6	B1200*6	B1200*6
Floor area	18m*58m	19m*60m	20m*62m	22m*65m	24m*77m
Total Power	84kw	102kw	135kw	165kw	222kw

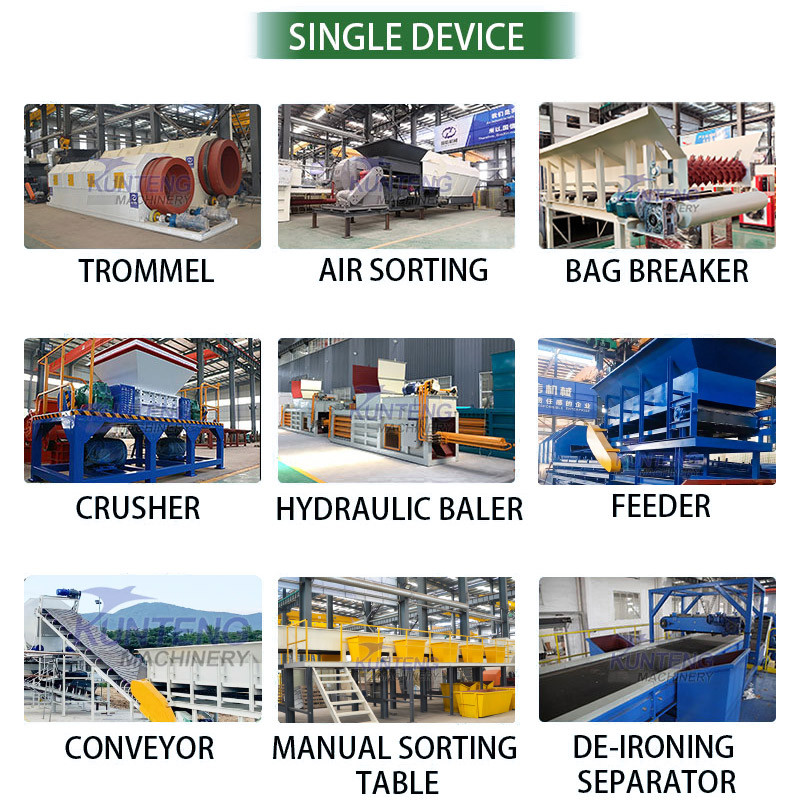

Main machines of the line

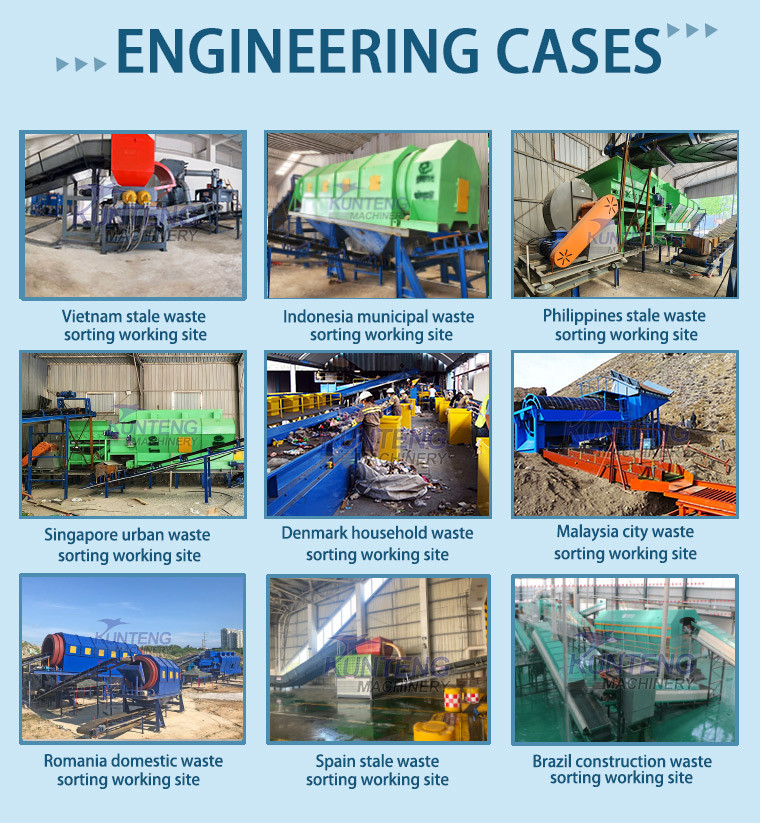

Successful Project

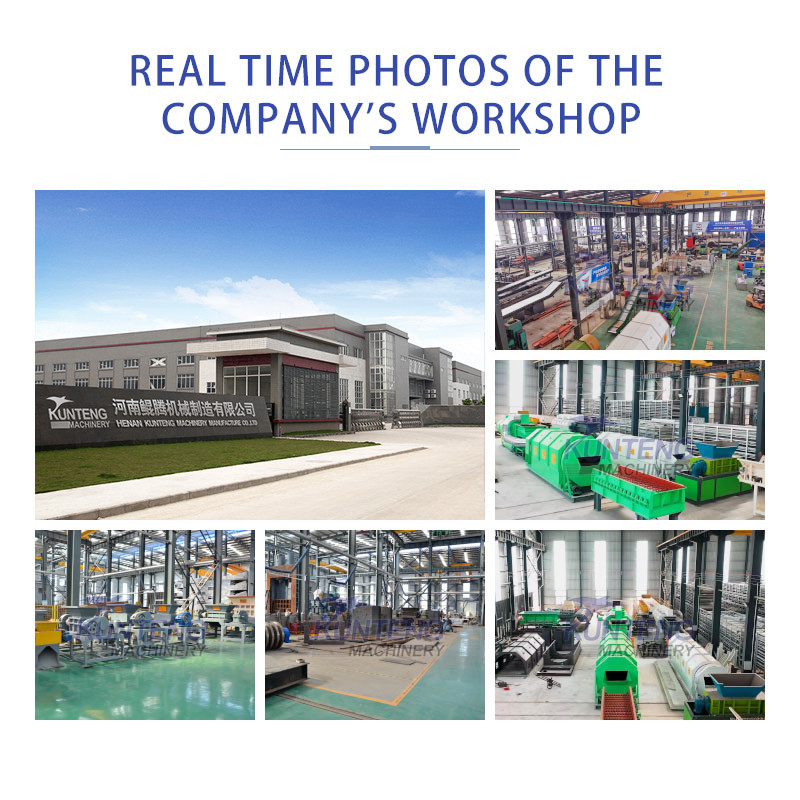

Company Profile

Kunteng Machinery founded in 1999, mainly focuses on design and manufacturing waste sorting production line. Trommel screen machine, air separation machine, magnetic separators, garbage bag breaking machine, manual sorting tables, New pressing machine for waste plastic waste carton packing machine waste paper baler, chain plate feeder, belt conveyor.etc. Kunteng Machinery is a high-tech modern enterprise integrating scientific research and development, production and sales, engineering design, installation services. Our machine has passed ISO9001:2000 CCC,CE certification.Our machines has already spread over the world.We can provide customers with one-stop service and solutions, complete equipment, on-site installation, and after-sales support.

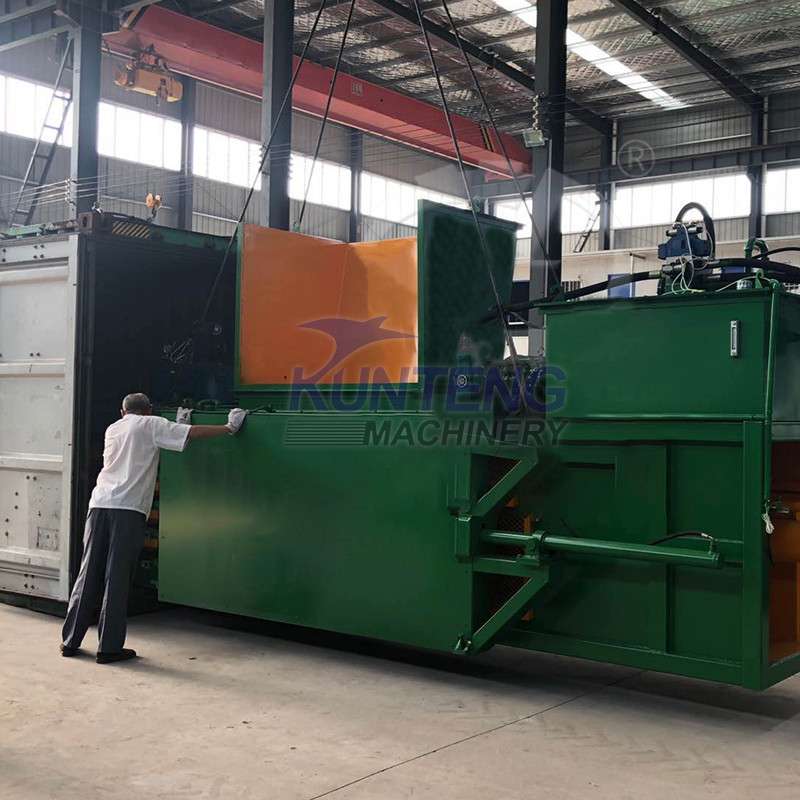

PACKING & SHIPPING

FAQ

Q1: Are you a factory or a trading company?

A1: We are a professional manufacturer in China, passed field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.

We provide the entire waste sorting line, including factory design, circuit routing, equipment placement, etc. Please feel free to contact us for details. Welcome to factory to discuss business cooperation.
