Input Voltage(V) | 5-8V,3-3.4V | Warranty(Year) | 3-Year |
Type | UV LED, UVC+UVA LED CHIP | Support Dimmer | Yes |
Lighting solutions service | Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation | Lifespan (hours) | 1000 |
Working Time (hours) | 1000 | Chip Material | INGAN |
Emitting Color | Purple | Optical Attenuation(%) | 5 |
Power | 0.7w | Power Dissipation | 200 |
Viewing Angle(u00b0) | 120 | Color Temperature | n/a |
Operating Temperature(u2103) | -40 - 80 | Storage Temperature(u2103) | -40 - 80 |
Place of Origin | Guangdong, China | Brand Name | Tuozhan,ODM |
Wavelength | 280nm, 365NM, 400NM, 275, 270-280nm,390-400nm | Product Name | UVC LED Chip |
Application | Sterilization & Disinfection | Forward Voltage | 5-8V |
Size | 3.5*3.5mm | Current | 40-200mA |
Function | UVC Sterilizer | Radiant flux | 5/120mW |
Certification | ce, RoHS |

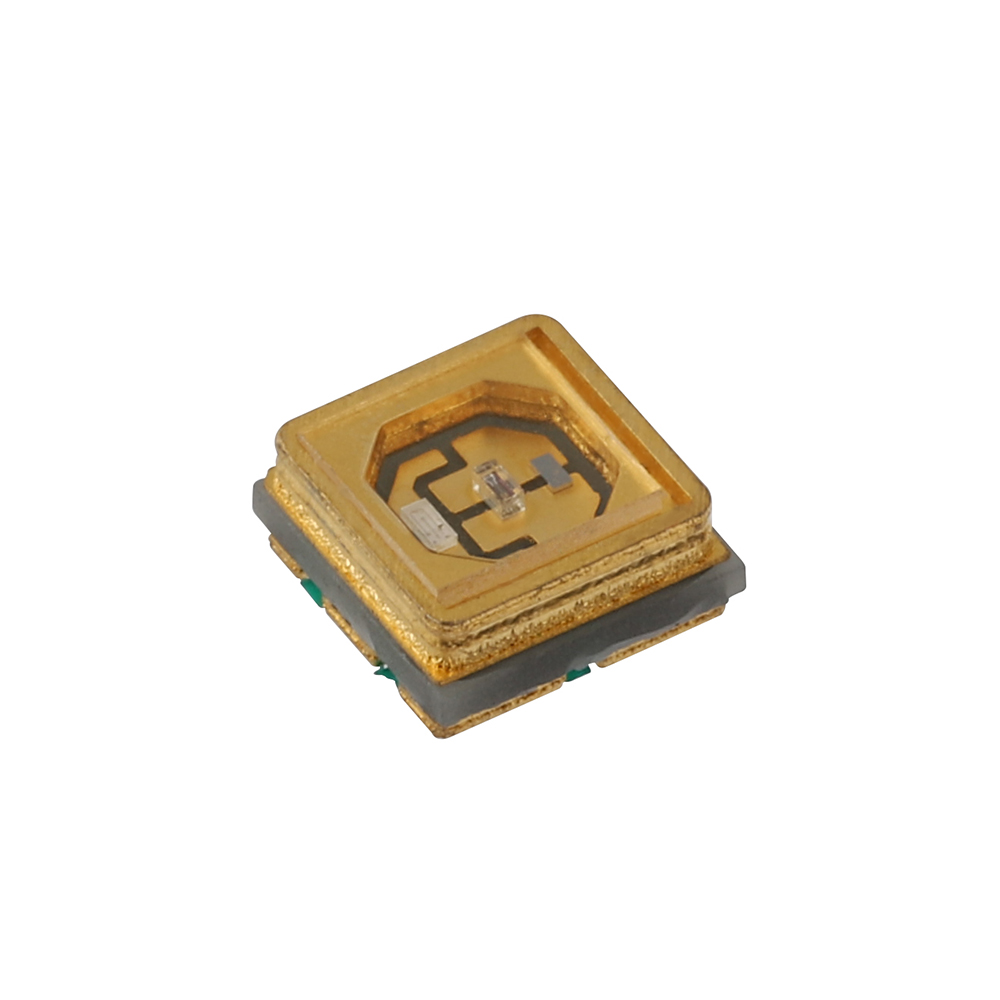

Hot Selling Sample Available LED Sterilizer Wand Component LED Emitter 6V 50mA UVC LED Chip

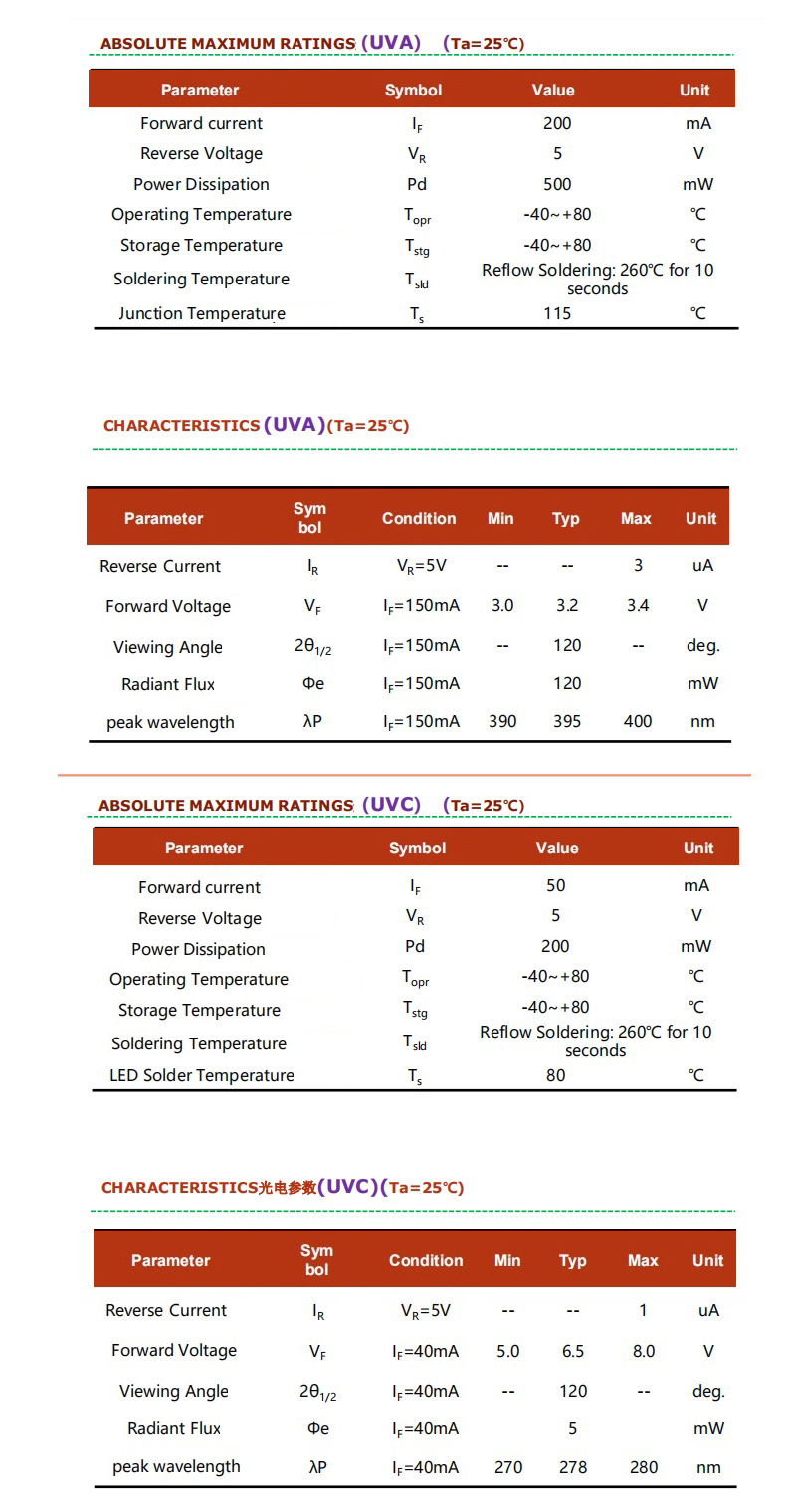

Product Parameter:
P/N |
Rated voltage (V) |
Forward current (mA) |
peak wavelength (nm) |
Radiant Flux (mW) |
Viewing Angle 2θ1/2 |
||||
Min. | Typ. | Max. | Typ. | Max. | Typ. | Min. | Typ. | Typ. | |
F.35.00046 |
5 | 6.5 | 8 | 50 | 270-280 | 5 | 120° | ||
3 | 3.2 | 3.4 | 200 | 390-400 | 120 |
Product Description:
