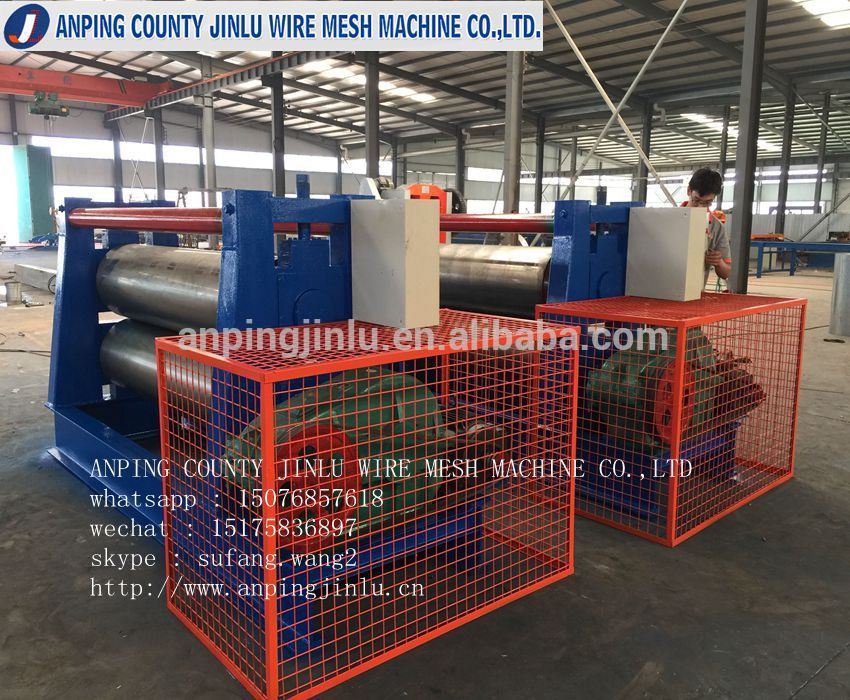

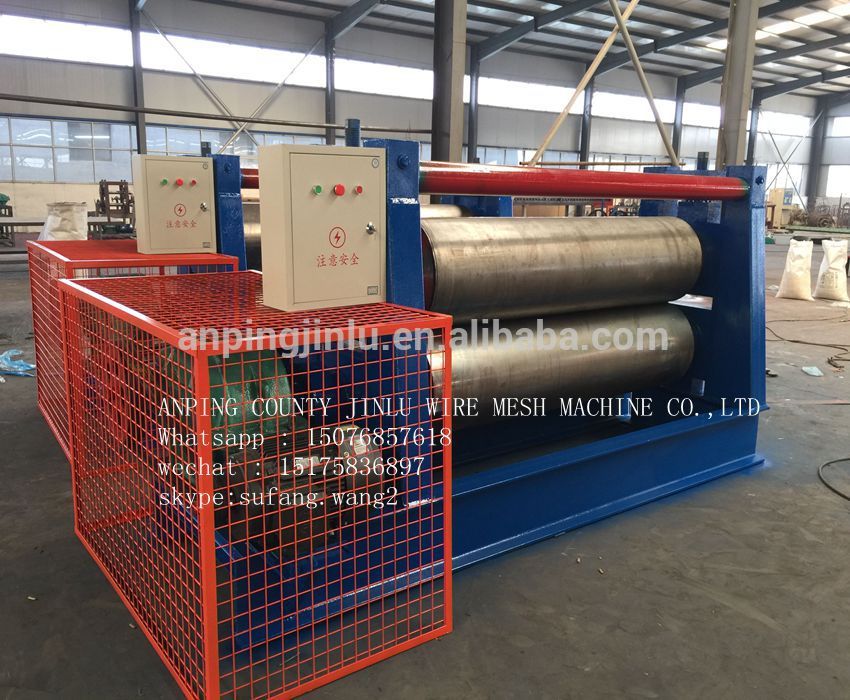

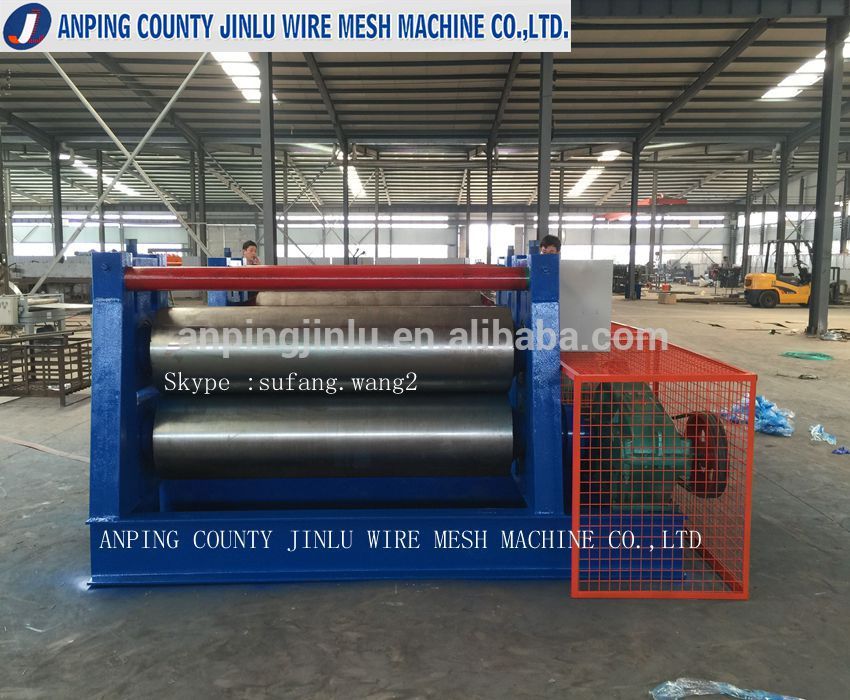

Hot heavy type Automatic flat net machine for expanded metal
mesh (20 years factory )
I Purpose
Fit for producing rigid flat net , treat HDPE, LDPE and
PP as raw materials,new macromolecule materials, such as
anti-static agent and anti-aging agent are added, net
products that have various forms and specs can be
extruded with definite tensile intensity,
aging-resistant, corrosion-resistant performance. Plastic
flat net with various specs can be produced for
construction, gardening project, agricultural breeding,
lining of soft mattress, packing net, water and soil
preservation if relevant mould and molding barrel are
collocated.
II Process Flow
Raw materials+ other assistants→mix→feed materials→melt
and extrude→mould→cool and
size→cut→draw→extend→tract→coil→finish
III Main Technical Parameter
|
1. Basic Parameters
|
Raw materials: PP, PE
|
Width: 2000mm
|
Thickness:0.5~5mm
|
Overall dimension:11×3.2×3.8(m)
|
Gross installed capacitance:46kw
|
Speed:0~5m/min
|
2. Main Collocation and parameter
|
(1)Plastic extruder:SPW-65/28
|
Main motor power:15kw
|
Max extrusion:40kg/h
|
(2) Die. head:
|
Rotational die head
|
Drive power:4kw
|
(3)Cooling tank:
|
Steel plate
|
(4)Drawing machine:
|
Roller type drawing
|
Drive power:2.2kw
|
(5)Winder:
|
Width:2000
|
Drive power:10N
|
|
