Hispeed UV Laser Marking Machines 3W 5W 8W

FOB Price 2500 - 5000 USD / set
MOQ1 set
PortShenzhen/Guangzhou
Lead Time7

Product Details

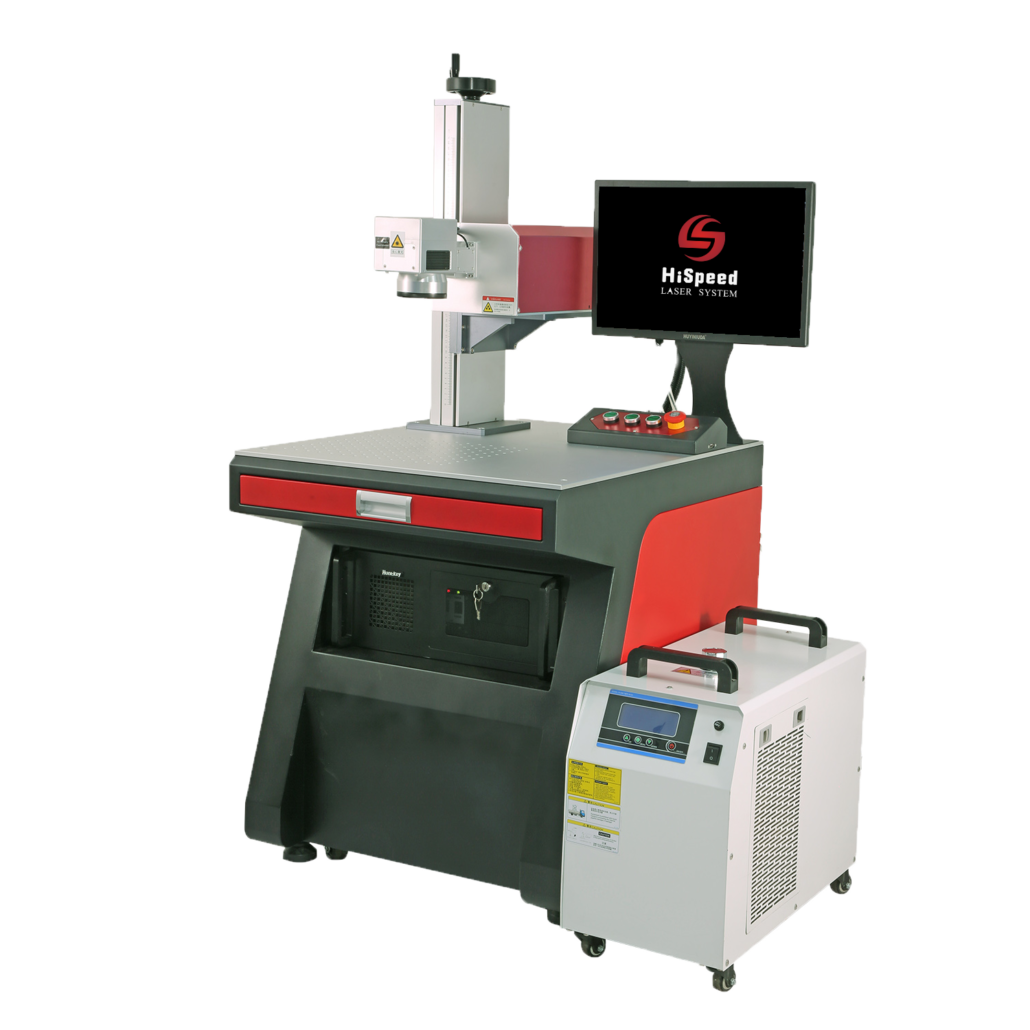

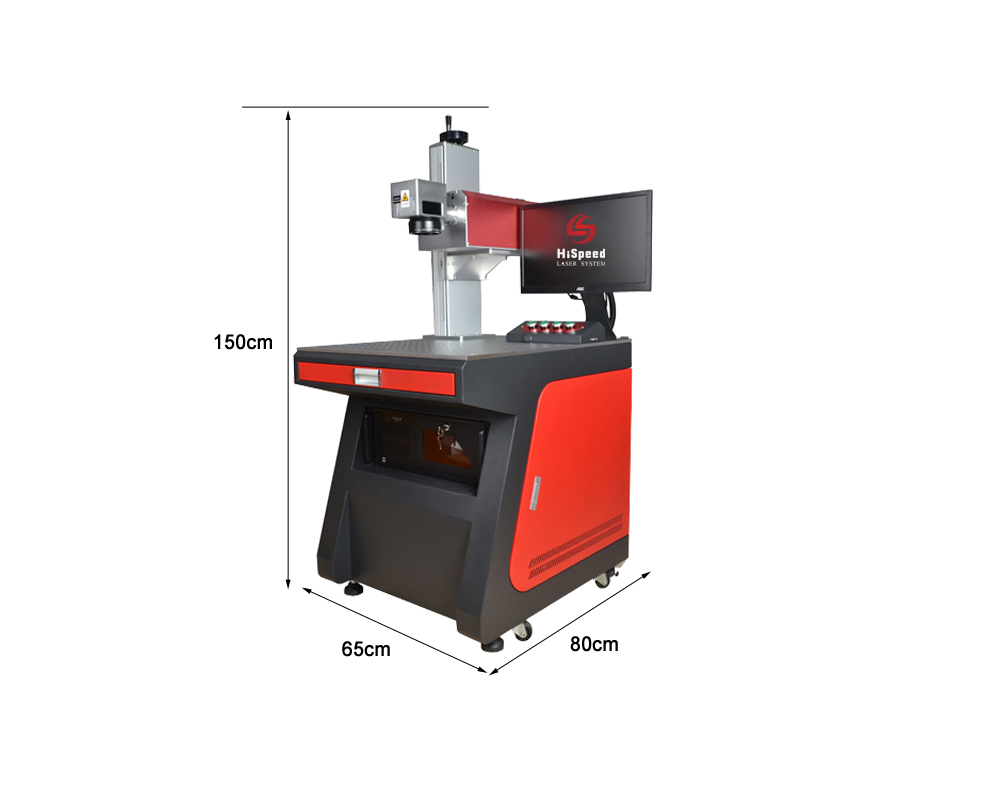

Equipment Description of Desktop UV Laser Marking Machine

HiSpeed UV Laser Marking Machine 3W 5W 8W adopts three order intracavity frequency doubling (THG) technology. Compared to infrared laser, 355nm ultraviolet laser has extremely small laser facula, which reduces the mechanical deformation to a significant extent and diminishes the influence of heat-process to a very limited area. Therefore it can be mainly applied for hyperfine marking and engraving, especially suitable for marking on packing materials ,medicines, Mobile phones ,keyboard , chargers etc.

Machine Features:

1.Stable water-cooling,high precision temperature control

2.Applied for hyperfine marking and engraving

3.High quality permanent marking

4.Environment friendly and safe machinery

5.Electro-optical conversion efficiency, long service life

Technical Parameters:

Model LS-UV-3/5/8
Power 3W 5W 8W
Wavelength 355nm
Beam Quality M2<1.3
Output Power 10%-100KHz
Output Frequency <±2%rm
Power Stability(8h) <±3%rms
Pulse to pulse instabilit TEMoo(M2<1.3)
Spatial Mode <2mrad(full angle)
Beam Divergence 0.6±0.1mm
Beam Diameter >90%
Beam Roundess <50urad
Pointing Stability H50rad
Polarization Direction Horizontal
Polarization Ratio 100:1
Cooling Water-cooling

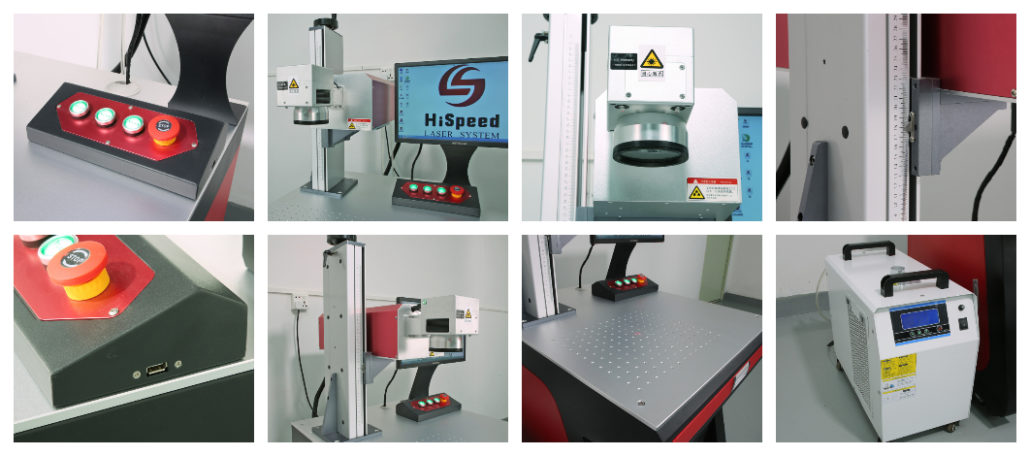

Main Parts

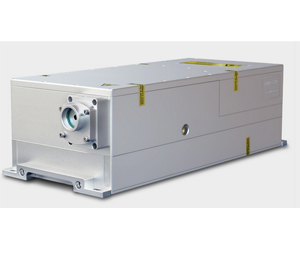

01.UV Laser Source:

Machine is standard with Hispeed Brand,Coherent,Synard laser source, with expected 100,000 hours life span, support 7 x24 hours work

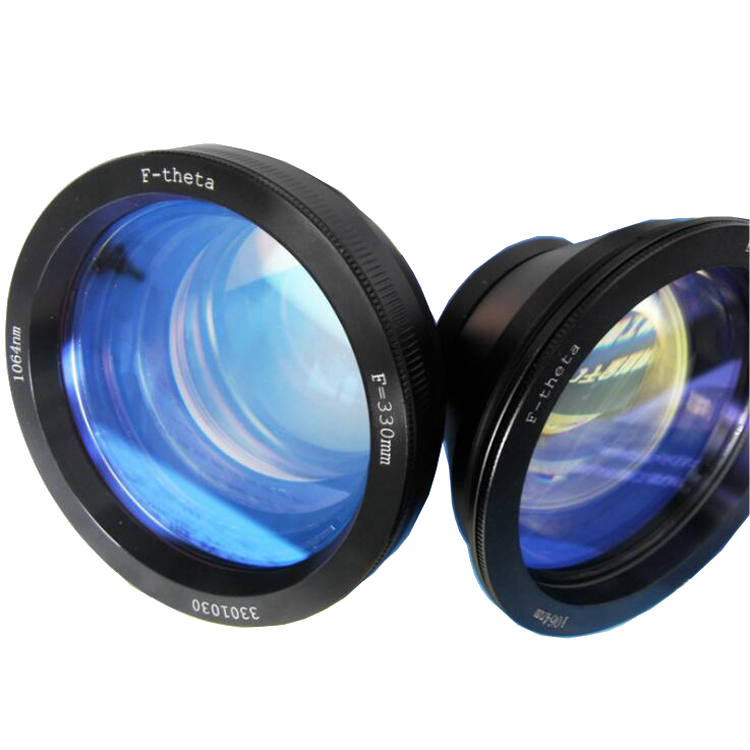

02.Field Lens

Featuring an air-spaced design and anti-reflective coating, our compact Fθ field lens ensures a excellent throughput and durability with less than 1% distortion.

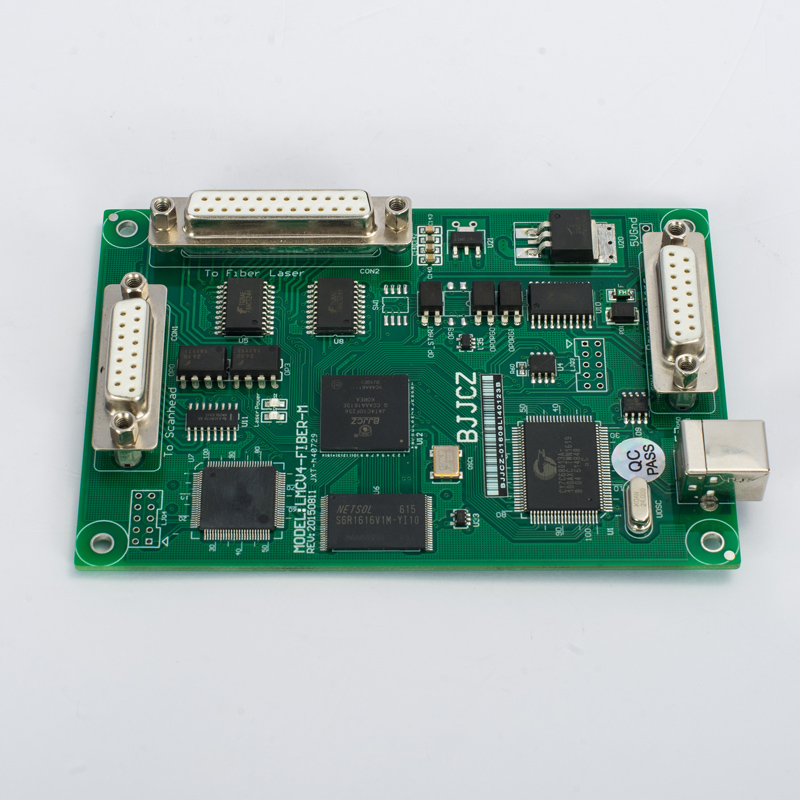

03.Control System

Beijing JCZ board card and EZCAD software with stable perfomance and high reliabilit. The machine include computer,before delivery, software and parameter are set.

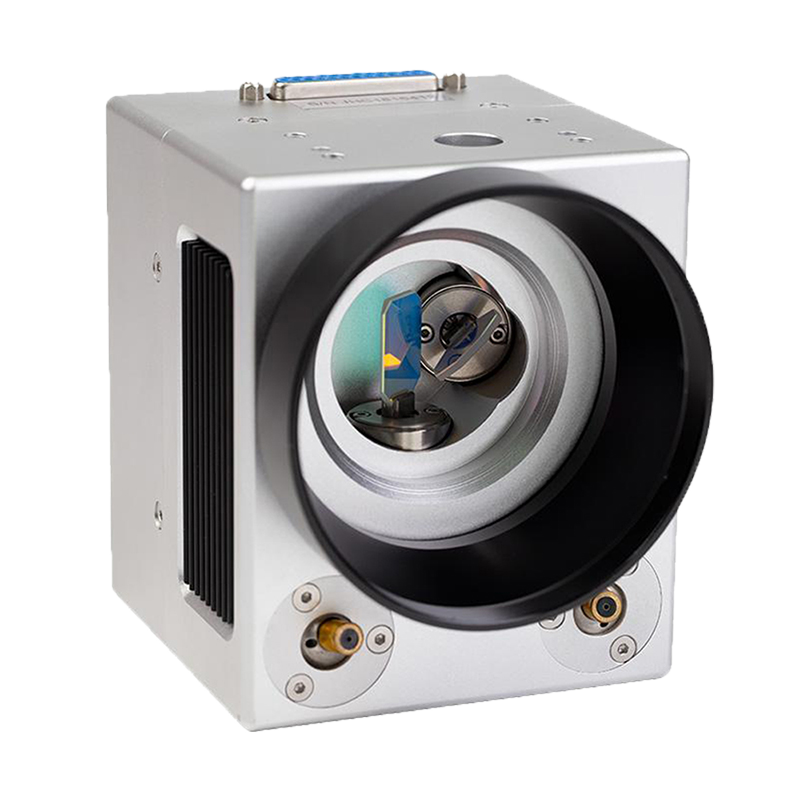

04.Galvanometric System

The laser’s high-speed Galvo-Tech digital galvanometric systerm reduces delays and improves your engraving speed.

Do you know how advanced the metal laser engraving machine is now? Now the engraving effect of the metal laser engraving machine will shock you. The laser engraving machine is suitable for engraving logos, text, clip art, and photos. It can perfectly engrave every tiny detail. This brings us to a fascinating question: what is it? What can it do for you? Crucially, what should you do to ensure that they are used as safely as possible? Do you want to know the answers to these questions? Then look down! Hispeed is a professional supplier of metal laser engraving machines. Hispeed has decades of production experience and an experienced technical team. As experts, we are committed to providing machine laser engraving solutions that can meet customer needs. Hispeed will bring you the complete guide to metal laser engraving machines.

05.Control System:

Sealed standby cabinet model control system, with USB port and wheels, support moving to any production line or table to mark.

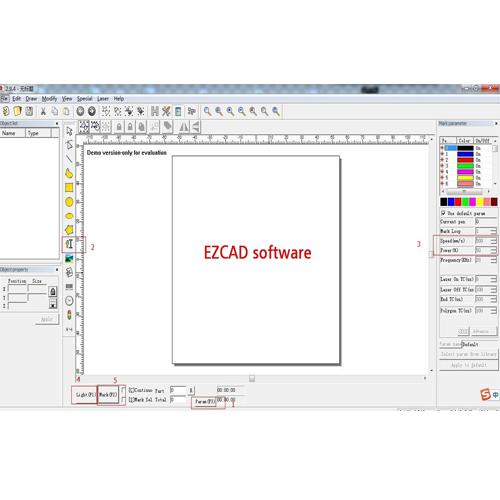

06.Operation Software

Our engraver comes with EzCad2 software compatible with Windows XP, 7, 8, and 10. It is professional engraving offering stable performance with high relibilit. It’s intuitive and easy to use. It can also use images from AutoCAD, CorelDraw, Adobe llustrator, Photoshop, etc.

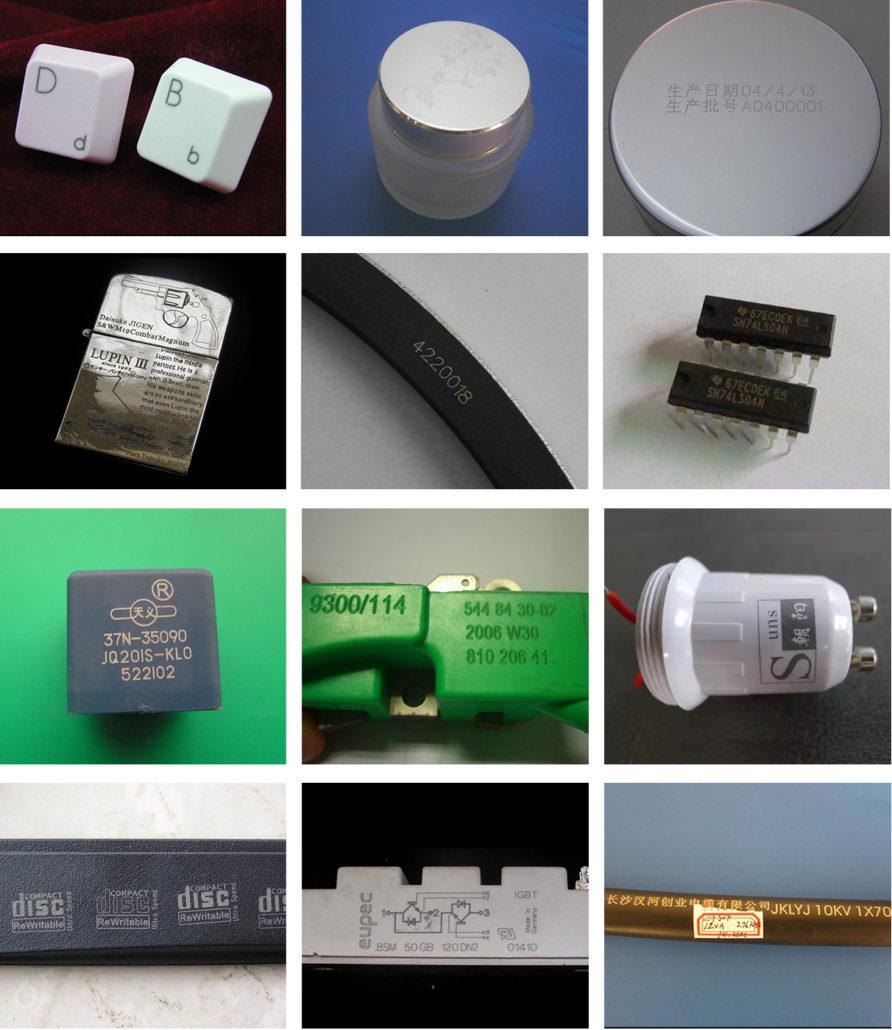

Sample Show

After Sales Service:

1.All of our machine will be fully-checked by our quality control department before the shipment.We guarantee all of our laser machines have a one-year warranty (quick-wear parts notincluded).

2.Training details: operation principles, system and structure, safety and maintenance, softwarethe processing technique, and so on.

3. Numerous feedback from our clients have proven that our laser machines are stable inperformance with rare malfunction. However, we would like to handle it as follows oncemalfunction occurs:

a.We guarantee that we will give you a clear reply within 24 hours.

b. Customer service staff will assist and guide you to analyze the malfunction in order to locatethe cause.

c. If the malfunction is caused by improper operation on software and other soft faults, we willhelp solve the problem on line.

d.We will offer plenty of online supports, just like detailed technical and installation instructionsby email,video, telephone. (Training by team viewer)
