High Speed Biodegradable PE Blown Film Machine ABC Three Layer Multi Layer Plastic HDPE LDPE Film Extruder Blown Extruder Film Blowing Machine Price

Name: High Speed Biodegradable PE Blown Film Machine ABC Three Layer Multi Layer Plastic HDPE LDPE Film Extruder Blown Extruder Film Blowing Machine Price
Brand: RUIAN NUOSHENG MACHINE CO., LTD.
SKU: Tradewheel_2526531
Price: 28800 USD
Availability: InStock

FOB Price 28800 - 100000 USD / pieces

Contact Now

Quick Details (View All)

Model NO.	MB	Automation	Automatic
Computerized	Non-Computerized	Machine Weight	20/25/32/40/50/60 T
Certification	CE, ISO9001:2008	Film Layer	3 5 7
Film Thickness	0.012-0.25mm	Material	Mlldpe LLDPE LDPE EVA
Haul off System	Reversing Haul off	Transport Package	Wooden Case
Specification	CE, ISO9001: 2008, SGS, CQC	Trademark	NuoSheng
Origin	Zhejinag China	HS Code	847730900
Production Capacity	140-450 Kg/H

Product Details

Product Description

Company Info.

Product Description

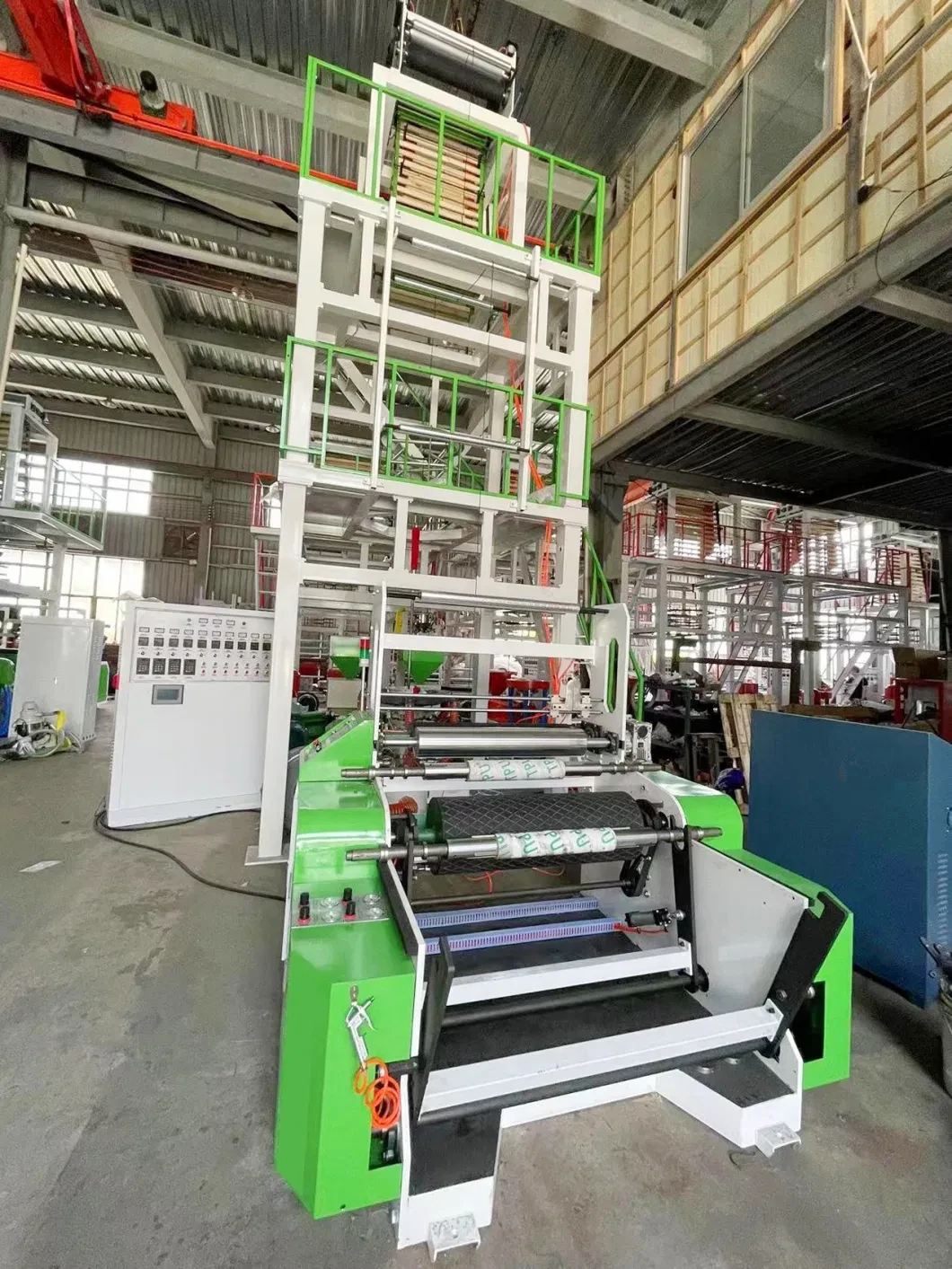

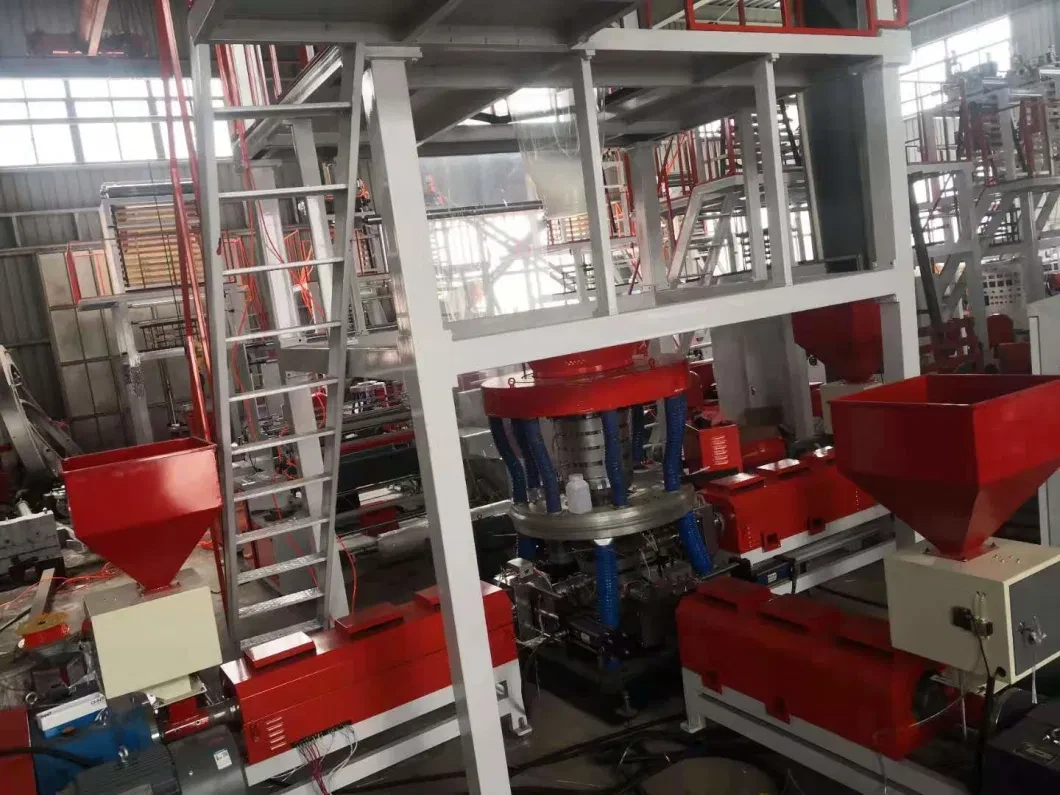

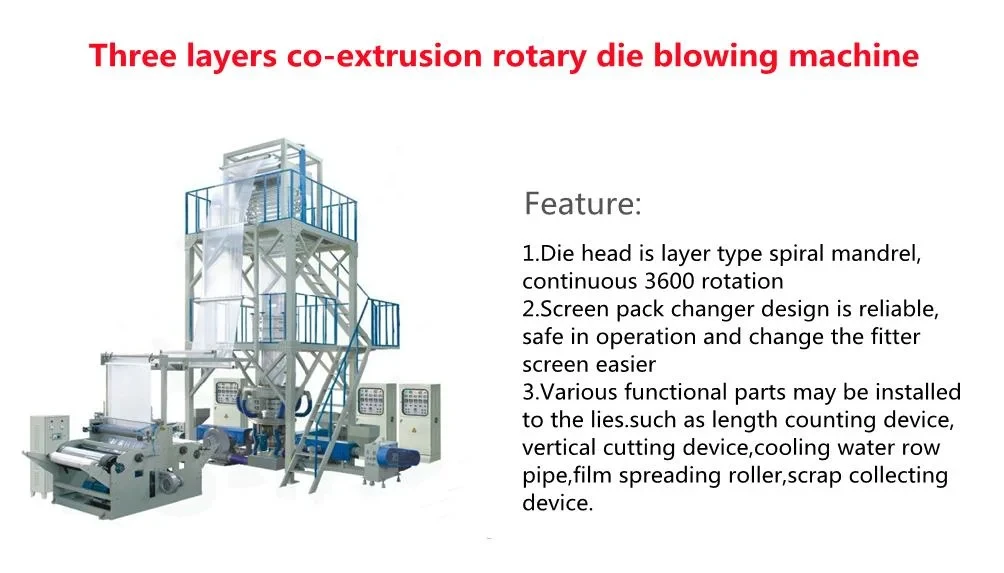

Multi-layer co-extrusion film blowing machine.
1.A innovation of rotary traction device, making film smooth and even.
2.With reasonable structure,the machine saves a lot of energy and its easy to maintain.
3.By means of the reversing haul-off device,the structure of die head is simplified.
4.The film is flat and transparent with high quality and extruding speed.
5.If the machine is with IBC(Internal Bubble Cooling System), it can produce film with the quality of more 6.transparent and better all round performance.

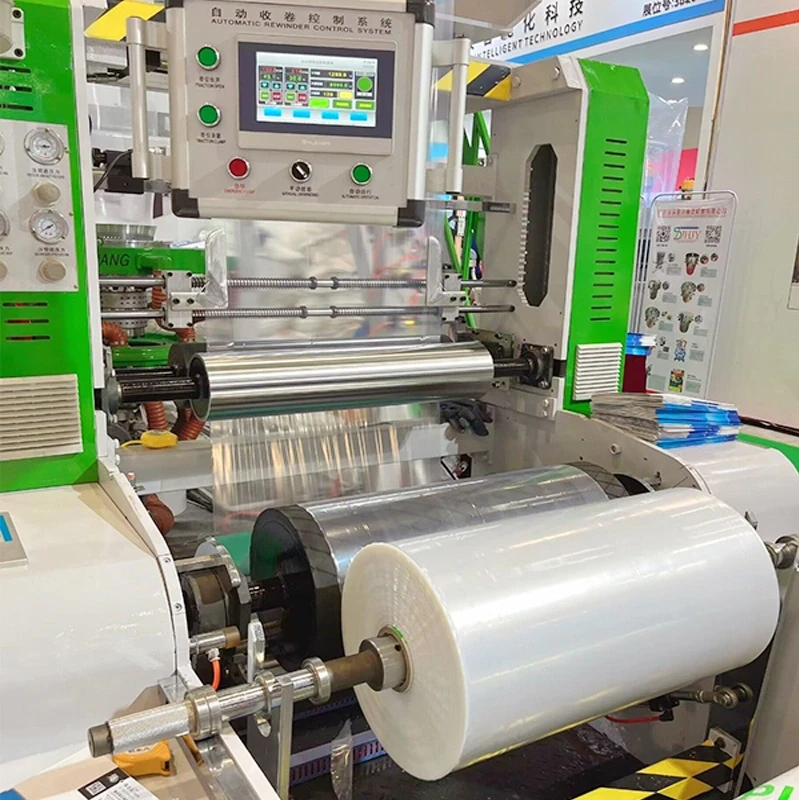

7.The produced film is very flat, reel is high-quality by the use of reversing haul-off device.
8.The film can meet the demand for high-speed printing.

Technical parameters
Type	3SJ1300	3SJ-1500	3SJ-1700	3SJ-2200	3SJ-2700	3SJ-3200
Max Width(mm)	1200	1400	1600	2000	2500	3000
Film layer	3/5/7
Film thickness(mm)	0.012-0.2				0.012-0.25
Max output(kg/h)	140	180	240	280	350	450
Raw Material	MLLDPE/LLDPE/LDPE/EVA
Screw Diameter(mm)	55*3	60*3	65*3	75*3	80*3	90*3
Screw L/D ratio	30:1
Extruder Driving power	22	30	37	45	55	75
way of screen change	Hydraulic/Manual twin-station changing screen quickly

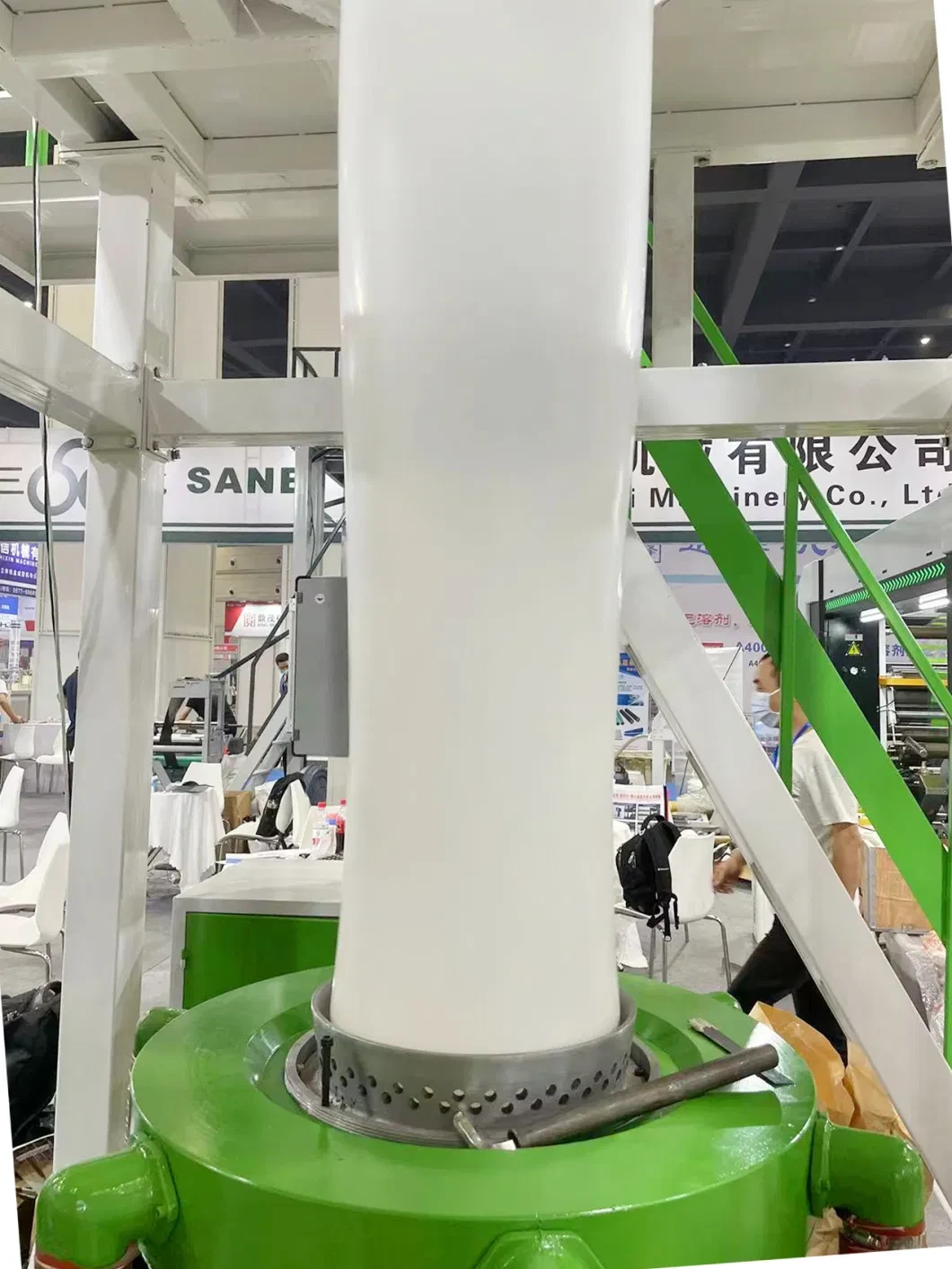

Die structure	Optional:IBC system(Internal Bubble Cooling)
Air-ring structure	dual-lip
Reversing Haul-off system	Film Turning Mode			±180/±360
Reversing Haul-off system	Angle of Reversing			±180
Take-off and wond-up Speed	80m/min
Total power	85	110	140	160	180	220
dimensions	1049	1049.5	11510	12512	13612	15713
Weight(T)	20	25	32	40	50	60
The machine can realize PLC programming and controlling by touch
PS.	The data above may be changed tinily during different time
