MOQ | 1 pc |
Port | ningbo |
Packaging | 1pc/box |
Lead Time | can be negotiated |
Application
1. Zone 1,zone 2;zone 21,zone 22.
2. Suitable for Low installation height in Moist corrosive
environment ,such as offshore drilling platform, Oil Terminal,
etc.
3. Ideal to be used in the environment of flammable gas, steam
and dust environment, such as Petrochemical Plant, Chemical
Plant, Coal Washery, Pharmaceutical Factory,
etc.
4.
Areas for high demand of high temperature
performance.
Characteristics
1. A full range of high conductivity material accelerate
convection cooling structure, effective guarantee long-term use
in high temperature environments.
2. Variety of light distribution, variety of installation types,
an effective solution to beautify workshop and device
platform.
3. It adopts imported light source, no dark spot, energy-saving
is 60% more than Metal Halide Lamp.
4. AC-DC wide voltage driver, power factor above
0.98.
5. The rapid replacement of power without welding can be
realized.
6. The adjustable locking device on the bracket can tightly fix
the lamp to any desired angle, making the lamp resist to harsh
vibration.
7. It is made using aluminum housing, all exposed fasteners adopt
304 stainless steel. Using high-tech anti-corrosion surface
treatment technology, suitable for hazardous working
areas.
8. Windward area is only 30% of the traditional lamp, suitable
for high-altitude winds area.
9. Intelligent control functions can be realized.
Technical Specification
Input Voltage |
90-305VAC |
Frequency |
50Hz / 60Hz |
Anti corrosion grade |
WF2 |
Insulation Grade |
I |
Screw Thread |
G3/4”, NPT3/4", M20, M25, NPT1/2" |
Cable Diameter |
Φ9mm-Φ14mm |
Dimension |
Φ300x202x332mm |
Net Weight |
6.3Kg |

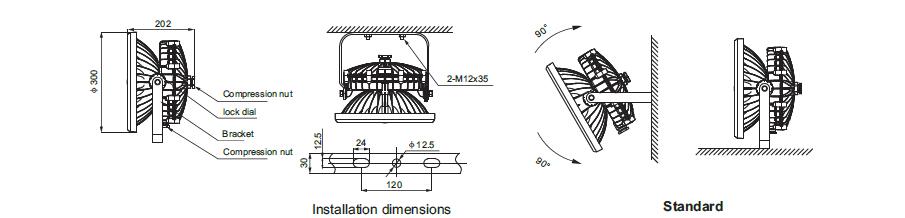

Drawing of dimension (Dimensions in mm)
Ordering reference
Model Number |
Light Source |
Rated wattage (W) |
Light output (lm) |
Equivalent to |
||
MH |
LVD |
HPS |
||||
BC9700-L60 |
LED |
60 |
6,600 |
150W |
135W |
175W |
BC9700-L80 |
LED |
80 |
8,600 |
175W |
165W |
250W |
BC9700-L100 |
LED |
100 |
11,200 |
250W |
200W |
>250W |
BC9700-L120 |
LED |
120 |
12,900 |
>250W |
>250W |
>400W |
BC9700-L150 |
LED |
150 |
15,500 |
400W |
400W |
>400W |
BC9700-L200 |
LED |
200 |
22,300 |
>400W |
>400W |
>400W |
Metal Halide Lamp: MH
Electrodeless Lamp: LVD
High Pressure Mercury Lamp: HP
