High Frequency and Inertia Circular Vibration Screen Bowl Feeder for Long Screw

FOB Price 500 - 1500 USD / pieces

Quick Details (View All)

Model NO.JYC202304119-long screw Max Feeding (mm)750
Capacity(t/h)80-150 Motor Power(kw)20~25
Installation Slope10 Chute size(mm)6000u00d71300
Overall Dimension6082u00d72580u00d72083 FunctionHigh Frequency Vibrating Screen
WorksRotary Vane Shaker ObjectFood Processing
Shaft NumberSingle Running TrackCircular Vibrating Screen
Supporting DeviceCoil Spring CustomizedCustomized
ConditionNew Transmission StructureInertia Vibrating Screen
ComponentPLC, Controller MaterialSUS304 or Based on Customers Requiremen
Noise70dB EnclosuresBased on Customer Requirement
Transport PackageWooden SpecificationCustomized according to customers
TrademarkJinya Bowl Feeder OriginChina Shanghai
HS Code8429409000 Production Capacity100sets/Month

Product Details

Product Description

Company Info.

  • Overview
  • Product Description
  • Product Parameters
  • Customization Product Show
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • After Sales Service
  • FAQ
Overview

Product Description

Product Description

Working principle of vibration bowl feeder: frequency converter, motor, realize automatic conveying function. There is a pulse electromagnet below the hopper, which can make the hopper vibrate in the vertical direction. Due to the tilt of the spring sheet, the hopper vibrates around its vertical axis. The parts in the hopper, due to this vibration, rise along the spiral track until they reach the discharge port.
Product Parameters

The attached table contains the main parameters of the product for reference only.
More products are customized according to customer needs. Please refer to the following text.

Product Name Vibratory Bowl Feeder Product Name Vibratory Bowl Feeder
Material SUS304 or Based on Customers Requirement Bowl Size Customized
Voltage AC220V or Based on Customers Requirement Core Components PLC, Controller, Vibrator
Power 350W/400W/500W/00W/800W Speed Adjustable
Rotation Clockwise or Counter clockwise Bowl Finishing Polishing or PU coating
Color Silver or Based on Customers Requirement
Lead Time 30days Payment Term T/T 30% Deposit and balance before shipment
Warranty 1Year Service Spare parts and Technology Support

Customization Product Show

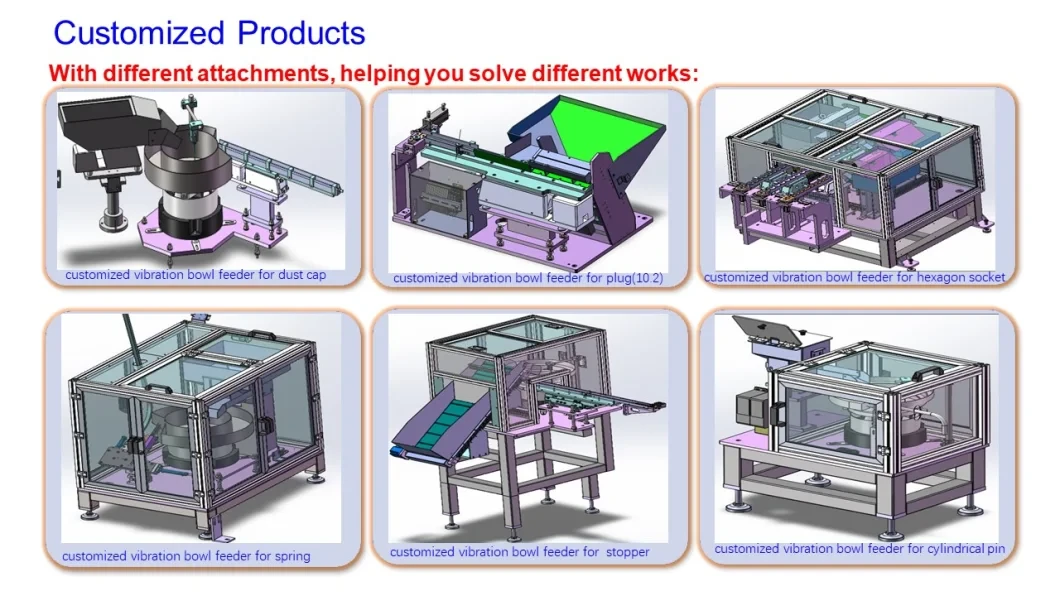

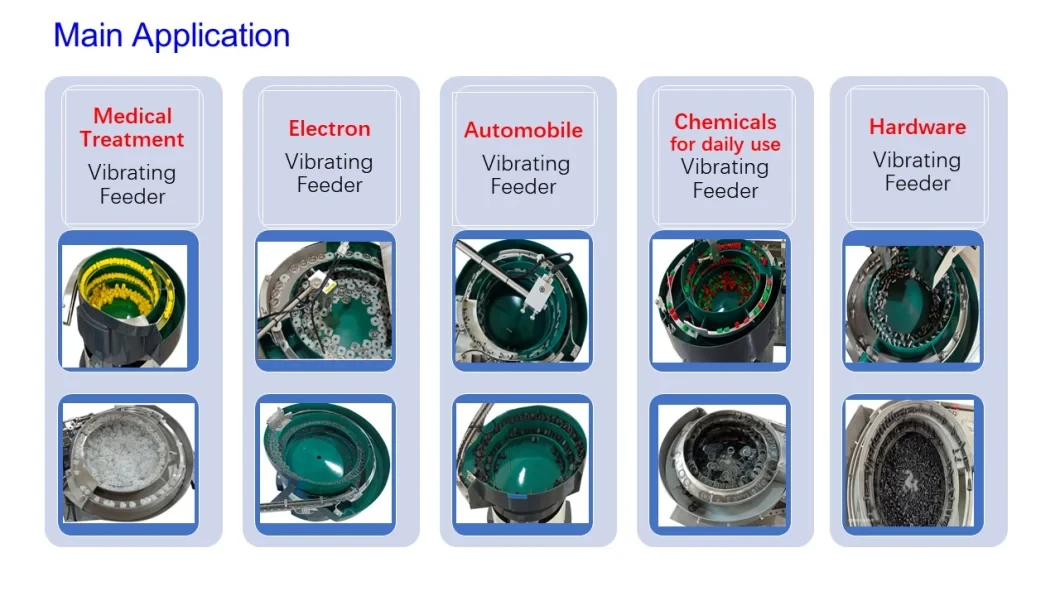

More product applications and exhibits are displayed as follows.
With different attachments, helping you solve different works.

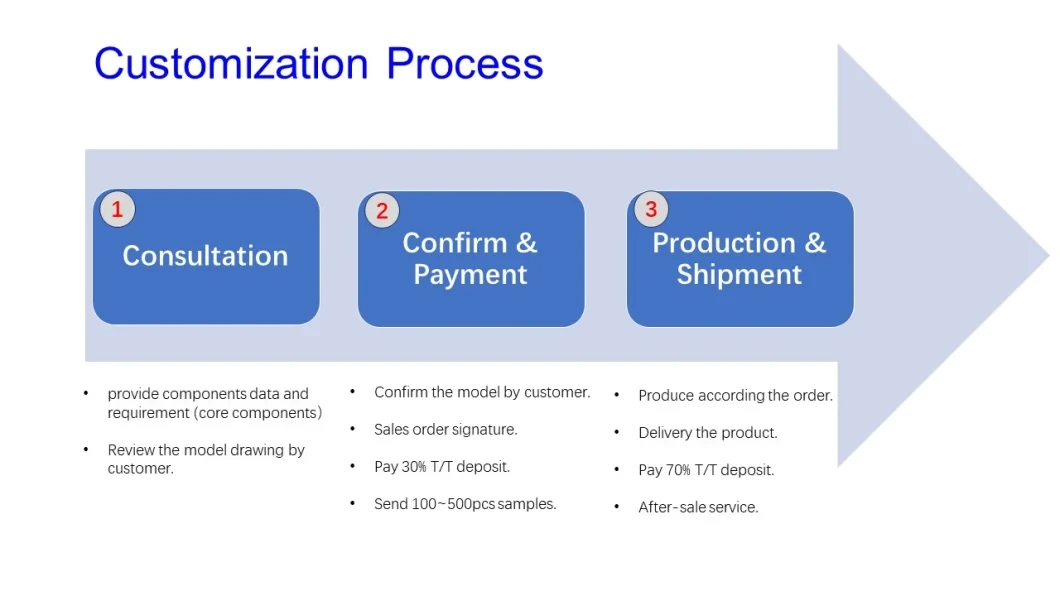

The attached table shows the customer order operation process.
Most orders meet the needs of different customers. We will be dedicated to serving you.
If you have any needs, please consult and contact us.

Company Profile

Jinya Company was founded in 2018, as a pioneer in the Chinese vibration disc industry.

In the first step of automated production - automated sorting and feeding, we adopt our own professional manufacturing technology and have rich production practice experience and technological innovation experience.

We have good partners in various industries such as automotive, hardware, medical, and electronics.

In order to ensure product quality, the company controls the entire production process from raw material procurement, manufacturing, quality control to after-sales. Every product produced by Jinya is meticulously crafted, undergoes strict quality inspections, and is accountable to the end.
In recent years, Jinya has also been committed to technology as the main focus and continuous innovation. It has successively developed technological innovation projects such as push plate machine with vibration, rivet gun with vibration, and oil-water separator, achieving remarkable results.
With almost 10 years of production and sales experience in Shanghai Jinya, we have reason to believe that we have a better understanding of vibration discs than our peers!
With the improvement and assurance of production quality, products such as vibration discs produced by Jinya have truly achieved "no after-sales service is the best service"!
Jinya sincerely welcome domestic and foreign customers to patronize and cooperate with us to create a great future.

Certifications

Since its establishment, the company has obtained 9 patents, some of which are shown below.
Company has excellent technical strength, widely recognized in the industry.

NO Item Patent Content Certificate No
1 2022.12.01 Flexible hose feeder ZL2022 2 3216121.9
2 2023.02.16 Multiple ratchet shared automatic switching devices ZL2023 2 0233614.9
3 2023.02.16 Automatic feeding equipment for large-sized snap springs ZL2023 2 0233652.4
4 2023.04.18 O-ring feeding equipment. ZL2022 2 3211217.6
5 2023.04.18 Quantitative feeding equipment ZL2022 2 3224747.4
6 2023.04.18 Pneumatic rivet feeding equipment ZL2022 2 3337382.6
7 2023.06.30 Pneumatic feeding equipment for steel balls ZL2023 2 1689604.2
8 2023.04.21 A nail feeding device that automatically filters the length of screws ZL2023 2 0918017.X
9 2023.04.21 Screw positioning device ZL2023 2 0918048.5




Packaging & Shipping
we can provide professional worldwide transportation, such as by sea, by air, by express and etc.
To meet customers requirement of quick delivery, we have build experienced department to arrange product inspection ,custom declaration.
Backed by Shanghai, with its advantageous geographical location and convenient transportation conditions, the delivery quality is guaranteed to be first-class.

After Sales Service

From pre-sale,on sale and after-sale, we will continue to provide.
With the improvement and assurance of production quality, products such as vibration discs produced by we have truly achieved "no after-sales service is the best service"!

FAQ

We are 24hours online.
For more questions, please consult or leave a message.
