Quantity | 1USD - 1000USD |
Price |
MOQ | 1 set |
Port | Tianjin |
Packaging | wooden box |
Lead Time | 30 |
HHB Electric Chain Hoist Introduction:

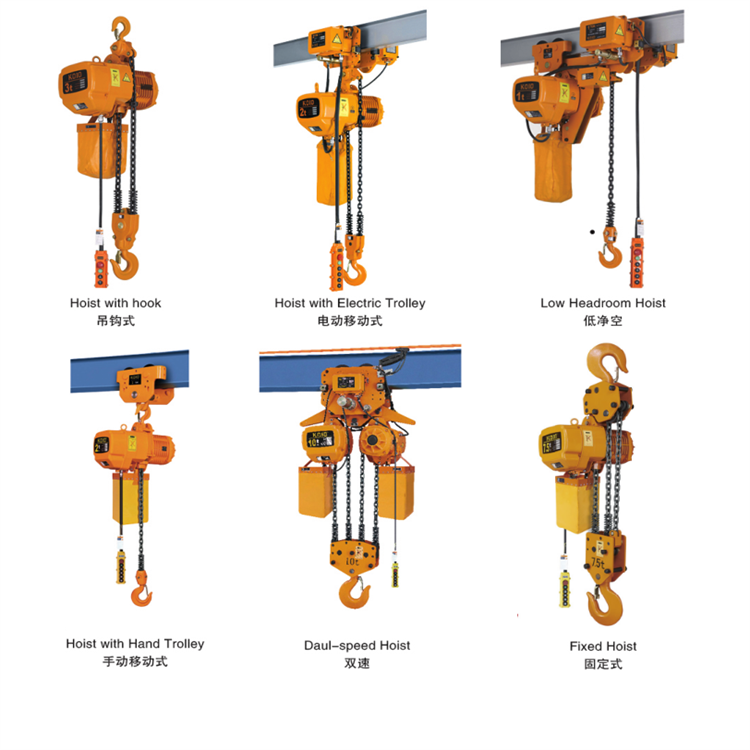

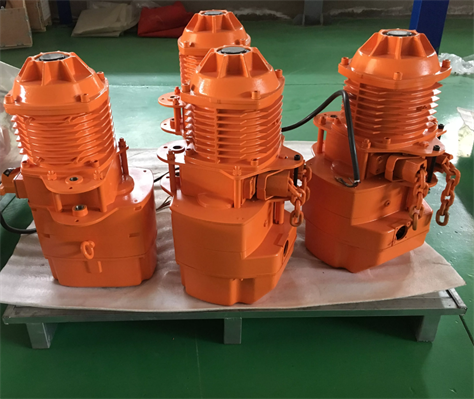

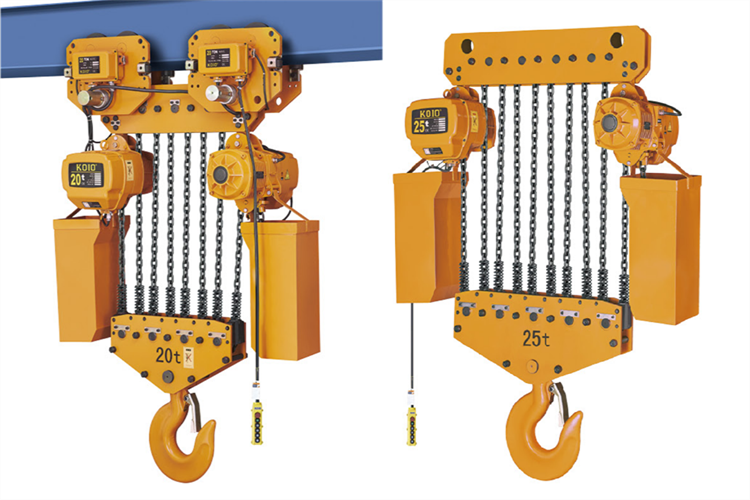

HHB Electric Chain Hoist is a light and small lifting equipment. It consists of electric motor, transmission mechanism and sprocket. The lifting capacity is 0.3-32 Ton, and the lifting height is 3-120 Meters. HHB Electric Chain Hoist is widely used in workshops, warehouses, wind power generation, logistics, docks, construction and other occasions. This electric hoist is used in conjunction with single and double beam cranes, jib cranes
and gantry frames. It can be used for hoisting or loading and unloading goods, and can also be used for installation, debugging and maintenance of precision molds. The operator can follow the operation on the ground with the button, and can also operate by remote controllers.

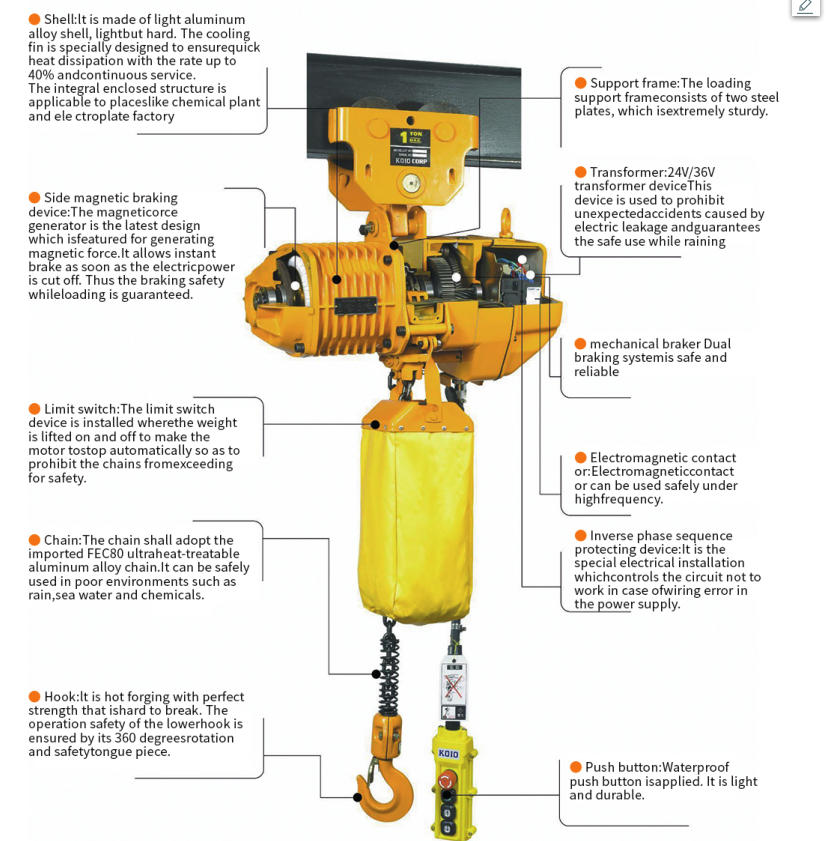

HHB Electric Chain Hoist Advanced Features:
1. Shell: The shell is light and strong, with high heat dissipation rate, and the fully sealed design is suitable for use in environments with poor operating conditions.
2. Reverse phase protection device: It is a special electrical device. When the power supply wiring is wrong, the control circuit cannot work.
3. Limit switch: There are limit switch devices on the lifting and lowering of heavy objects to make the motor stop automatically to prevent the chain from exceeding and ensure safety.

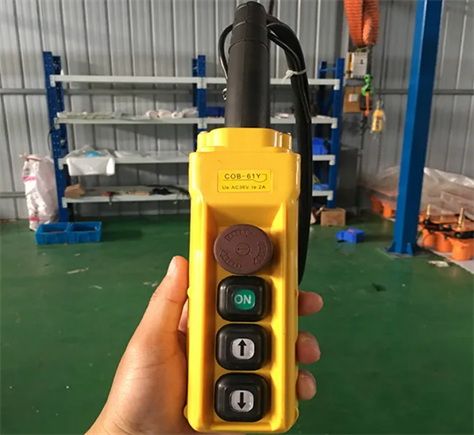

4. Low-voltage handle switch: The handle is low-voltage control 24V/36V/48V device, if the switch leaks during operation, it can prevent accidents.
5. Braking device: The braking adopts disc DC electromagnetic field braking, with large braking torque, stable, rapid and low noise.

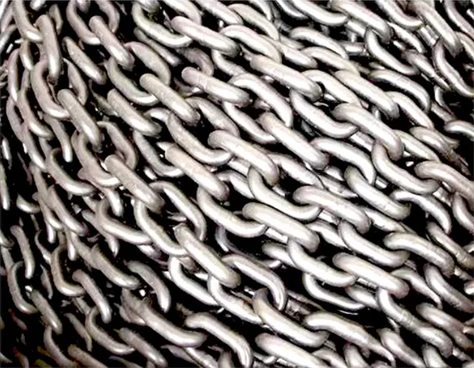

6. Chain: 80-grade super-strength heat-treated alloy steel chain is used to make the chain more tough, firm and wear-resistant, ensuring safety during work.
7. Running device: The electric trolley is equipped with a guide device to make the hoist run more smoothly on the I-beam.
8. Aviation socket: The electrical connection between the hoist and the trolley adopts the aviation plug, which is more safe and beautiful.
9. Low headroom: The low headroom electric hoist has a unique
structure in shortening the distance between the body and the
beam
track. It is suitable for use in lower buildings, especially
for temporary plant buildings or where it needs to expand
and
effectively lift. place of space.
额定起重容量 Rated Lifting Capacity (T) |
0.5T |
1T |
1T |
2T |
2T |
3T |
3T |
3T |
5T |
7.5T |
10T |
规格和模型 Specification And Model (3m) |
0.5-1 |
1-1 |
1-2 |
2-1 |
2-2 |
3-1 |
3-2 |
3-3 |
5-2 |
7.5-3 |
10-4 |
权力电源电压 Power Supply Voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
频率 Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
提升速度 Lifting Speed (M/min) |
7.2 |
6.8 |
3.6 |
6,6 |
3.4 |
5.6 |
3.3 |
2.2 |
2.8 |
1.8 |
2.8 |
操作速度 Operating Speed (M/min) |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
11/1 |
链条规格 Chain Specification |
Medium 6.3 |
Medium 7.1 |
Medium 6.3 |
Medium 10 |
Medium 7.1 |
Medium 11.2 |
Medium 7.1 |
Medium 10 |
Medium 11.2 |
Medium 11.2 |
Medium 11.2 |
工字梁浇口型号 I-beam Sprue Model (Mm) |
75-125 |
68-153 |
68-153 |
82-178 |
82-178 |
1 GO- 178 |
1 GO- 178 |
00-178 |
112- 178 |
112- 178 |
112- 178 |
