| Video outgoing-inspection | Provided | Machinery Test Report | Provided |
| Core Components | PLC, Gearbox, motor | Type | Pipe Production Line |
| Pipe Material | Stainless steel,titanium | Place of Origin | Guangdong, China |
| Brand Name | GXG | Voltage | 380/415V, 220/380/415/420/440V |
| Power | 55KW | Weight | 35800 kg |
| Warranty | 2 years | Key Selling Points | Easy to Operate |
| Product Name | Steel Tube Mill | Welding Mode | TIG |
| Current Frequency | 50 Hz / 60 Hz | Pipe Diameter | 9.5-50.8mm |
| Thickness | 0.23-1.5mm | Pipe Shape | Round / Square / Rectangle/Shaped |
| Export Port | Foshan/Guangzhou/Shenzhen/Customer designated port | Price Model | CIF/FOB/EXW... |
| After-Sell Service | Installation, Guidance, Training,Maintenance |

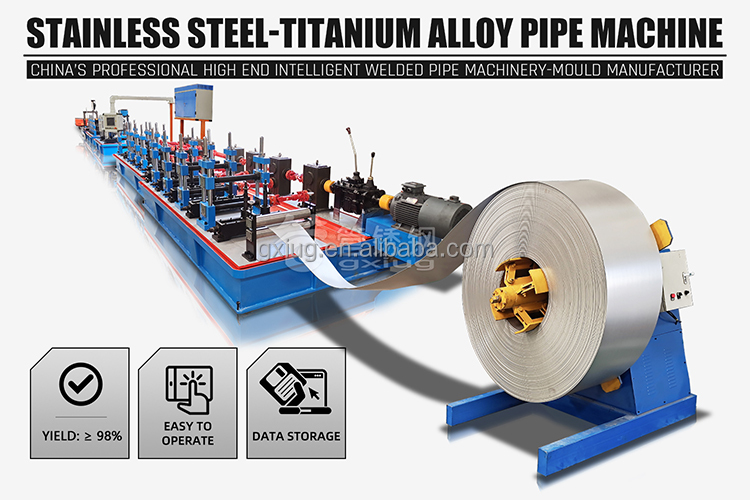

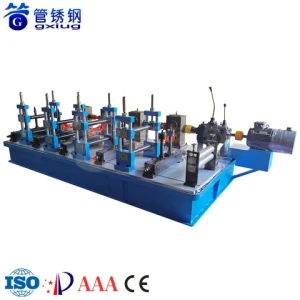

GXG Technology Weld Tube Making Machine Product Line Pipe Mill Roll Forming Equipment Manufacturer Supplier Price
TUBE MATERIAL:Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc
PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc
USAGE:Pipes for Furniture, Construction, Municipal Facilities etc Fields
Stainless Steel Weld Tube Making Machine Product Line Pipe Mill Roll Forming Equipment Manufacturer Supplier Price is a professional equipment which mainly produces decorative pipes. It can be used in the production of handrails, railings, tables and chairs, doors, windows and other pipes with low strength and high ornamental requirements. It can produce round, square, rectangular, special-shaped and other shapes. It is suitable for the manufacture of stainless steel, iron, copper/galvanized and other metal materials.
GXG Technology Weld Tube Making Machine Product Line Pipe Mill Roll Forming Equipment Manufacturer Supplier Price
| MODEL | Round Tube Range (mm) | Square Tube Range (mm) | Wall Thickness Range (mm) | Horizontal Shaft Diameter (mm) | Vertical Shaft Diameter (mm) |
Main Motor Power (kw) |
Installation Dimension (L*W m) | Rated Voltage (v) |
| GXG-S40 |
Ø5—31.8 1/5”—1-1/4” |
5*5—25*25 |
0.15—0.8 / 0.5 |
Ø40 |
Ø25 |
5.5 |
21*1 |
220 / 380
415 / 440 |
| GXG-40 |
Ø9.5—50.8 3/8”—2” |
8*8—40*40 | 0.23—1.5 / 1.2 | Ø40 | Ø25 | 7.5 | 22*1.2 | |
| GXG-L40 |
Ø15.9—63.5 5/8”—2-1/2” |
13*13—50*50 | 0.30—1.8 / 1.3 | Ø40 | Ø25 | 7.5 | 23*1.2 | |
| GXG-50 |
Ø19.1—76.2 3/4”—3” |
20*20—60*60 | 0.35—2.5 / 1.5 | Ø50 | Ø30 | 11 | 25*1.3 | |
| GXG-60 |
Ø31.8—114.0 1-1/4”—4-1/2” |
30*30—90*90 | 0.55—3.0 / 2.0 | Ø60 | Ø35 | 15 | 28*1.5 |
GXG Technology Weld Tube Making Machine Product Line Pipe Mill Roll Forming Equipment Manufacturer Supplier Price
