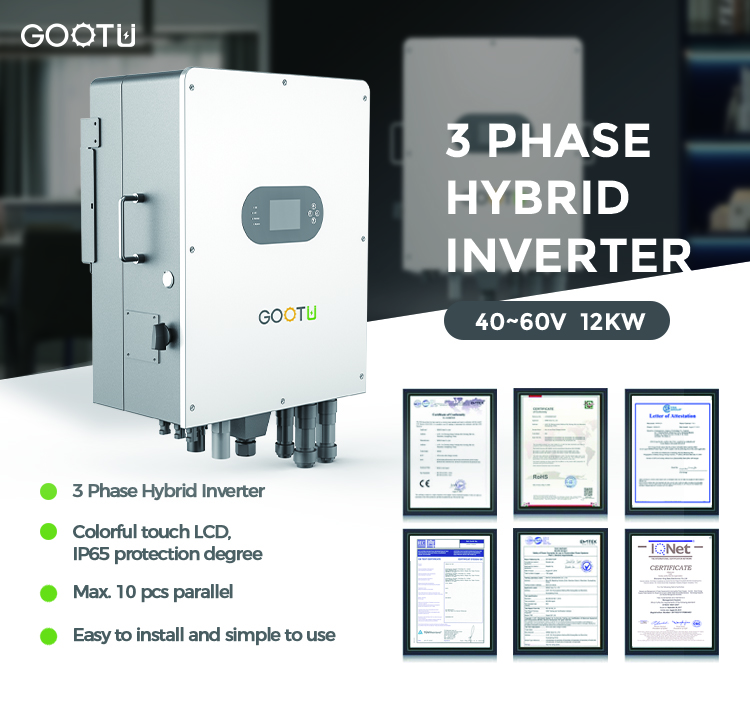

GOOTU Pure Sine Wave IP65 8KW 10KW 12KW Low Voltage 3 Phase Hybrid Solar Inverter With WiFi And MPPT Solar Charge Controller

Name: GOOTU Pure Sine Wave IP65 8KW 10KW 12KW Low Voltage 3 Phase Hybrid Solar Inverter With WiFi And MPPT Solar Charge Controller
Brand: Shenzhen Jiesaiyuan Electricity Co., Ltd.
SKU: Tradewheel_2735579
Price: 1250 USD
Availability: InStock

FOB Price 1250 - 1250 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Model Number	GT-3PH-12K-EU
Brand Name	GOOTU	Input Voltage	3/N/PE, 380V/400V
Output Voltage	220-240V	Output Current	18.2A
Output Frequency	50Hz/ 60Hz	Output Type	Triple, Three Phase
Size	422702281mm	Type	DC/AC Inverters, DC/DC Converters
Inverter Efficiency	99%	Weight	38KG
Product name	IP65 Three Phase Hybrid Solar Inverter	Application	Home Solar Power System
Inverter type	Hybrid Solar Inverter	Protection	Short Circuit Overload Overvolt Overtemp
Display	LCD Display	Certificate	CE FCC ROHS,IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1
Rated power	8000W 10000W 12000W	Communication	WIFI/RS485/CAN
Waveform	Pure Sine Wave	OEM/ODM	Warmly Welcomed

Product Details

Details Images

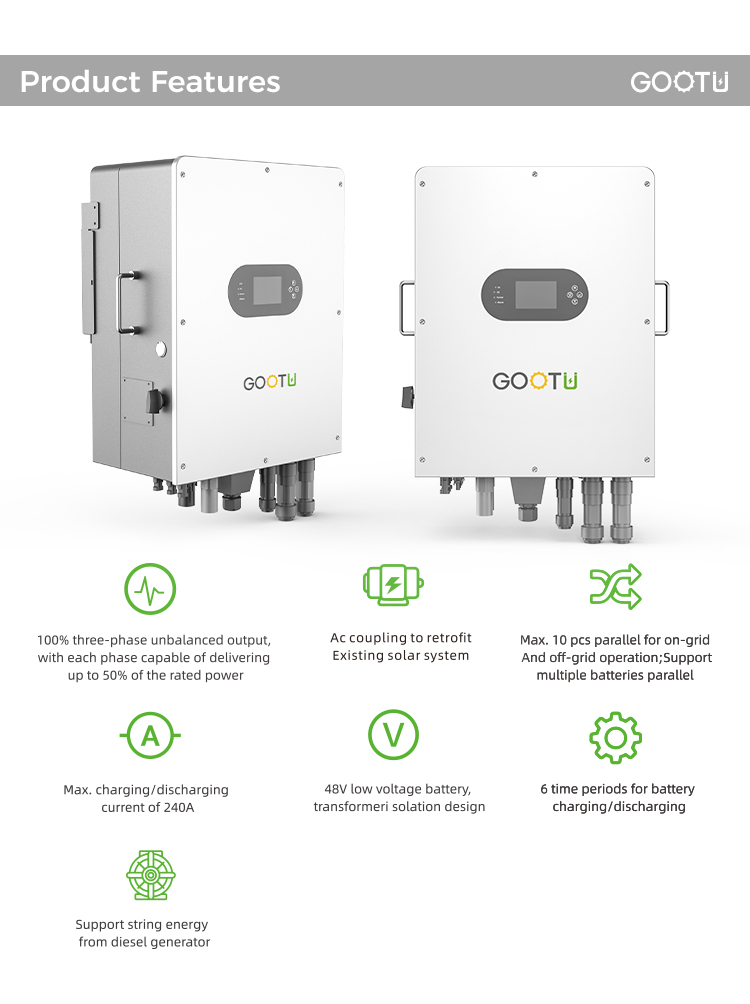

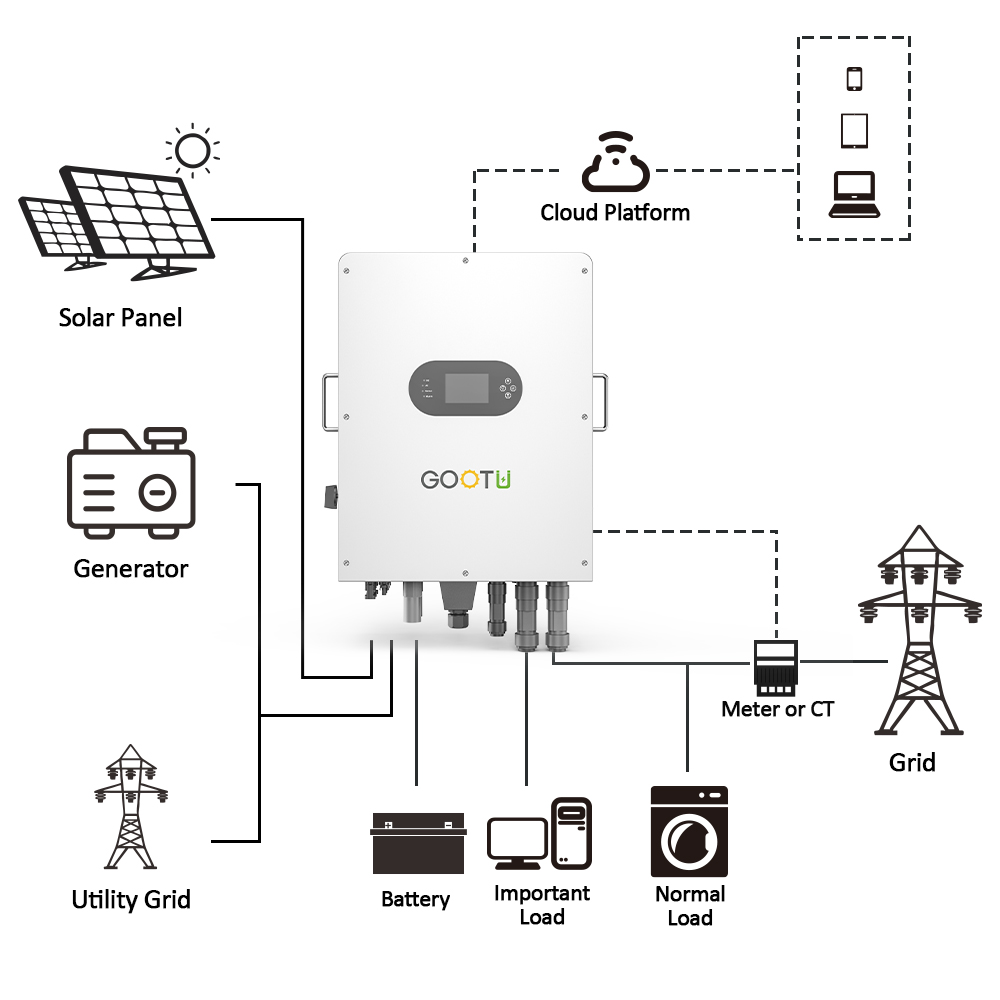

1. **High-Power Conversion**: The 3-phase 380V 12kW solar hybrid inverter efficiently transforms solar DC power to AC, suitable for various power needs in residential and commercial solar systems.

2. **Colorful Touch LCD**: Its vivid and user-friendly touch LCD screen enables easy monitoring and control of power generation, battery status, and settings.

3. **IP65 Durability**: With an IP65 rating, it resists dust and water well, suitable for harsh outdoor and industrial environments, ensuring long-term stable performance.

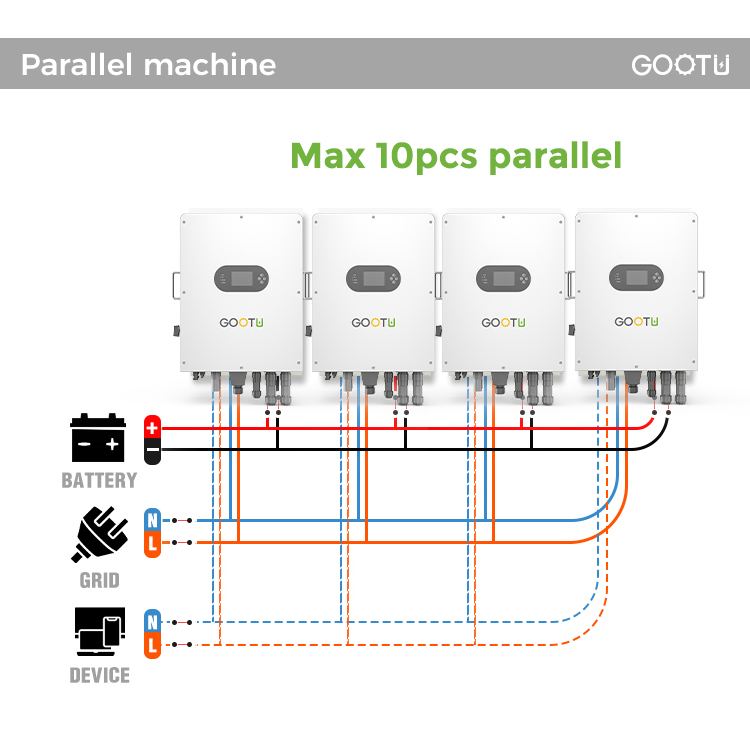

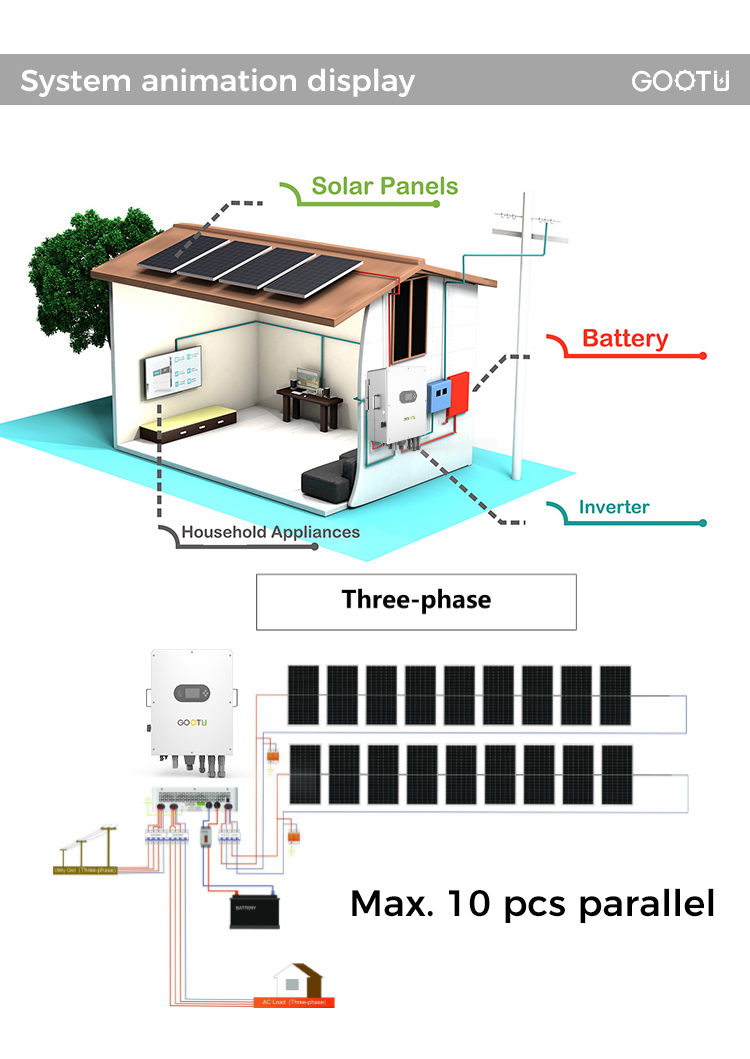

4. **Parallel Flexibility**: Can connect up to 10 units in parallel, providing scalability to meet different power demands and allowing system expansion.

5. **Simple Installation & Use**: Easy to install with clear instructions and operate, convenient for both professionals and DIYers, promoting solar system deployment.

Data Sheet

Model	GT-3PH-6K-EU	GT-3PH-8K-EU	GT-3PH-10K-EU	GT-3PH-12K-EU
PV String Input
Max. DC Input Power (W)	7800	10400	13000	15600
Rated PV Input Voltage (V)	550 (160-800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load MPPT Voltage Range (V)	350-650
Max. DC Input Current(A)	13+13			26+13
Max. DC Short Circuit Current(A)	17+17			34+17
No.of MPPT Trackers	2
No.of Strings per MPPT Tracker	1+1			2+1
AC Output
Rated AC Output Power (W)	6000	8000	10000	12000
Max AC Output Power (W)	6600	8800	11000	13200
AC Output Rated Current (A)	9.1	12.1	16.7	18.2
Max AC Output Current (A)	10	13.4	18.4	20
Max Output short circuit current (A)	75
Max. Continuous AC Passthrough(A)	45
Peak Power (oﬀ grid)	2 times of rated power, 10 S
Power Factor	0.8 leading - 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380Vac, 230/400Vac
Grid Type	Three Phase
Total Harmonic Distortion (THDi)
