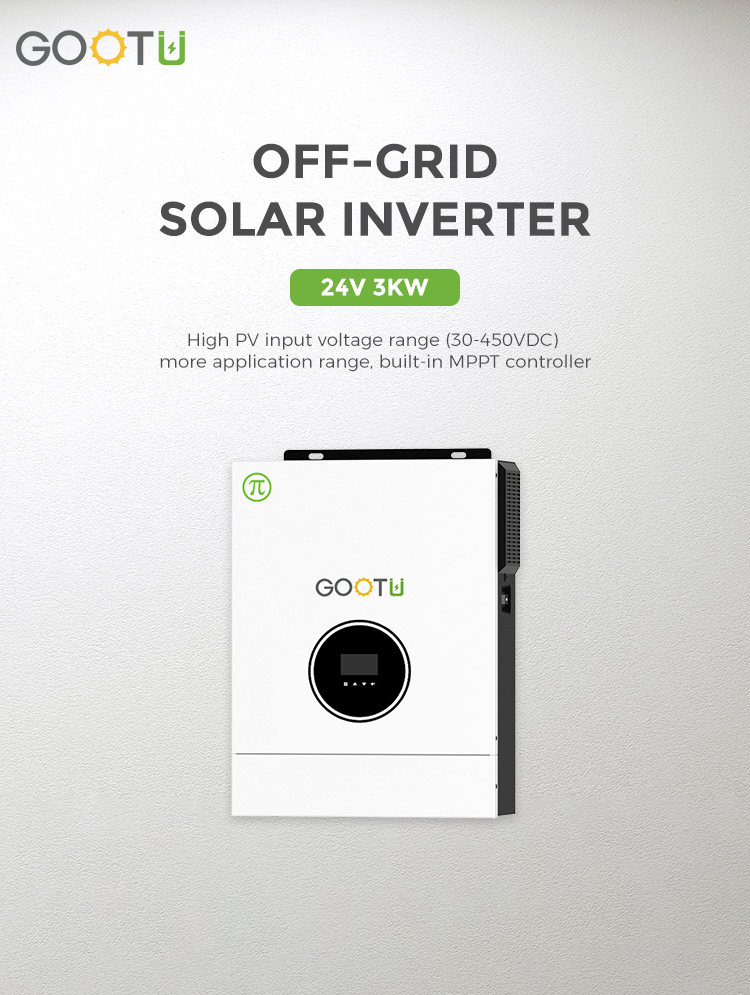

GOOTU 3Kva 30-400VDC Wide PV Input 24V 3KW Off Grid Solar Inverter With 80A MPPT Solar Charger Controller

Name: GOOTU 3Kva 30-400VDC Wide PV Input 24V 3KW Off Grid Solar Inverter With 80A MPPT Solar Charger Controller
Brand: Shenzhen Jiesaiyuan Electricity Co., Ltd.
SKU: Tradewheel_2735600
Price: 99 USD
Availability: InStock

FOB Price 99 - 99 USD / pieces

Contact Now

Quick Details (View All)

Place of Origin	Guangdong, China	Model Number	JSY-O2430E80-W
Brand Name	GOOTU	Input Voltage	24V
Output Voltage	220-240V	Output Current	80A
Output Frequency	50Hz/ 60Hz	Output Type	Single, DUAL
Size	35727395MM	Type	DC/AC Inverters
Inverter Efficiency	98%	Weight	4.8KG
Product name	Single Phase Off Grid Solar Inverter	Application	Home Solar Power System

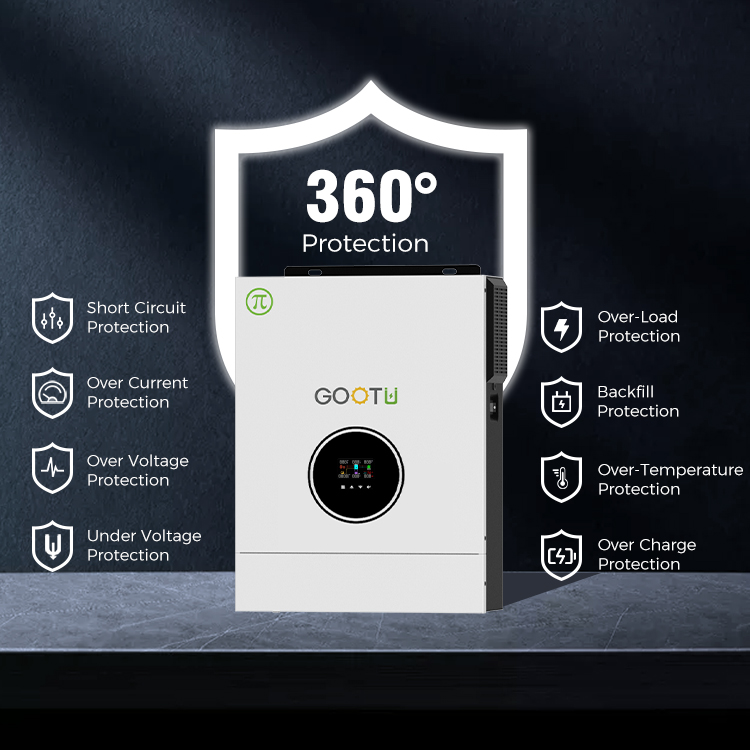

Inverter type	On Off Solar Inverter	Protection	Short Circuit Overload Overvolt Overtemp
Display	LCD Display	Certificate	CE FCC ROHS, CE FCC ROHS
Rated power	3000W	Communication	RS232/WIFI/Remove LCD/GPRS
Waveform	Pure Sine Wave	OEM/ODM	Warmly Welcomed
Warranty	1 Years

Product Details

Products Description

GOOTU Wide Voltage Solar Inverter

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer

uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

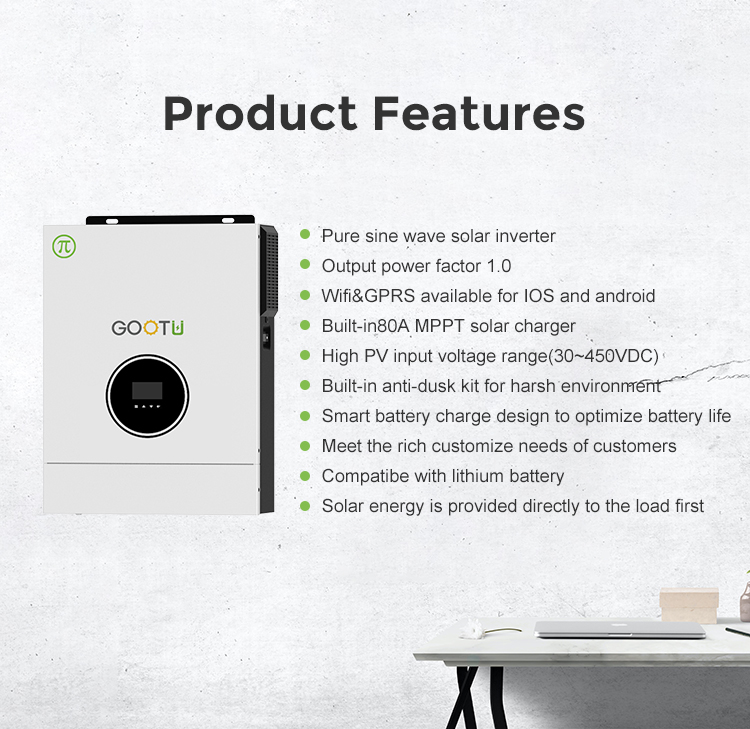

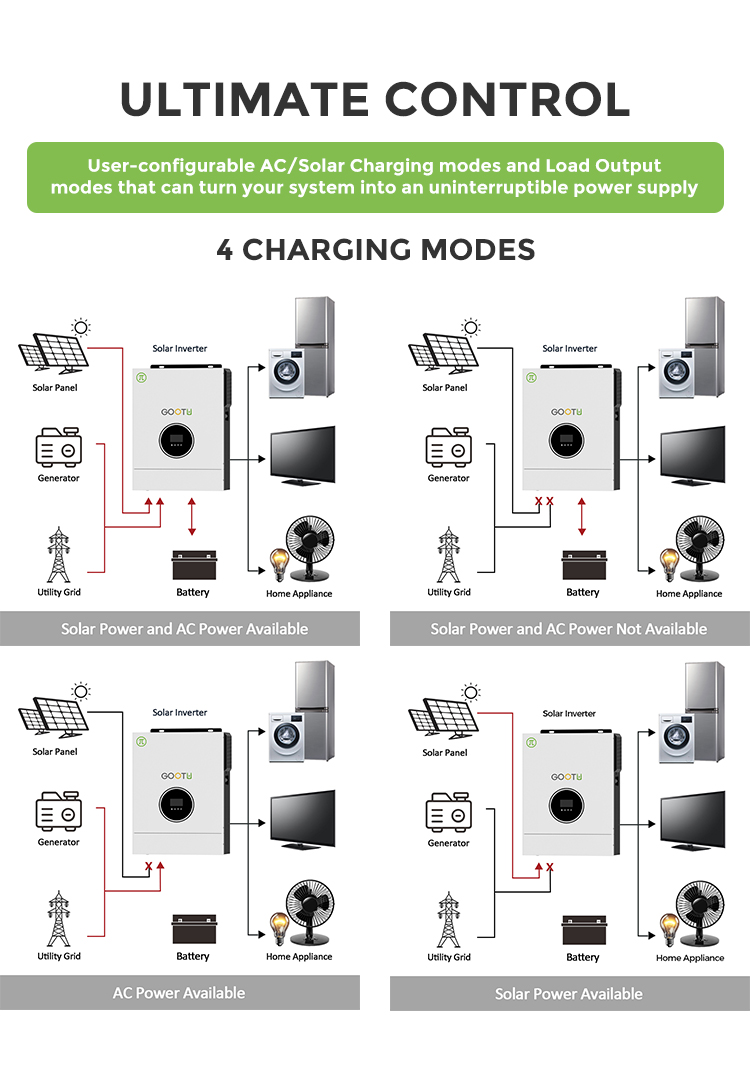

Features： 1.Pure sine wave inverter .Configurable input voltage range for home appliances and personal computers via LCD setting 3.Configurable battery charging current based on applications via LCD setting 4.Configurable AC/Solar Charger priority via LCD setting 5.Compatible to mains voltage or generator power 6.Auto restart while AC is recovering 7.Overload/Over temperature/short circuit protection 8.Smart battery charger design for optimized battery performance 9.Cold start functio

Details Images

Data Sheet

Model	JSY-O1216E80-W	JSY-O2430E80-W
Rated Power	2000VA/1600W	3200VA/3000W
AC Input
Volatage	230V AC
Selectable Voltage Range	170~280V AC(For Personal Computers)
Selectable Voltage Range		90~280V AC(For Home Appliances)
Frequency Range	50 Hz/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation	230V AC ±5%
Surge Power	4000VA	6400VA
Efficiency(Peak) PV to INV	98%
Efficiency(Peak) Battery to INV	94%
Transfer Time	10ms (For Personal Computers); 20ms (For Home Appliances)
BATTERY&AC CHARGER
Battery Voltage	12V DC	24V DC
Floating Charge Voltage	13.5V DC	27V DC
Overcharge Protection	16V DC	33V DC
Maximum AC Charge Current	60A
SOLAR CHARGER
Maximum PV Array Power	2000W	3000W

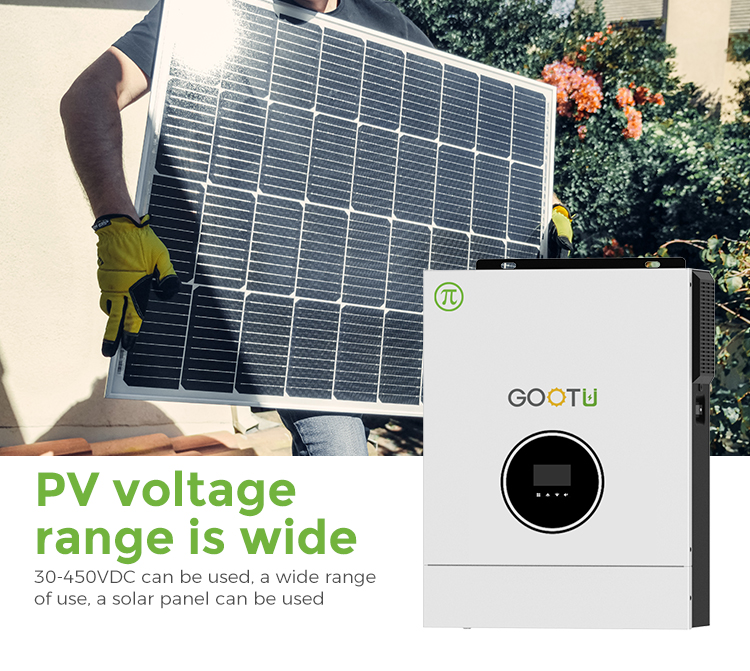

MPPT Range @ Operating Voltage	30~450V DC
Maximum PV Array Open Circuit Voltage	450V DC
Maximum Charging Current	80A
PHYSICAL
Dimension,D X W X H(mm)	35727395
Net Weight(kgs)	4	5
Communication Port	RS232/WIFI//GPRS
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non~condensing)
Operating Temperature	-10-50℃
